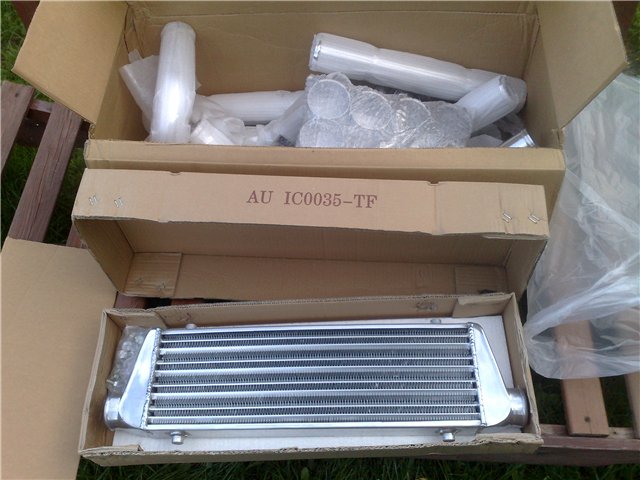

The program for the control of the turbo written. Now you need to make the final look and torque stand. However, not all so is simple. I don't like how that is done at the moment. First of all you should install the intercooler. This will reduce the temperature of the air and increase density. I bought a cooler, but it is still on the way to me. The second task, to make the intake tract before the turbocharger. The thing is that I measured the temperature of the air in the stock air filter and when Dryflow filter.
Result: stock 56C, dryflow 71C. This is an occasion to think, those who establish themselves dryflow filter.
So I decided to make housing for the stock filter. This is what I want today to tell.

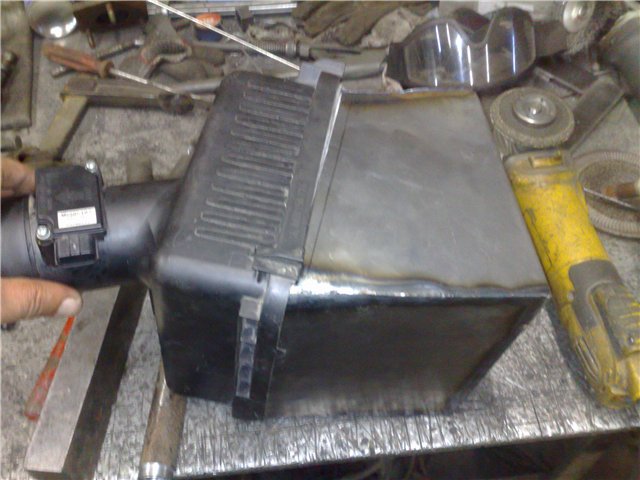

The stock filter housing consists of two parts. I need to rotate the housing by 90 degrees. I left that part in which the MAF sensor. The second part is to be made.

stayer

Posted 27/8/2012 14:19 (#14531 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

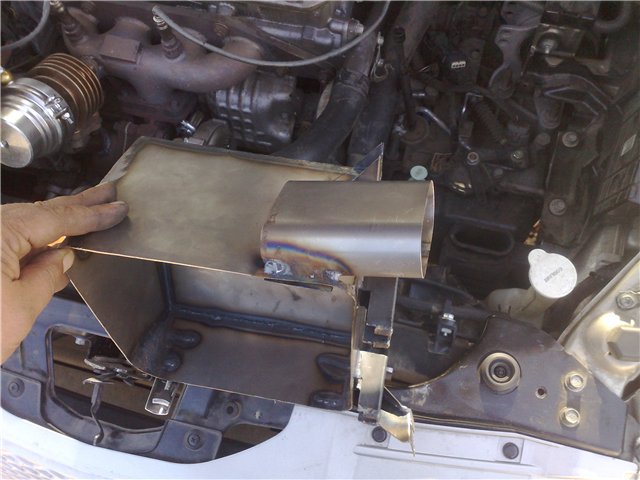

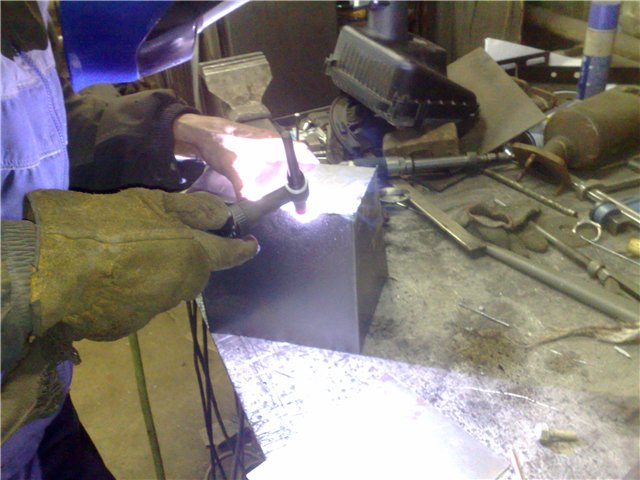

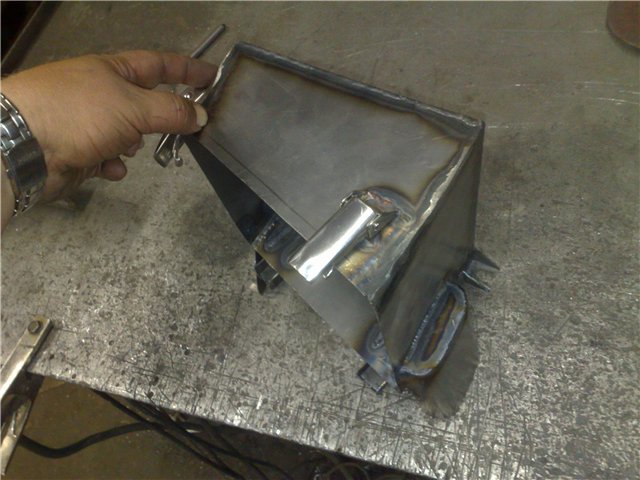

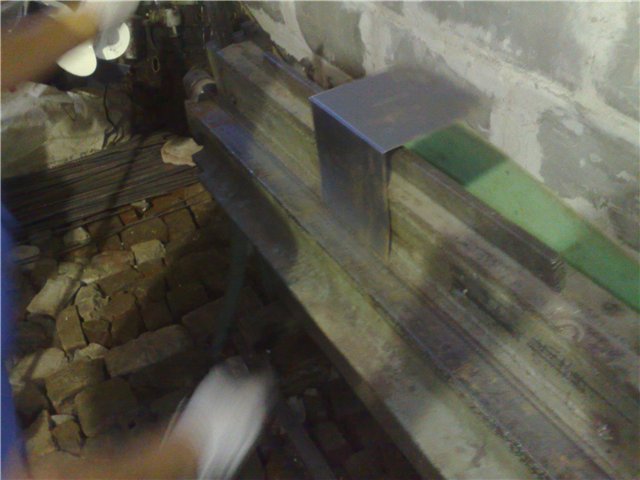

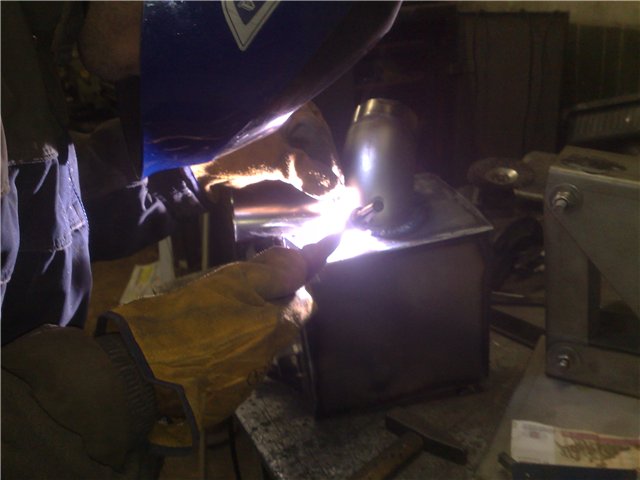

I took dimensions and cut metal. Then turned down on bending machine. And carry out welding work.

(4a58cbd8b3db.jpg)

(45b9be55a95c.jpg)

Attachments
----------------

Attachments


stayer

Posted 27/8/2012 14:22 (#14532 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

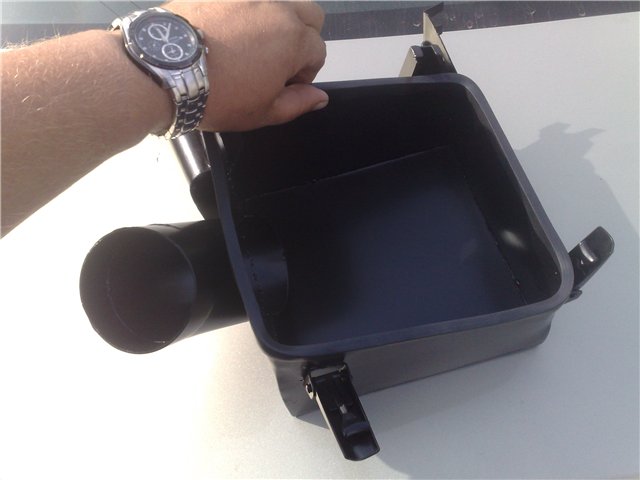

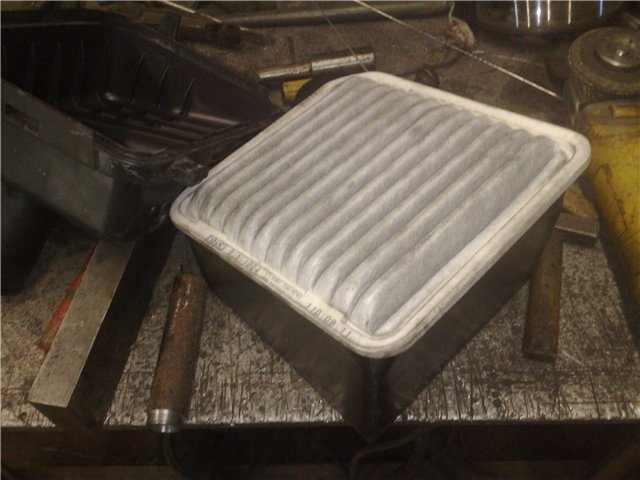

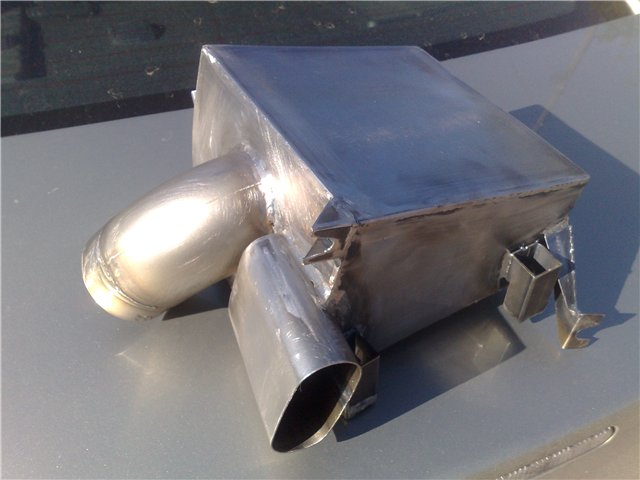

Make a box to filter.

(7fad2789bfb1.jpg)

(55f9ef4863f9.jpg)

(257910efad39.jpg)

Attachments
----------------

Attachments

Attachments


stayer

Posted 27/8/2012 14:27 (#14533 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

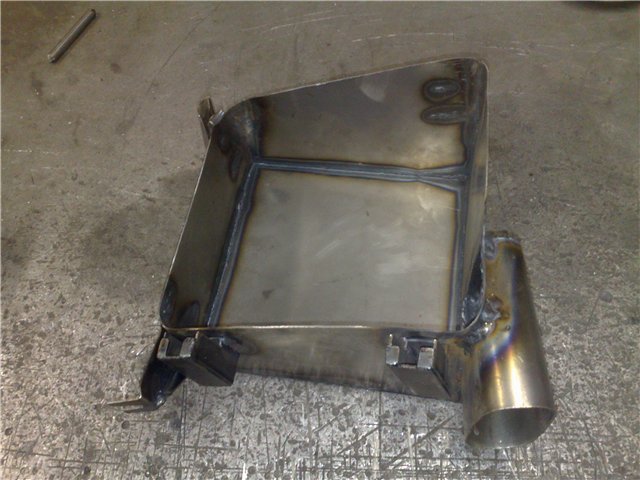

Now we must make the lower inlet air and discharge of water.

(94e0c68a69b1.jpg)

(0612961fe5a0.jpg)

(2987792df6b8.jpg)

(72de07a1a42f.jpg)

Attachments
----------------

Attachments

Attachments

Attachments


stayer

Posted 27/8/2012 14:31 (#14534 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

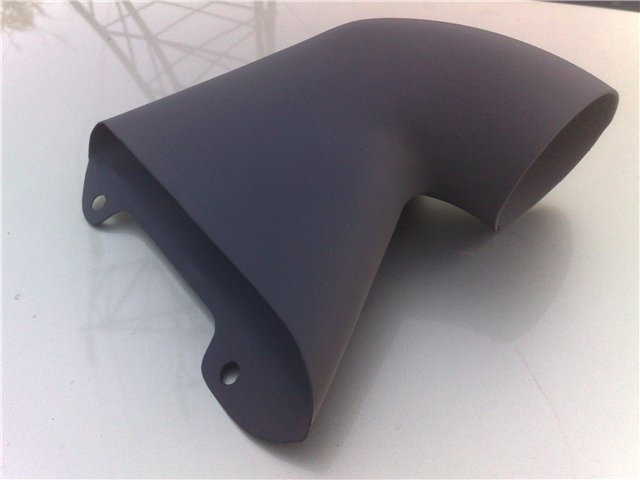

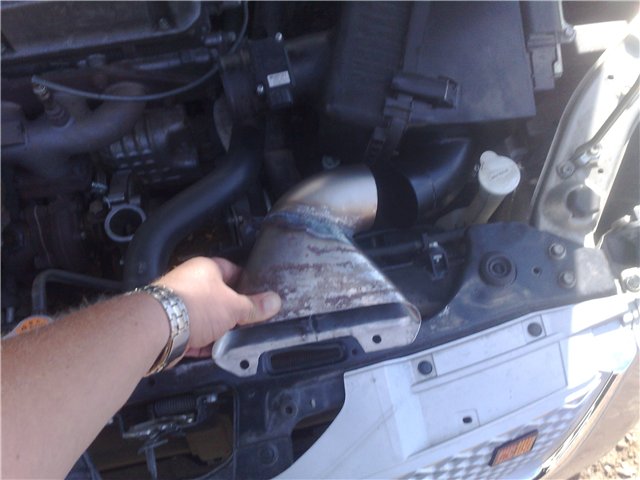

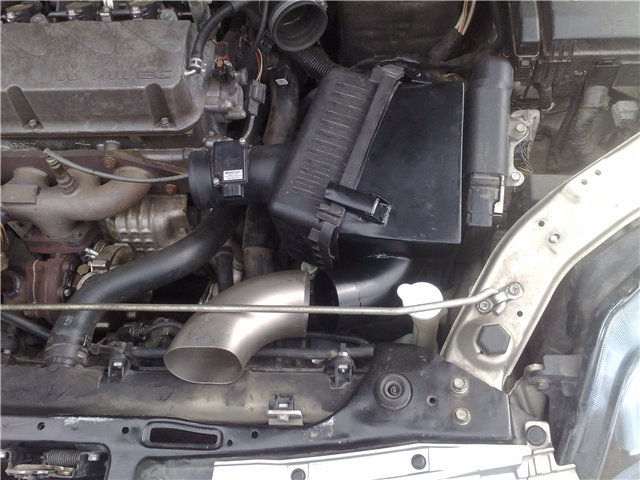

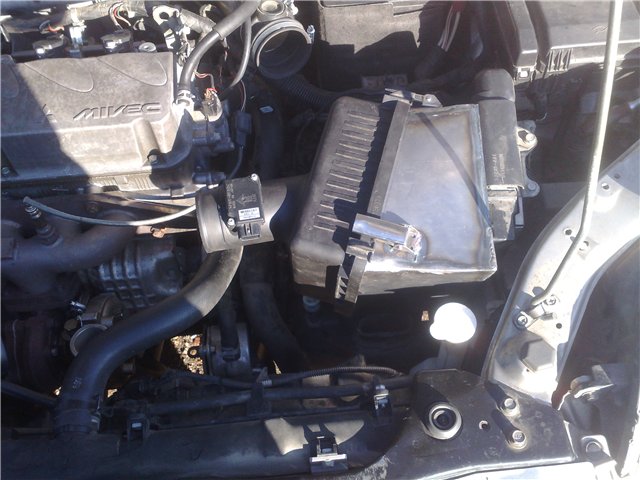

Then the tube to the air intake.

(59a0ddc1f4bf.jpg)

(c051dcaa5e95.jpg)

(a899832b7d55.jpg)

Attachments
----------------

Attachments

Attachments


stayer

Posted 27/8/2012 14:37 (#14535 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

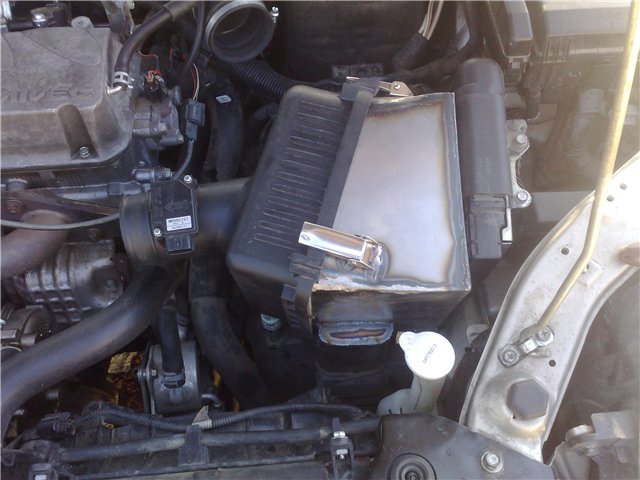

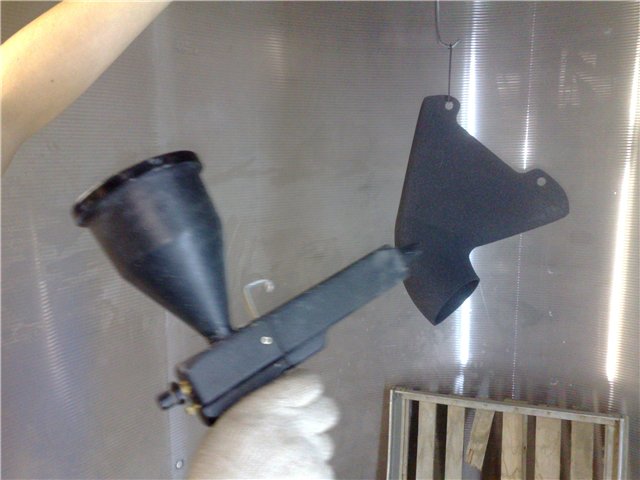

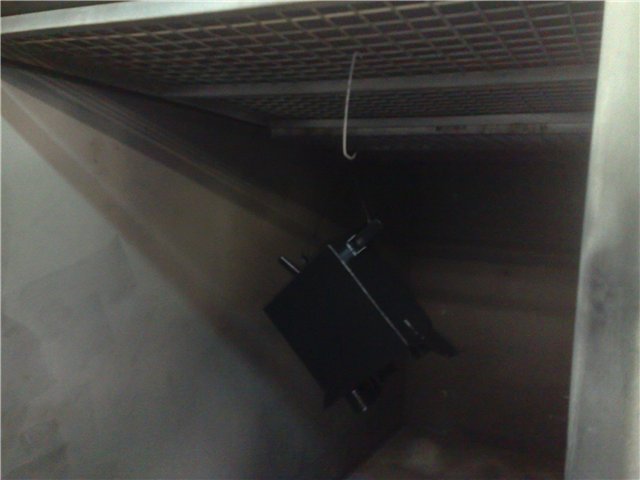

I did paint work. Body painted powder paint. So it looks like. Wear a rubber gasket.

(50b54663e717.jpg)

(d6914bddea85.jpg)

(79b6dbd38aea.jpg)

Attachments
----------------

Attachments

Attachments


stayer

Posted 27/8/2012 14:41 (#14536 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

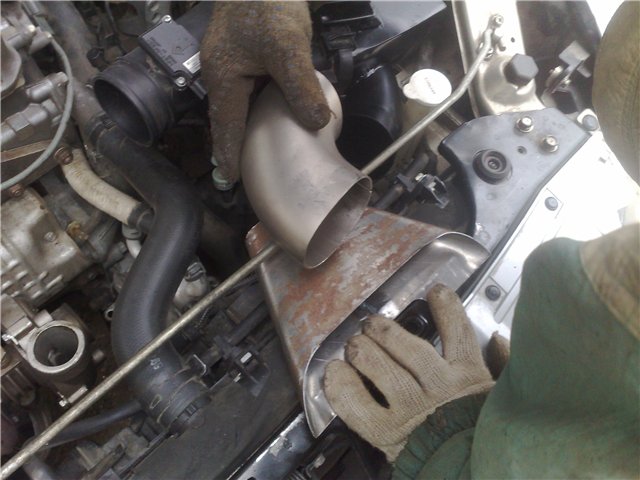

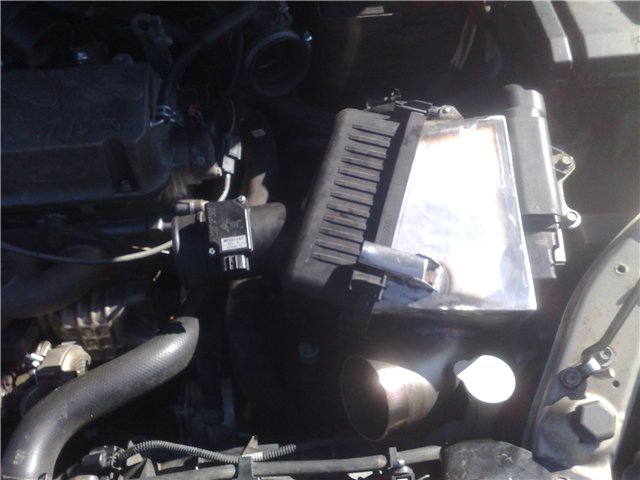

The next step manufacture of air intake. Only not finished yet, has left work until Monday. On this day all.

(5dbb31f387ab.jpg)

(3f82bd04b7d7.jpg)

Attachments
----------------

Attachments


z80

Posted 27/8/2012 15:44 (#14537 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 516
500

Beautiful work.

stayer

Posted 30/8/2012 02:09 (#14538 - in reply to #14454)
Subject: Re: Turbo kit for 4G69

Frequent flyer Gold

Posts: 286
100

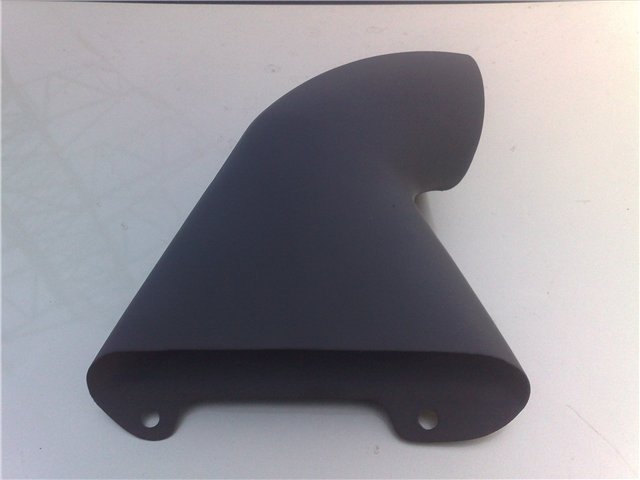

Location: Russia, Perm

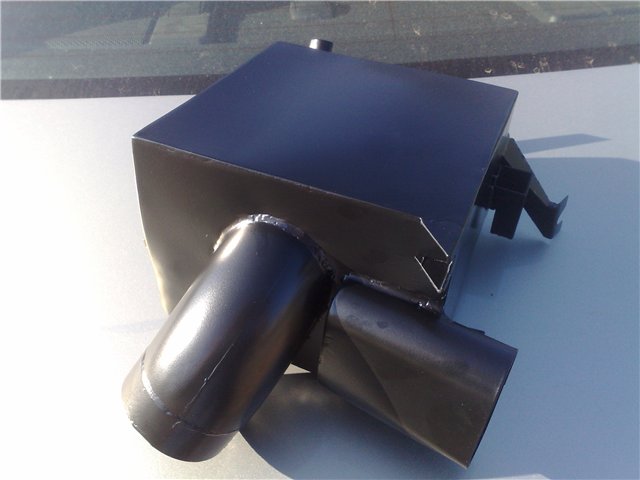

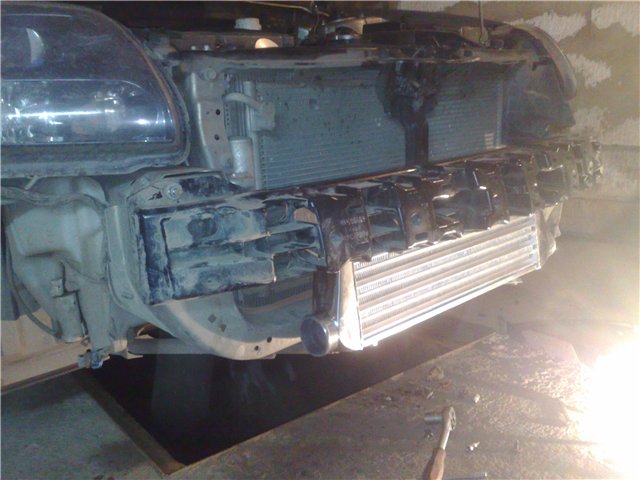

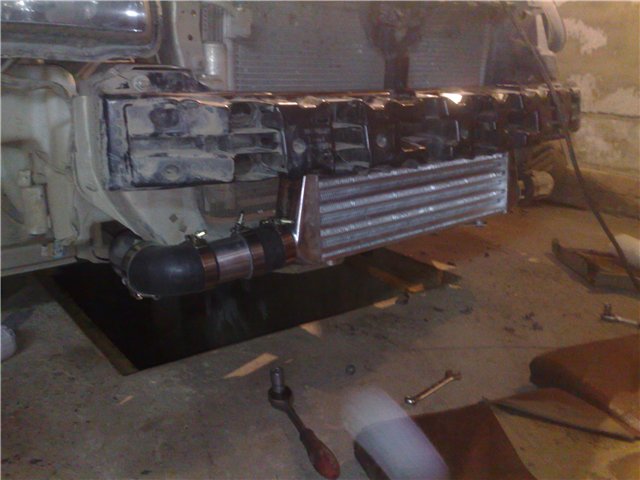

Little progress. I made the intake air. Then coating powder paint. I chose the color "black silk". It is very pleasant to the touch. Now I'm waiting for the mail interсooler and pipes, as well as silicone hoses.
