stayer

Posted 7/3/2012 15:32 (#14091 - in reply to #14085)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

Administrator - 6/3/2012 04:21

resolution is too big stayer...

try 1280x1024

Yes, I have long wanted to ask, how to do it? Watch the big picture uncomfortable. Tell me how can I fix it? Can I fix photos that have already been put up?

Administrator

Posted 7/3/2012 20:16 (#14095 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 1095
1000

Location: An island off southern Tasmania.

stayer...here is a small program for free.

it is english so good luck

Attachments
----------------

Brothersoftdownloader_for_JPEG_ReSizer.exe (359KB - 2546 downloads)

stayer

Posted 7/3/2012 21:54 (#14096 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

Thank You. Corrected all the photos. Now look more convenient.

Administrator

Posted 8/3/2012 01:06 (#14098 - in reply to #14096)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 1095
1000

Location: An island off southern Tasmania.

stayer - 7/3/2012 21:54

Thank You. Corrected all the photos. Now look more convenient.

Photos look great.

thank you for posting them.

stayer

Posted 8/3/2012 04:58 (#14099 - in reply to #14089)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

Administrator - 6/3/2012 19:40

But how will the belt loop around?

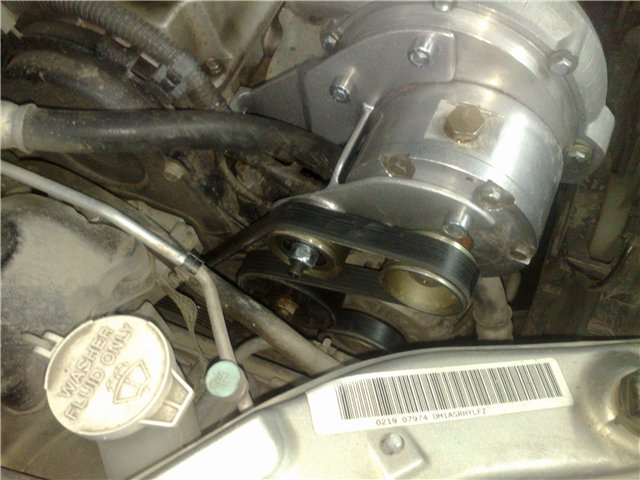

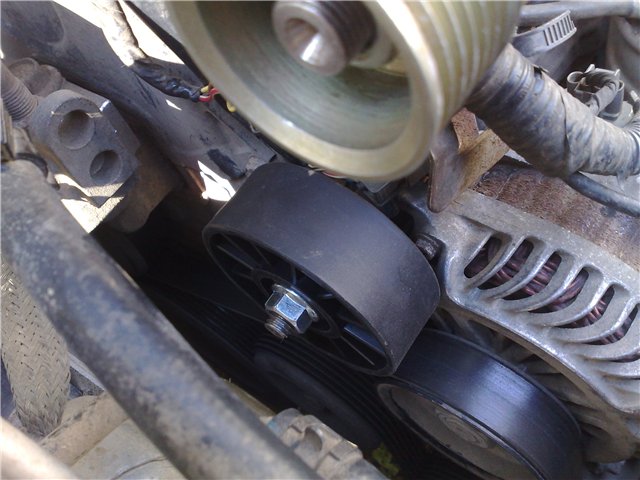

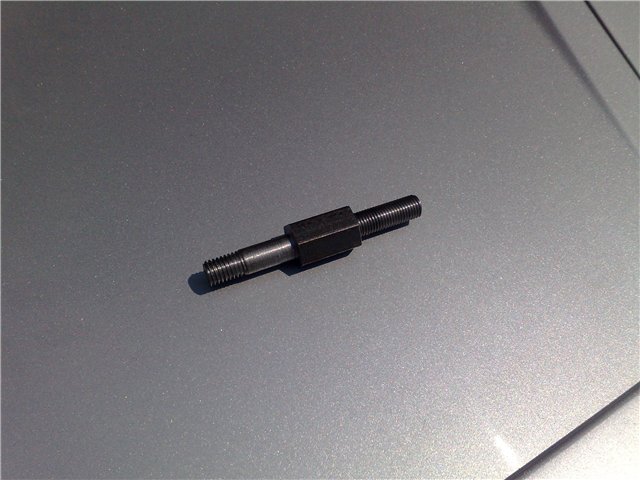

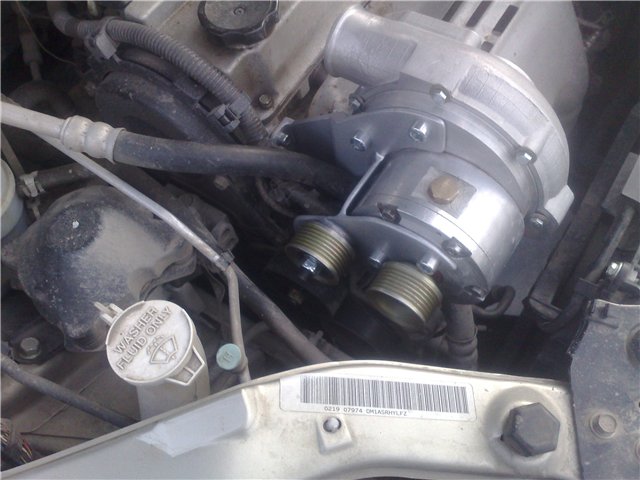

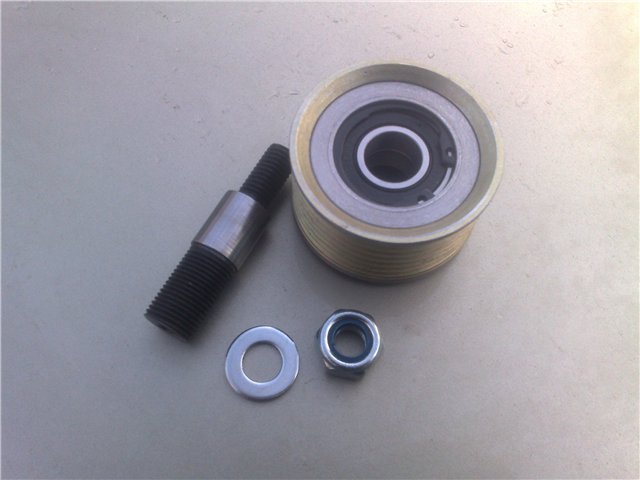

It is quite simple. I first make part (see photo). This part should be set instead of screw alternator. At the other end of the details need to install a stray pulley. Earlier it was so - belt is on the generator. Now the drive belt is on the compressor pulley, returns to stray pulley and goes to the generator.

(ccfd7ebefad7.jpg)

(127fb27d4fbd.jpg)

Attachments
----------------

Attachments


Administrator

Posted 9/3/2012 17:46 (#14100 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 1095
1000

Location: An island off southern Tasmania.

Nice work.

stayer

Posted 26/3/2012 14:37 (#14130 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

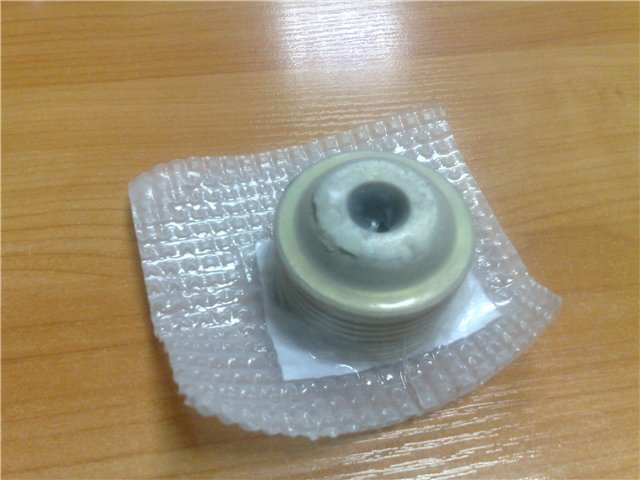

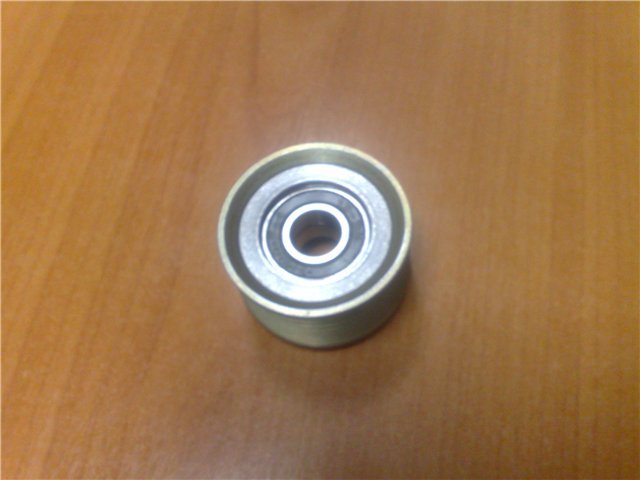

I want to tell you how to make an additional pulley. It is necessary in order to remove the belt. First I bought a pulley. You must install the bearings.

(1590d2939215.jpg)

Attachments
----------------


stayer

Posted 26/3/2012 14:38 (#14131 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

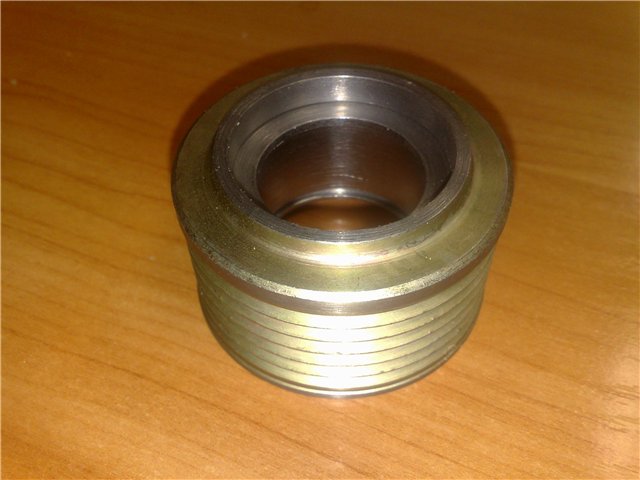

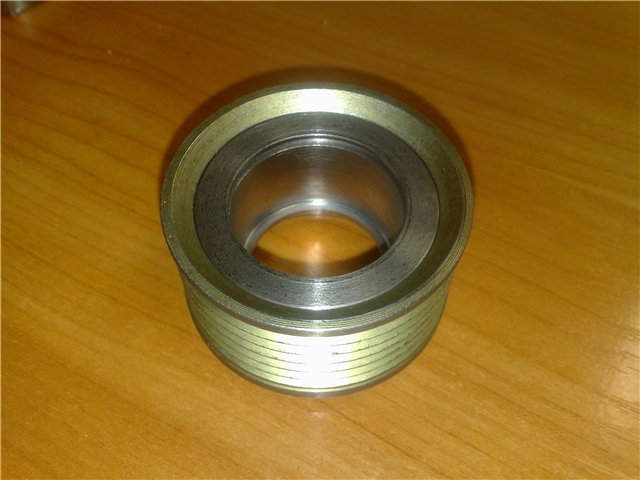

Pulley steel, made a robot, accuracy is not bad. The first thing to do, sharpening hub of steel 40H (Russian standard). The hub on a hot pressing inside the pulley. Internal diameter of the sleeve is made under the bearings. On the reverse side of the pulley cut off the bottom. Now make a yoke under timing belt. Inside the sleeve is made recessing a snap ring and Burt at the end of the sleeve.
