stayer

Posted 19/2/2012 17:00 (#14060 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

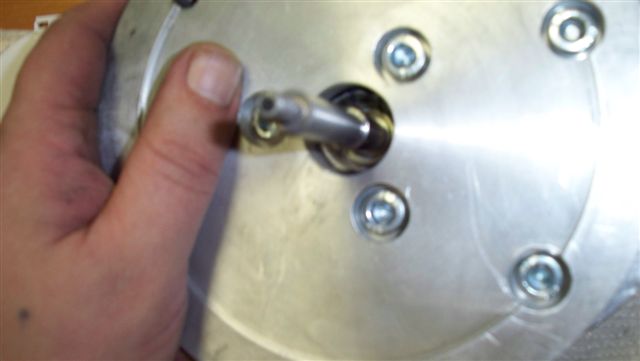

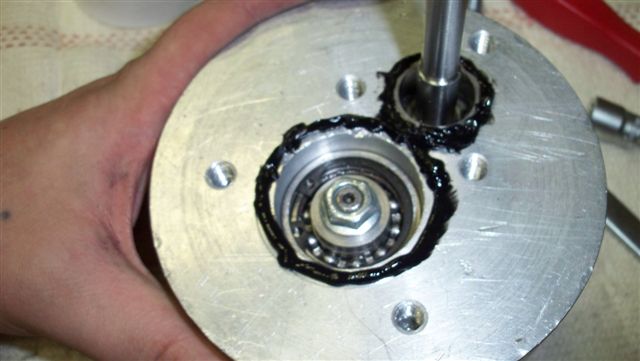

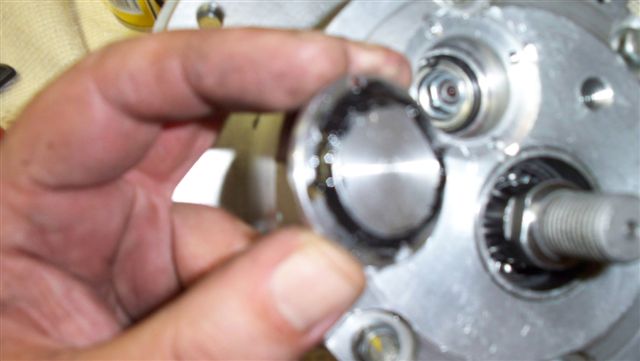

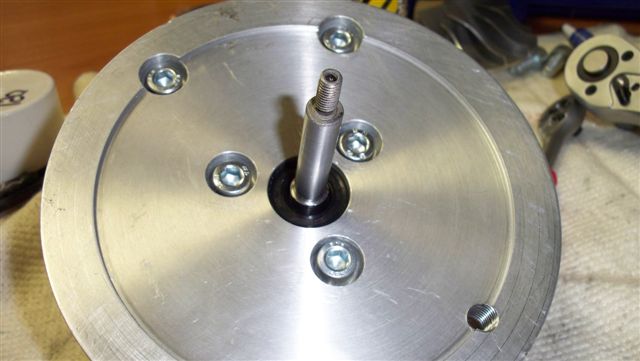

On the reverse side there is recessing for sealant. Apply sealant and install the cap. Also installs the cuffs high-speed shaft.

(100_2709.jpg)

(100_2710.jpg)

(100_2711.jpg)

(100_2713.jpg)

Attachments
----------------

Attachments

Attachments

Attachments


stayer

Posted 19/2/2012 17:13 (#14061 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

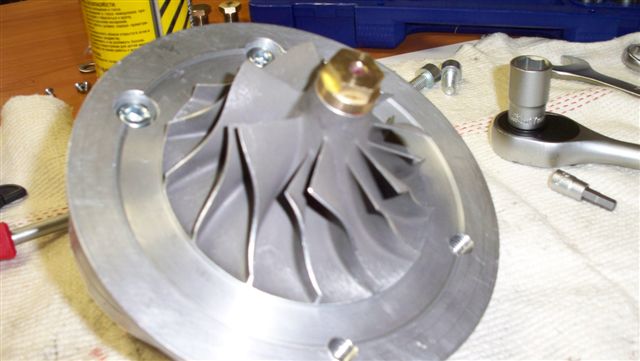

Now you can install the impeller. In this connection there is a tension. Therefore, the first impeller is heated in boiling water. The impeller is expanding and freely installed on the shaft and secured nut. The gap is 0.5 mm. It says about the correctness of the assembly

Edited by stayer 19/2/2012 17:18

(100_2714.jpg)

(100_2715.jpg)

Attachments
----------------

Attachments


stayer

Posted 19/2/2012 17:23 (#14062 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

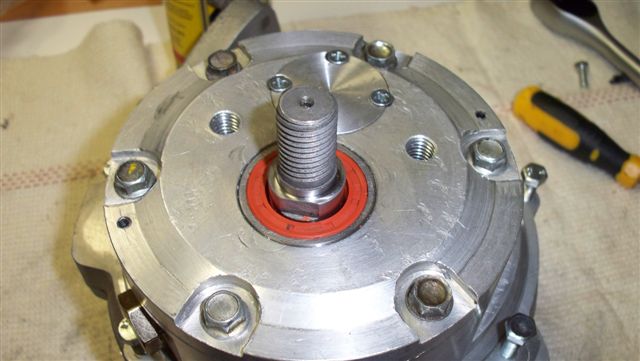

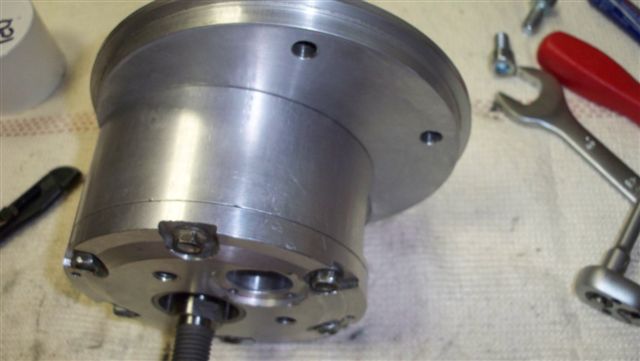

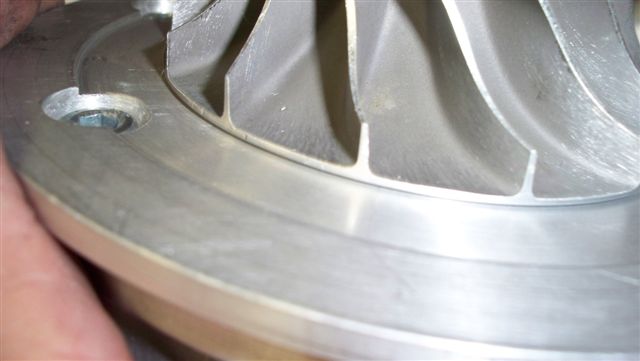

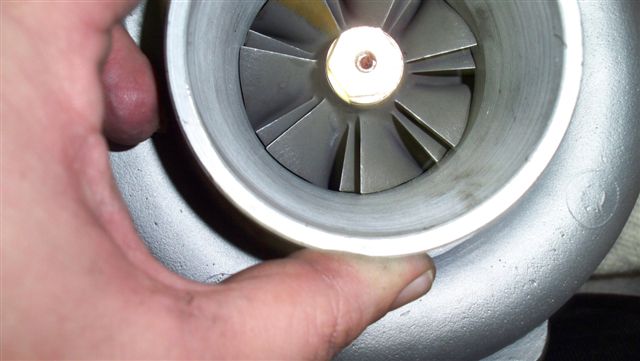

Now close the front cover of the high-speed shaft and install the cuffs of the low-speed shaft. Install a snail and check the gap. All well-0.5 mm

(100_2716.jpg)

(100_2719.jpg)

(100_2725.jpg)

Attachments
----------------

Attachments

Attachments


stayer

Posted 19/2/2012 17:33 (#14063 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

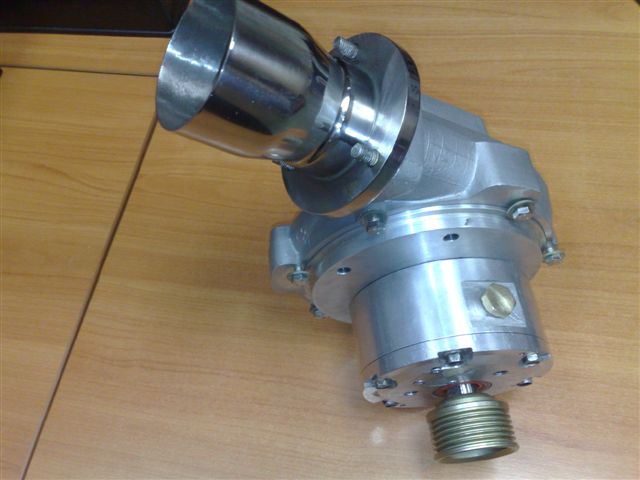

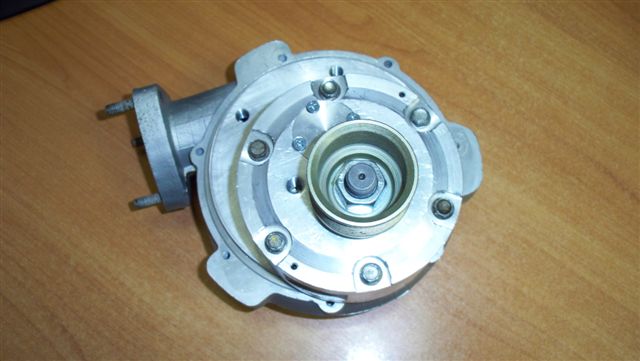

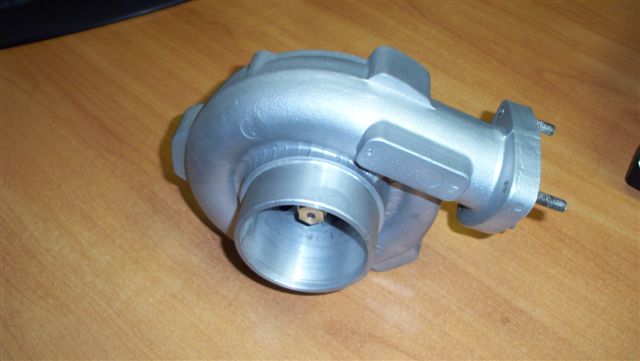

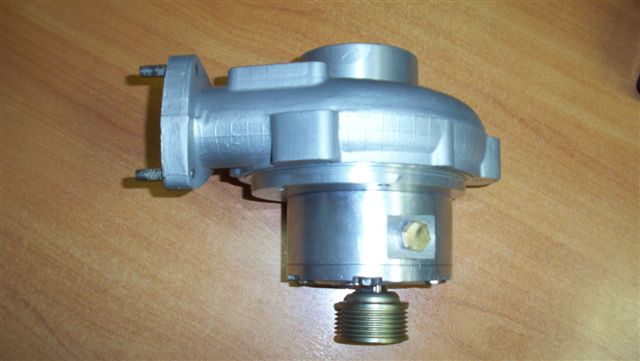

Now I have a compressor. The installation will begin when it becomes warmer. Now in Russia the winter. On the street -35C.

(100_2721.jpg)

(100_2723.jpg)

(100_2724.jpg)

(11022012912.jpg)

Attachments
----------------

Attachments

Attachments

Attachments


stayer

Posted 6/3/2012 09:08 (#14084 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)

Frequent flyer Gold

Posts: 286
100

Location: Russia, Perm

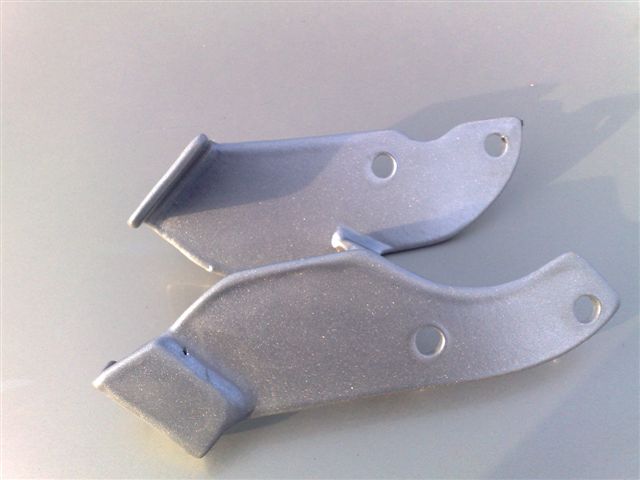

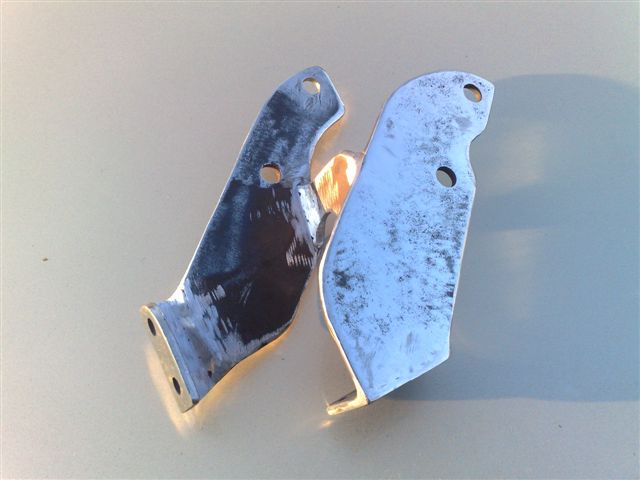

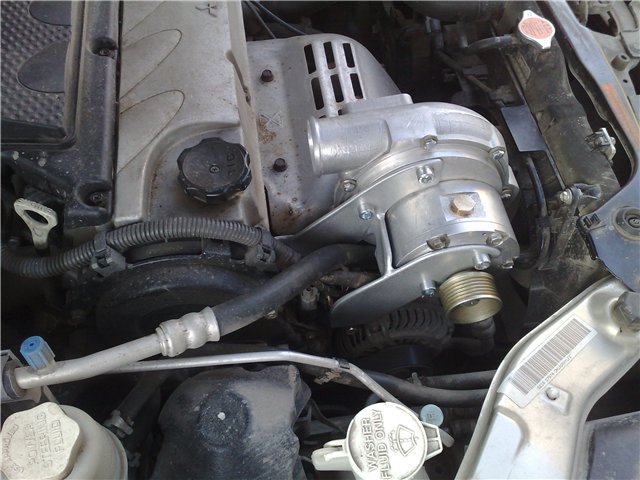

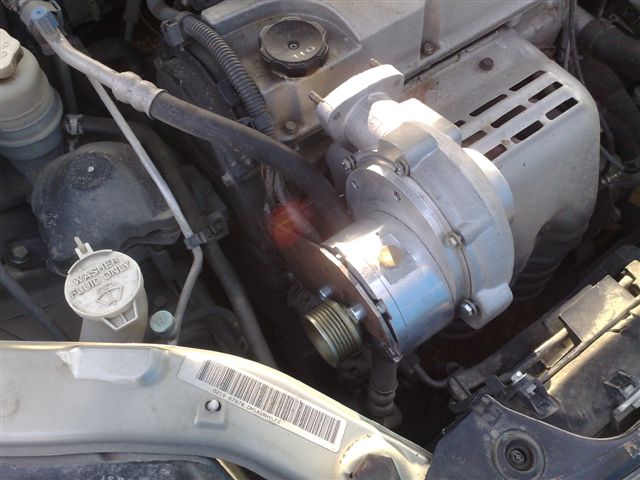

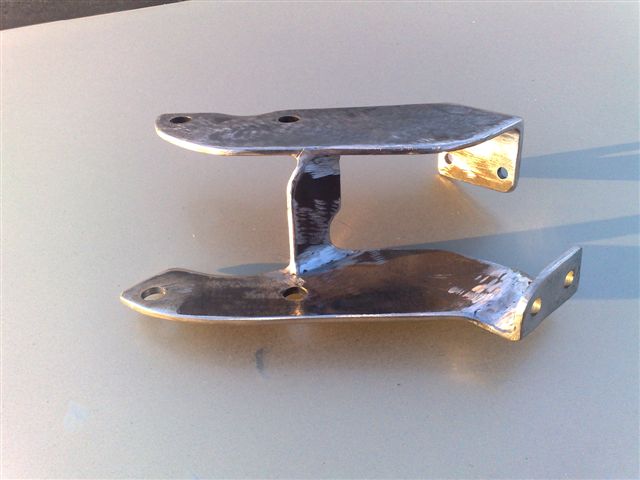

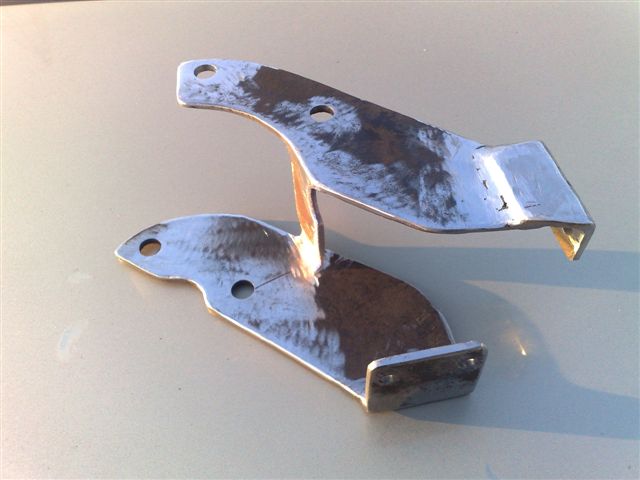

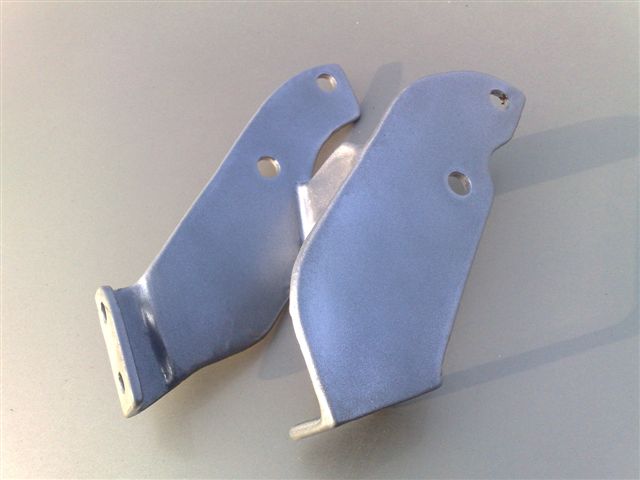

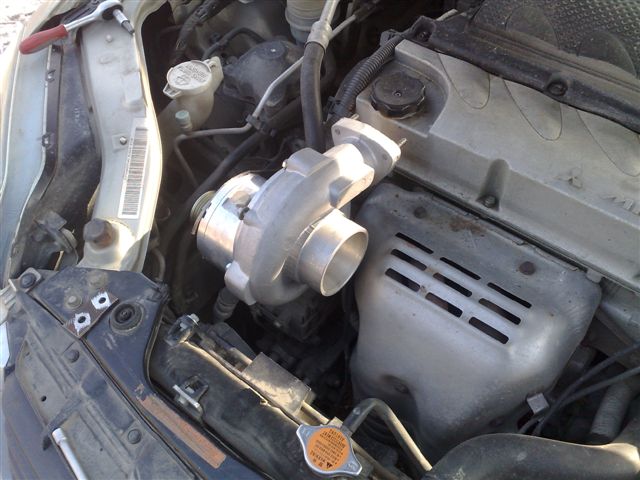

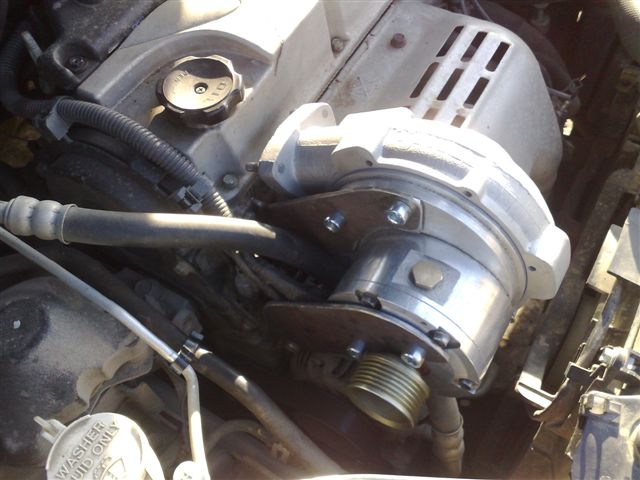

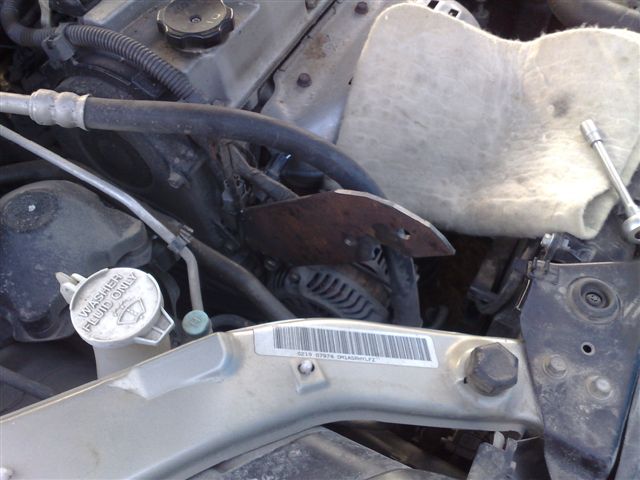

I started to do brackets for mounting the supercharger. I decided to abandon the long-intermediate shaft. The compressor is placed next to the drive belt. Brackets as temporary. We have to understand the kinematics and mounting. So they look as ugly. Sometimes you have to do 3 - 4 times, and different designs. The second bracket also did, but I got the phone and I have not made the photos. From here there are 2 problems. To do degree outlet by 90 degrees. And yet the incoming air is next to the hot collector. I think to find the right solution.
