stayer |
| ||

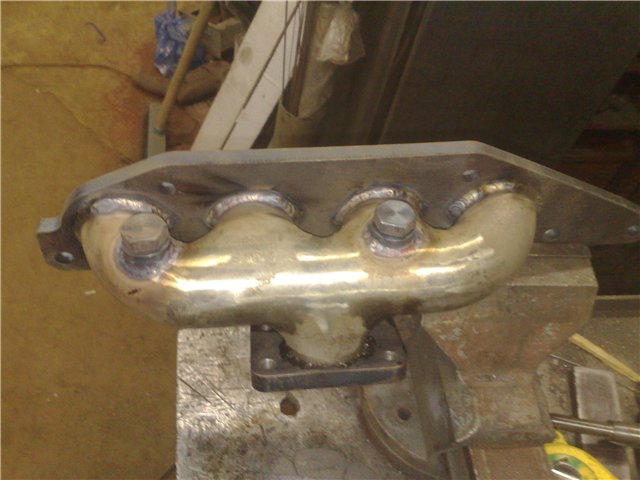

 Frequent flyer Gold Posts: 286    Location: Russia, Perm | You can now clear the welding seams. (c9ac6d2c0ab3.jpg) Attachments ----------------  c9ac6d2c0ab3.jpg (52KB - 669 downloads) | ||
| |||
| stayer |
| ||

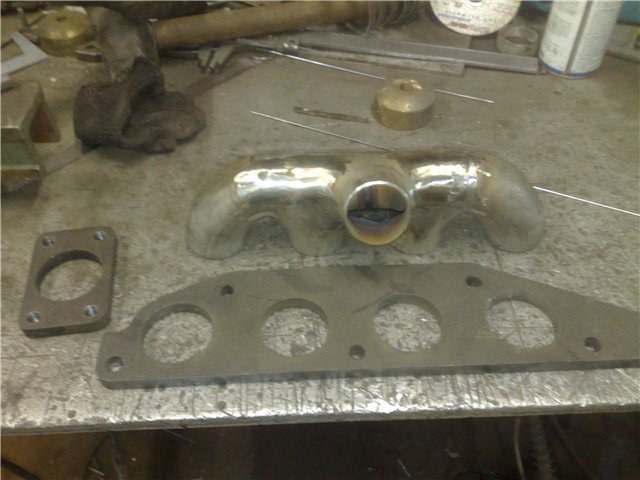

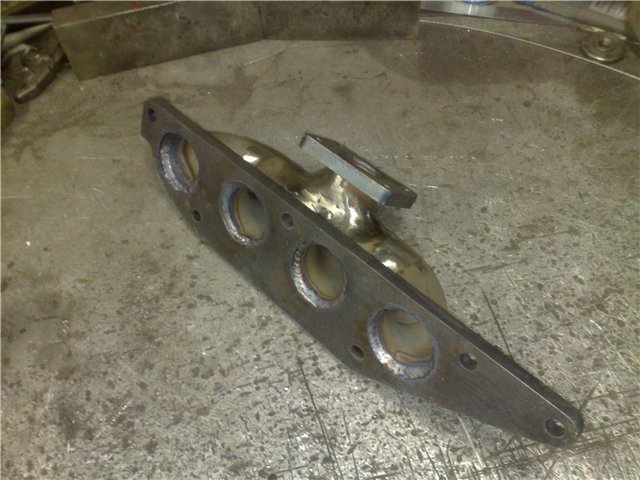

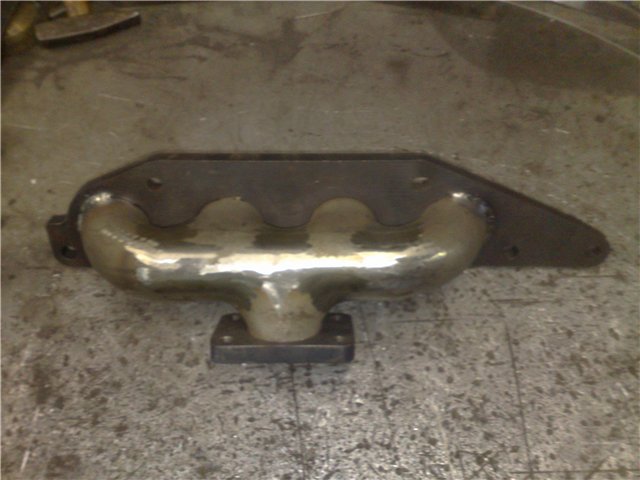

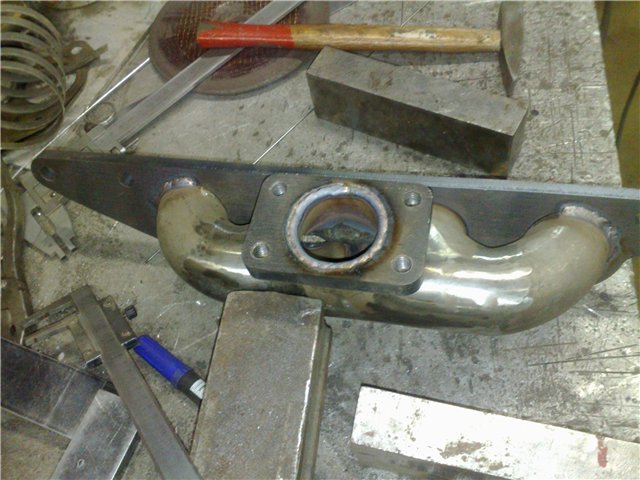

Frequent flyer Gold Posts: 286 Location: Russia, Perm | And weld flanges. Seams to impose from the inside. (0d451d544e13.jpg) (0e745b74434f.jpg) (2cc23d4bbed1.jpg) Attachments ---------------- 0d451d544e13.jpg (68KB - 658 downloads) 0e745b74434f.jpg (65KB - 641 downloads) 2cc23d4bbed1.jpg (48KB - 652 downloads) | ||
| |||
| stayer |
| ||
Frequent flyer Gold Posts: 286 Location: Russia, Perm | made two slots for O2 sensors. (eb8fbf331e9c.jpg) Attachments ---------------- eb8fbf331e9c.jpg (49KB - 689 downloads) | ||
| |||
| stayer |
| ||

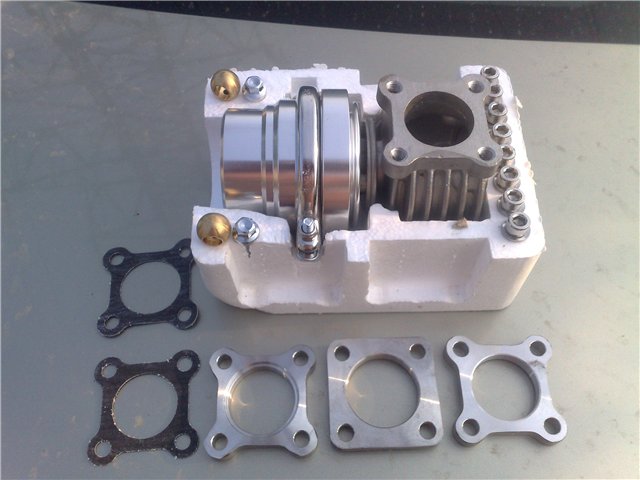

Frequent flyer Gold Posts: 286 Location: Russia, Perm | I also want to say that I bought the other turbocharger. It is more suitable for my project. But one must make a remote wastegate valve. On the new turbocharger no valve wastegate. Therefore it is necessary to make external valve. I bought it. Bore diameter of 44 mm. Only after that you can continue the manufacture of exhaust manifold. (1dfee3e50110.jpg) Attachments ---------------- 1dfee3e50110.jpg (46KB - 655 downloads) | ||
| |||
| stayer |
| ||

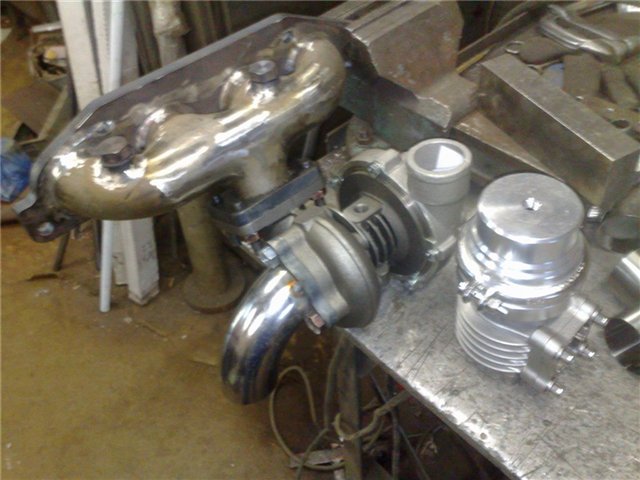

Frequent flyer Gold Posts: 286 Location: Russia, Perm | The valve wastegate is very large. He is even more than the turbocharger. (d56bbf276100.jpg) Attachments ---------------- d56bbf276100.jpg (58KB - 662 downloads) | ||
| |||
| stayer |
| ||

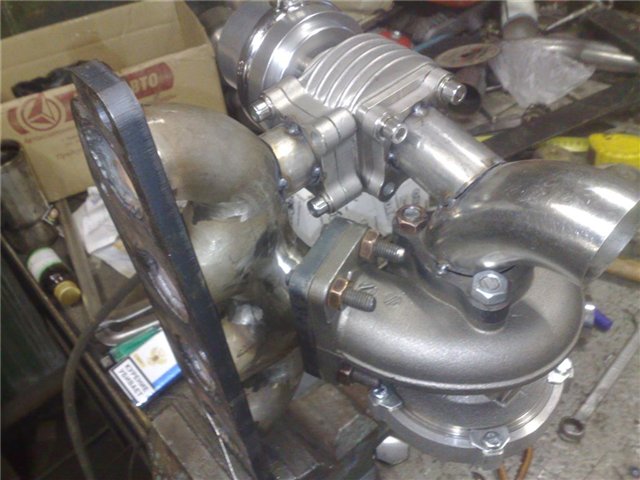

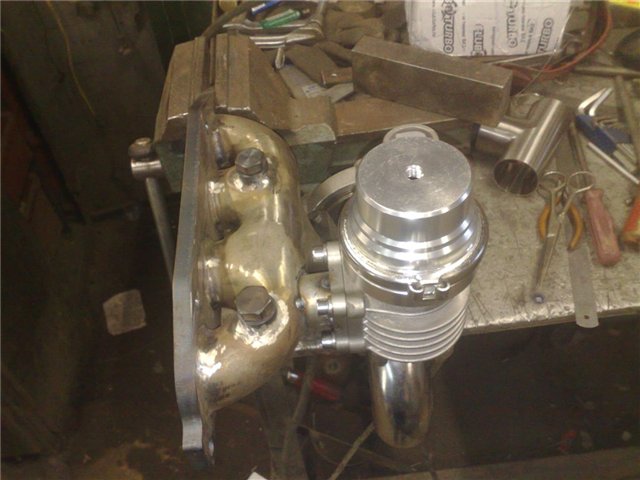

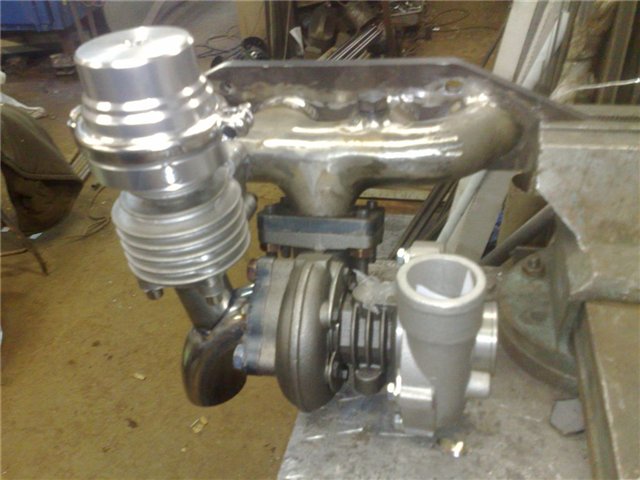

Frequent flyer Gold Posts: 286 Location: Russia, Perm | Then simply customization. (d1667cdef51c.jpg) (2a7b411be88e.jpg) (a6ed2da21938.jpg) Attachments ---------------- d1667cdef51c.jpg (51KB - 597 downloads) 2a7b411be88e.jpg (59KB - 651 downloads) a6ed2da21938.jpg (54KB - 686 downloads) | ||
| |||
| stayer |
| ||
Frequent flyer Gold Posts: 286 Location: Russia, Perm | I graduated from the welding work. Now we must make the view. For this we need to use blasting. Further milling planes. (c68bd8fd6b9a.jpg) (f4da529885dc.jpg) Attachments ---------------- c68bd8fd6b9a.jpg (59KB - 657 downloads) f4da529885dc.jpg (54KB - 667 downloads) | ||
| |||
| stayer |
| ||

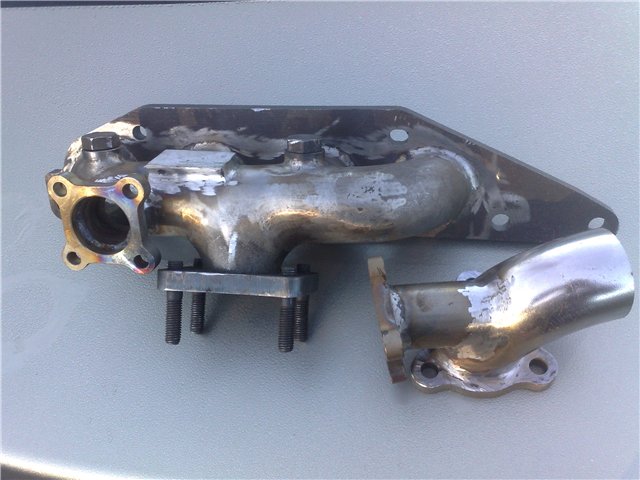

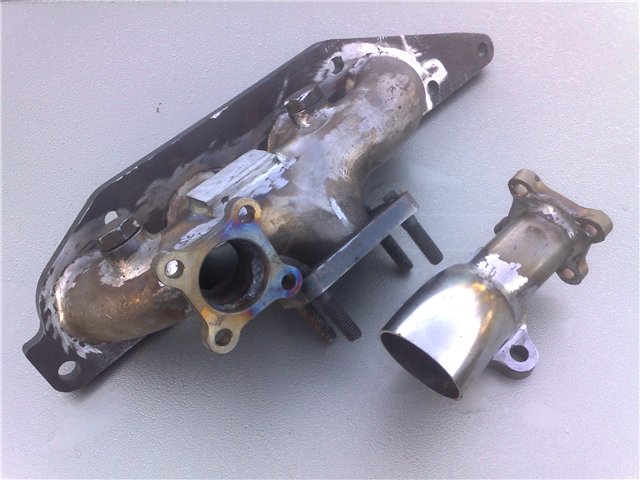

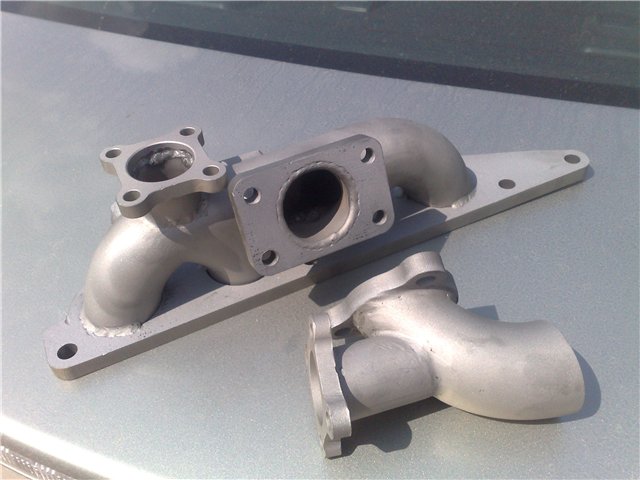

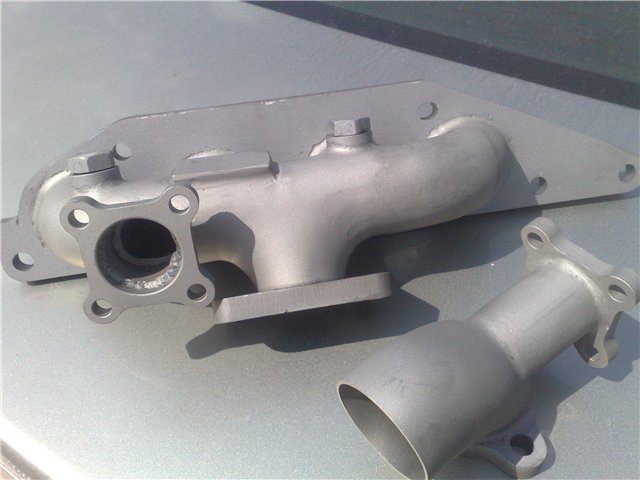

Frequent flyer Gold Posts: 286 Location: Russia, Perm | After sandblasting parts look like this (01d09af1c21c.jpg) (72cf4c859d4f.jpg) Attachments ---------------- 01d09af1c21c.jpg (45KB - 637 downloads) 72cf4c859d4f.jpg (48KB - 642 downloads) | ||
| |||
| stayer |
| ||

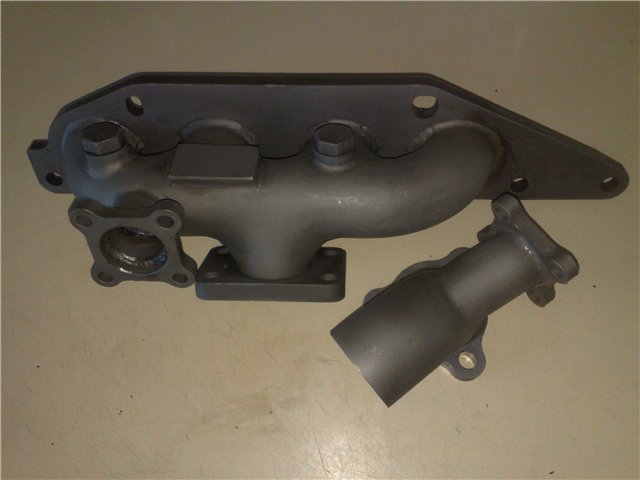

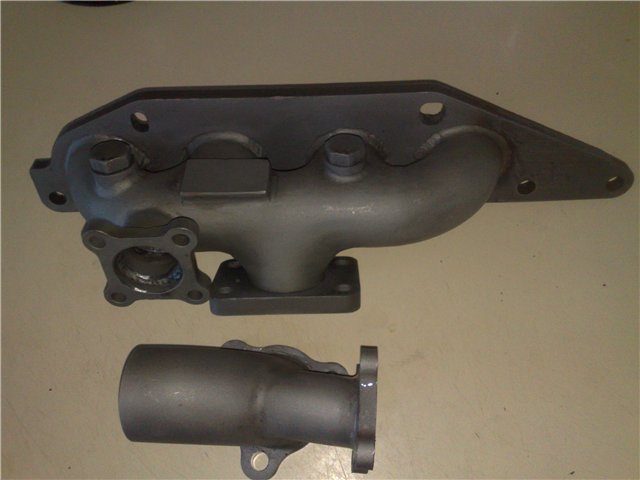

Frequent flyer Gold Posts: 286 Location: Russia, Perm | The next step. Part of the warm up up to 300 C. And dipped in a special acid solution. This gives protection of metal from corrosion and dark in color. (741ec2beb700.jpg) (6059835ef9e2.jpg) Attachments ---------------- 741ec2beb700.jpg (35KB - 646 downloads) 6059835ef9e2.jpg (34KB - 642 downloads) | ||
| |||
| stayer |
| ||

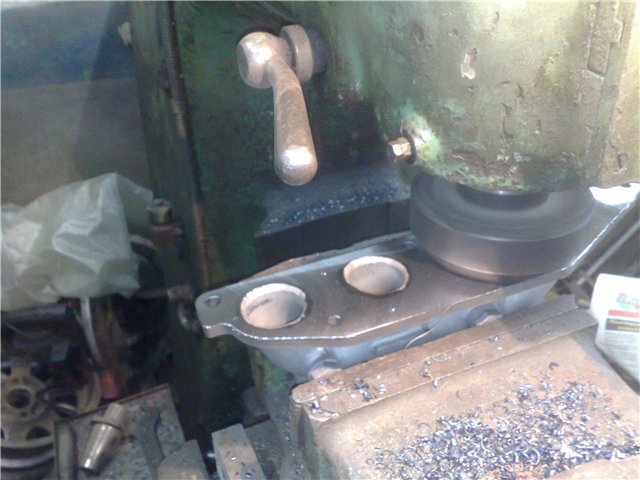

Frequent flyer Gold Posts: 286 Location: Russia, Perm | Now you can mill the surface. (d283adb7075f.jpg) Attachments ---------------- d283adb7075f.jpg (57KB - 637 downloads) | ||
| |||
