stayer
Posted 23/12/2011 12:35 (#13926 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

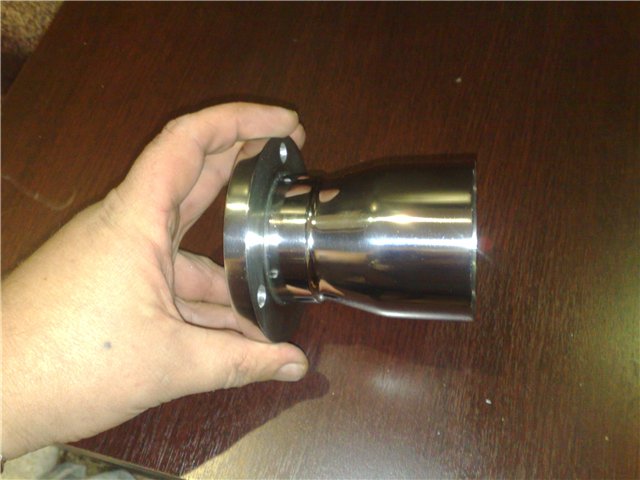

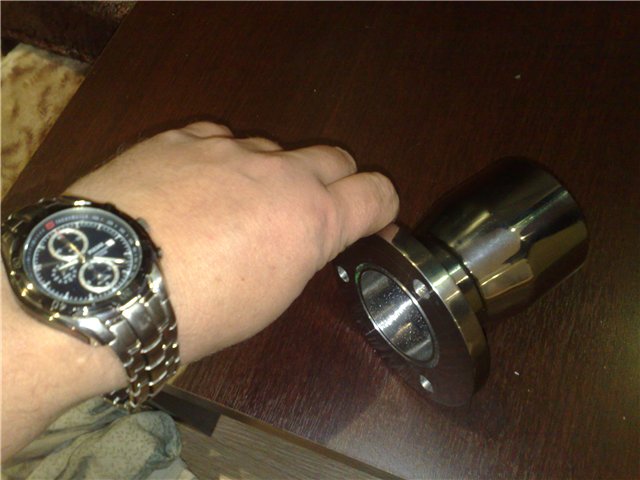

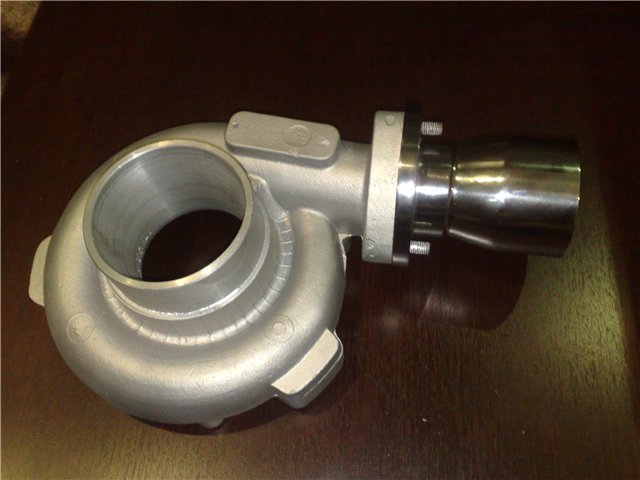

Location: Russia, Perm		A further step, polishing machine. After 30 minutes the glass looks like this.



(0e815bcdb348.jpg)



(caf8d76dce80.jpg)



(d8a93d769b9f.jpg)



(cb9dc1905886.jpg)



Attachments
----------------
Attachments 0e815bcdb348.jpg (46KB - 530 downloads)
Attachments caf8d76dce80.jpg (48KB - 503 downloads)
Attachments d8a93d769b9f.jpg (46KB - 532 downloads)
Attachments cb9dc1905886.jpg (43KB - 545 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 12:38 (#13927 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		That's all for now. Watch out for the continuation of the project...
Top of the page Bottom of the page
stayer
Posted 29/12/2011 22:16 (#13973 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

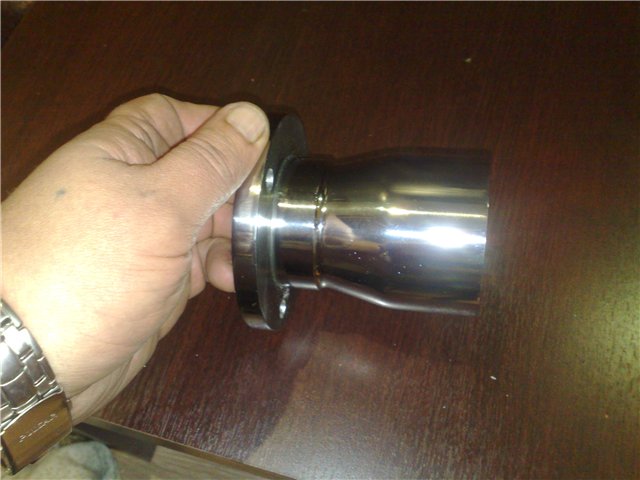

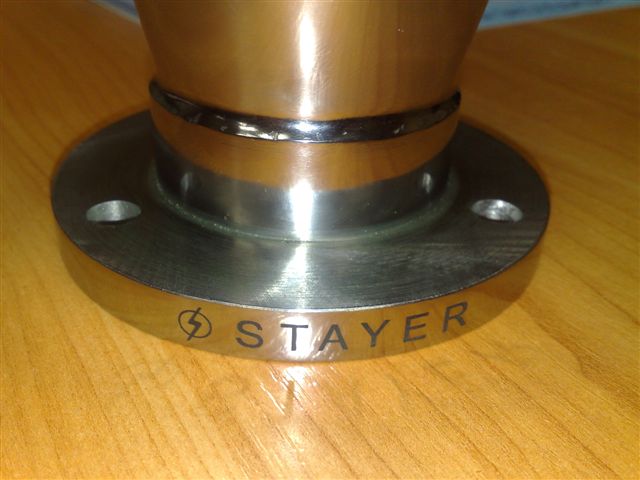

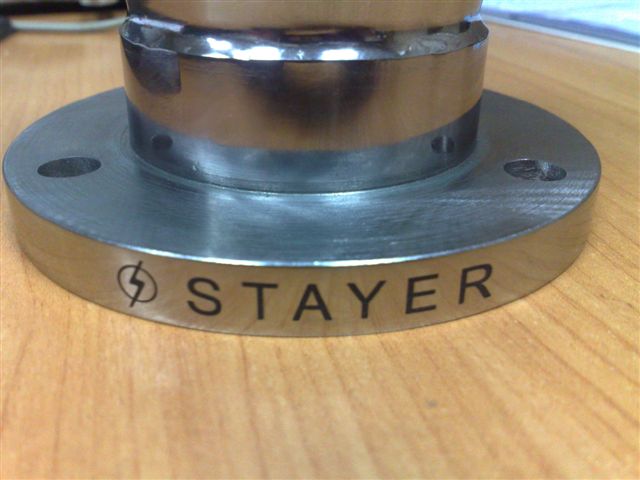

Location: Russia, Perm		A small bar to the product. With the help of a laser.



(29122011861.jpg)



(29122011863.jpg)



Attachments
----------------
Attachments 29122011861.jpg (55KB - 541 downloads)
Attachments 29122011863.jpg (55KB - 517 downloads)
Top of the page Bottom of the page
stayer
Posted 4/1/2012 17:55 (#13977 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

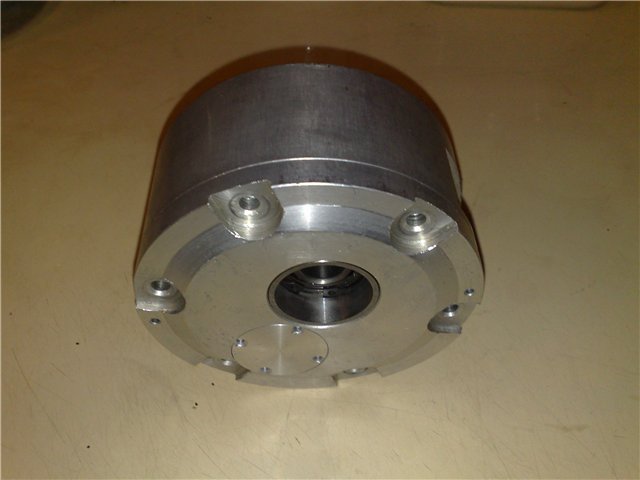

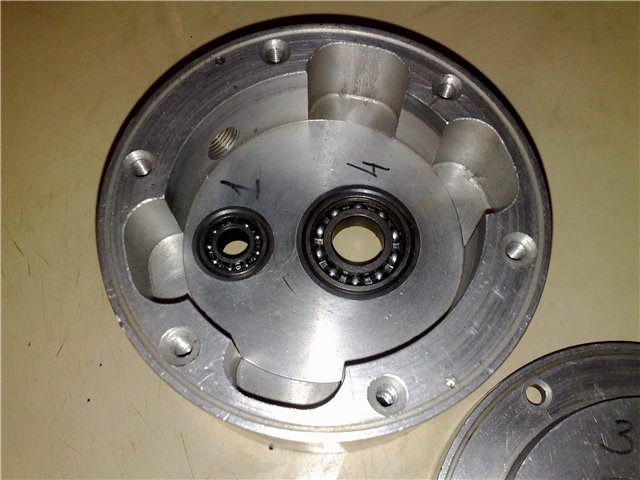

Location: Russia, Perm		To Continue. Before the New year, managed to finish the work on the coordinate milling machine. Made holes in the hull and mounted bearings.



(048d4db2ac9e.jpg)



(9703f420184f.jpg)



(fb1b5feaeb00.jpg)



Attachments
----------------
Attachments 048d4db2ac9e.jpg (34KB - 540 downloads)
Attachments 9703f420184f.jpg (38KB - 507 downloads)
Attachments fb1b5feaeb00.jpg (32KB - 506 downloads)
Top of the page Bottom of the page
stayer
Posted 4/1/2012 18:00 (#13978 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

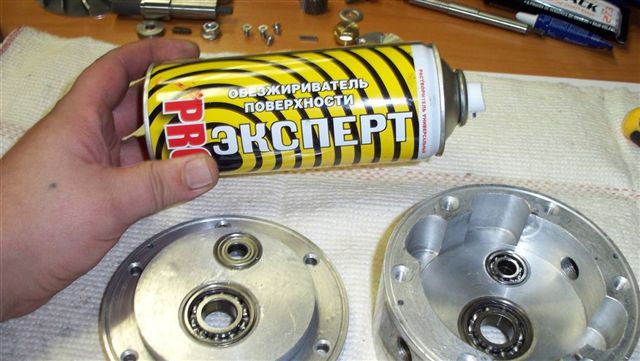

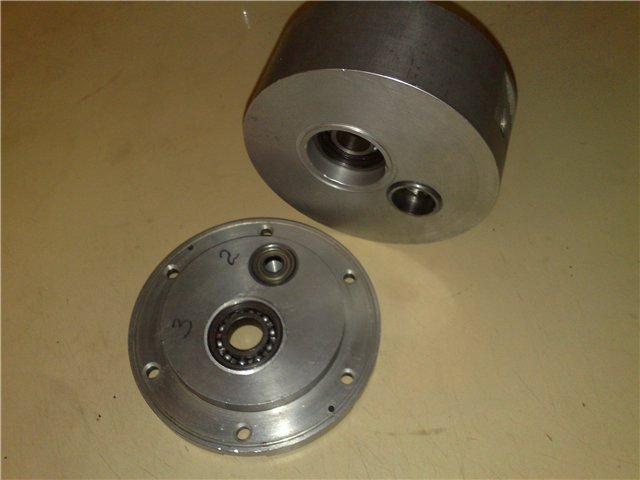

Location: Russia, Perm		In aluminium housing should not be put bearings. First set of steel bushings, and in them shall be established by the bearings.



(7a0e42d09ecc.jpg)



(a069c8f1f2e3.jpg)



Attachments
----------------
Attachments 7a0e42d09ecc.jpg (57KB - 509 downloads)
Attachments a069c8f1f2e3.jpg (42KB - 530 downloads)
Top of the page Bottom of the page
stayer
Posted 4/1/2012 18:04 (#13979 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

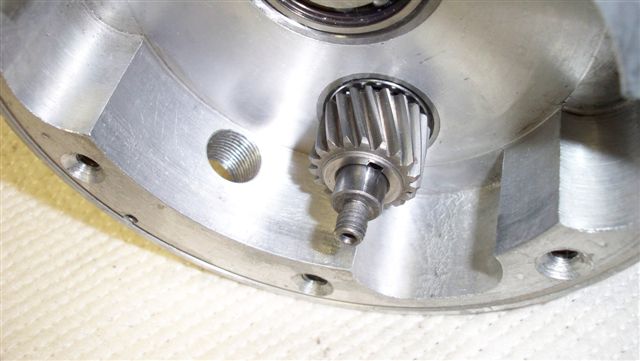

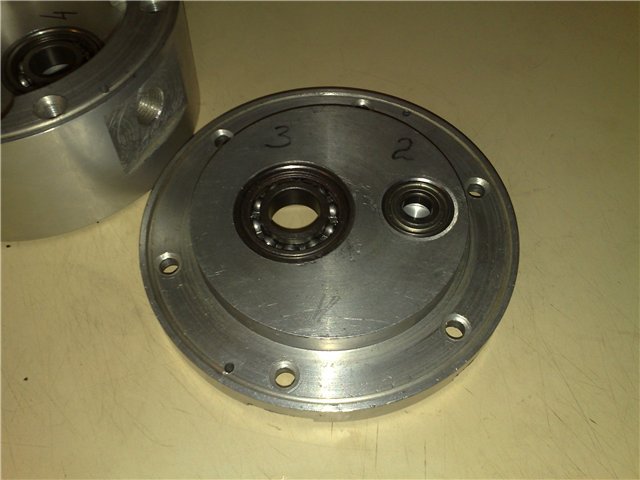

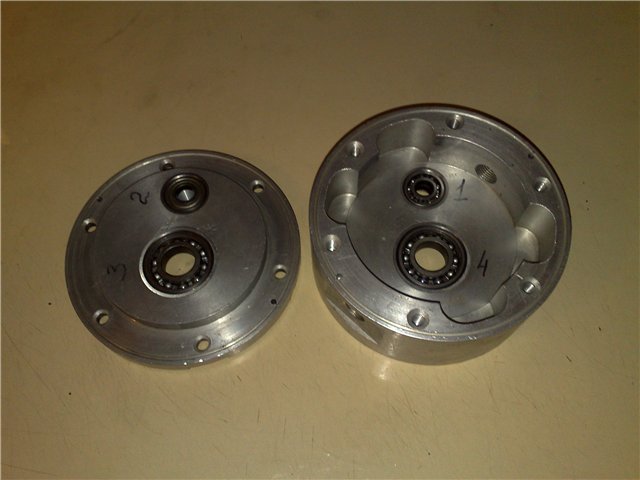

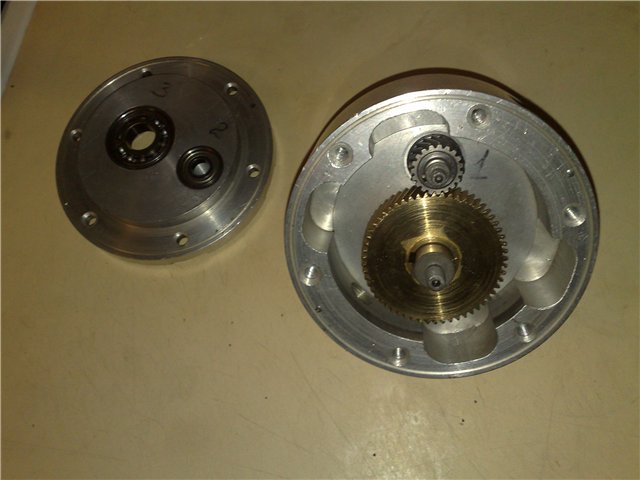

Location: Russia, Perm		Wanted to check, how are the gears and shafts. A very tight fit. Now we need to gather all.



(2a981aa39691.jpg)



(64d3b3a0bf69.jpg)



(29dc03da8975.jpg)



Attachments
----------------
Attachments 2a981aa39691.jpg (42KB - 513 downloads)
Attachments 64d3b3a0bf69.jpg (31KB - 509 downloads)
Attachments 29dc03da8975.jpg (32KB - 519 downloads)
Top of the page Bottom of the page
stayer
Posted 19/2/2012 16:16 (#14056 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

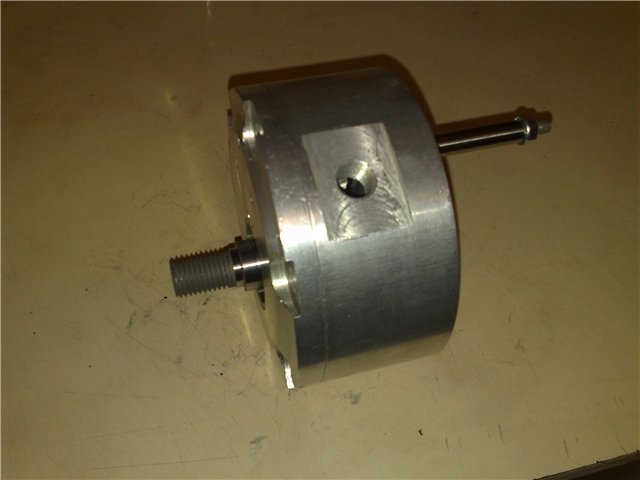

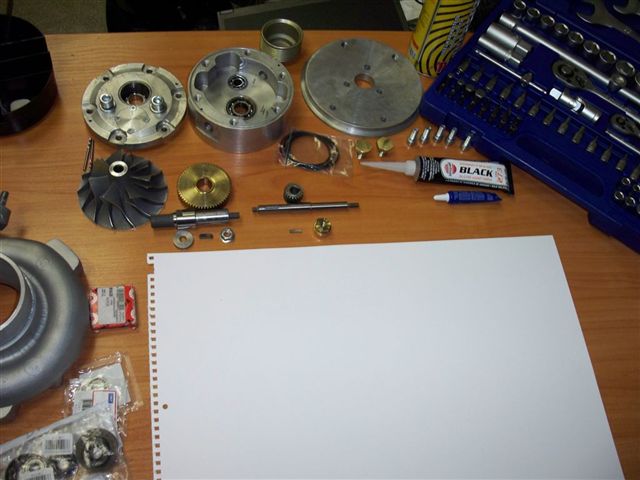

Location: Russia, Perm		I want to tell You continued. All parts are made and you can begin to build. So begin the assembly. I laid out the parts on the table. Details are processed skimmed



(100_2695.jpg)



(100_2696.jpg)



Attachments
----------------
Attachments 100_2695.jpg (52KB - 530 downloads)
Attachments 100_2696.jpg (59KB - 528 downloads)
Top of the page Bottom of the page
stayer
Posted 19/2/2012 16:25 (#14057 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

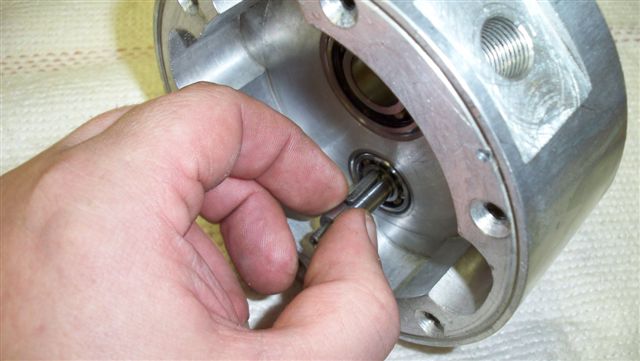

Location: Russia, Perm		The next step, insert the high-speed shaft and put the key. And put the gear.



(100_2697.jpg)



(100_2698.jpg)



(100_2700.jpg)



Attachments
----------------
Attachments 100_2697.jpg (42KB - 516 downloads)
Attachments 100_2698.jpg (40KB - 532 downloads)
Attachments 100_2700.jpg (48KB - 533 downloads)
Top of the page Bottom of the page
stayer
Posted 19/2/2012 16:38 (#14058 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

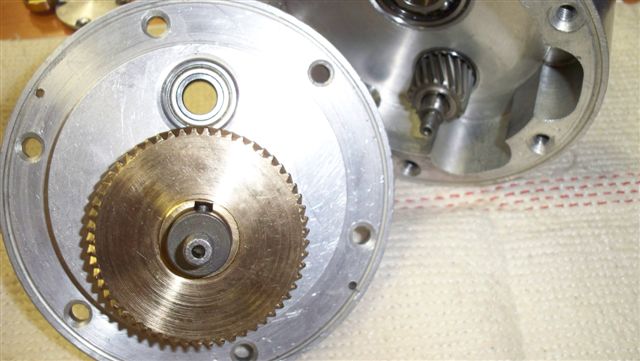

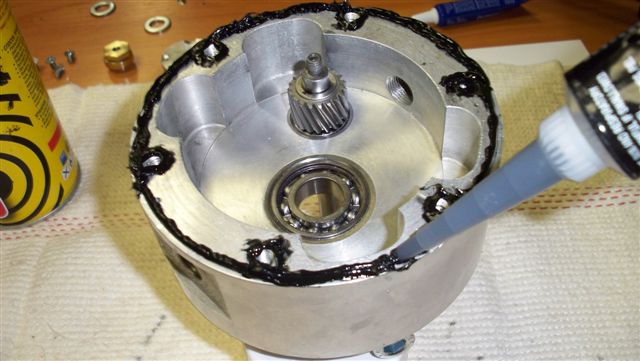

Location: Russia, Perm		Now does sealant, you can connect the housing and cover. Tighten the bolts and remove the sealant.



(100_2702.jpg)



(100_2705.jpg)



Attachments
----------------
Attachments 100_2702.jpg (51KB - 526 downloads)
Attachments 100_2705.jpg (46KB - 514 downloads)
Top of the page Bottom of the page
stayer
Posted 19/2/2012 16:51 (#14059 - in reply to #13906)
Subject: Re: Supercharger for 4G69 MIVEC (part 2)



Frequent flyer Gold

Posts: 286
100100502555

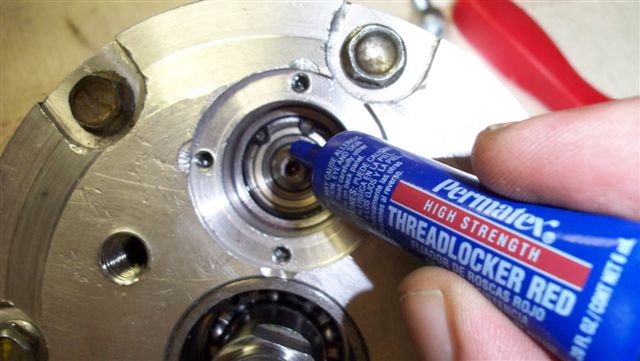

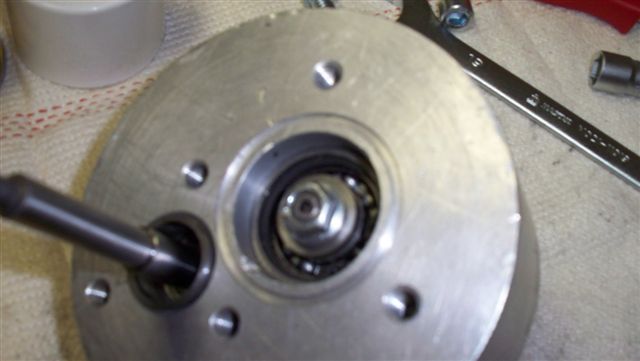

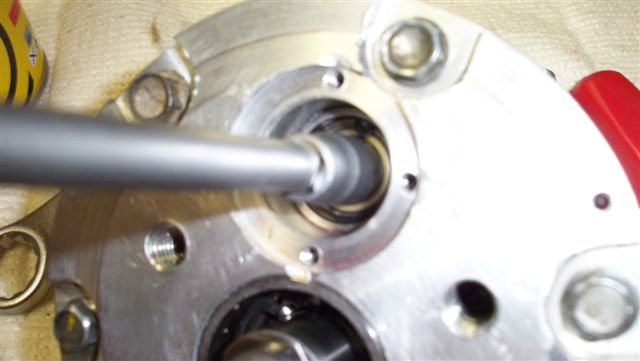

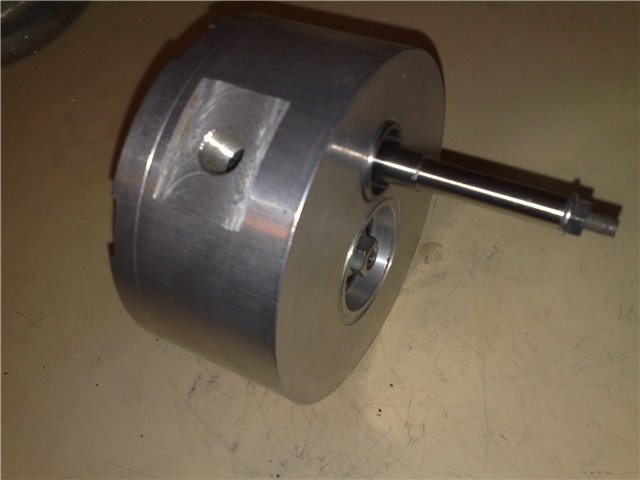

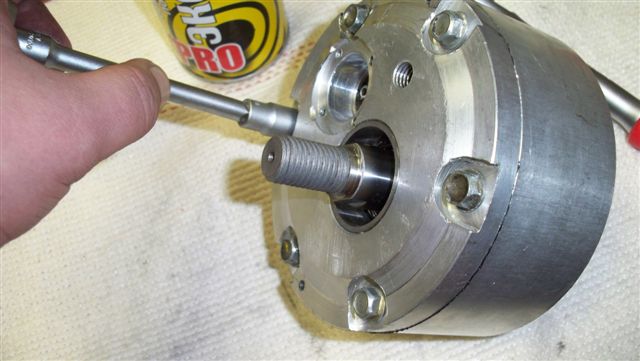

Location: Russia, Perm		You can mount the shafts. Make sure you use a lock thread. Delaying high-speed and low-speed shaft



(100_2706.jpg)



(100_2707.jpg)



(100_2708.jpg)



Attachments
----------------
Attachments 100_2706.jpg (49KB - 524 downloads)
Attachments 100_2707.jpg (35KB - 539 downloads)
Attachments 100_2708.jpg (33KB - 520 downloads)
Top of the page Bottom of the page
