Mitsubishi 380 turbo
Jump to page : < ... 7 8 9 10 11 12 13 14 15 >
Now viewing page 13 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> 380 Turbo - Mitsubishi 380 turbo projectMessage format

Foozrcool
Posted 5/8/2013 08:07 (#15464 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Bronze

Posts: 40
25555
Fingers crossed!
Top of the page Bottom of the page
Administrator
Posted 2/9/2013 17:15 (#15624 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555

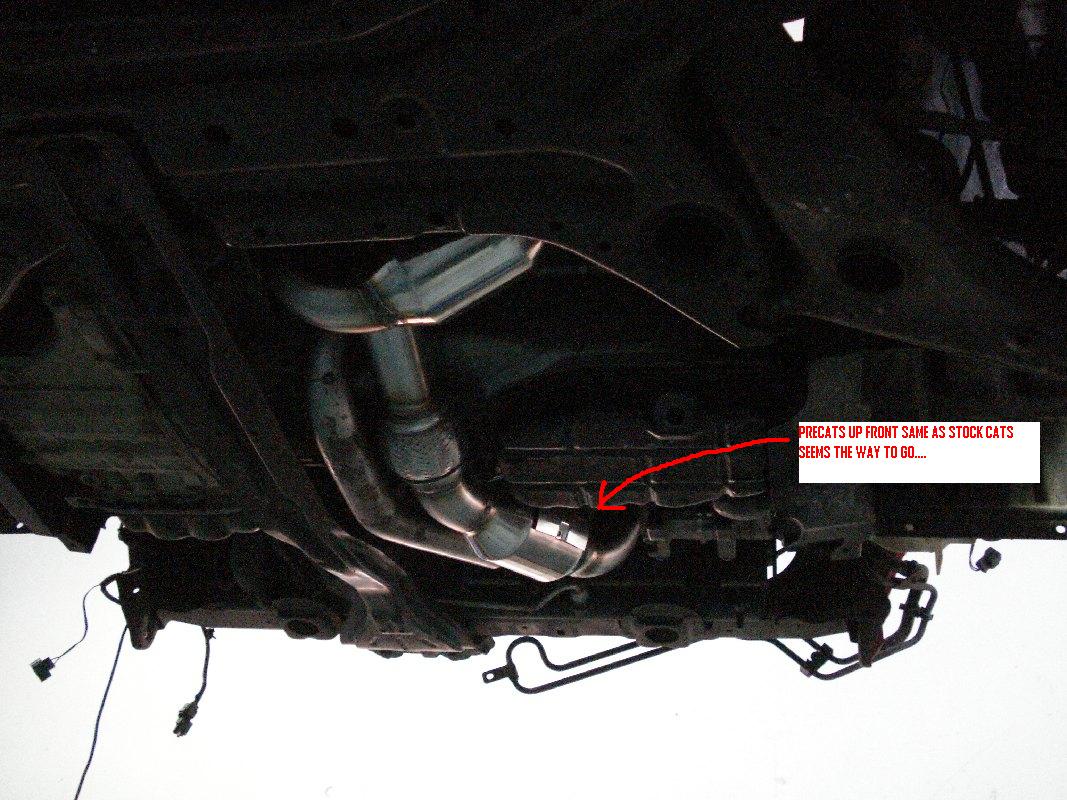

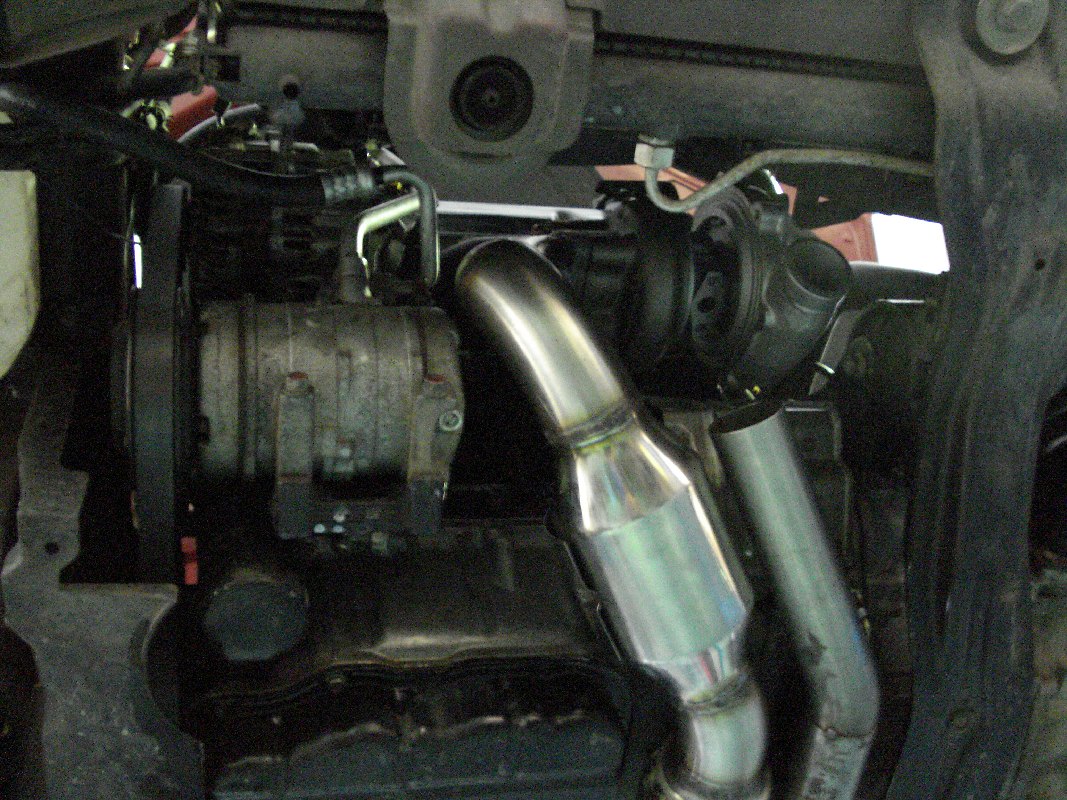

Location: An island off southern Tasmania.		Some pics of the plumbing.



(front turbo and plumbing.JPG)

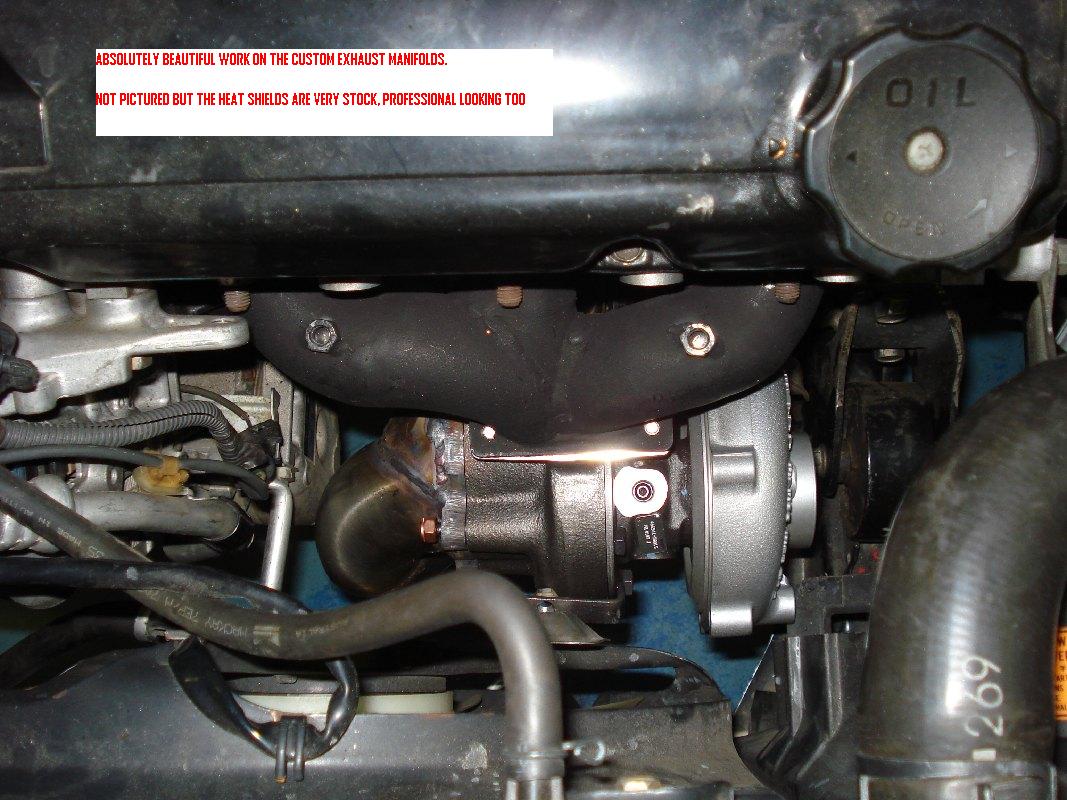

(front turbo-custom manifold-heatshield mount.JPG)



(turbo plumbing viwed from rear.JPG)



Attachments
----------------
Attachments front turbo and plumbing.JPG (255KB - 596 downloads)
Attachments front turbo-custom manifold-heatshield mount.JPG (146KB - 565 downloads)
Attachments turbo plumbing viwed from rear.JPG (173KB - 560 downloads)
Top of the page Bottom of the page
Administrator
Posted 9/10/2013 20:22 (#15773 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		The auto transmission needed the following work to be able to handle the torque (710nm at the wheels)


-replace wave spring with higher tensile one
-jam twice as many friction plates into gears 4 and 5...this required custom thinner steel seperator rings between clutch plates
-modified solenoid valve kit

solenoids modified by MV Automatics in Adelaide
auto trans modified and installed by paul Adams motors in Nth geelong



mission accomplished....time to enjoy it!





(380Gt auto trans fixed.jpg)



Attachments
----------------
Attachments 380Gt auto trans fixed.jpg (169KB - 606 downloads)
Top of the page Bottom of the page
Foozrcool
Posted 9/10/2013 21:00 (#15774 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Bronze

Posts: 40
25555
Hope this solves all your problems!
Top of the page Bottom of the page
Anndriu
Posted 9/10/2013 22:53 (#15775 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo





Posts: 3

are some photos of the progress of work on the gearbox??
work gear change noticeably if it works like oem?

Top of the page Bottom of the page
Administrator
Posted 9/10/2013 23:50 (#15776 - in reply to #15775)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
Anndriu - 9/10/2013 22:53

are some photos of the progress of work on the gearbox??
work gear change noticeably if it works like oem?



No photos...it wouldn't have been of any use...

there was stuff everywhere when it was pulled apart...very complex transmission.

gear shifts are more noticeable, but it feels strong.

I'll be happy after about 5 tankloads of fuel.

By the way it gets way better fuel economy than the supercharger when driven at 100km/h cruising...(520k to a tank Vs 420k)
Not that fuel economy really matters....
Top of the page Bottom of the page
wsbtt
Posted 10/10/2013 21:02 (#15780 - in reply to #15776)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Nice work, hope it all goes well for you
Top of the page Bottom of the page
Administrator
Posted 17/10/2013 15:52 (#15800 - in reply to #15780)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Here is a video of the test drive we did over the weekend on a private road..

Gave it half throttle, didn't even kick it down, just torque converter unlocked.

Gotta be careful planting the foot, wheels spin even at 160 with this beast.


anyway it sounds and feels strong now....did a thousand k's so far and looking promising...will wait and see...if it gets to 5 tankfulls I'll be happy.

here's a sample of responsible driving, keeping a safe distance and no wheelspin..

http://www.youtube.com/watch?v=8zsKnbZDcFo&edit=vd


Top of the page Bottom of the page
wsbtt
Posted 18/10/2013 18:09 (#15805 - in reply to #15800)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld
Administrator - 17/10/2013 15:52

Here is a video of the test drive we did over the weekend on a private road..

Gave it half throttle, didn't even kick it down, just torque converter unlocked.

Gotta be careful planting the foot, wheels spin even at 160 with this beast.


anyway it sounds and feels strong now....did a thousand k's so far and looking promising...will wait and see...if it gets to 5 tankfulls I'll be happy.

here's a sample of responsible driving, keeping a safe distance and no wheelspin..

http://www.youtube.com/watch?v=8zsKnbZDcFo&edit=vd



AWW, i was waiting to see you blow him off, being a private road ...lol
Top of the page Bottom of the page
Anndriu
Posted 21/10/2013 00:14 (#15810 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo





Posts: 3

record more videos 0-100,0-200 km / h, impressive is the transmission of the bears that moment on wheels, controls the temperature of the transmission oil? is some extra cooling?

after reading your project, looking at the car for yourself
Top of the page Bottom of the page
