Mitsubishi 380 turbo
Jump to page : < 1 2 3 4 5 6 7 ... >
Now viewing page 2 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> 380 Turbo - Mitsubishi 380 turbo projectMessage format

Administrator
Posted 8/11/2011 00:06 (#13784 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		I'm only aiming for 20-25 psi Godzilla.....so you should be okay.

Already got the forged engine builder tee'ed up for another build, and if the ECU does what we think it will there's the prospect of doing some cam work as well.


But she'll weigh in at around 1900kg when i have added all the special bits.....
Top of the page Bottom of the page
wsbtt
Posted 8/11/2011 10:43 (#13786 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		those special bits wouldnt include an endeavor rearend would it
Top of the page Bottom of the page
Administrator
Posted 22/11/2011 17:40 (#13805 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Today's update is that the Link Extreme ECU is in the car and running, injector and spark control are live.

Problems with drive by wire throttle control sticking, work in progress.

Believe it or not...just bought a second fully forged 6g75 with modified cam profile a few minutes ago, setup for a manual....

Pretty convenient.
Top of the page Bottom of the page
Administrator
Posted 20/12/2011 08:21 (#13857 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Very nice work Stayer.

You are at same stage as me.

I am going to the US for some more parts.

Welcome to the forum friend.
Top of the page Bottom of the page
stayer
Posted 20/12/2011 19:12 (#13858 - in reply to #13857)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Thank You! At the forum in the US you are too little to write. I had to look for you. I am very interested in your experience.
Top of the page Bottom of the page
Administrator
Posted 2/2/2012 14:20 (#14018 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		The Link Ecu portion of this build is proceeding.

The tuners have sorted out the fueling control issues and the stock ECU doesnt throw up CEL and limp home codes anymore.

Now they are onto the spark controls.

Top of the page Bottom of the page
Administrator
Posted 11/5/2012 23:41 (#14298 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Well they had lotsa problems getting the coil pack simulation working.

In the end bacause it is a darlington transistor drive, the ECU needed to see a 1.2 v drop with respect to ground ( as you would expect with two Vbe junctions)

Two 1N4001 diodes in series on each coil pack trigger pulse and the check lights and limp mode stopped.

I saw it running today, now it has a weird issue of slowly increasing revs at idle without any throttle.

At least it starts and runs....

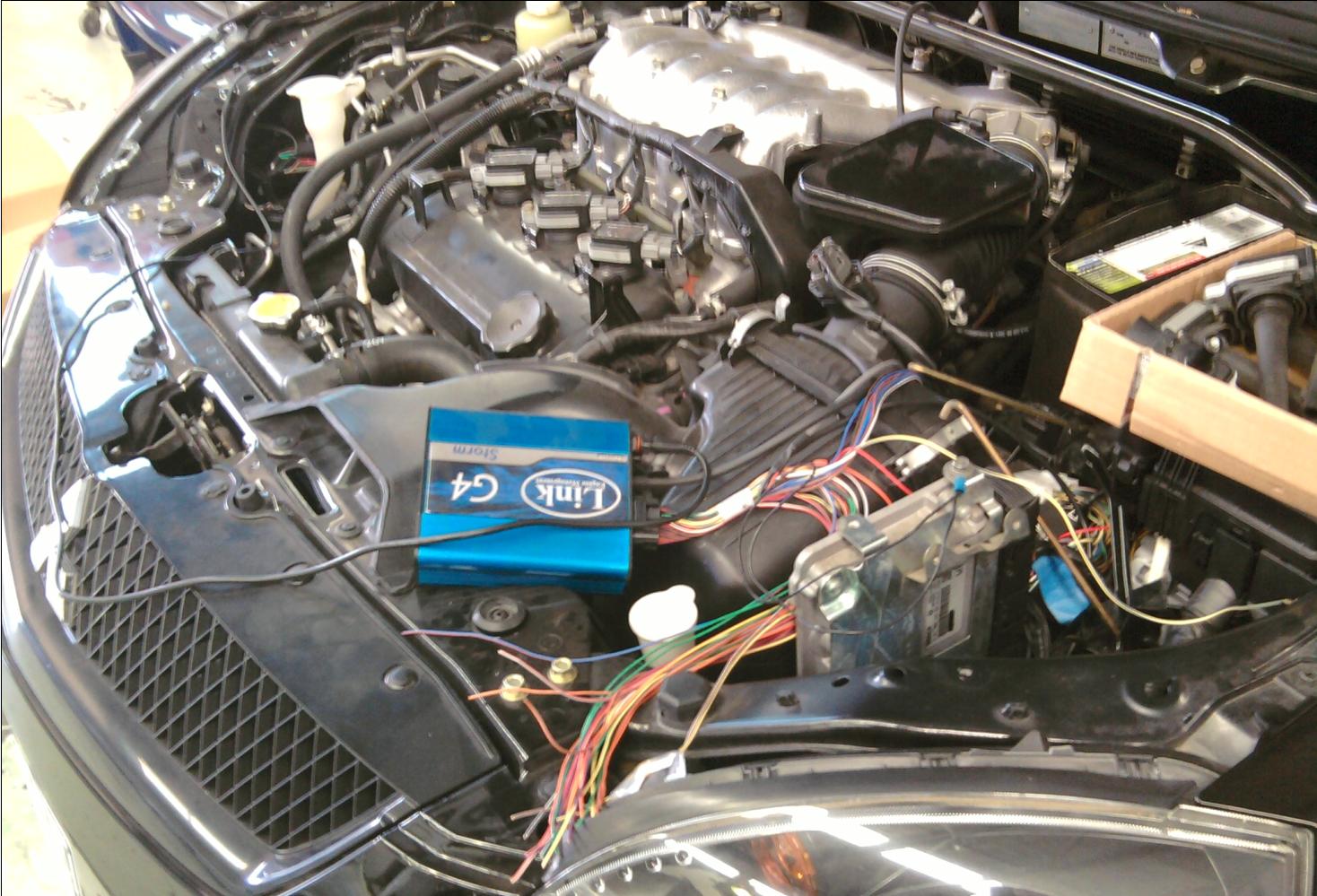

here is a pic...although camera phone pic...





(380 Link storm.JPG)



Attachments
----------------
Attachments 380 Link storm.JPG (216KB - 629 downloads)
Top of the page Bottom of the page
Foozrcool
Posted 12/5/2012 11:22 (#14299 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo



Frequent flyer Bronze

Posts: 40
25555
Getting closer .... can't see any turbos but :P

My car does strange stuff too like idle up & down to almost 2000rpm at times, it has a mind of it's own. When it's in gear it's fine so I haven't worried about it too much & it doesn't do it all the time either. One day when I could be bothered I'll swap out the throttle body & see if that works. I have one with a bigger butterfly so maybe it's confused but has only done this since it's been supercharged.
Top of the page Bottom of the page
phaseautos
Posted 14/5/2012 10:24 (#14300 - in reply to #14299)
Subject: Re: Mitsubishi 380 turbo


Frequent flyer Silver

Posts: 51
50
Location: Australia		even with a bypass valve the charger will multiply the effect due to greater airflow so yes you may have a fix there?
Top of the page Bottom of the page
savage3
Posted 19/6/2012 22:35 (#14359 - in reply to #13556)
Subject: Re: Mitsubishi 380 turbo




Posts: 8
5
Email sent with my tune attached.

I wouldn't go flashing your ECU with my tune.

I forgot to write that you'll need that PClink software from the Link site to be able to view it.
Top of the page Bottom of the page
