Audio Head Unit Query
Jump to page : 1 2 3
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   Technical info for the 380 -> 380 entertainment systemMessage format

Mitsu473
Posted 20/6/2013 14:08 (#15264)
Subject: Audio Head Unit Query



Frequent flyer Bronze

Posts: 47
255555
Location: Geelong, Vic		Is it only mine or they are all like this??

I have put 1 MP3 CD and 2 normal audio CD's in the 6 disc changer and pressed the random button.
It started to play from the MP3 CD but did not play any of the others, so pressed one of the CD numbers where an audio CD was and it didn't read it. The unit, then changed to another disc but didn't recognize any of the audio CD and went back to the MP3 CD.

Then I ejected 1 of the audio CD and reloaded and started playing, pressed the CD number where the MP3 CD was and didn't play and the unit changed to the next CD!!!

So, does it mean the unit does not play MP3 CD and audio CD at the same time????!!!!

Top of the page Bottom of the page
Administrator
Posted 20/6/2013 15:52 (#15265 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		I suspect it only random plays from the same CD whether it is an mp3 or normal audio...else it would wear out the changeover assembly?

If you want to try another unit (I see you are in geelong), come over to my place and I'll swap it out in 10 minutes for you...LOL
Top of the page Bottom of the page
Mitsu473
Posted 20/6/2013 17:25 (#15266 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Bronze

Posts: 47
255555
Location: Geelong, Vic		I've tried it again just few minutes ago and realized that when playing a MP3 CD and press random, it goes to random folders and when playing audio CD it goes random discs !!

Hehe if I would swap the head unit it would be for a better one not the same... maybe later on not for now....and if I come over to your place it will be to see some of your projects you're working on & rides
Top of the page Bottom of the page
Administrator
Posted 20/6/2013 23:53 (#15270 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		In my GT I have the factory satnav AVN6000 whics a single DVD and CD haven;t used a 6 stacker in a long time...
Top of the page Bottom of the page
stayer
Posted 25/6/2013 16:29 (#15304 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		I use the AUX.

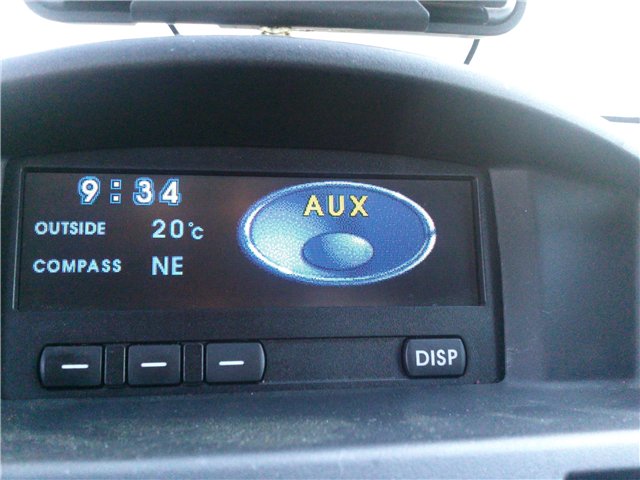

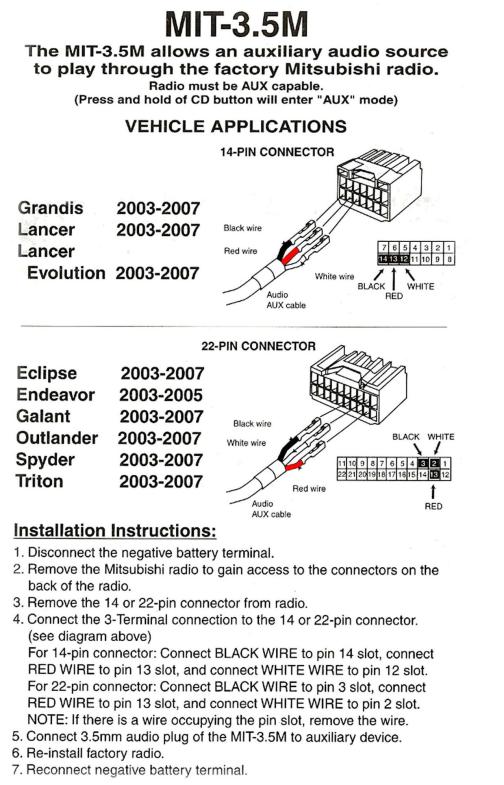

Here is a diagram of connection. To activate the AUX mode to: turn Off the stereo, to do this press the left handle. Then hold the disc # 1 or # 6. Thus it is necessary to press the on of the left handle. At that, the screen will display the AUX. The volume level is adjusted as usual, left handle.




(155359609.jpg)



(298c123741ad.jpg)



Attachments
----------------
Attachments 155359609.jpg (79KB - 3122 downloads)
Attachments 298c123741ad.jpg (54KB - 930 downloads)
Top of the page Bottom of the page
Telpat16
Posted 29/6/2013 17:49 (#15312 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 108
1005
Location: NEWPORT QLD		Has anyone found a way to get the Australian 6 stacker to go into AUX mode?
Top of the page Bottom of the page
Administrator
Posted 30/6/2013 12:01 (#15315 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Stayer...that procedure does not work with our australian unit.

I did try it on the Endeavour and it does bring up that menu....so thanks for that.
Top of the page Bottom of the page
Telpat16
Posted 30/6/2013 15:44 (#15317 - in reply to #15315)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 108
1005
Location: NEWPORT QLD

Stayer & Admin



It DOES work for me!



Except that on the Australian model power  switch ins on RHS (nearest to driver!)



I have the cable MZ360135EX will try and install over next few days



My install diagram for 22 pin connector says Black to >3, White to >2 and red to >13

Top of the page Bottom of the page
Administrator
Posted 30/6/2013 17:03 (#15318 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Good stuff
we should have known..he is left hand drive...LOL

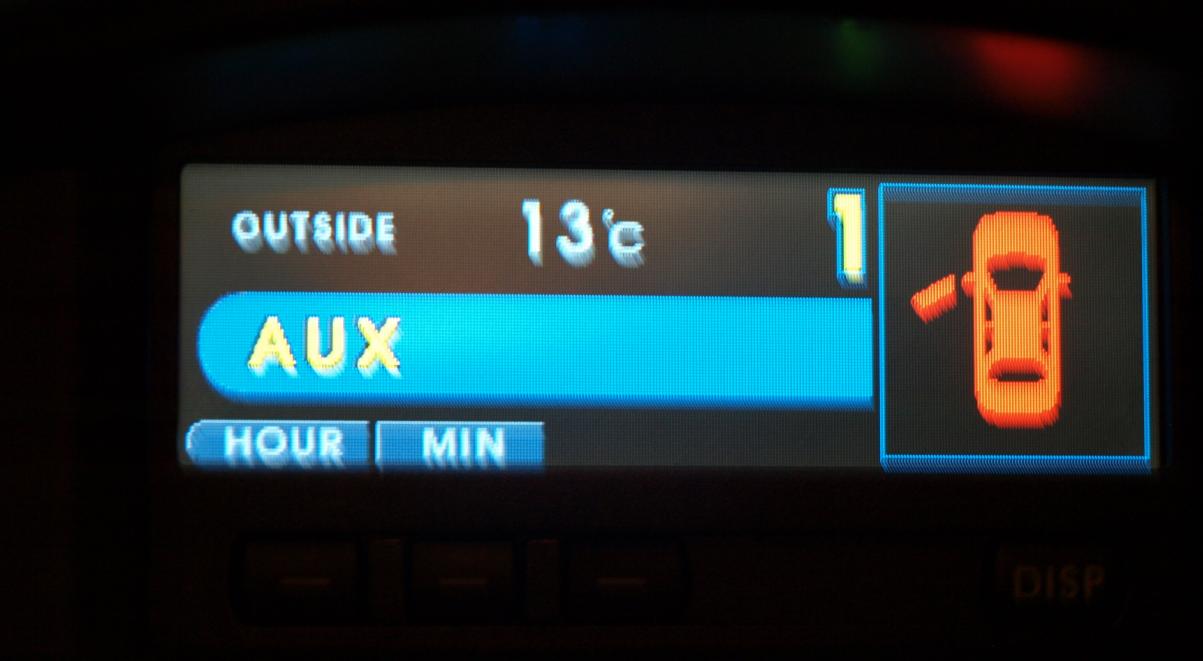

(380 aux audio.JPG)



Attachments
----------------
Attachments 380 aux audio.JPG (57KB - 923 downloads)
Top of the page Bottom of the page
Mitsu473
Posted 30/6/2013 18:01 (#15321 - in reply to #15264)
Subject: Re: Audio Head Unit Query



Frequent flyer Bronze

Posts: 47
255555
Location: Geelong, Vic		that's cool!!! so when I'll find time to do my sound update I'll try it
