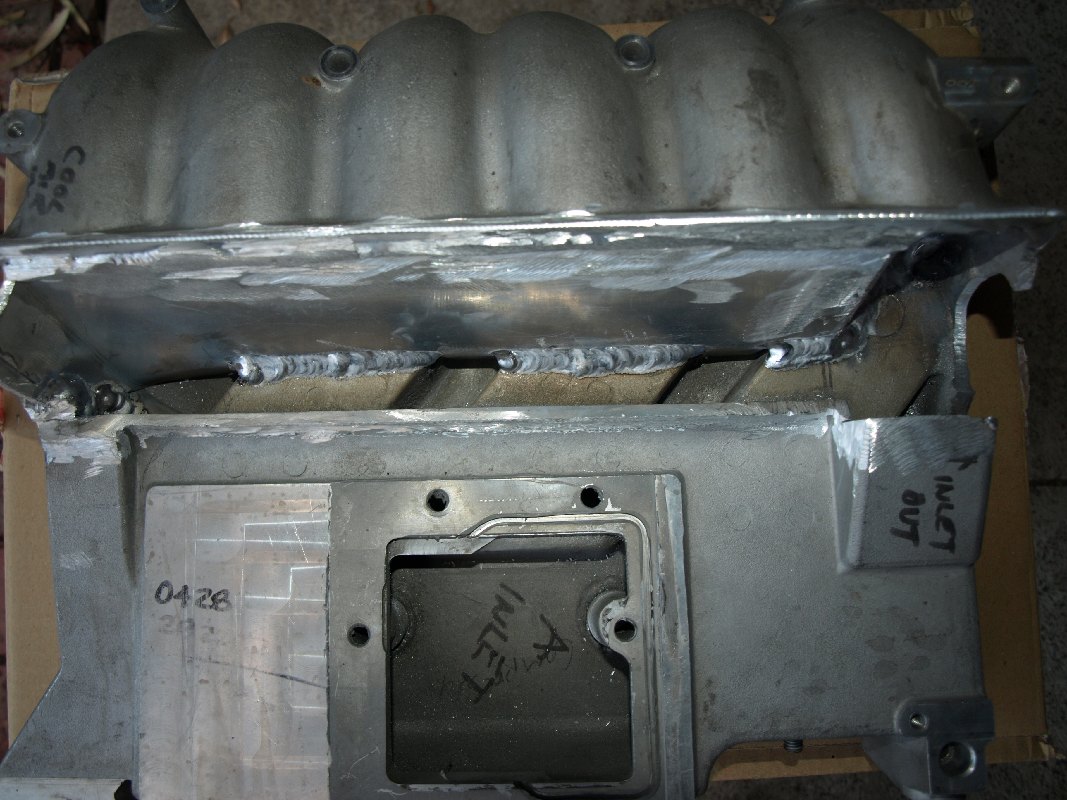

Have proceeded down the path of modifying this plenum to use an intercooler.

The strategy is to create twin chambers in the center portion and direct it out the belt side through a FMIC and then back with suitable piping to the throttle body side.

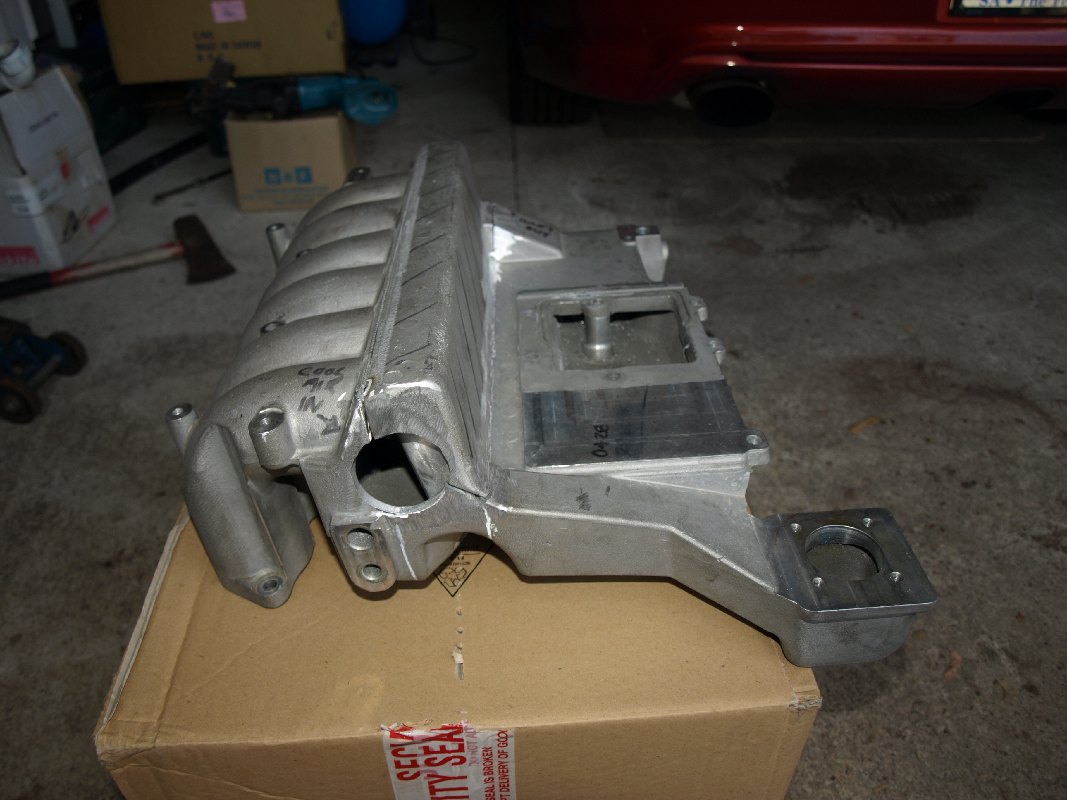

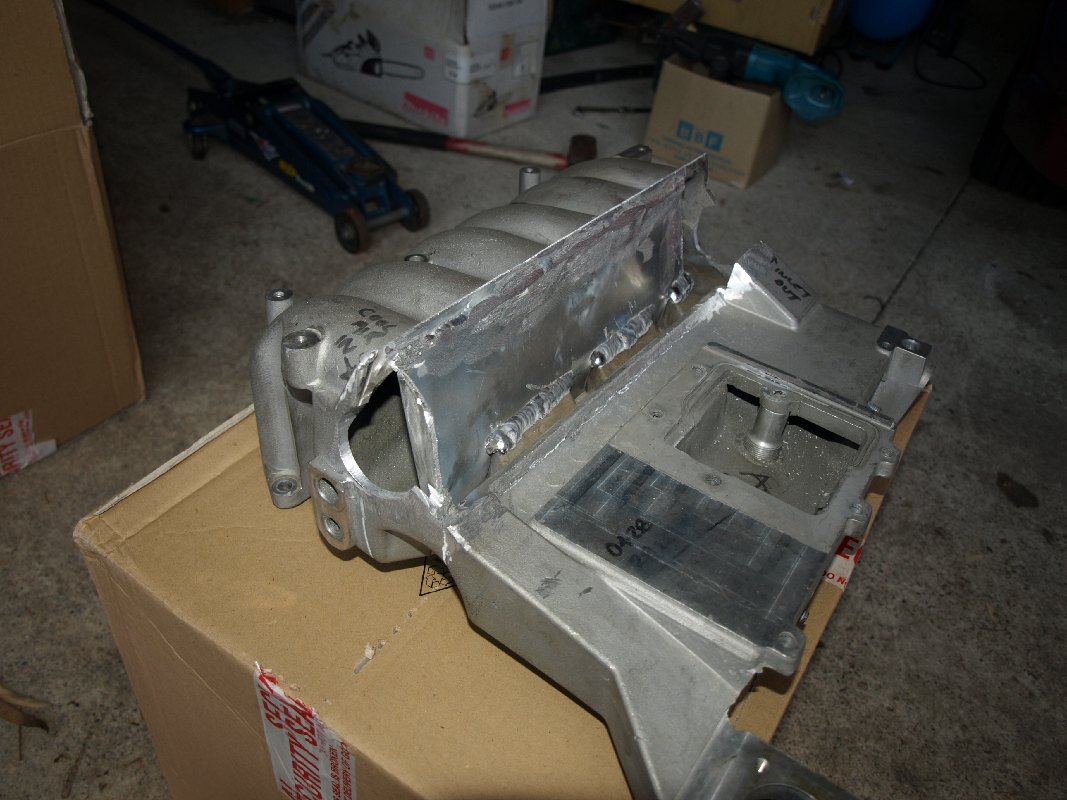

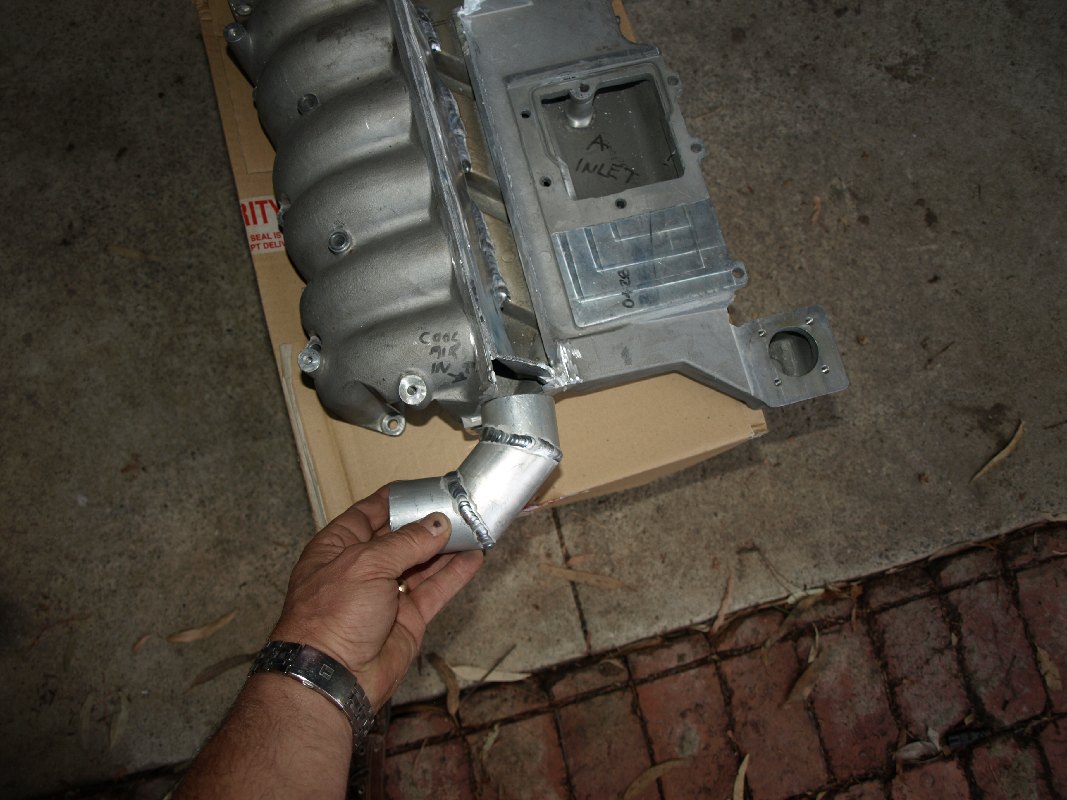

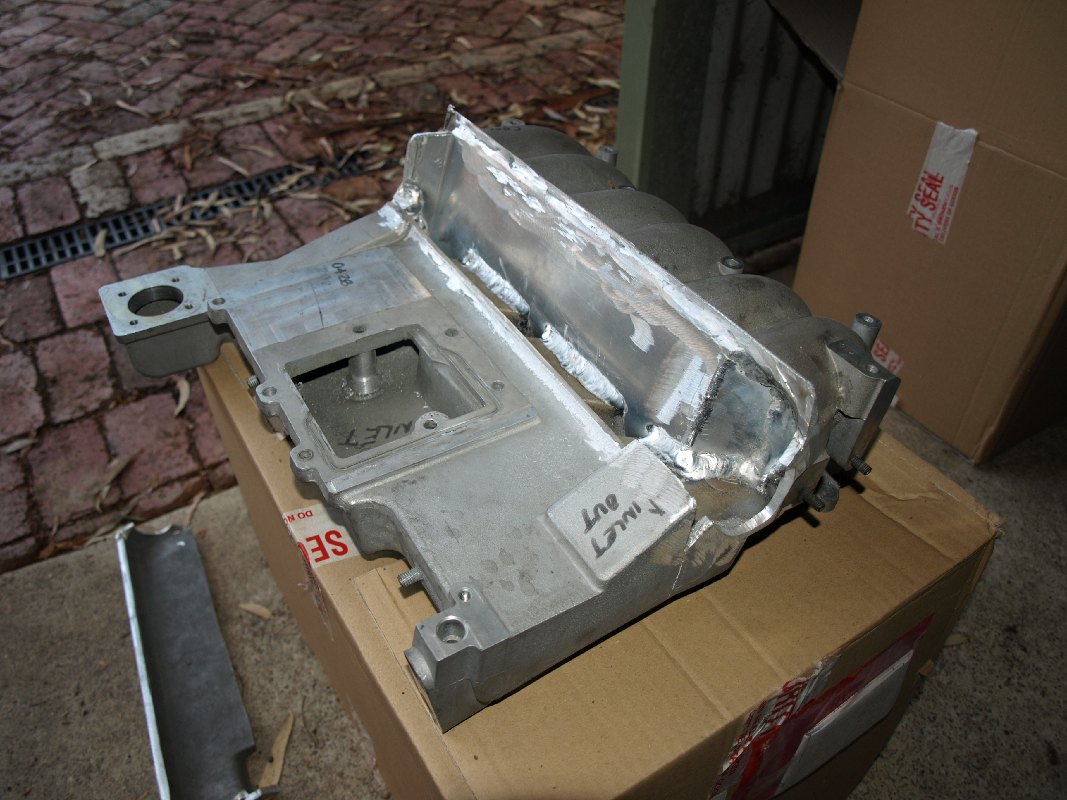

Here are some progress shots.

Even a little bit of cooling will make a dramatic impact to this kit.

The intake temps often reach 90-100 degrees celsius.

(P4180078.JPG)

(P4180079.JPG)

(P4180080.JPG)

(P4180081.JPG)

(P4180082.JPG)

(P4180083.JPG)

(P4180084.JPG)

(P4180085.JPG)

(P4180086.JPG)

(P4180087.JPG)

(P4180088.JPG)

(P4180089.JPG)

(P4180090.JPG)

(P4180091.JPG)

(P4180092.JPG)

Attachments
----------------

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments


Administrator

Posted 24/4/2013 23:27 (#15036 - in reply to #15018)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

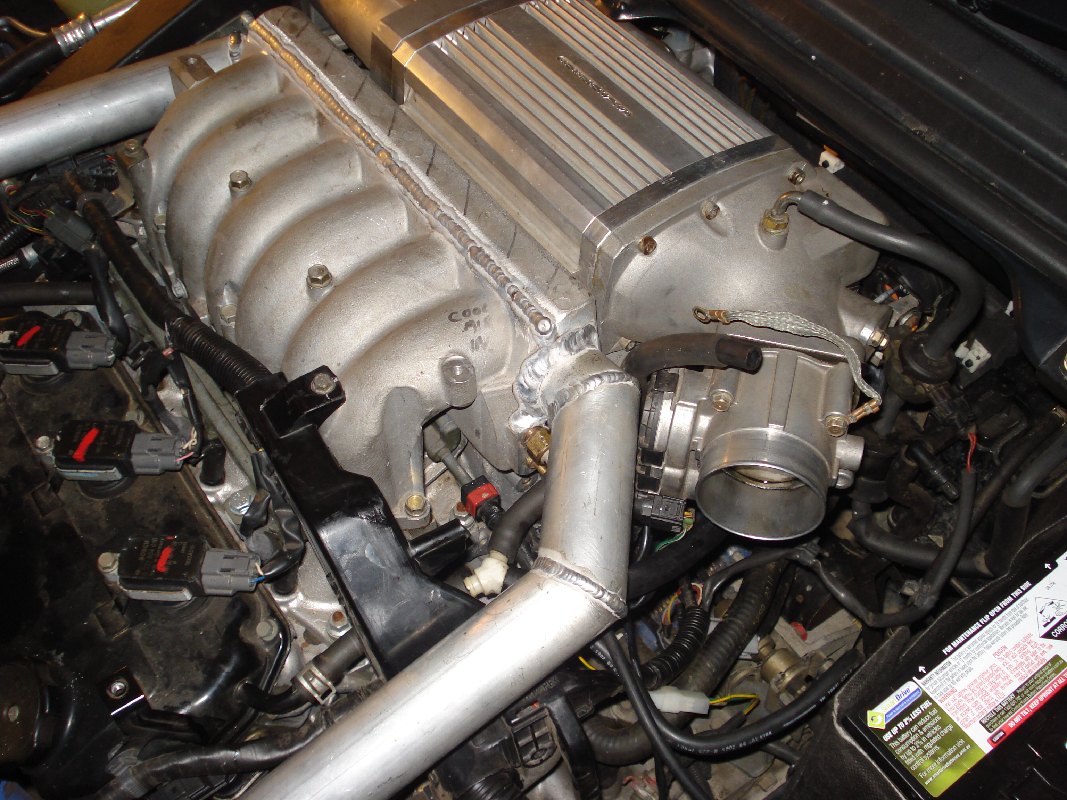

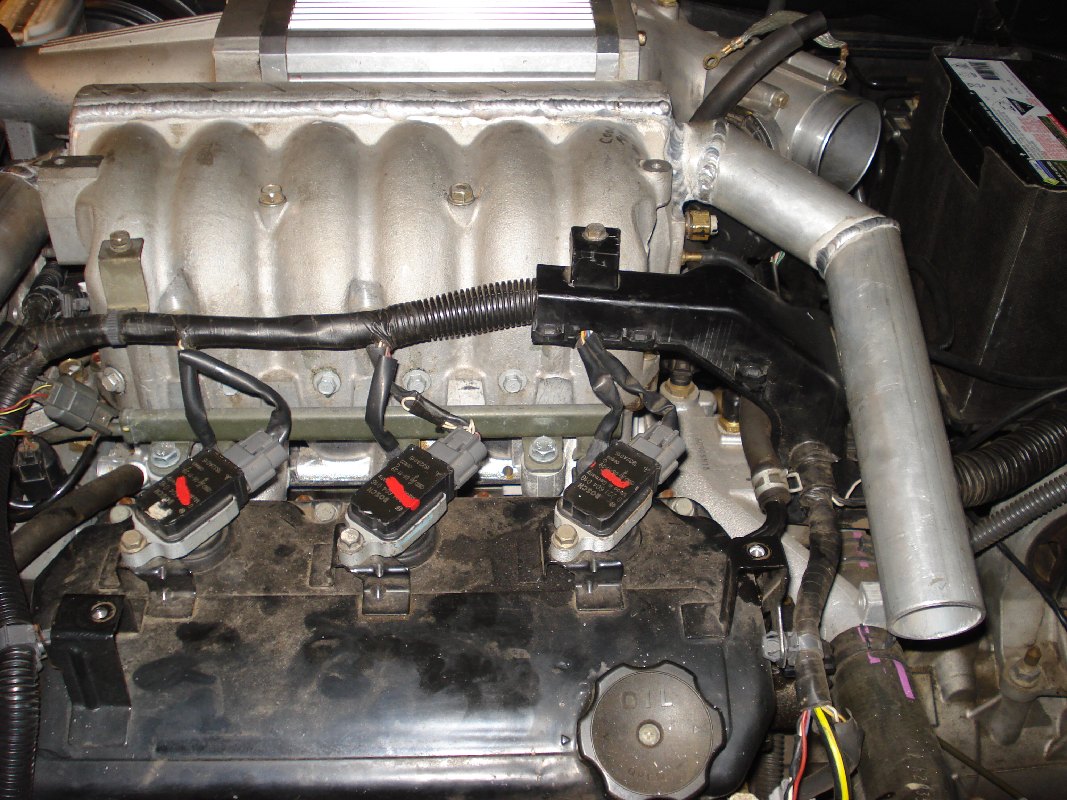

final mockup.

The throttle body side need a 60mm elbow extension as well as being angled down at 20 degrees to clear the stock intake.
The pulley side clears perfectly as long as the connector support bracket for the crank angle sensor etc is relocated.

wsbtt

Posted 26/4/2013 17:57 (#15040 - in reply to #15036)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 421
100

Location: Brisbane,qld

nice work

Administrator

Posted 10/5/2013 17:00 (#15150 - in reply to #15018)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

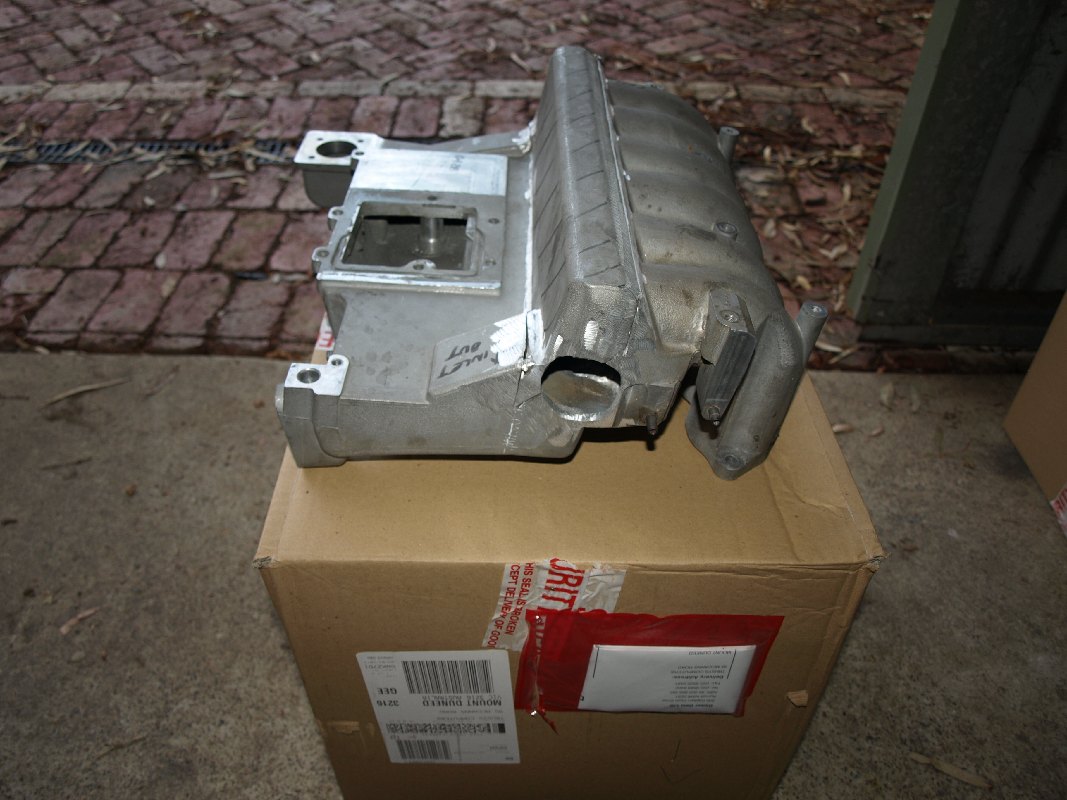

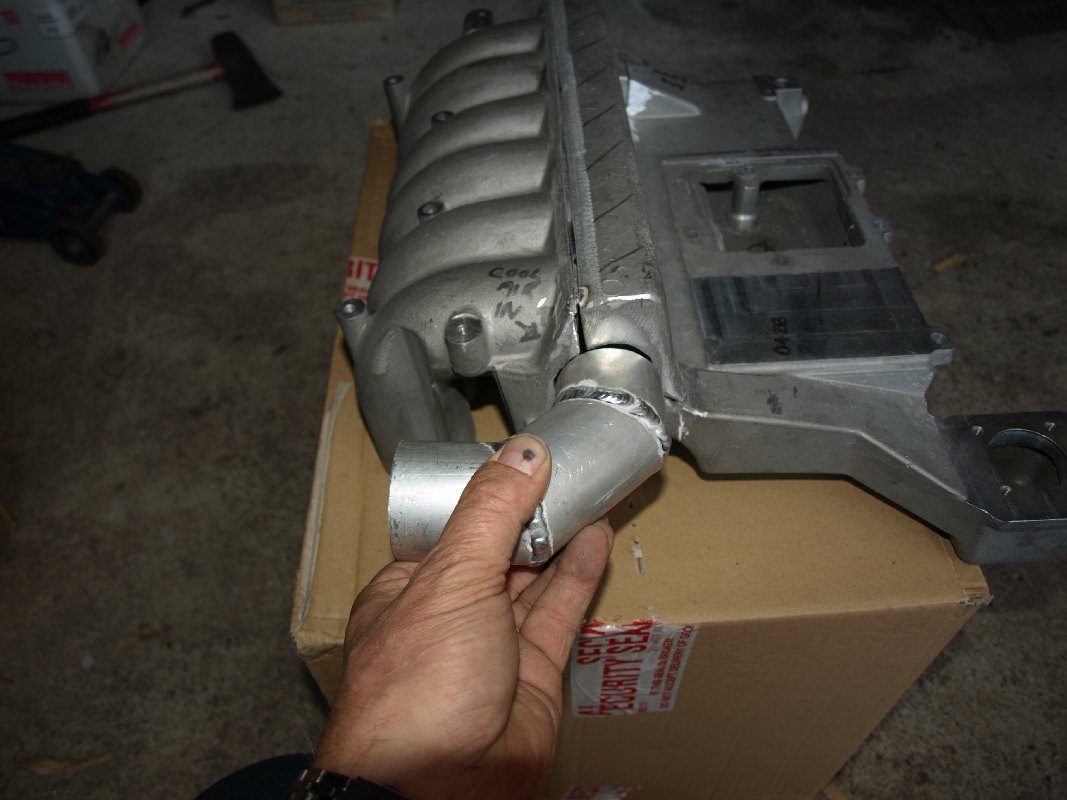

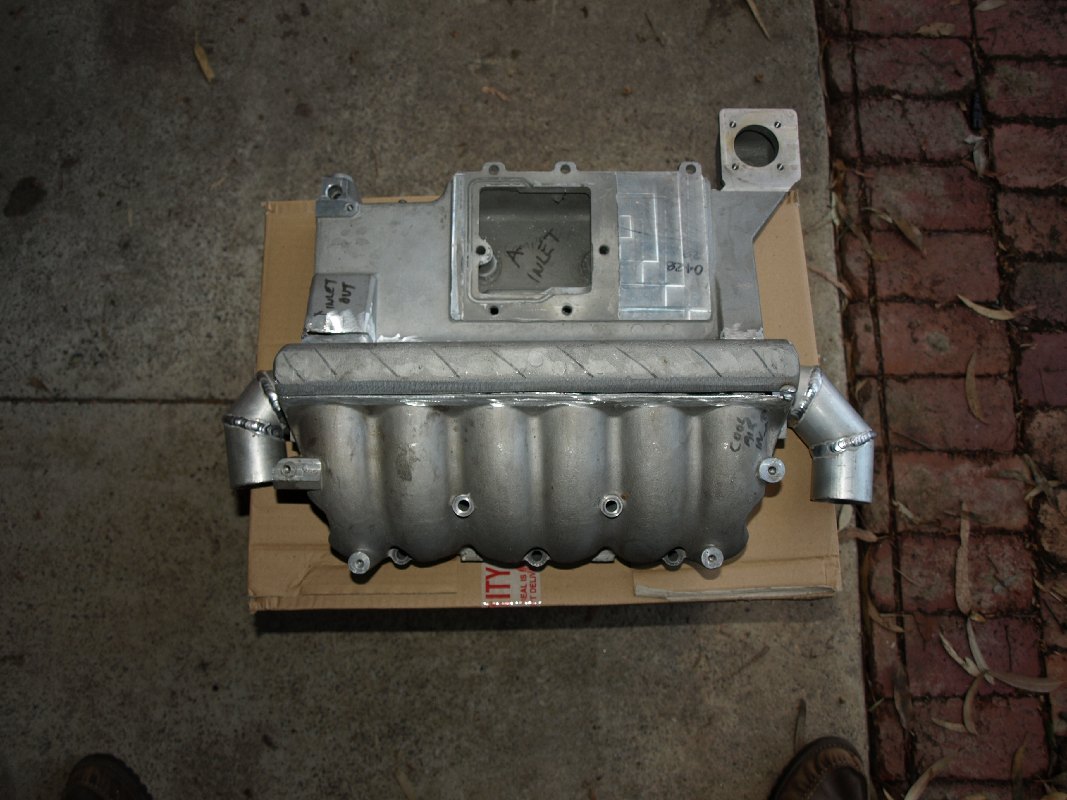

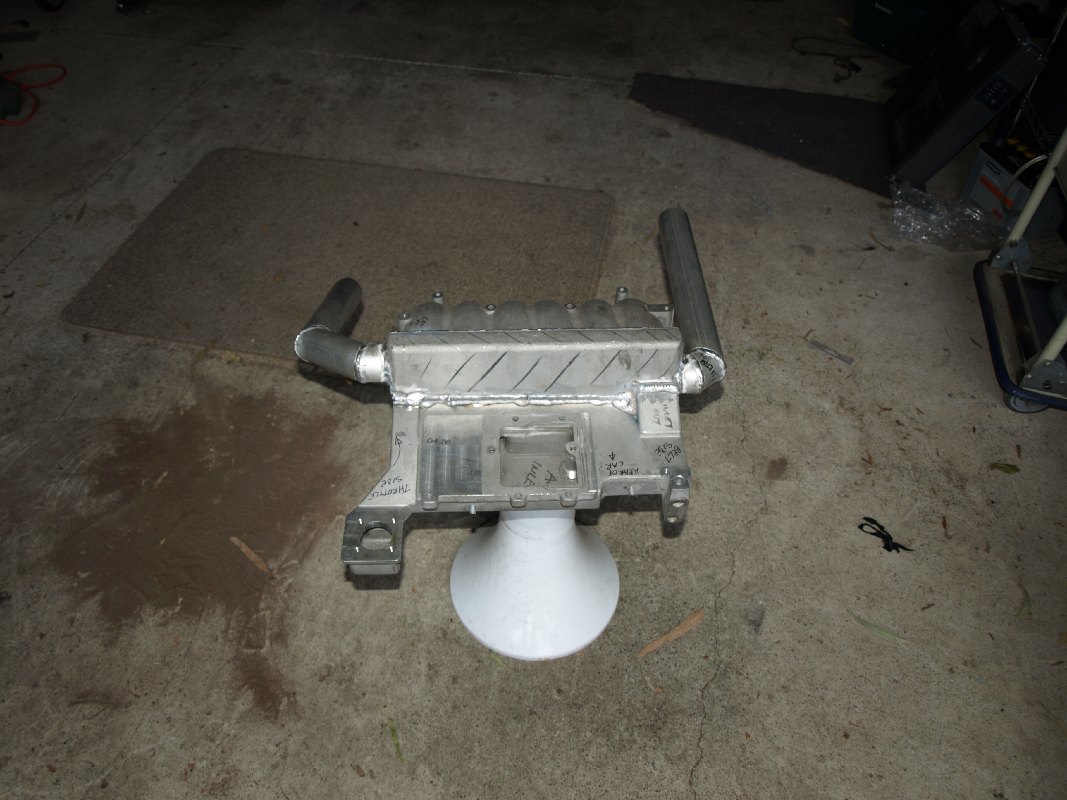

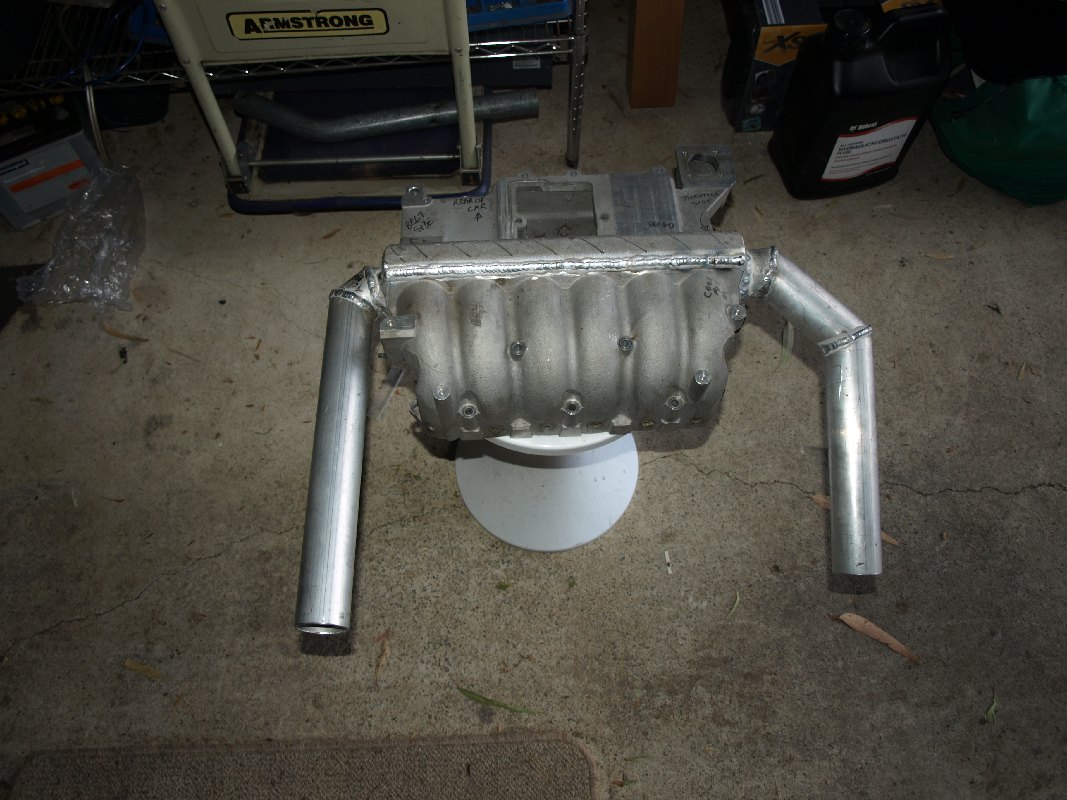

Here is the finished refabricated plenum.

Cost for all R&D was stupidly cheap.

For testing I simply loop a hose from inlet to outlet....because all the air is past the throttle body...so a piece of cake.

I am hoping for some good performance out of this simple mod.

(P5100006.JPG)

(P5100007.JPG)

(P5100008.JPG)

(P5100009.JPG)

(P5100010.JPG)

Attachments
----------------

Attachments

Attachments

Attachments

Attachments


wsbtt

Posted 10/5/2013 17:50 (#15151 - in reply to #15018)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 421
100

Location: Brisbane,qld

whats the dia of the pipe?, i m doing a modified one for my corolla, not sure it will make a diff, just doing it for the hell of it, non turbo, nice job though,will be interesting to see the performance difference

Administrator

Posted 11/5/2013 09:48 (#15154 - in reply to #15018)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

thats a 2.25 inch...picked it for a variety of reasons.

Administrator

Posted 11/6/2013 17:40 (#15254 - in reply to #15018)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

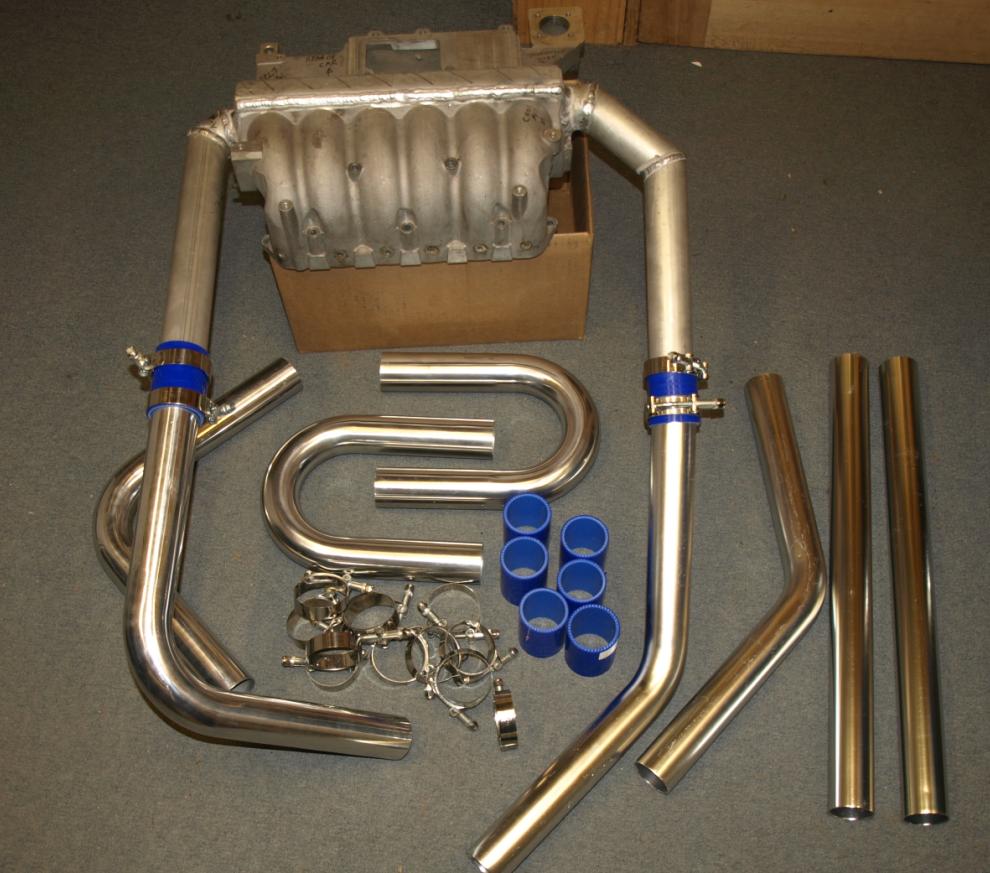

Got a package in the mail today.

A whole bunch of kit parts to play around with mocking up the intercooler piping.

$89 inc delivery...how in the hell do they do it?

It's chinese but it's good enough for what I am doing.

This will be fun....

(intercooler piping.JPG)

Attachments
----------------

intercooler piping.JPG (110KB - 767 downloads)

wsbtt

Posted 11/6/2013 17:51 (#15255 - in reply to #15254)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 421
100

Location: Brisbane,qld

Looks flash

Administrator

Posted 24/6/2013 00:25 (#15290 - in reply to #15018)
Subject: Re: Sprintex supercharger plenum

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

Well spent the afternoon grazing my knuckles on the rear support bolts required to remove the plenum.

Swapped the supercharger onto the re-fabricated plenum, plugged up the LPG nozzle holes as this was my old GT plenum.

Removed the bumper bar in anticipation of fitting my cheap arsed $50 ebay intercooler that i won...( It's BIG...BIG....BIG)

Before fitting the intercooler i thought i better test my chamber-ised plenum theory to see if it runs.

Ran it up and down the road for a few kilometres and by damn it's improved even with the bit of piping.

The intake temps of theses sprintex blowers are about 95 degrees Centigrade.

Here are some pics for me to brag about how well i fluked the clearances...LOL...

Cleared the throttle body by 2mm and the drive belt by a mile.

overall very, very happy with this so far.
