The Exterior. Change of the bumper.
Jump to page : 1 2 3
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

stayer
Posted 26/12/2011 15:17 (#13938)
Subject: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

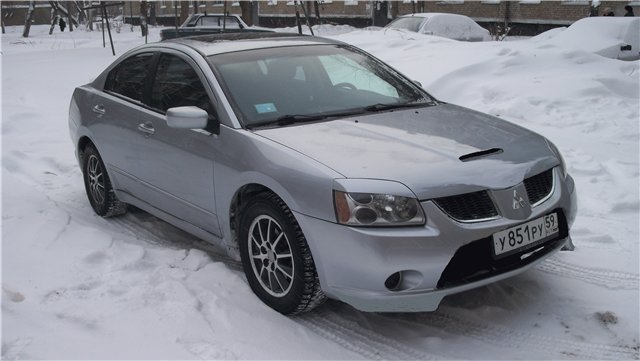

Location: Russia, Perm		I want to tell you how did lips and bumper for 9G. My old 9G 2004. I want more individuality. At first i drew in the program "Photoshop S2", what i want. Strongly do not swear, drew as he could.



(d0d1e68f5ef7.jpg)



Attachments
----------------
Attachments d0d1e68f5ef7.jpg (42KB - 610 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 15:19 (#13939 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

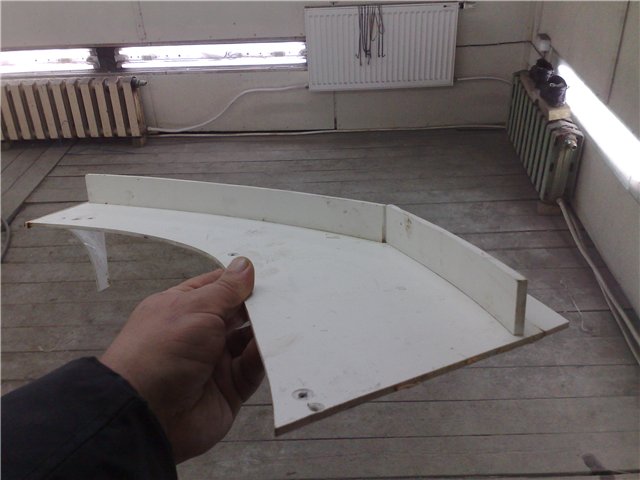

Location: Russia, Perm		First, i take the base for the fangs. They are made of plastic



(50042cf06644.jpg)



(ab13b5415f77.jpg)



Attachments
----------------
Attachments 50042cf06644.jpg (56KB - 582 downloads)
Attachments ab13b5415f77.jpg (43KB - 595 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 15:24 (#13940 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

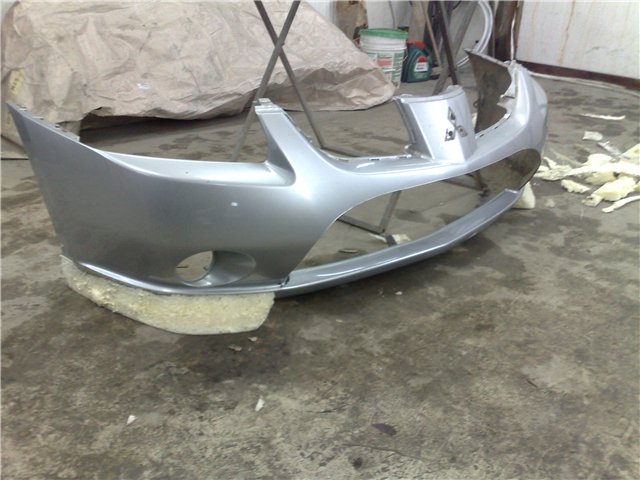

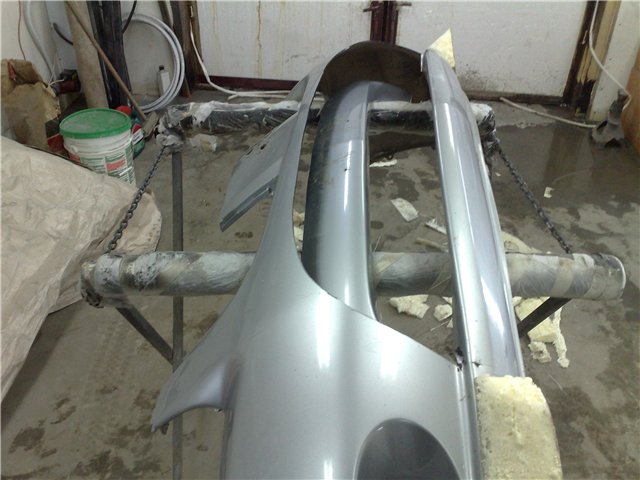

Location: Russia, Perm		Install the bumper on the base. Use construction foam and do fangs. Once the foam has dried, remove unnecessary. So i do coating of paper tape.



(5d7dee874962.jpg)



Attachments
----------------
Attachments 5d7dee874962.jpg (62KB - 581 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 15:28 (#13941 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

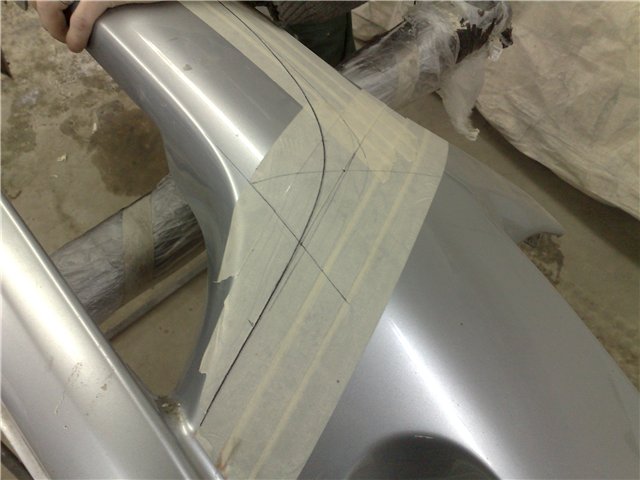

Location: Russia, Perm		In the paper we draw the line cut. Cut off a sharp knife unnecessary. Attention! Not cut the power tool.



(d2d52fcc2a18.jpg)



(307d18a6dc41.jpg)



Attachments
----------------
Attachments d2d52fcc2a18.jpg (44KB - 562 downloads)
Attachments 307d18a6dc41.jpg (56KB - 618 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 15:31 (#13942 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		That 's what happened.



(b03c0c096ce5.jpg)



Attachments
----------------
Attachments b03c0c096ce5.jpg (59KB - 581 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 15:33 (#13943 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

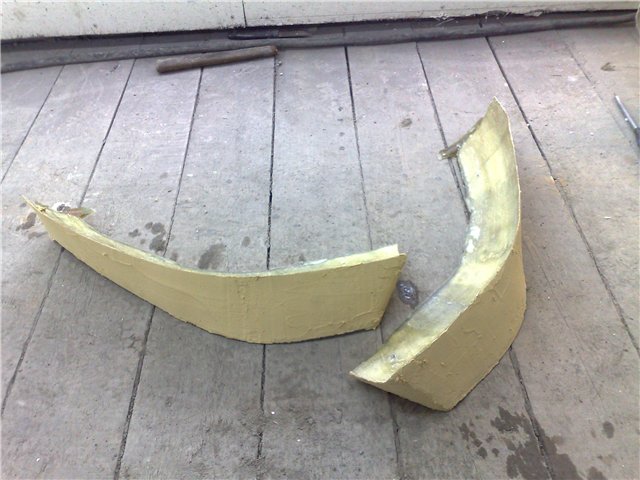

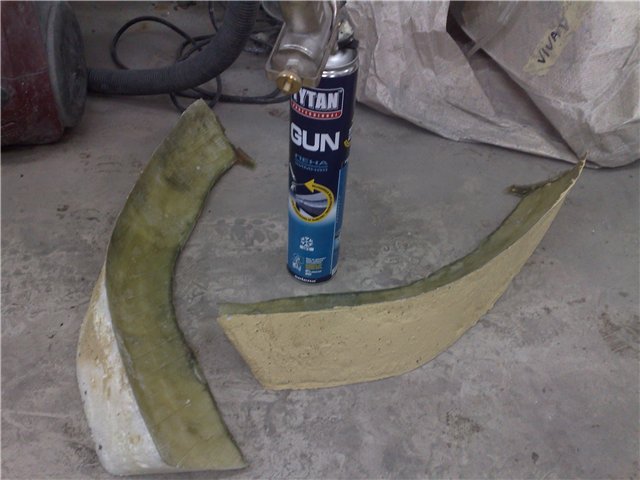

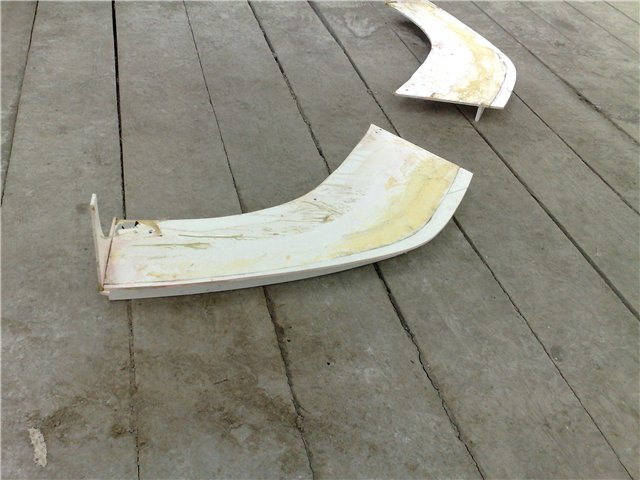

Location: Russia, Perm		Fangs cover filler and remove from the base.



(7b1964f10517.jpg)



(330f3daf328b.jpg)



Attachments
----------------
Attachments 7b1964f10517.jpg (62KB - 597 downloads)
Attachments 330f3daf328b.jpg (50KB - 612 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 15:38 (#13944 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Sandpaper begin to display the desired shape.



(1523354a587e.jpg)



(6757495fe60a.jpg)



Attachments
----------------
Attachments 1523354a587e.jpg (40KB - 566 downloads)
Attachments 6757495fe60a.jpg (44KB - 572 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 17:49 (#13945 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

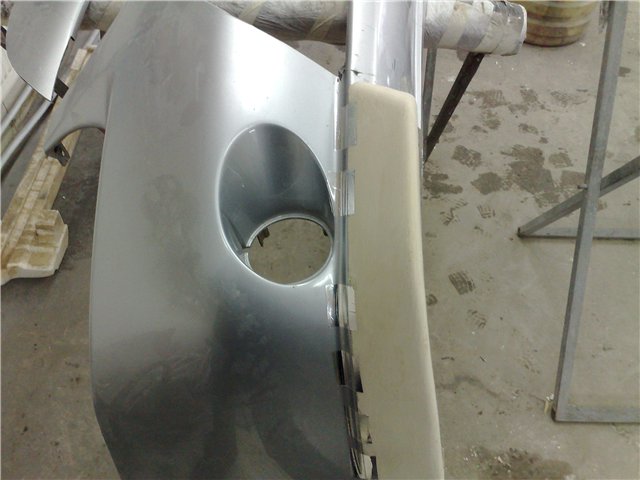

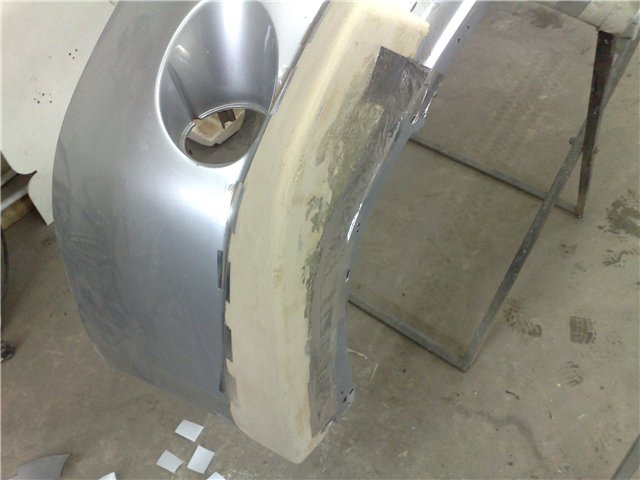

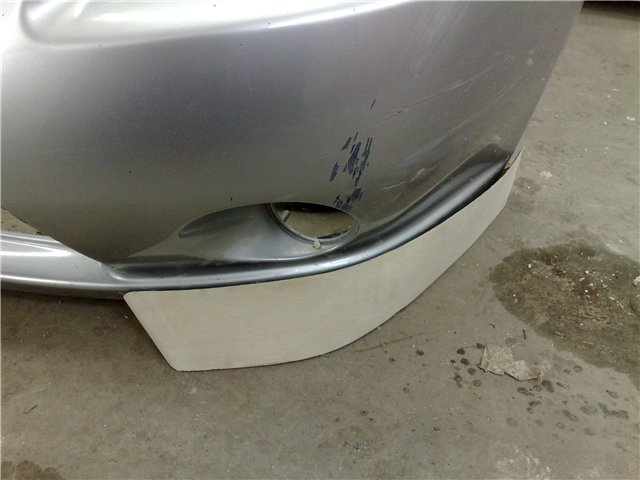

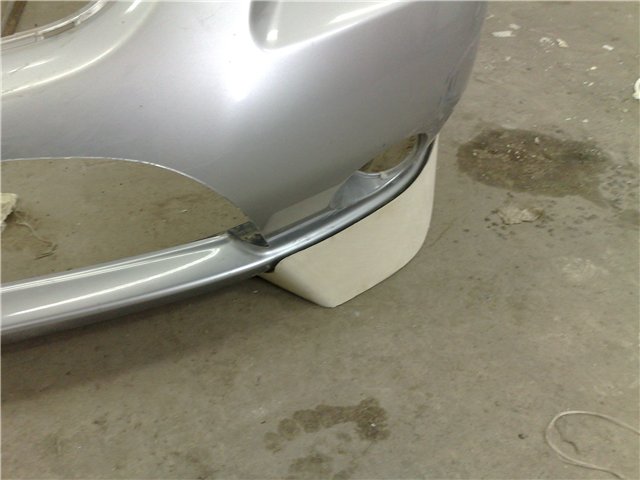

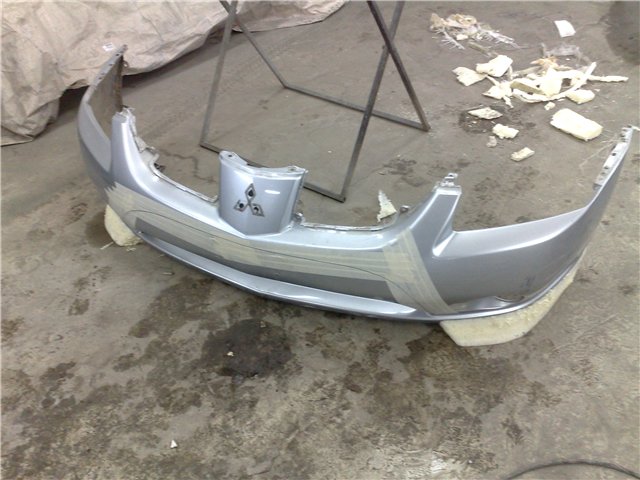

Location: Russia, Perm		The part of the stick on the bumper with a tape.

Edited by stayer 26/12/2011 17:49




(40147a98c216.jpg)



(d5e1c1cd99bc.jpg)



Attachments
----------------
Attachments 40147a98c216.jpg (44KB - 613 downloads)
Attachments d5e1c1cd99bc.jpg (43KB - 600 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 17:51 (#13946 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

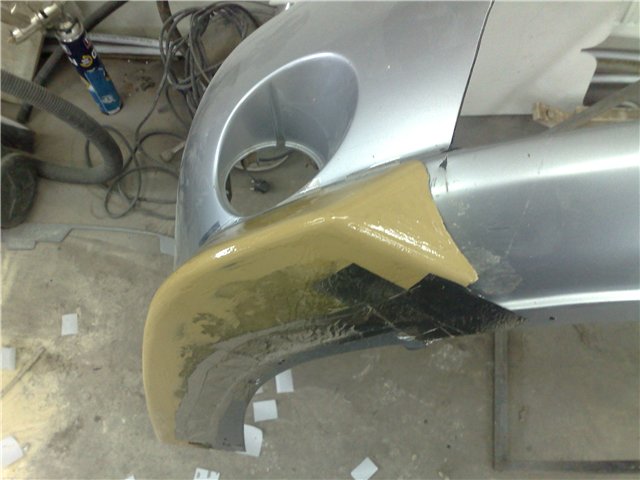

Location: Russia, Perm		Put the dividing layer



(cc877be6443c.jpg)



Attachments
----------------
Attachments cc877be6443c.jpg (46KB - 601 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 17:53 (#13947 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

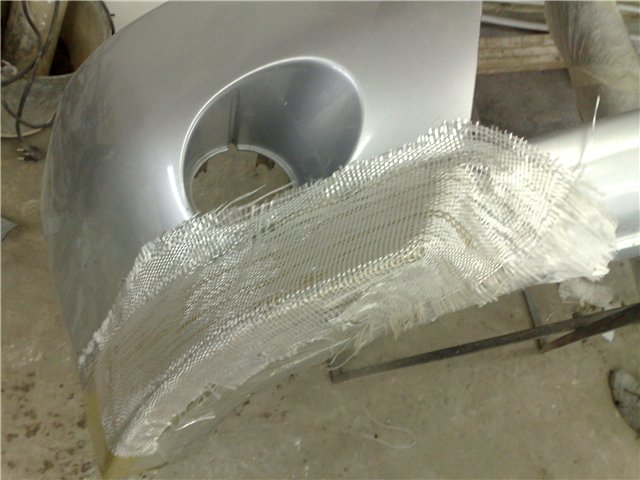

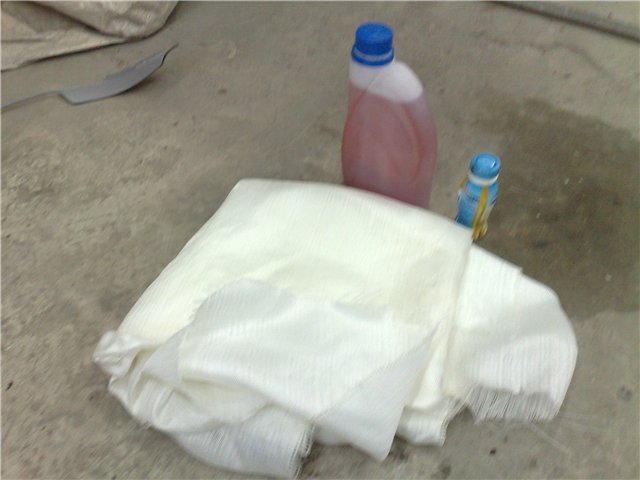

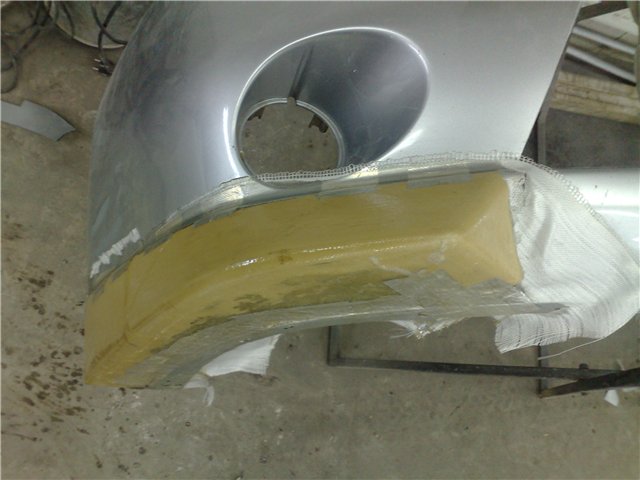

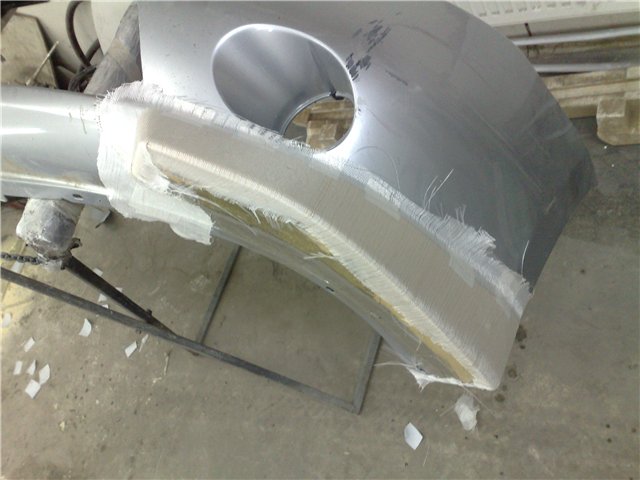

Location: Russia, Perm		Use resin and fiberglass.[img]http://s004.radikal.ru/i205/1001/f5/3b588f6ffb6d.jpg[/img] Fabric use three of a kind. Thin, medium and thick. Layers of landscape so thin, medium, thick, medium, 2 thin. Total: 6 layers.



(3b588f6ffb6d.jpg)



(7db30b92ff1e.jpg)



(92da45bc7840.jpg)



(a7f558d96152.jpg)



Attachments
----------------
Attachments 3b588f6ffb6d.jpg (39KB - 594 downloads)
Attachments 7db30b92ff1e.jpg (45KB - 563 downloads)
Attachments 92da45bc7840.jpg (52KB - 597 downloads)
Attachments a7f558d96152.jpg (47KB - 589 downloads)
