Sprintex S5-335 supercharger noisy
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   Technical info for the 380 -> Sprintex,SMT6,etcMessage format

Administrator
Posted 29/4/2012 20:11 (#14239)
Subject: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Decided to pull him out cause have bought a spare to rotate off the shelf.

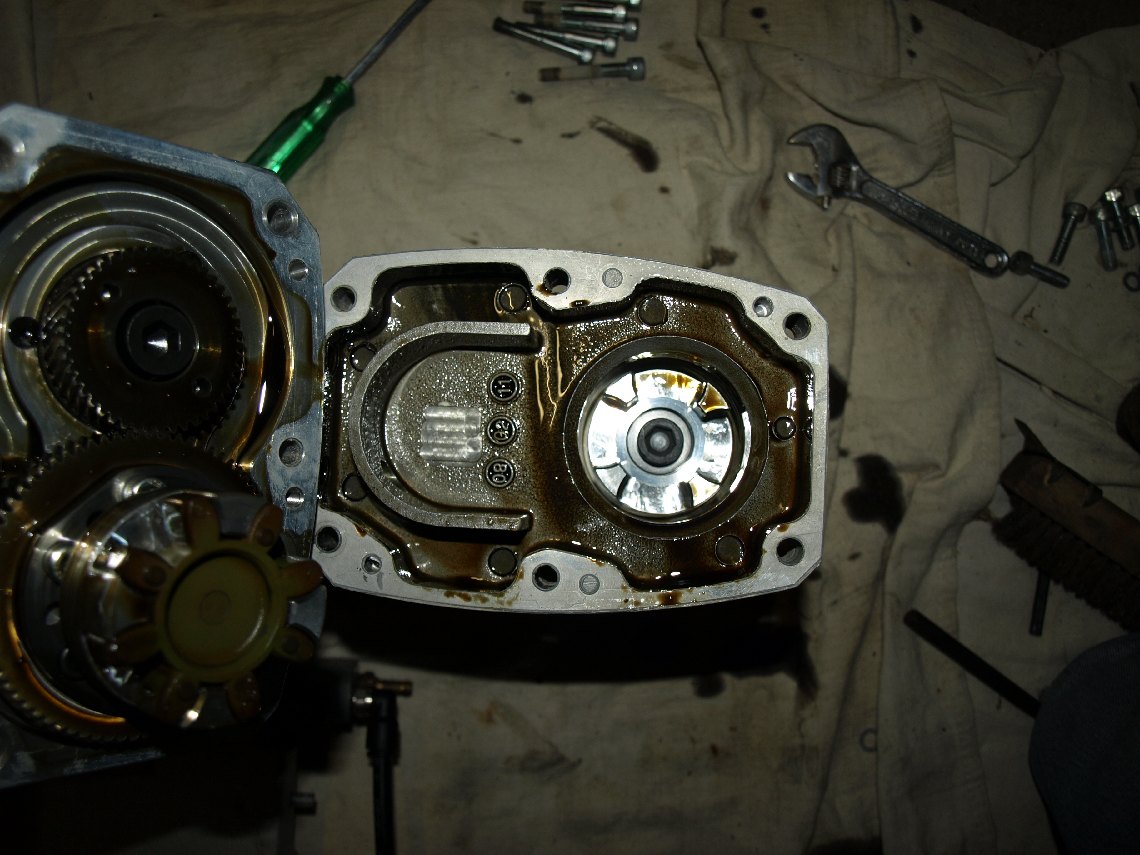

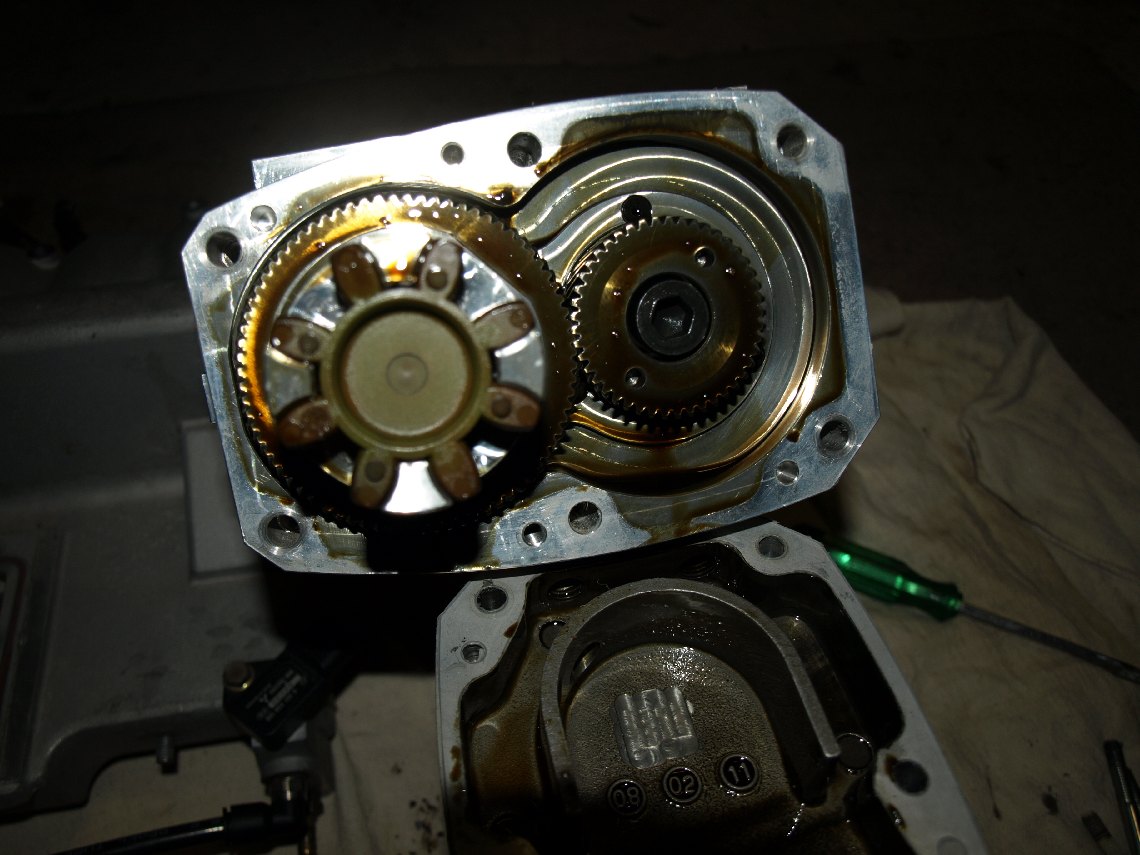

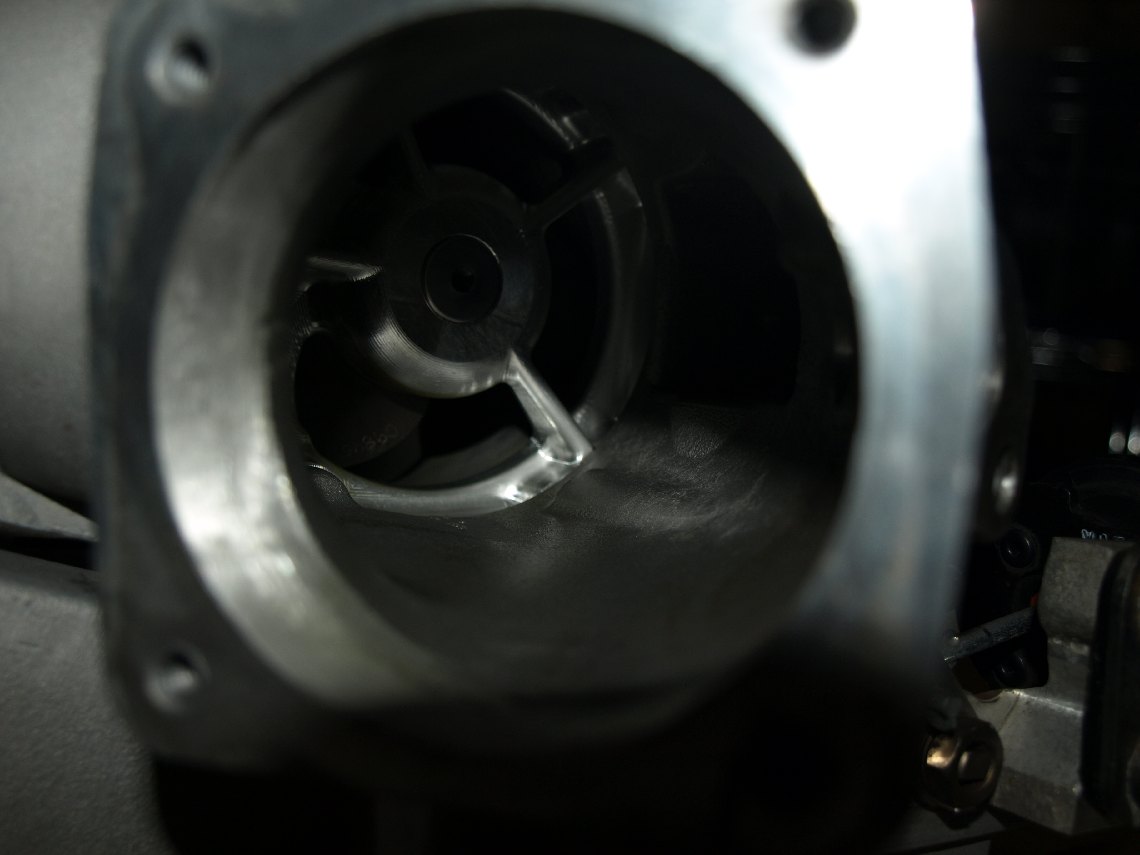

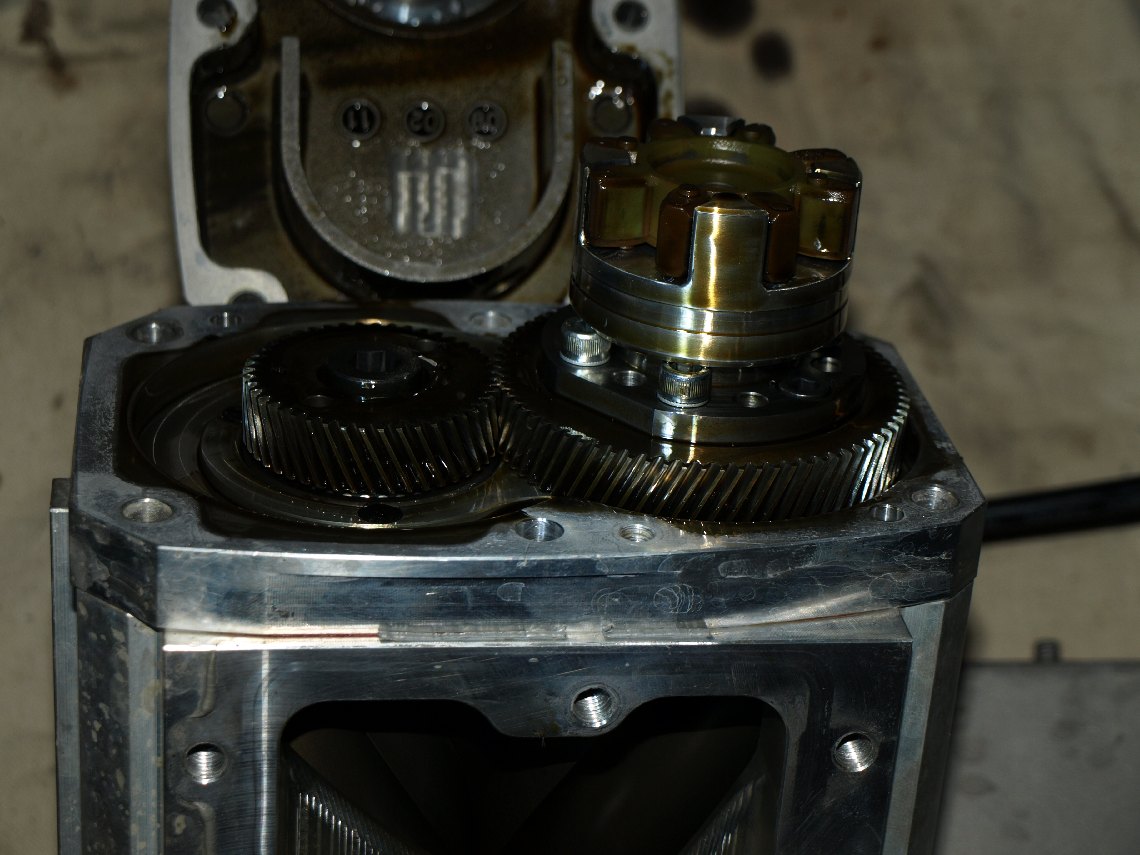

Sprintex said it may be the sacrificial plastic coupler in the pulley neck gear, but not to be, think she may have spun a bearing near the throttle body.

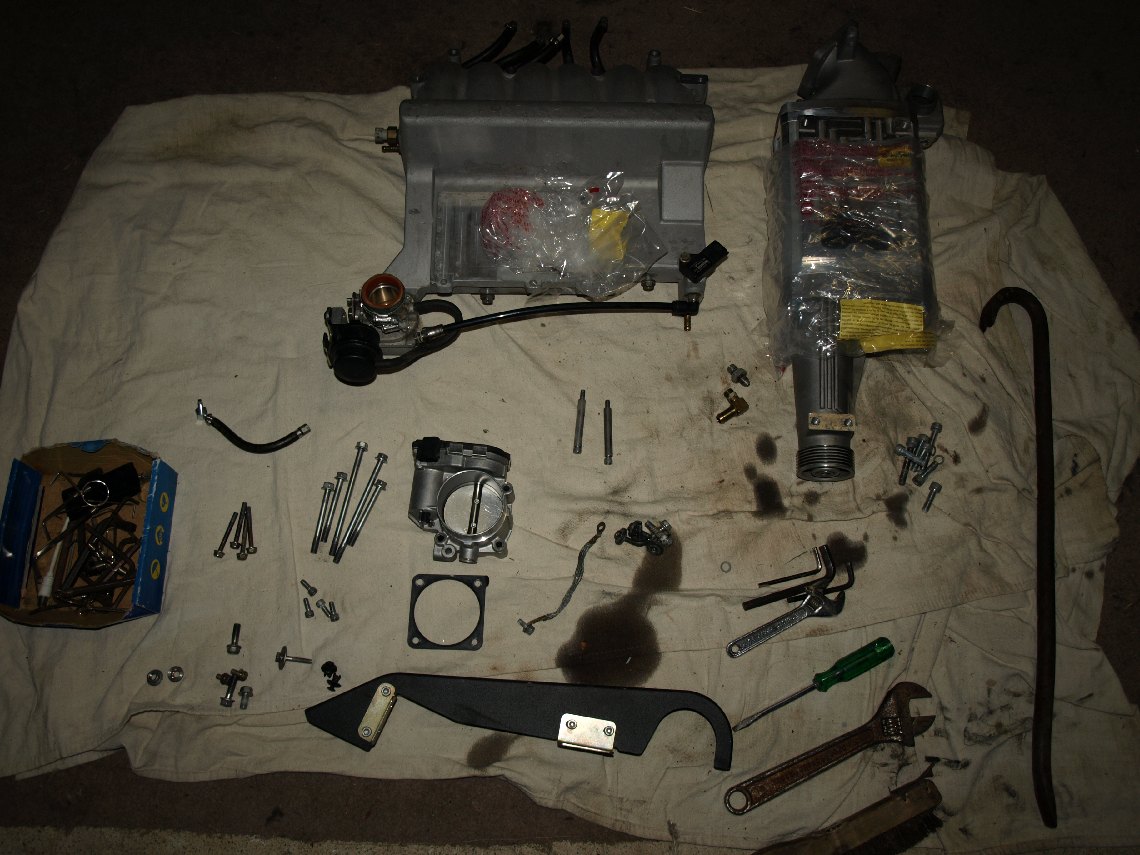

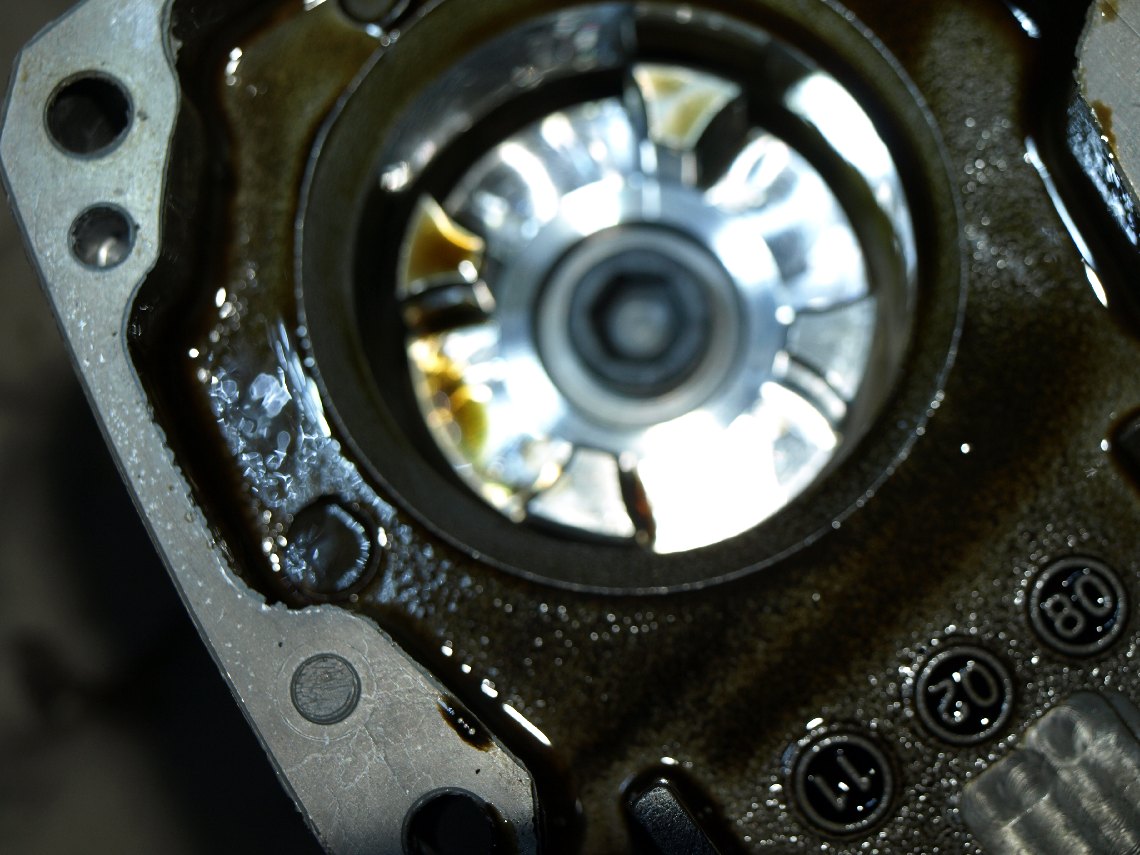

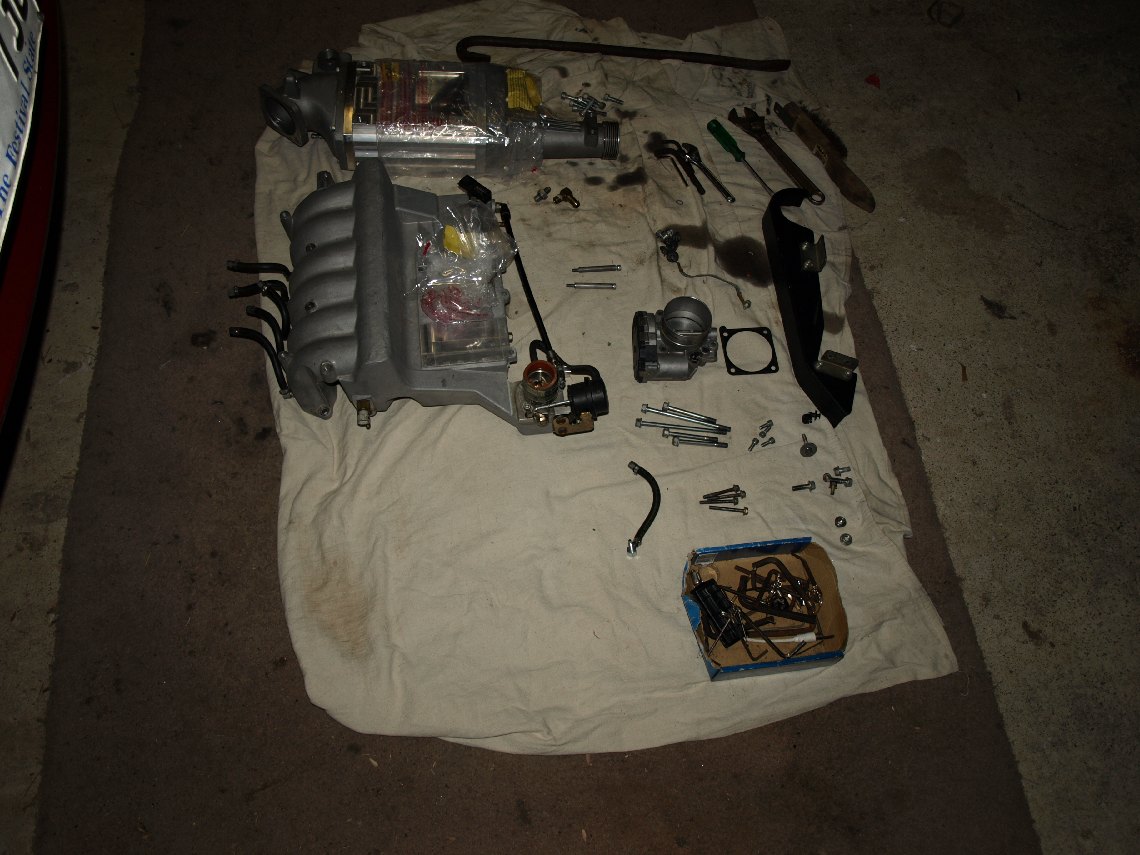

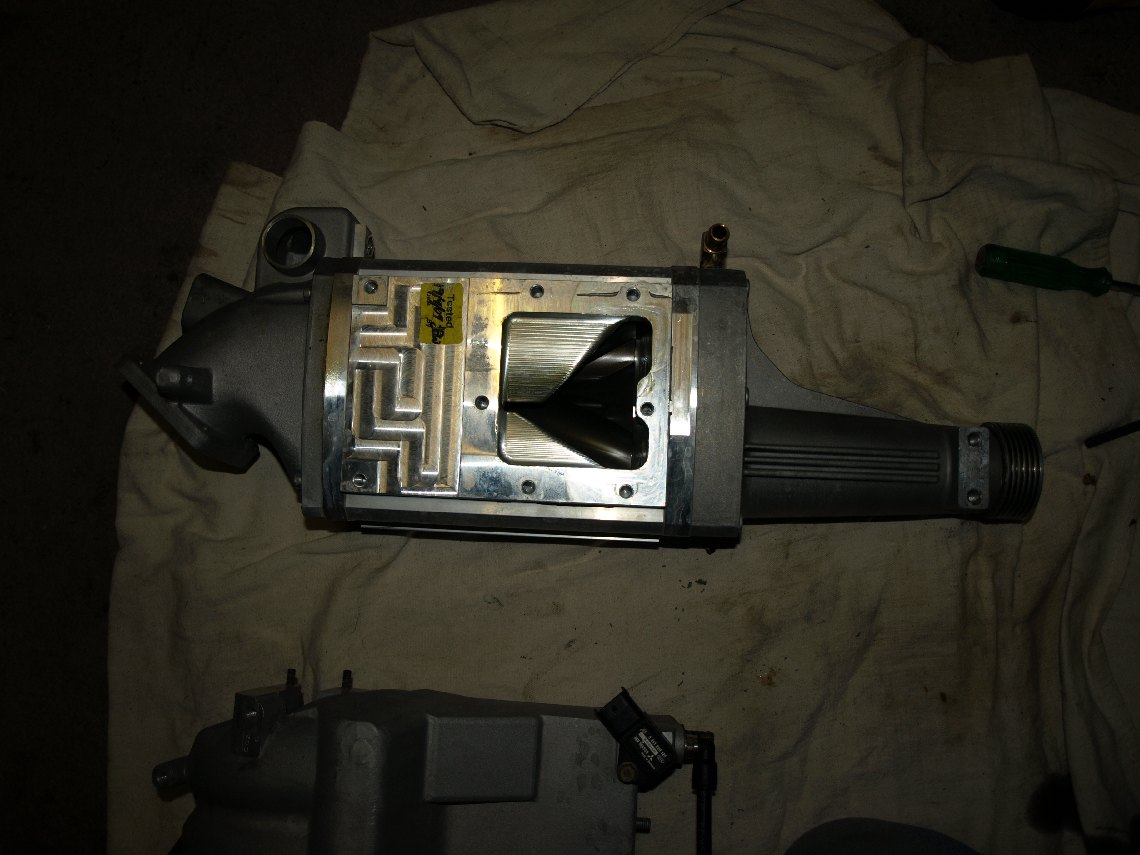

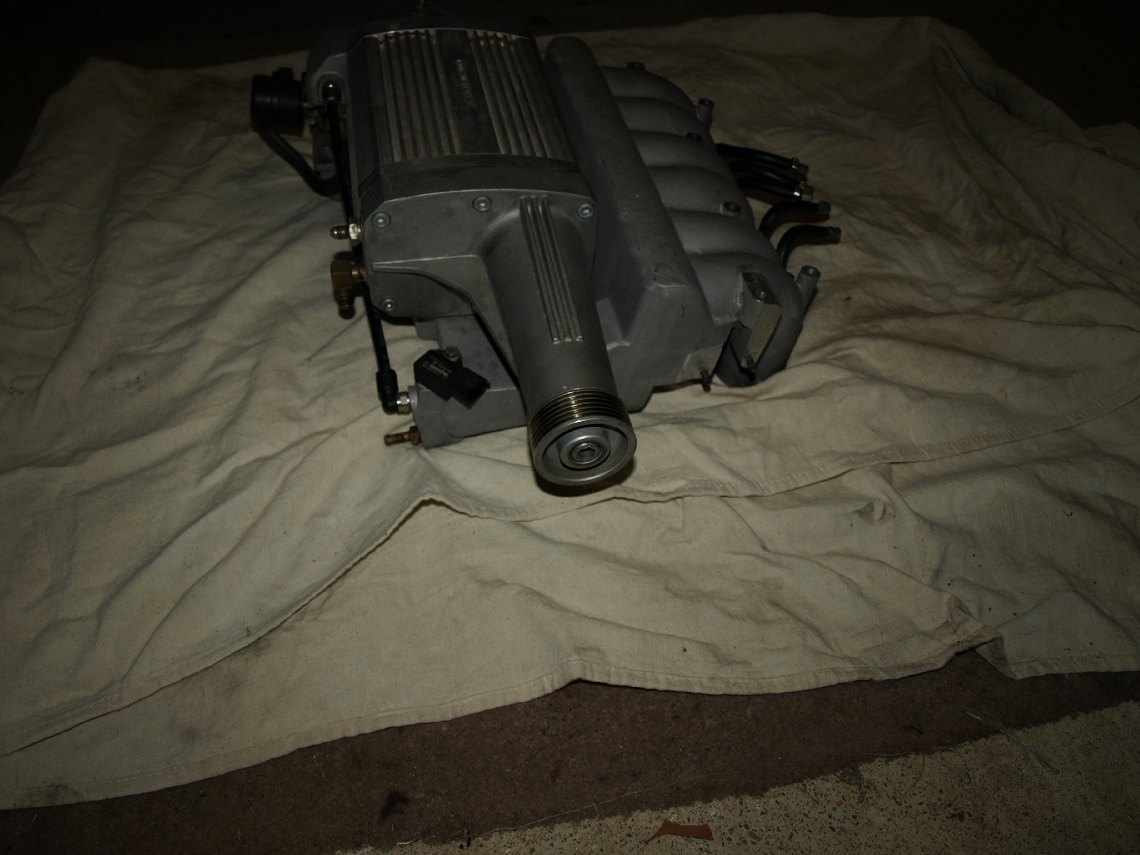

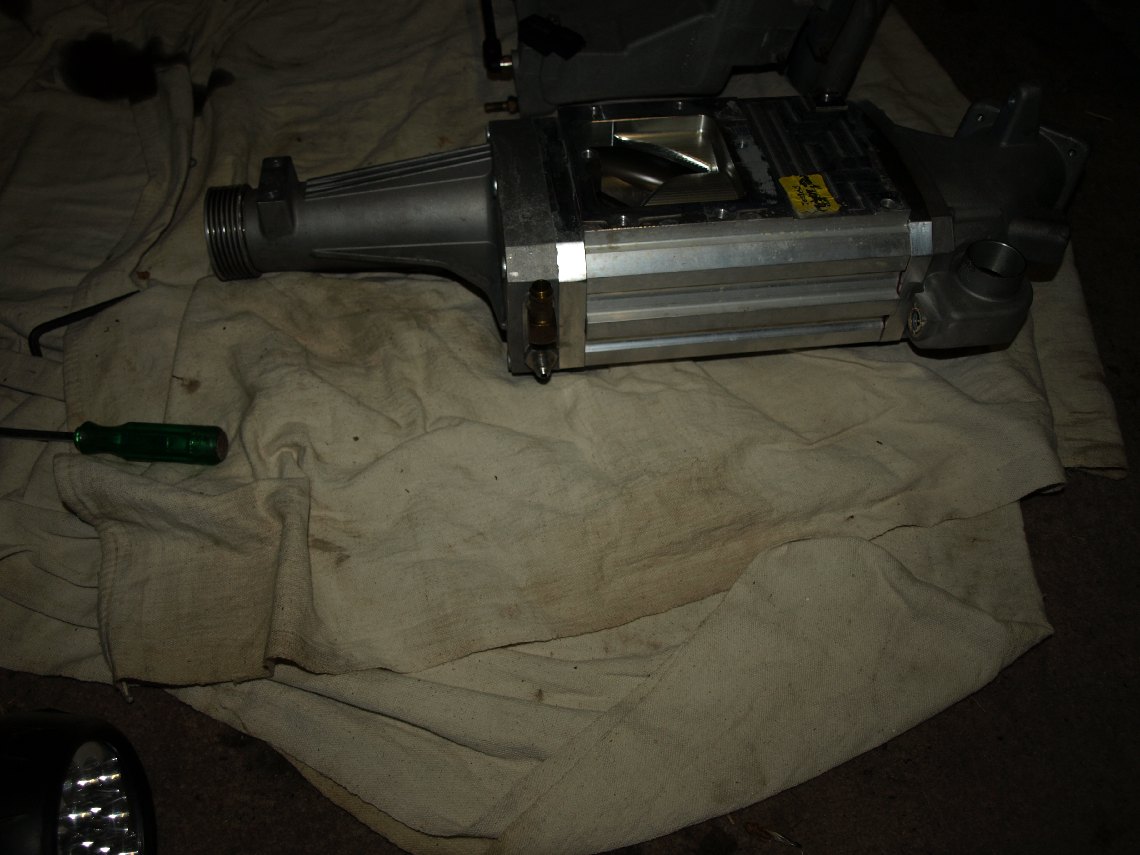

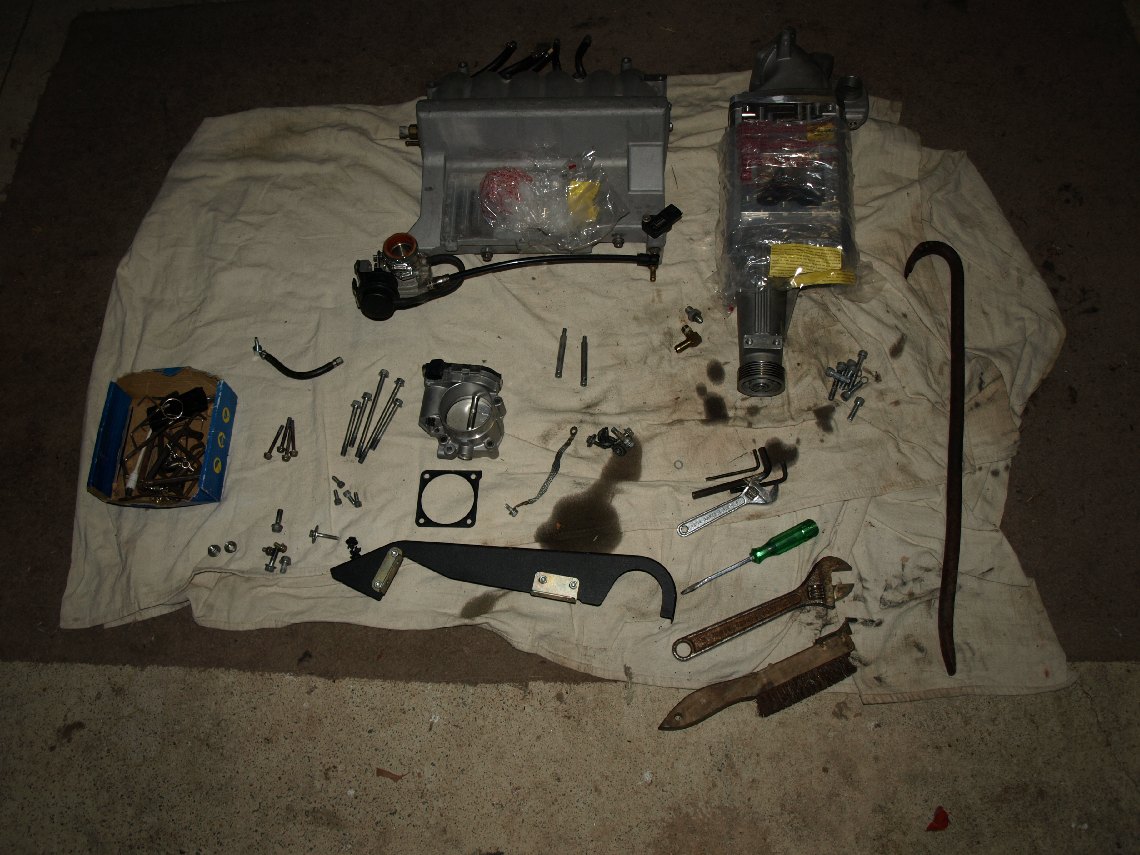

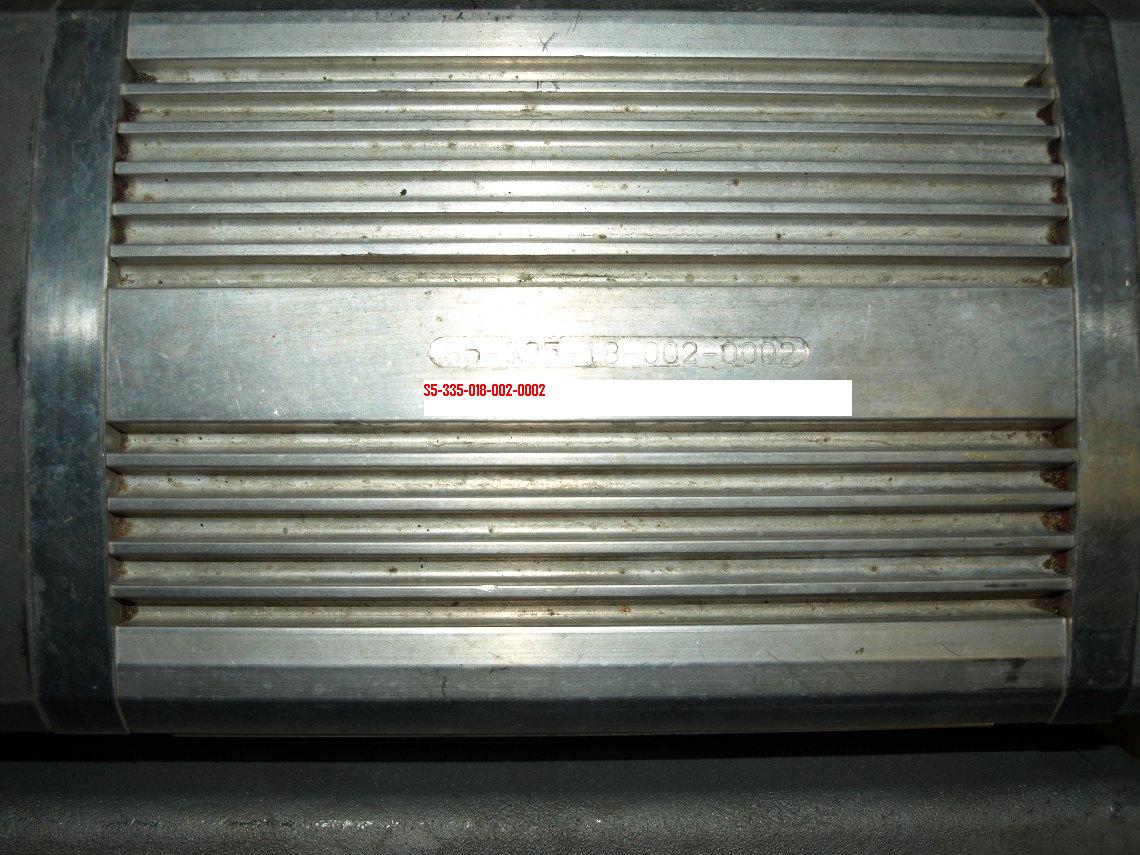

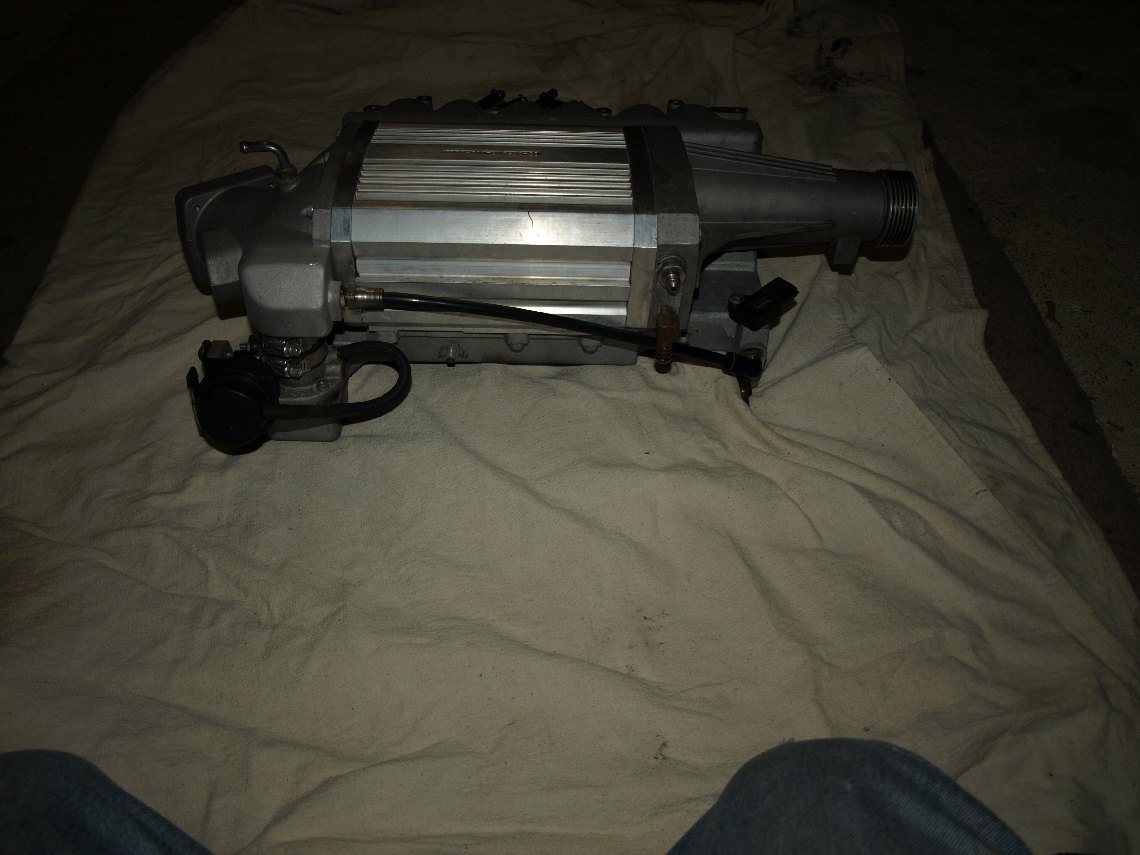

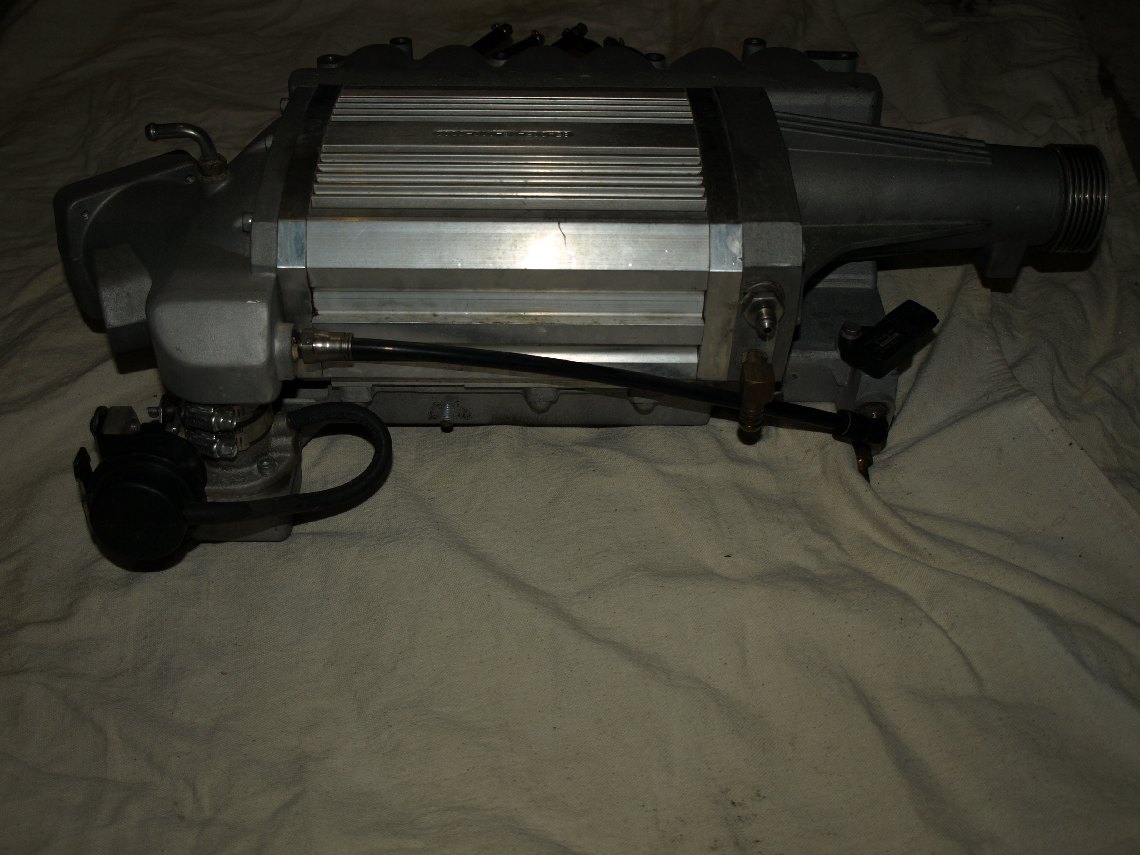

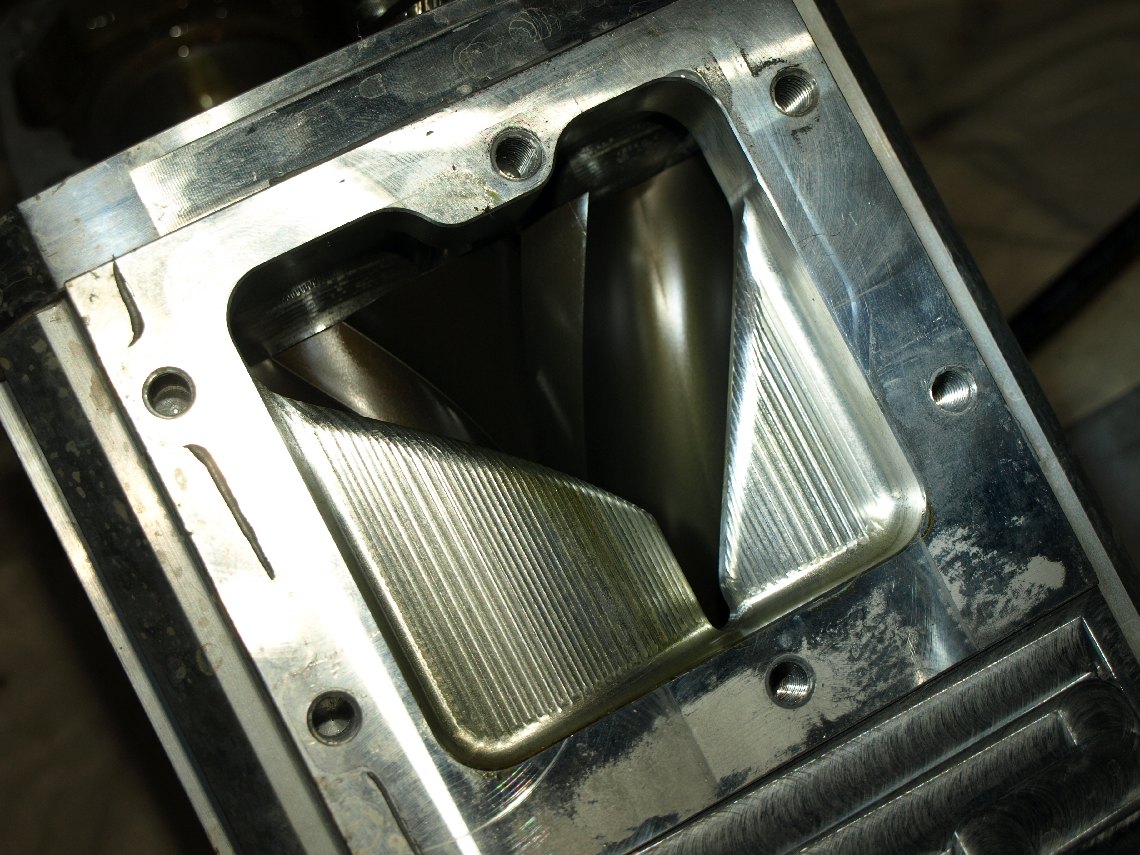

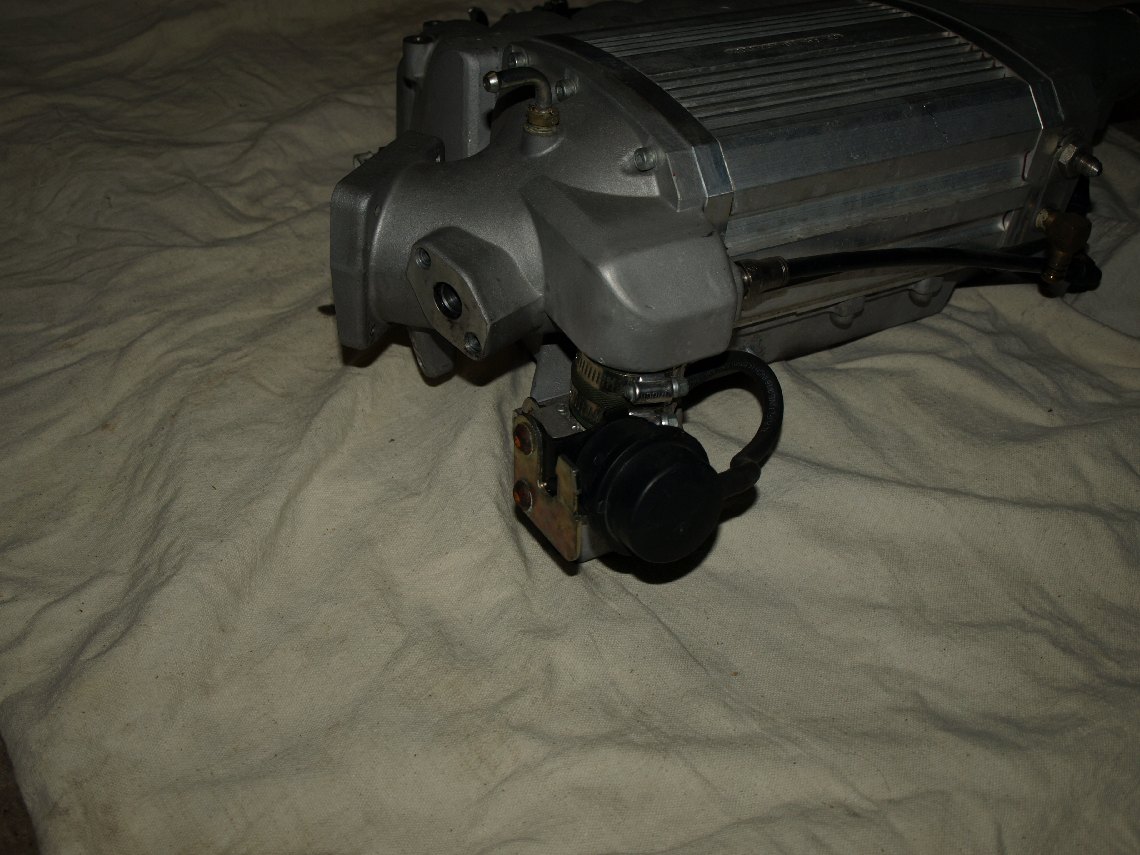

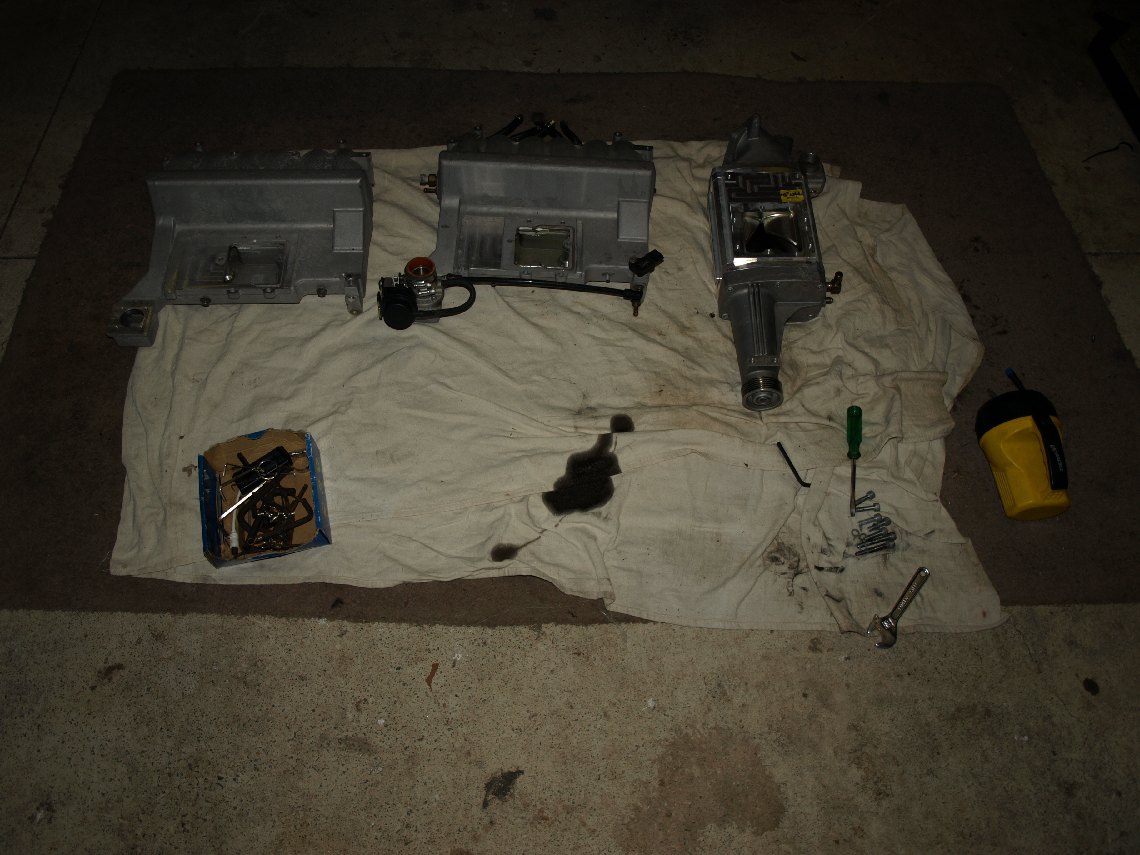

Anyway, some pics to show the guts of it.

If ever doing this and you have extractors, get yourself a 12mm rachet ring spanner.

One nut is accessible on the plenum support bracket just behind the blower pulley.
The other i found easiest to reach from underneath the car with a triple socket extension...but i have the luxury of a hoist.

There are two 12mm bolts that fasten the blower neck to the idler pulley support bar.

Needs a loooooong socket extension from underneath the car, once again easy if you have a hoist, absolute testicle breaker if you don't.

Apart from that pretty straight forward removal, even with LPG as mine has.

Took about an hour and a half, next time much less.

Nowhere near the 8 hours some people quote to do the job....

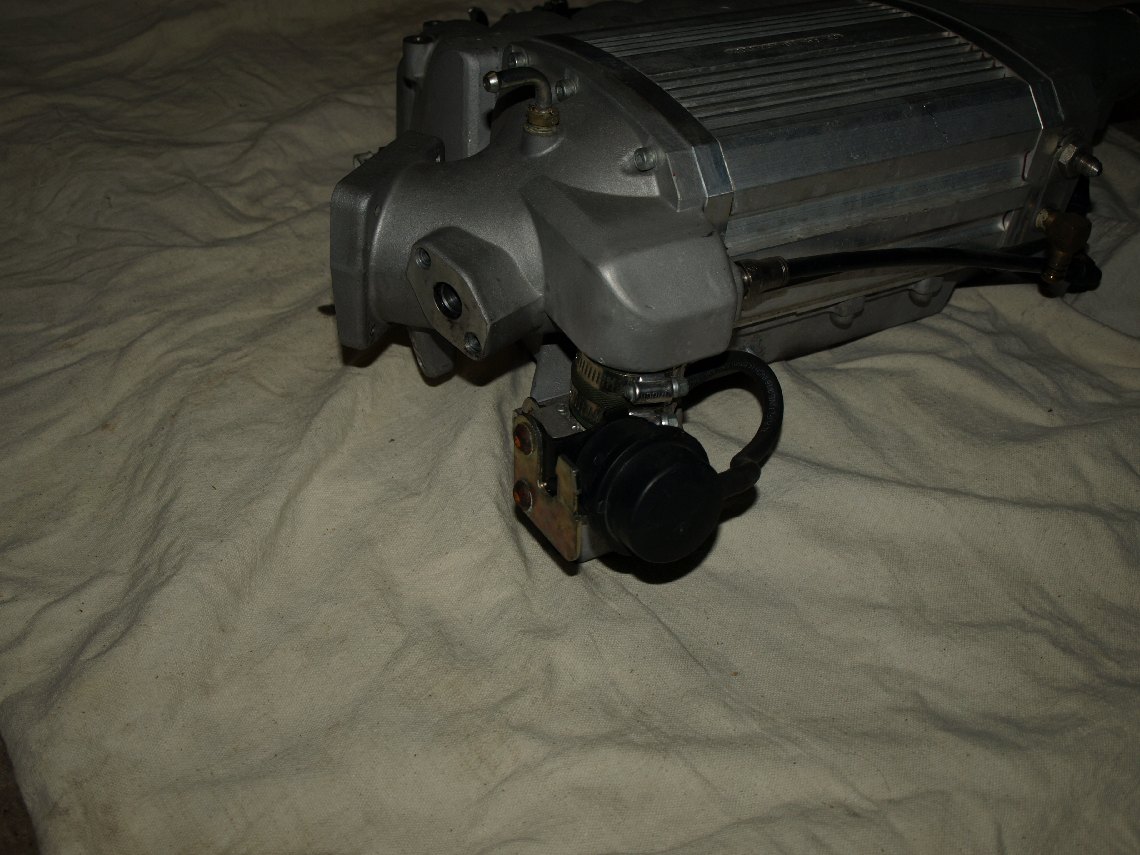

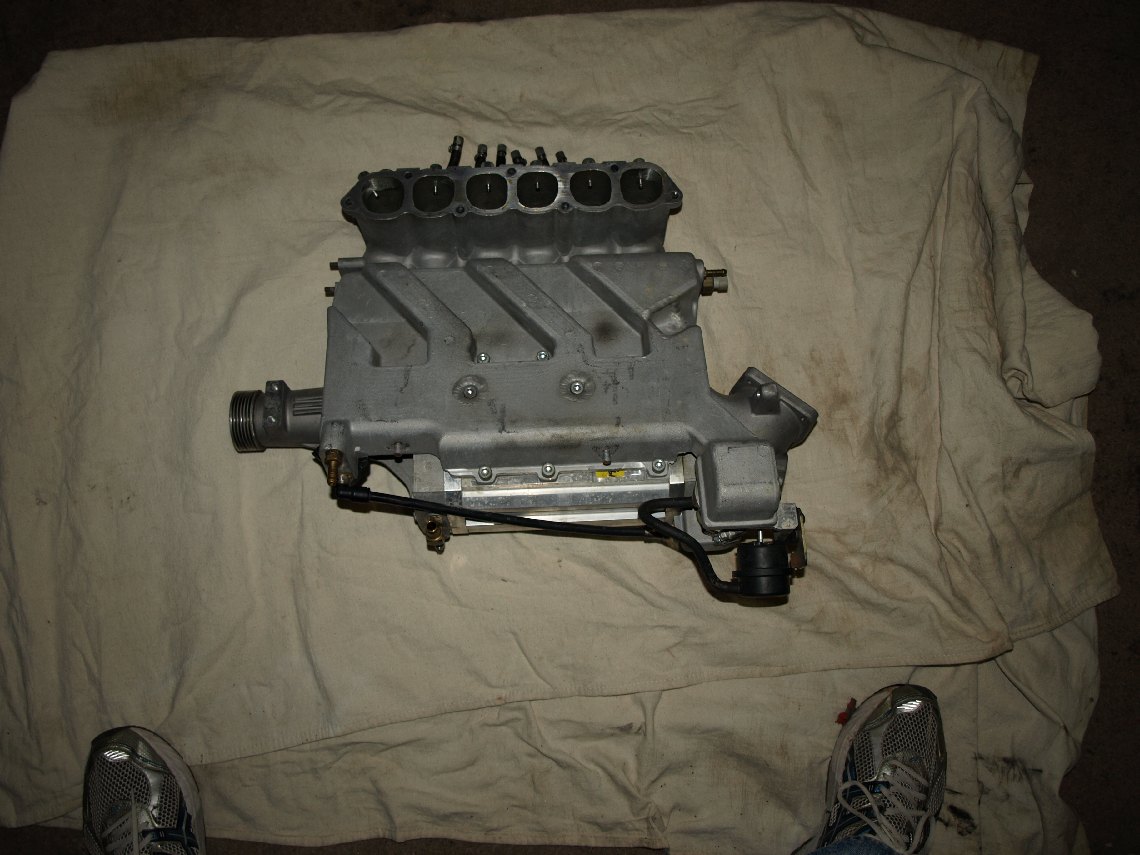

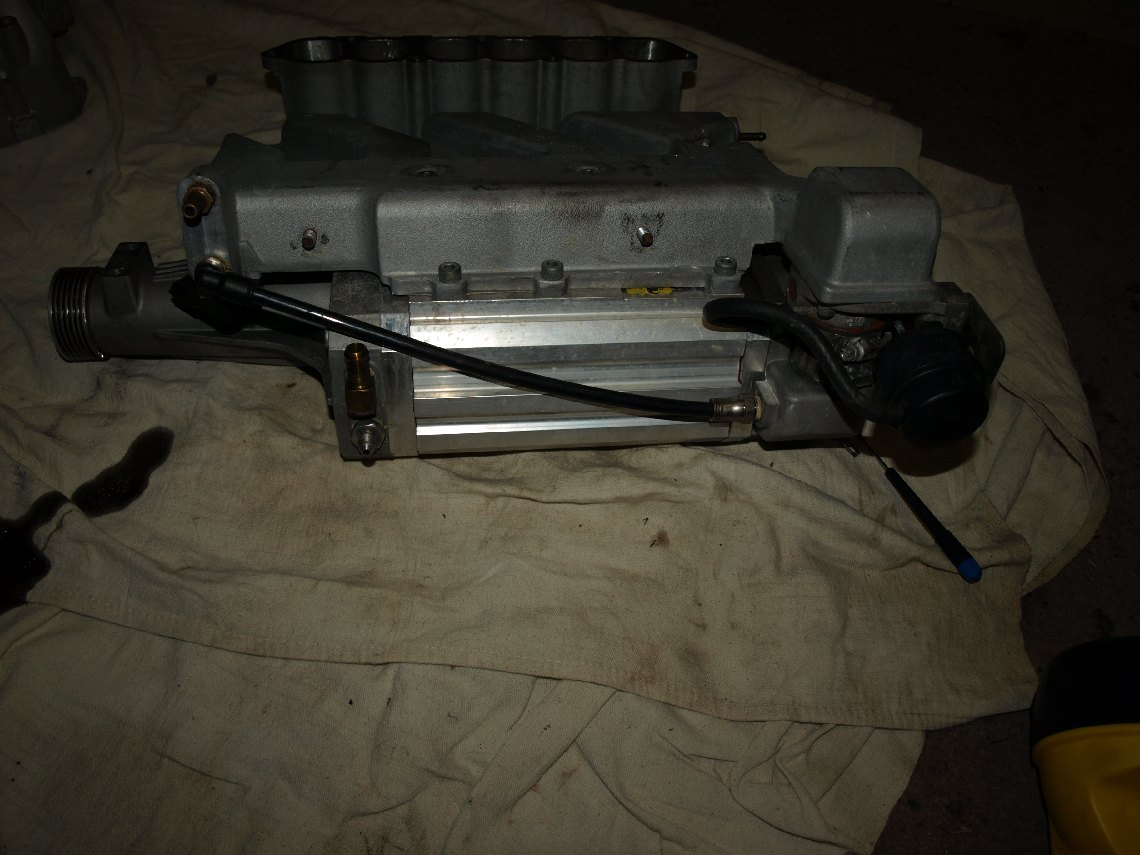

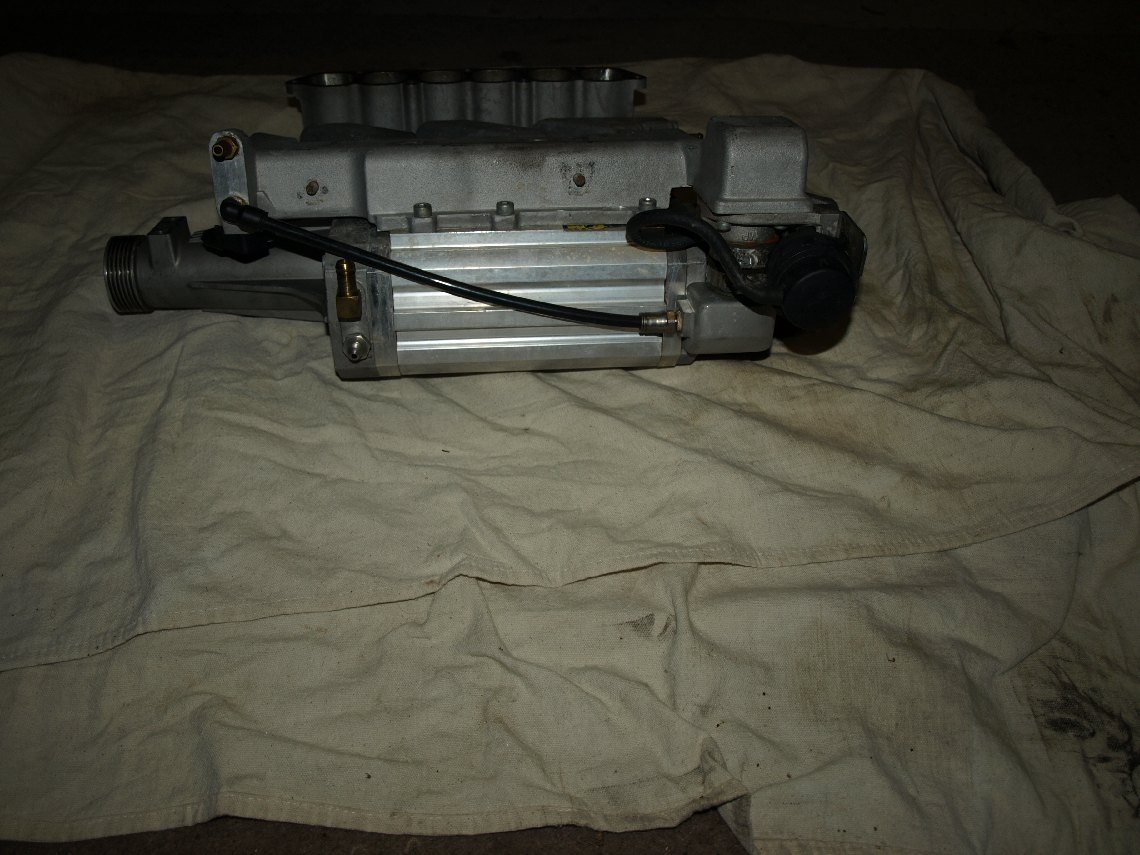

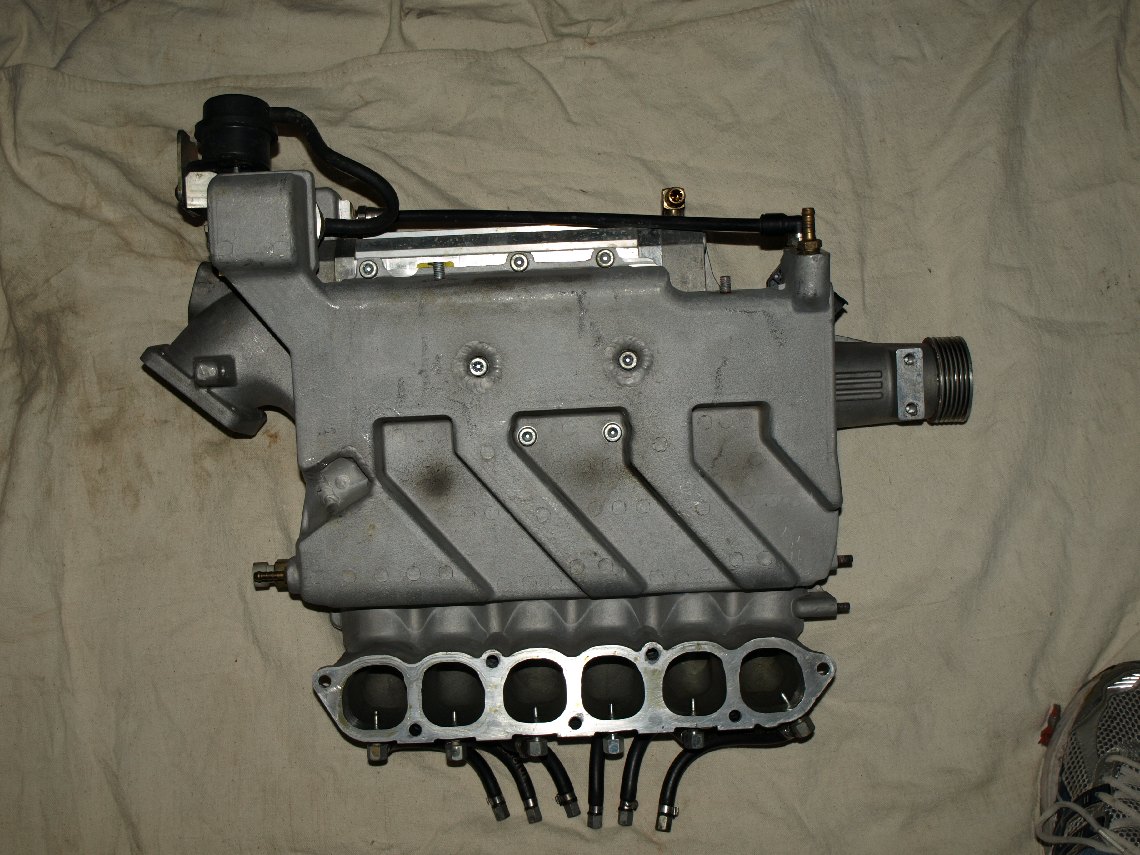

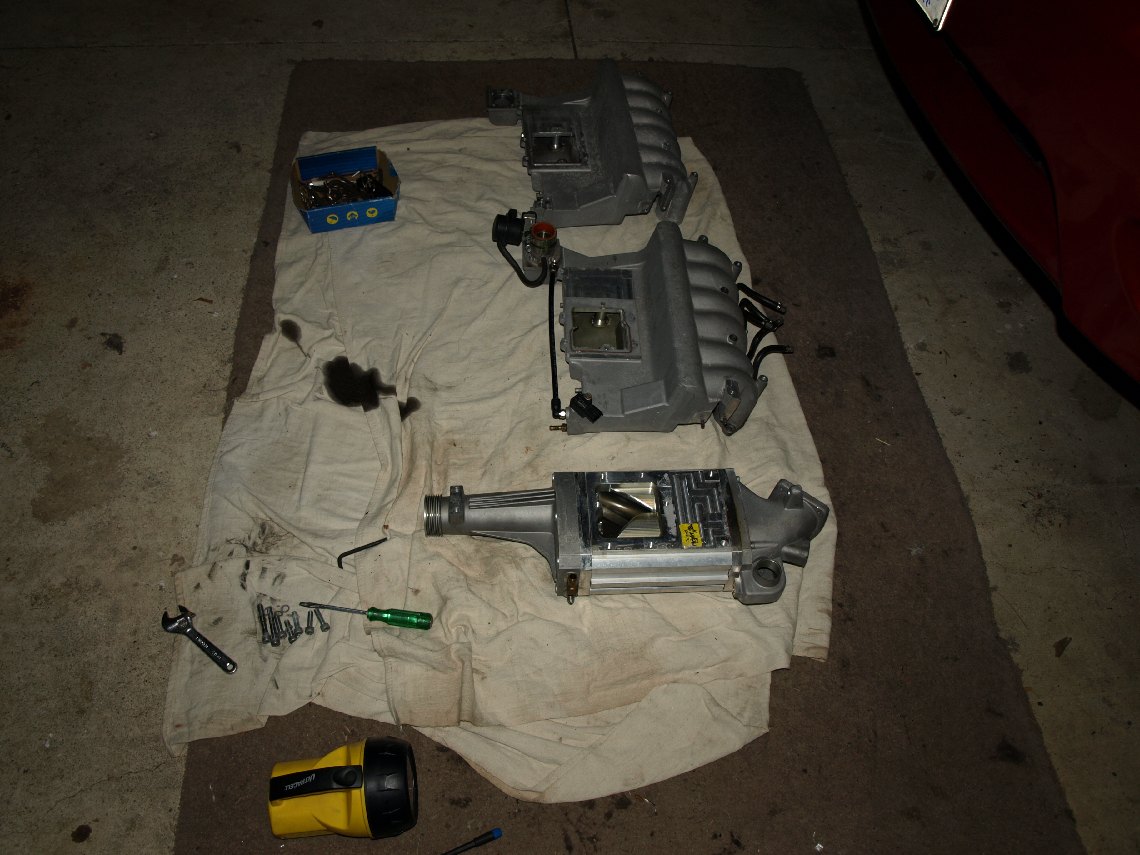

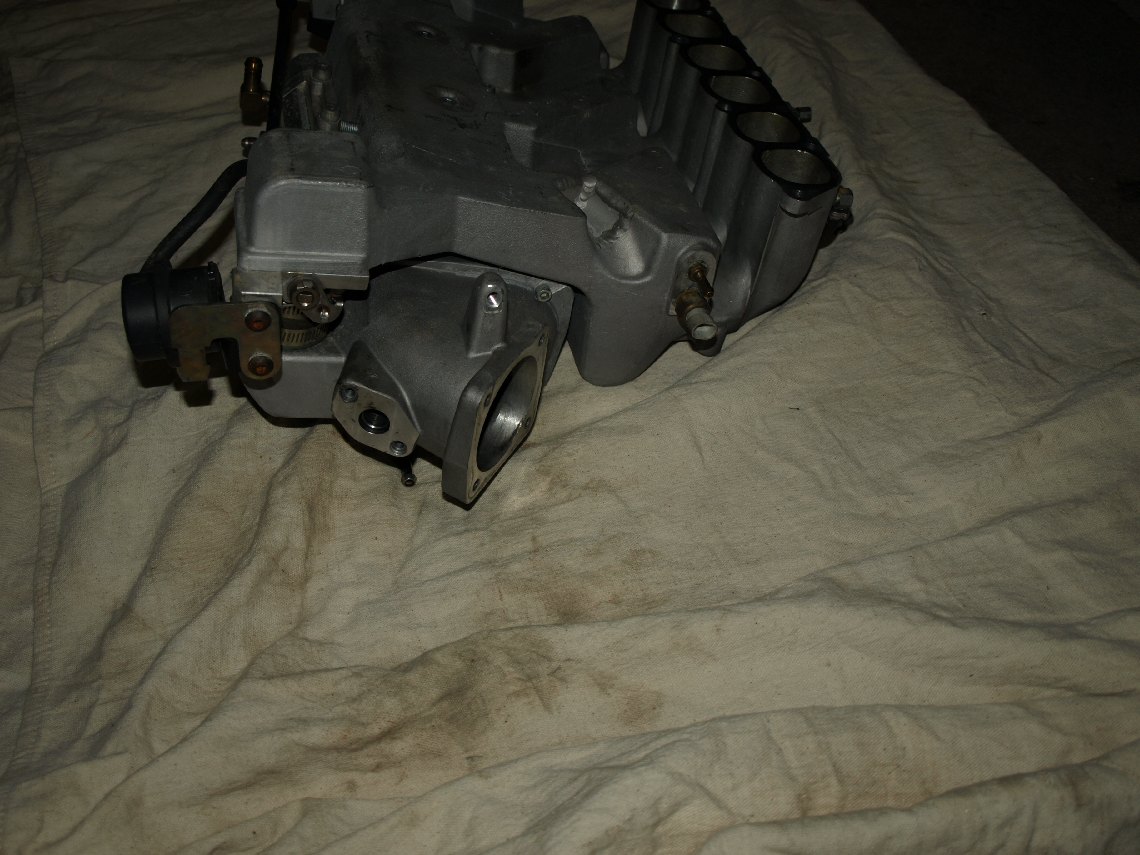

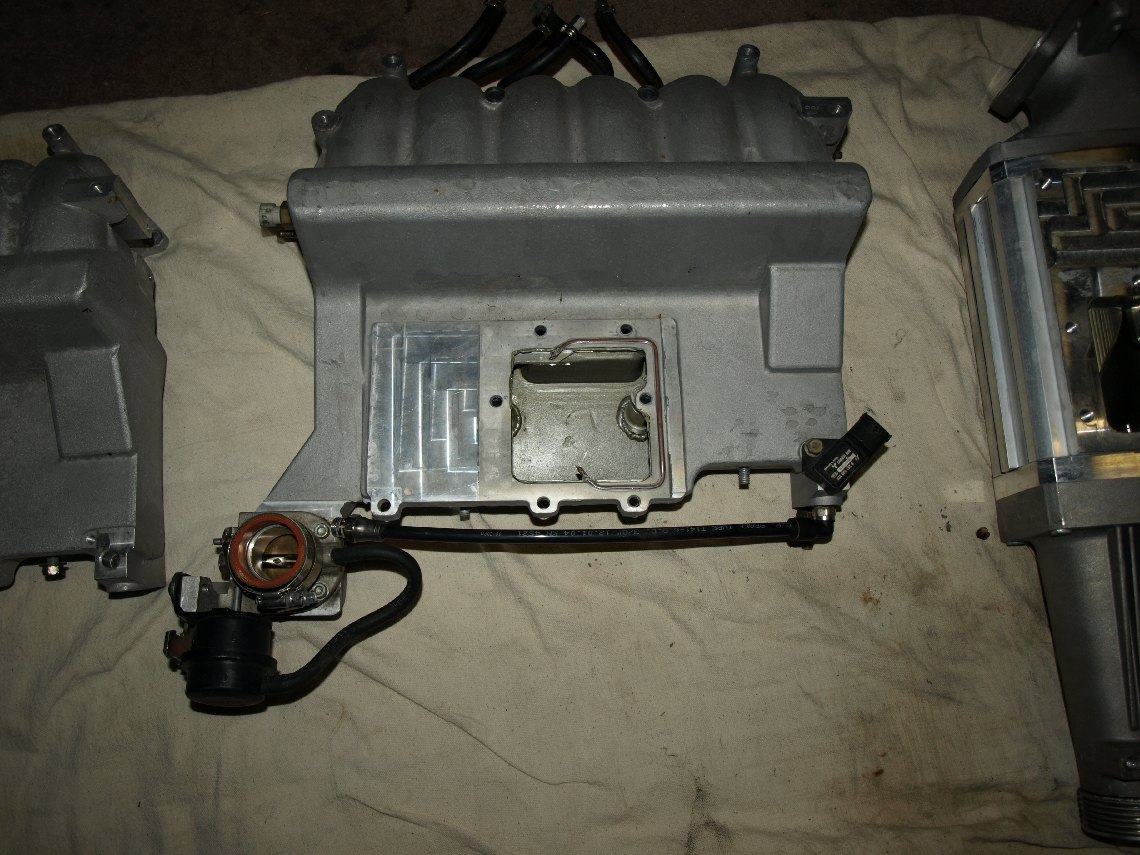

In the photos I have the stock plenum that is my shelf spare for comparison.

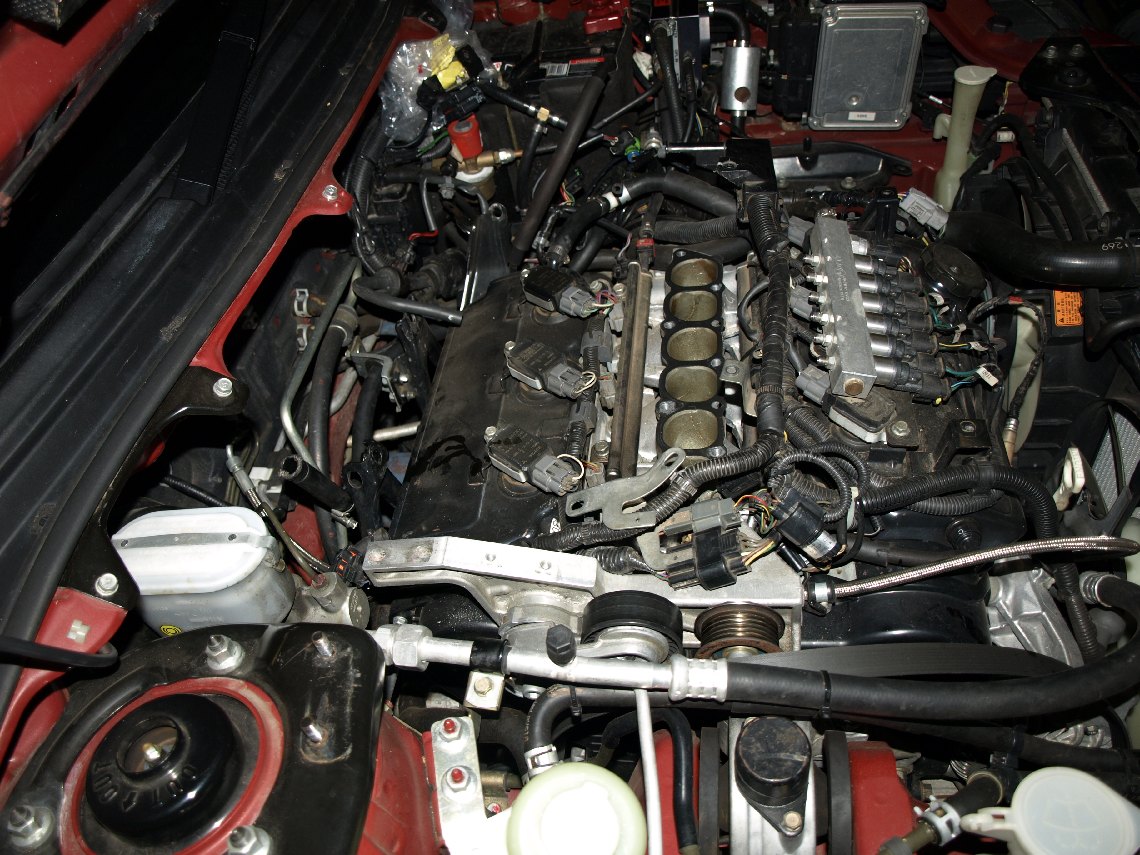

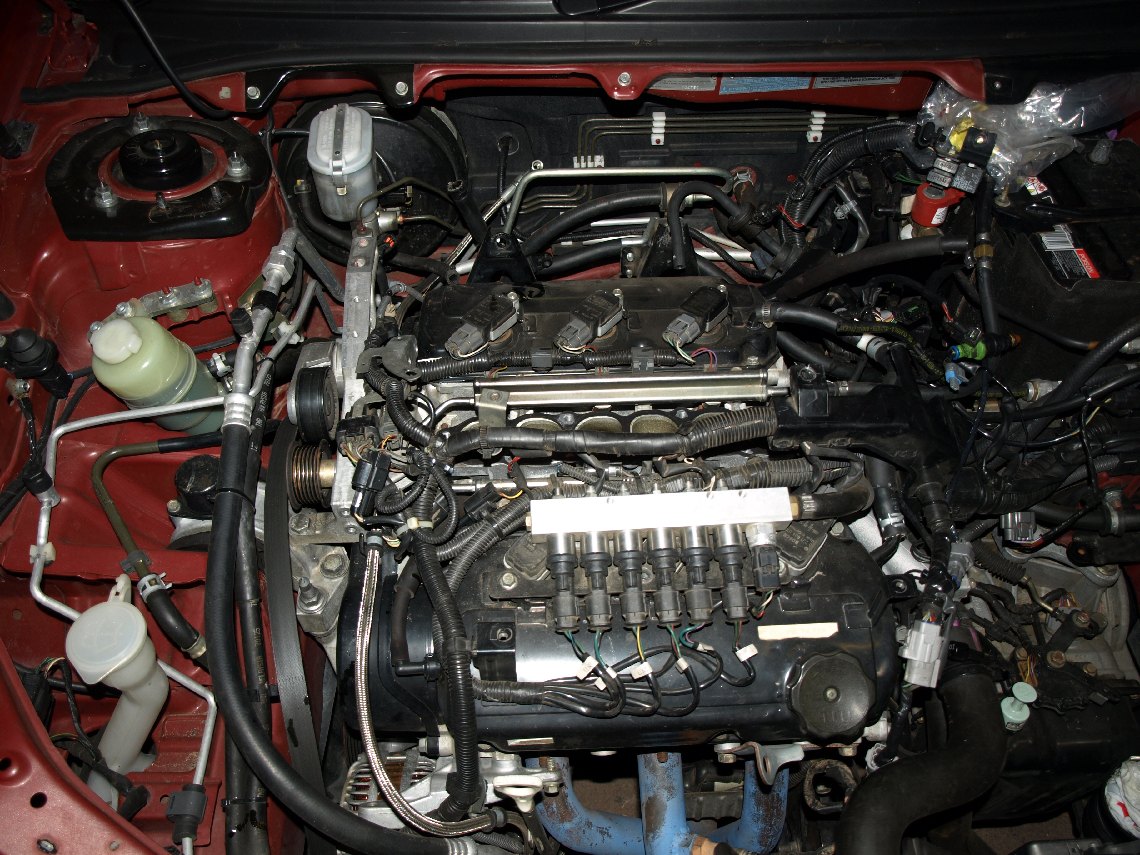

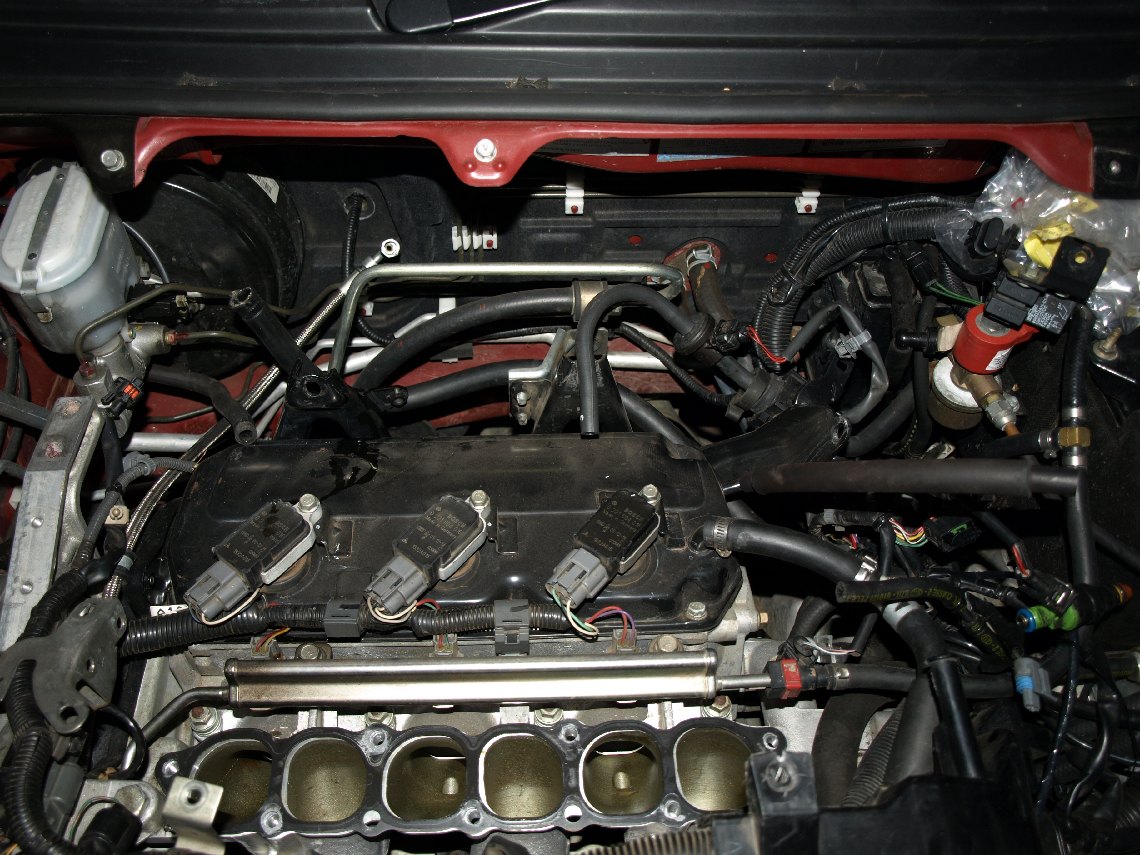

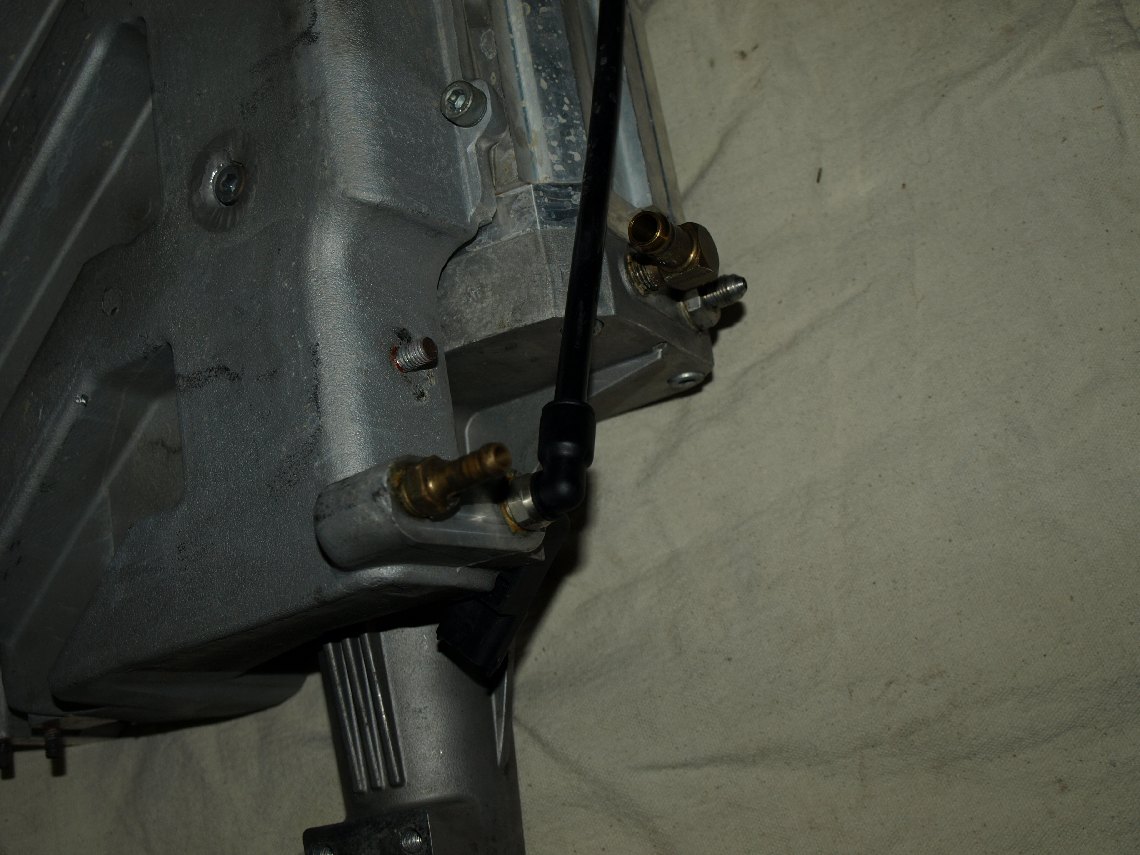

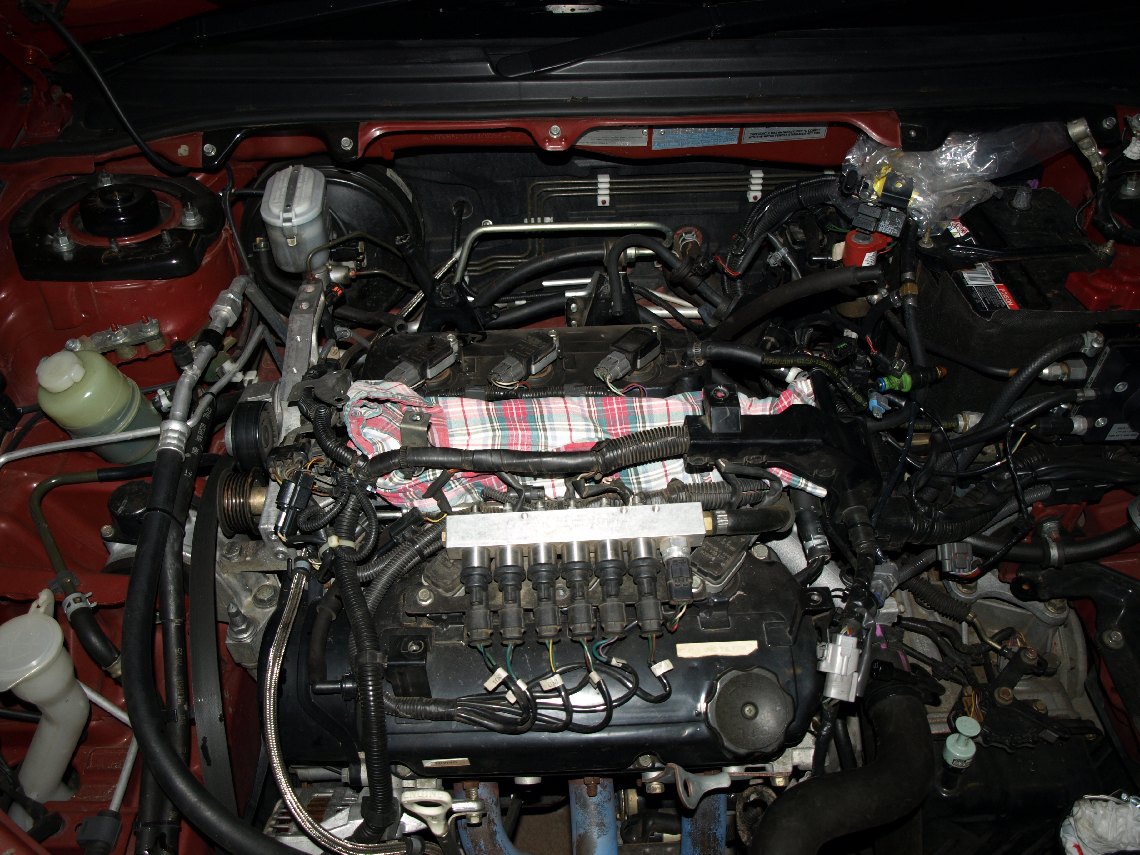

Note the the LPG injector nozzles drilled and tapped into the plenum that's because mine is supercharged LPG and or petrol also the six LPG injector rail on top of the engine.



(P4290077.JPG)



(P4290078.JPG)



(P4290079.JPG)



(P4290080.JPG)



(P4290081.JPG)



(P4290082.JPG)



(P4290083.JPG)



(P4290084.JPG)



(P4290085.JPG)



(P4290086.JPG)



(P4290087.JPG)



(P4290088.JPG)



(P4290089.JPG)



(P4290090.JPG)



(P4290091.JPG)



(P4290092.JPG)



(P4290093.JPG)



(P4290094.JPG)



(P4290095.JPG)



(P4290096.JPG)



(P4290097.JPG)



(P4290098.JPG)



(P4290099.JPG)



(P4290100.JPG)



(P4290101.JPG)



(P4290102.JPG)



(P4290103.JPG)



(P4290104.JPG)



(P4290105.JPG)



(P4290106.JPG)



(P4290107.JPG)



(P4290108.JPG)



(P4290109.JPG)



(P4290110.JPG)



(P4290111.JPG)



(P4290112.JPG)



(P4290113.JPG)



(P4290114.JPG)



(P4290115.JPG)



(P4290116.JPG)



(P4290117.JPG)



Attachments
----------------
Attachments P4290077.JPG (228KB - 620 downloads)
Attachments P4290078.JPG (242KB - 635 downloads)
Attachments P4290079.JPG (230KB - 623 downloads)
Attachments P4290080.JPG (180KB - 638 downloads)
Attachments P4290081.JPG (257KB - 633 downloads)
Attachments P4290082.JPG (149KB - 630 downloads)
Attachments P4290083.JPG (157KB - 590 downloads)
Attachments P4290084.JPG (159KB - 631 downloads)
Attachments P4290085.JPG (149KB - 610 downloads)
Attachments P4290086.JPG (197KB - 574 downloads)
Attachments P4290087.JPG (152KB - 574 downloads)
Attachments P4290088.JPG (135KB - 589 downloads)
Attachments P4290089.JPG (141KB - 619 downloads)
Attachments P4290090.JPG (164KB - 624 downloads)
Attachments P4290091.JPG (127KB - 643 downloads)
Attachments P4290092.JPG (187KB - 633 downloads)
Attachments P4290093.JPG (90KB - 603 downloads)
Attachments P4290094.JPG (70KB - 617 downloads)
Attachments P4290095.JPG (177KB - 629 downloads)
Attachments P4290096.JPG (142KB - 574 downloads)
Attachments P4290097.JPG (161KB - 638 downloads)
Attachments P4290098.JPG (139KB - 625 downloads)
Attachments P4290099.JPG (151KB - 619 downloads)
Attachments P4290100.JPG (152KB - 652 downloads)
Attachments P4290101.JPG (187KB - 570 downloads)
Attachments P4290102.JPG (131KB - 627 downloads)
Attachments P4290103.JPG (132KB - 614 downloads)
Attachments P4290104.JPG (165KB - 597 downloads)
Attachments P4290105.JPG (162KB - 625 downloads)
Attachments P4290106.JPG (141KB - 618 downloads)
Attachments P4290107.JPG (163KB - 598 downloads)
Attachments P4290108.JPG (113KB - 581 downloads)
Attachments P4290109.JPG (173KB - 620 downloads)
Attachments P4290110.JPG (142KB - 585 downloads)
Attachments P4290111.JPG (155KB - 612 downloads)
Attachments P4290112.JPG (155KB - 621 downloads)
Attachments P4290113.JPG (221KB - 594 downloads)
Attachments P4290114.JPG (193KB - 601 downloads)
Attachments P4290115.JPG (176KB - 588 downloads)
Attachments P4290116.JPG (190KB - 593 downloads)
Attachments P4290117.JPG (167KB - 627 downloads)
Top of the page Bottom of the page
wsbtt
Posted 30/4/2012 21:35 (#14246 - in reply to #14239)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Geeze, i hope mine dont do that anytime soon, how many k's has it done?
Top of the page Bottom of the page
Administrator
Posted 30/4/2012 23:50 (#14248 - in reply to #14239)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 1093
10005025555

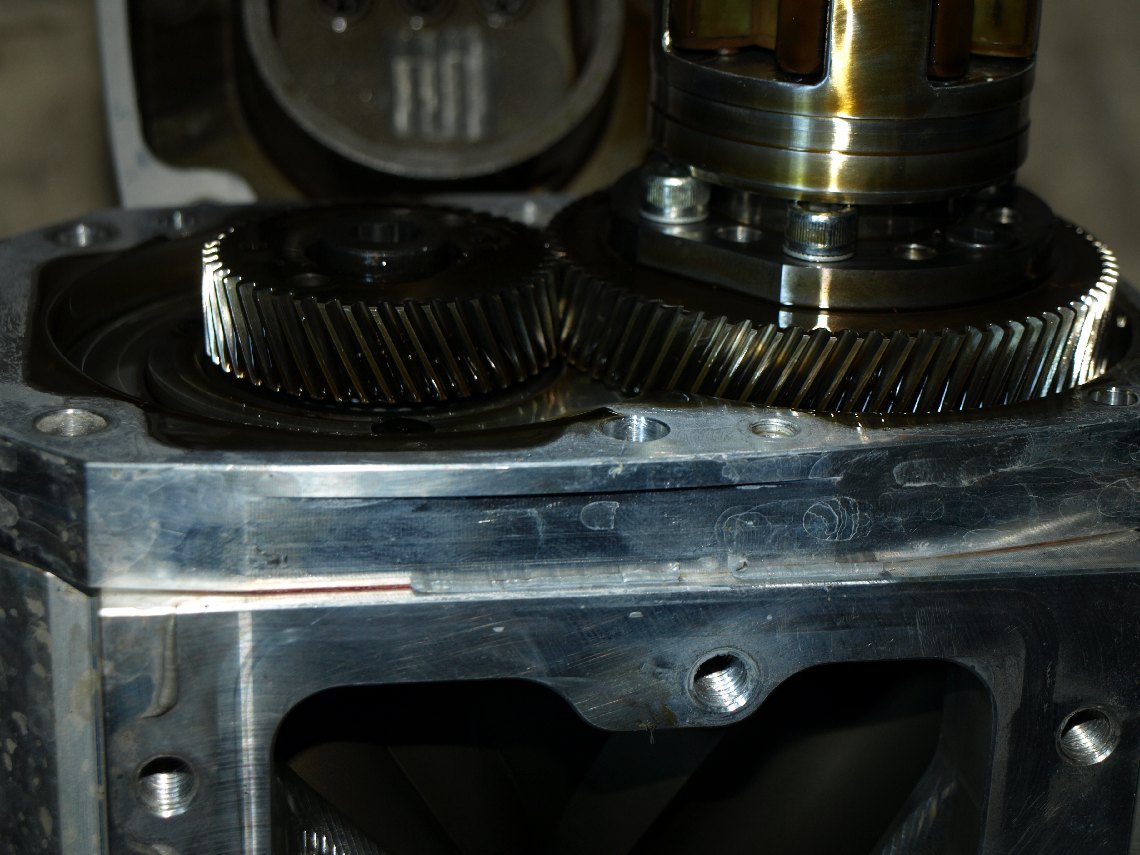

Location: An island off southern Tasmania.		Believe it or not all those photos are of a perfect supercharger mechanism,

and the damn thing isn't making a noise since I took the neck off and reassembled it.

Performance is still first class...just a rattling sound was coming out of it....

Top of the page Bottom of the page
wsbtt
Posted 2/5/2012 18:22 (#14260 - in reply to #14248)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Yeah my series 4 had that rattle
Top of the page Bottom of the page
Administrator
Posted 5/5/2012 17:35 (#14261 - in reply to #14239)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Running the car normally aspirated...shit it feels slooooow.

I forgot what a stock 380 feels like...and this one with LPG and a lower compression ratio is...very economical on fuel now.... :0

The spare blower still hasn't arrived...damn it.

I'm getting the spare blower for $1800 from spribntex, so can't really complain....
Top of the page Bottom of the page
wsbtt
Posted 7/5/2012 00:21 (#14264 - in reply to #14261)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		I've never driven a stock 380, yeah that's a good price
Top of the page Bottom of the page
phaseautos
Posted 10/5/2012 18:15 (#14292 - in reply to #14239)
Subject: Re: Sprintex S5-335 supercharger noisy


Frequent flyer Silver

Posts: 51
50
Location: Australia		lets just turbo this one lol
Top of the page Bottom of the page
Administrator
Posted 11/5/2012 13:09 (#14293 - in reply to #14292)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
phaseautos - 10/5/2012 18:15

lets just turbo this one lol



just Left Avo an hour ago....the diodes fixed the coil pack simulation (2 x in4001 in series on each coil pack sense wire...)

Might pop round and see you today Nick?
Top of the page Bottom of the page
Administrator
Posted 11/5/2012 13:10 (#14294 - in reply to #14239)
Subject: Re: Sprintex S5-335 supercharger noisy



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		By the way...blower not noisy...the extractors cracked in a different spot.......so wasted my time pulling the blower off....
