Sticky Forged 6G75 engine #1
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> 6G75 Forged engineMessage format

Administrator
Posted 27/7/2011 16:02 (#13342)
Subject: Forged 6G75 engine #1



Frequent flyer Gold

Posts: 1093
10005025555

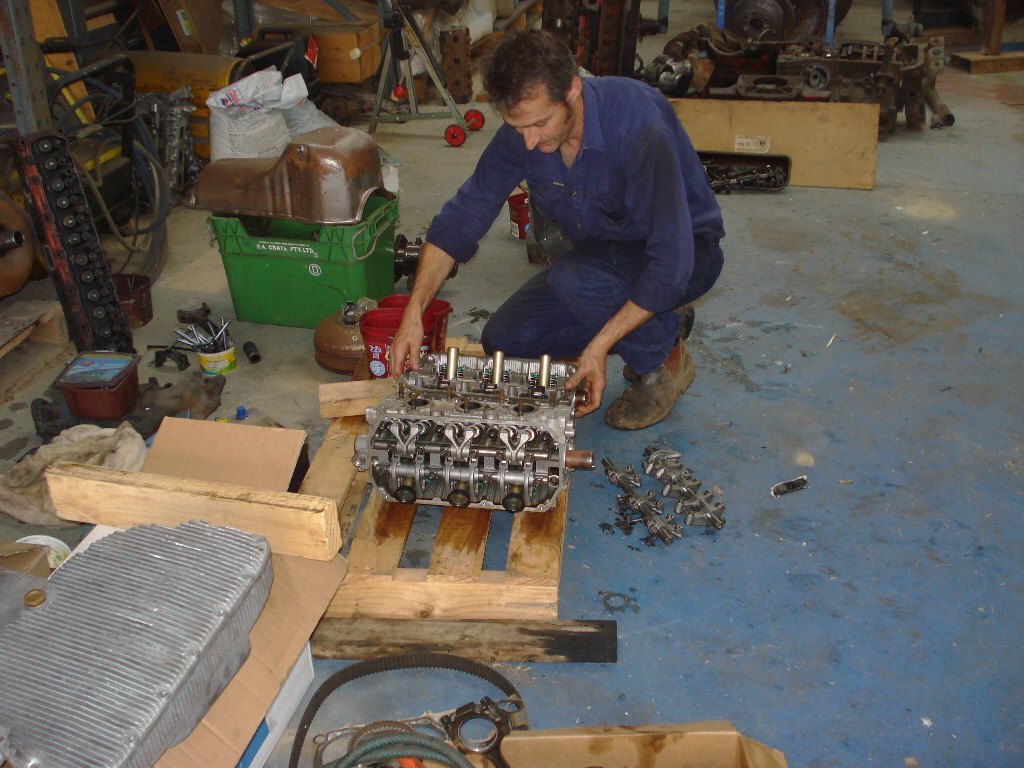

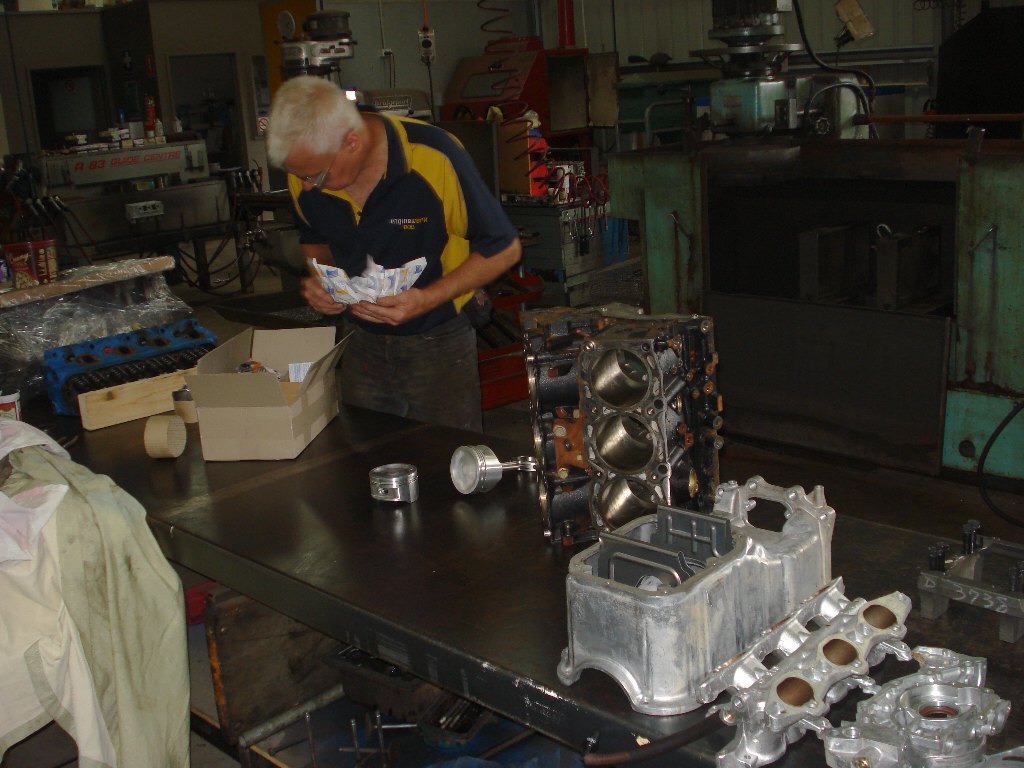

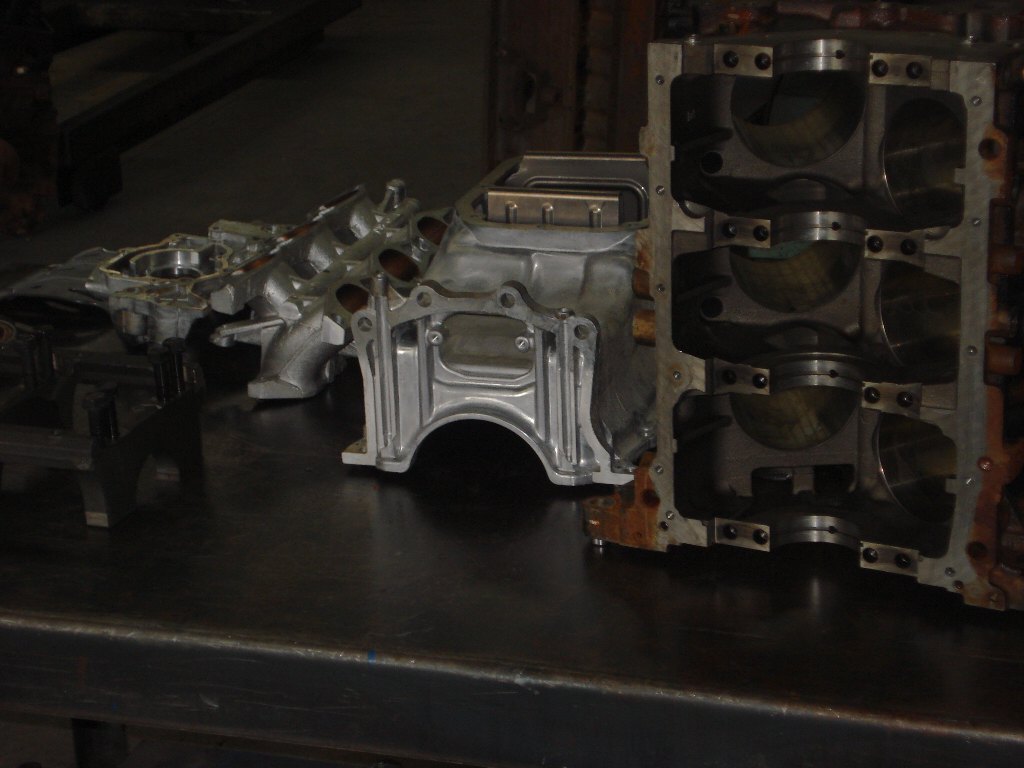

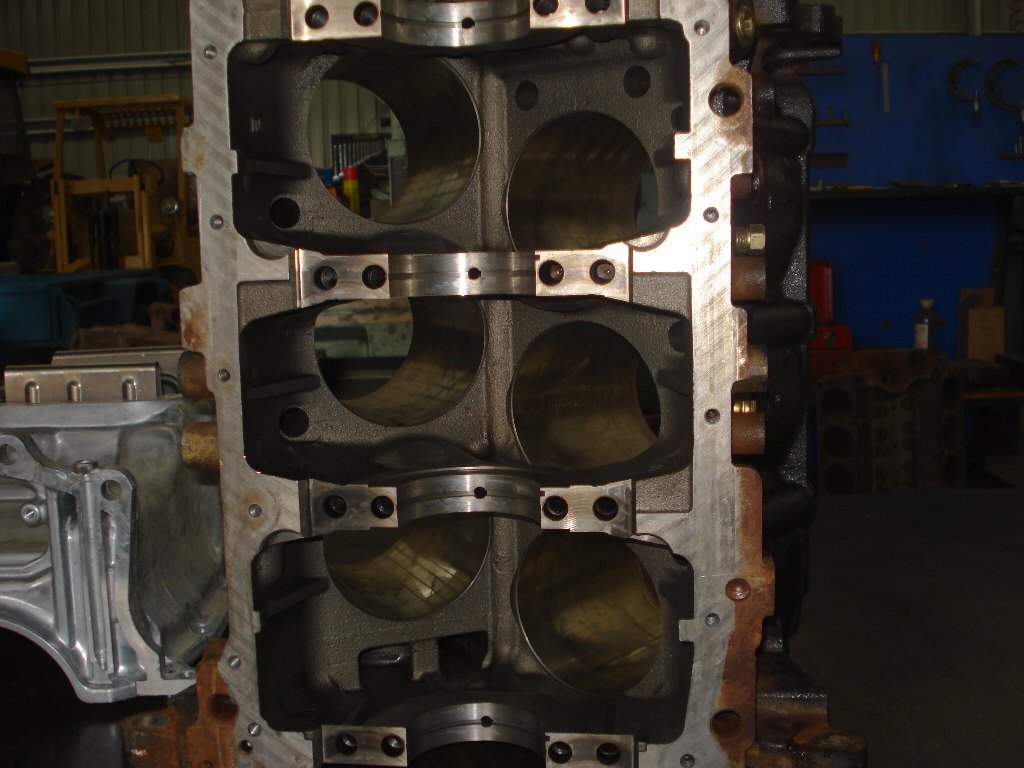

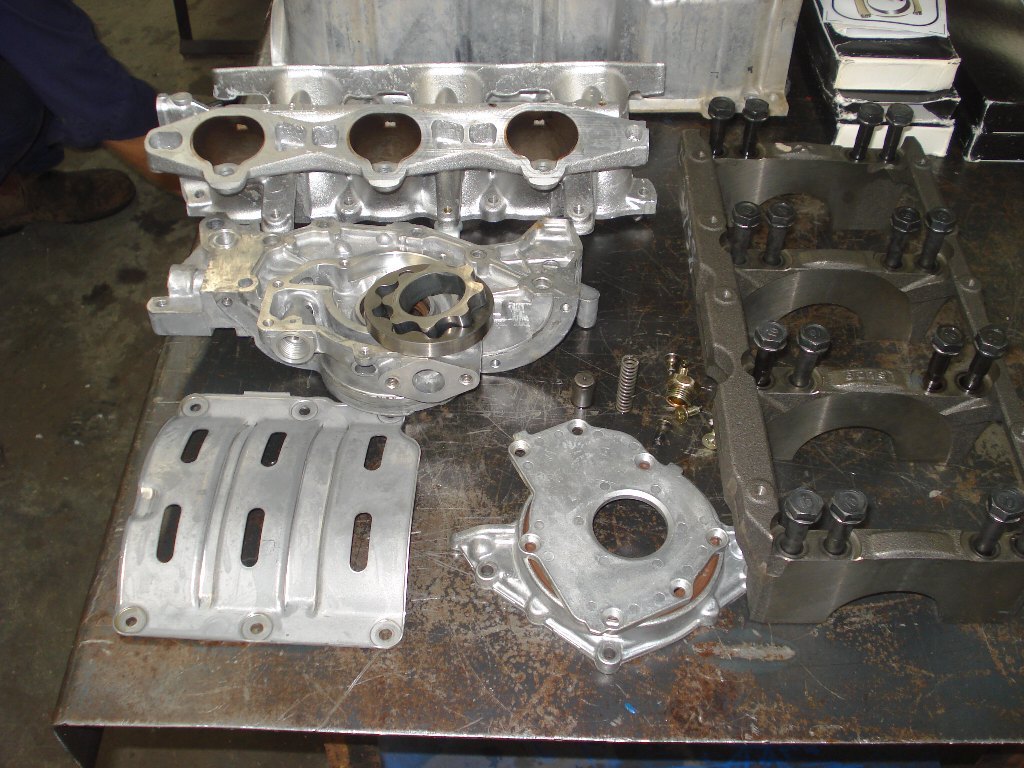

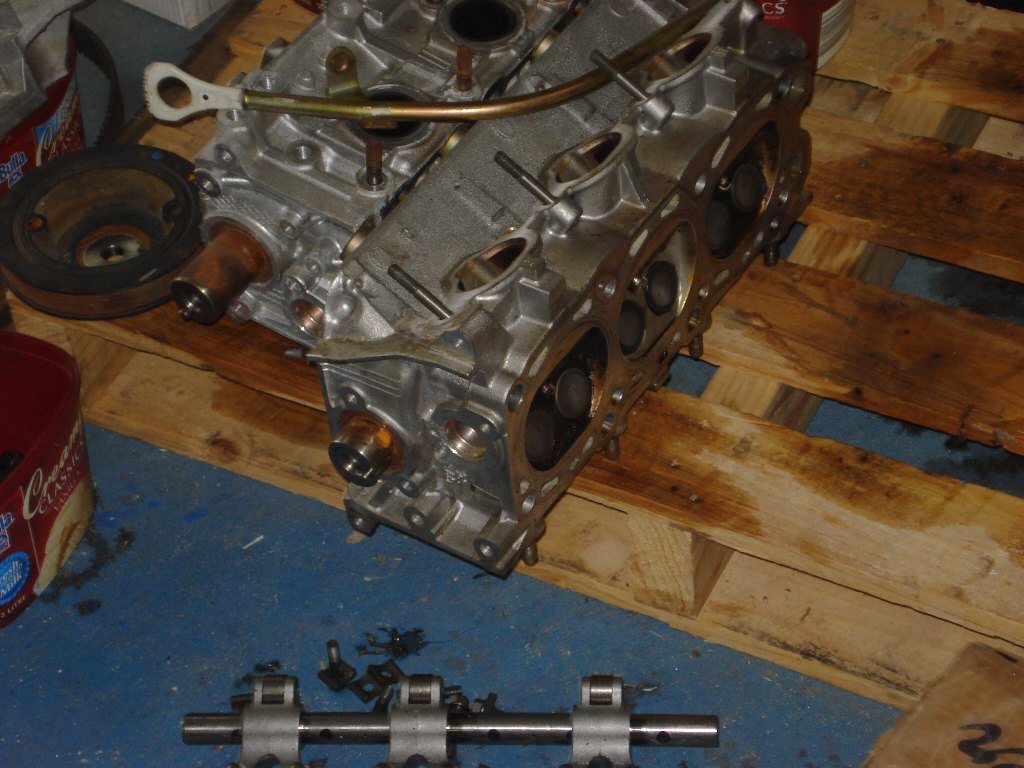

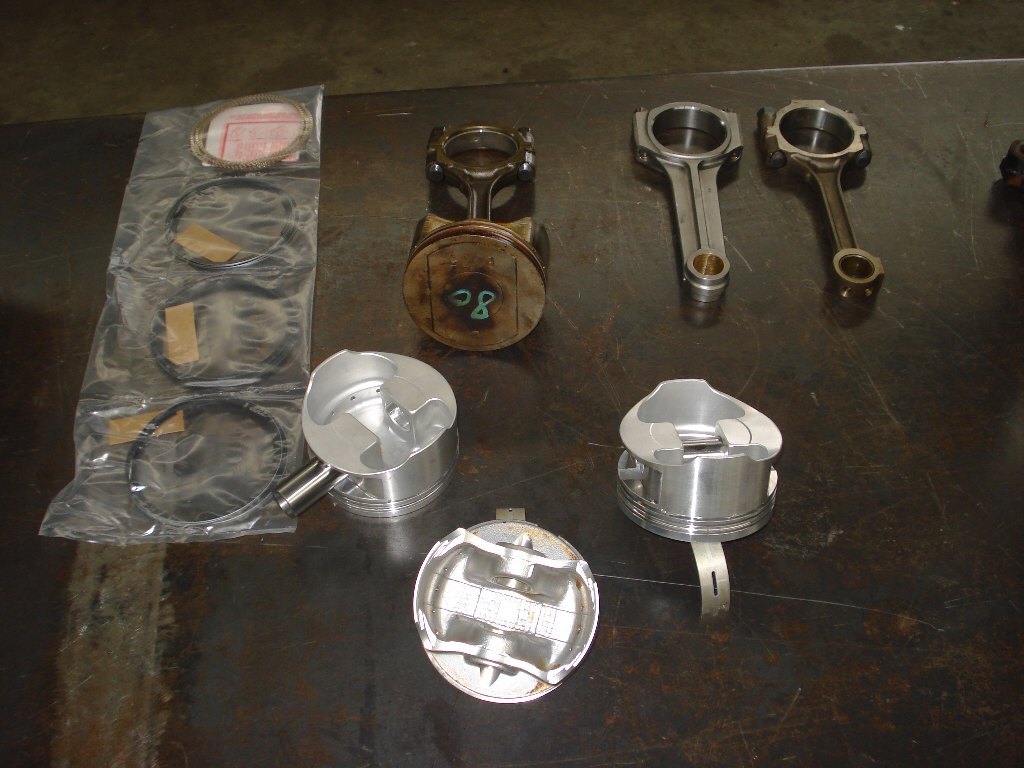

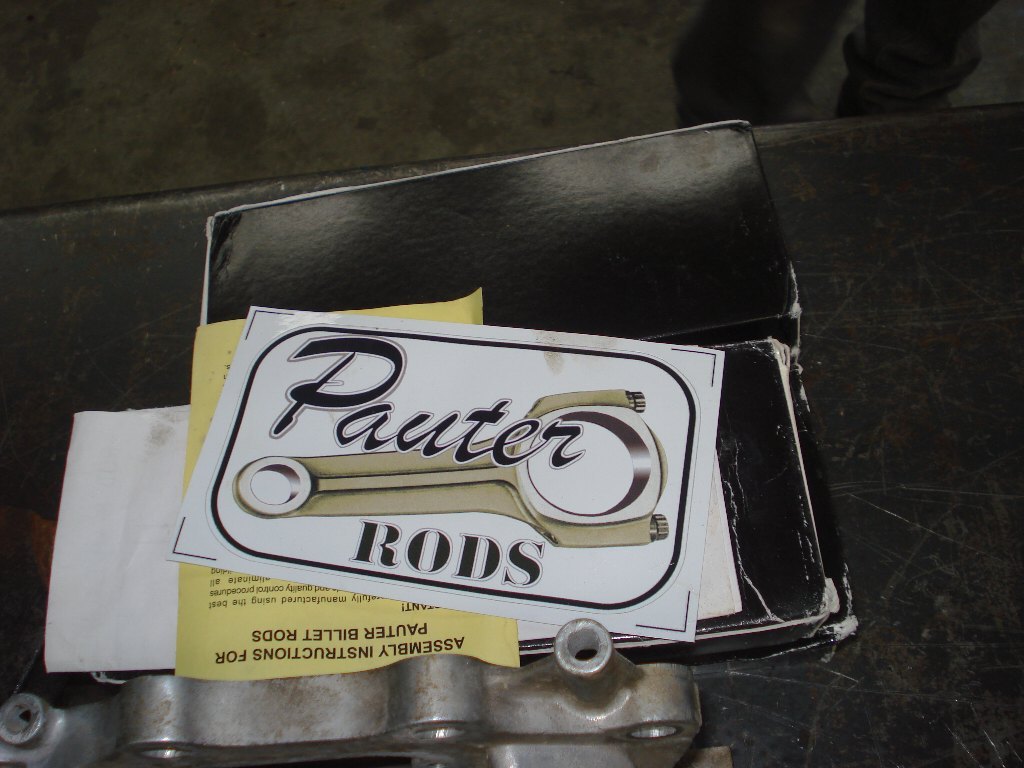

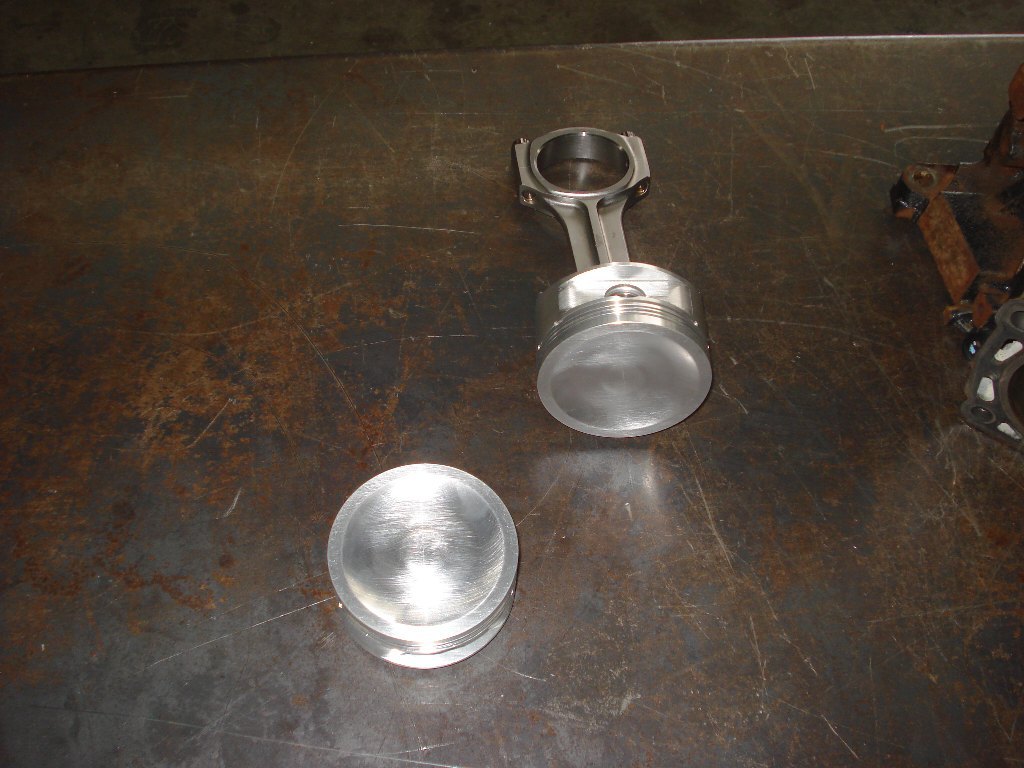

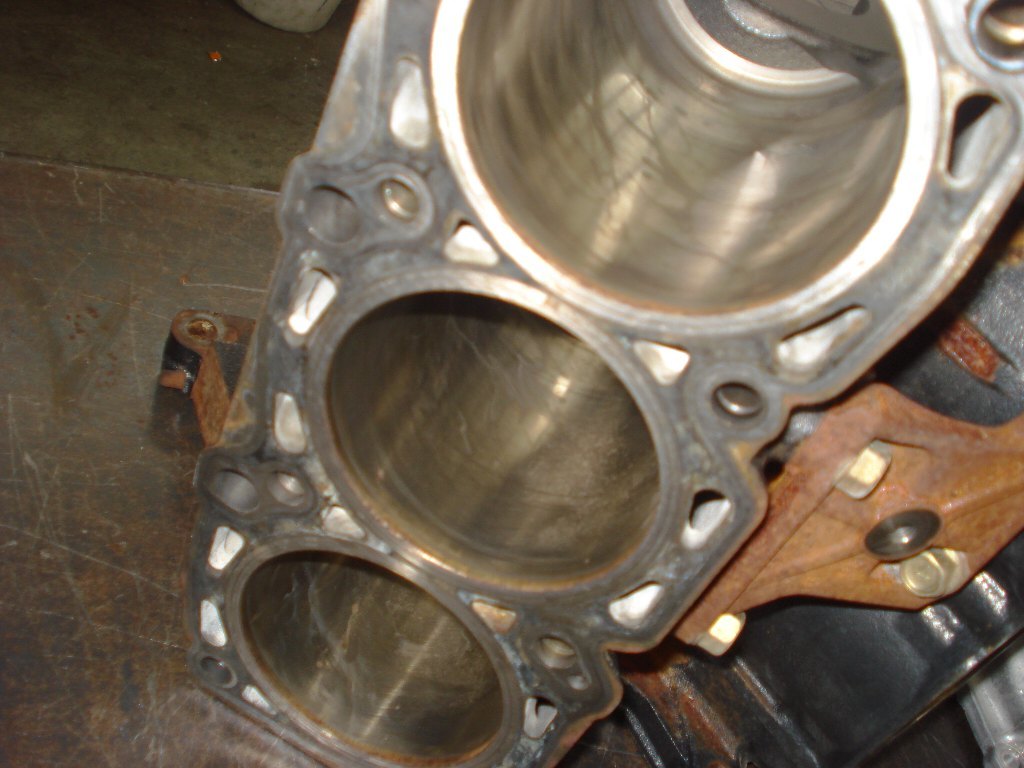

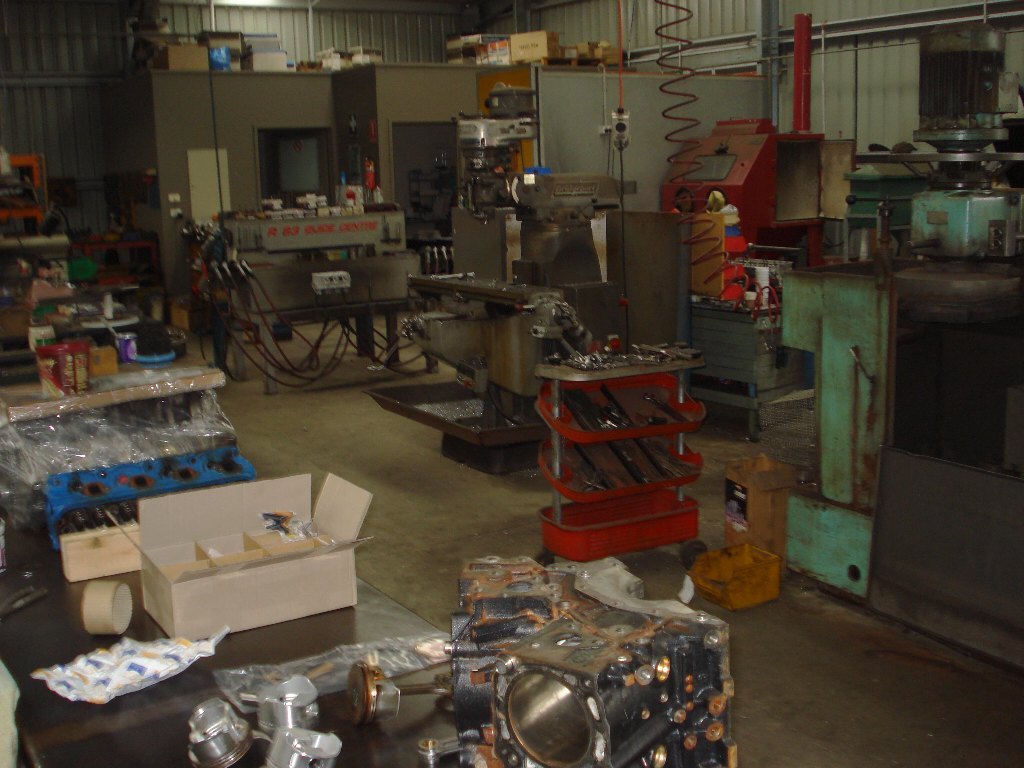

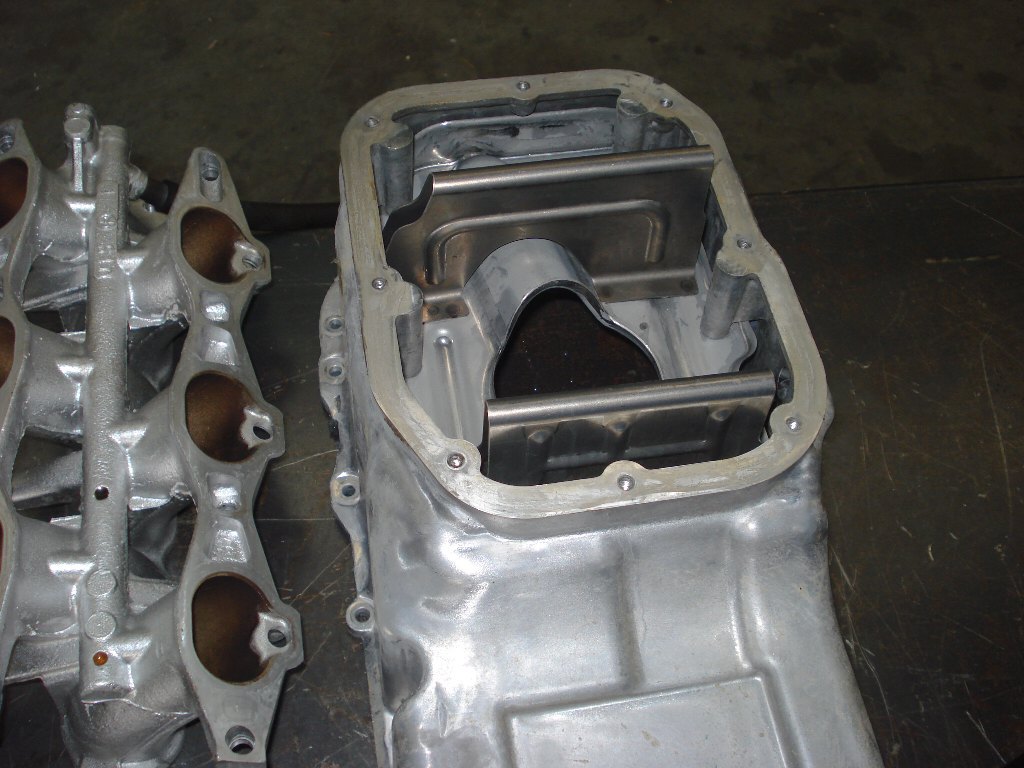

Location: An island off southern Tasmania.		This is the world's first fully forged and balanced 6G75 engine.

It runs 12 psi boost for now.



(DSC01554.JPG)



(DSC01555.JPG)



(DSC01556.JPG)



(DSC01557.JPG)



(DSC01558.JPG)



(DSC01559.JPG)



(DSC01560.JPG)



(DSC01561.JPG)



(DSC01562.JPG)



(DSC01563.JPG)



(DSC01564.JPG)



(DSC01565.JPG)



(DSC01566.JPG)



(DSC01567.JPG)



(DSC01568.JPG)



(DSC01569.JPG)



(DSC01570.JPG)



(DSC01571.JPG)



(DSC01572.JPG)



(DSC01573.JPG)



(DSC01574.JPG)



(DSC01575.JPG)



(DSC01576.JPG)



(DSC01577.JPG)



(DSC01578.JPG)



Attachments
----------------
Attachments DSC01554.JPG (154KB - 604 downloads)
Attachments DSC01555.JPG (147KB - 592 downloads)
Attachments DSC01556.JPG (96KB - 631 downloads)
Attachments DSC01557.JPG (148KB - 616 downloads)
Attachments DSC01558.JPG (139KB - 551 downloads)
Attachments DSC01559.JPG (134KB - 585 downloads)
Attachments DSC01560.JPG (135KB - 594 downloads)
Attachments DSC01561.JPG (120KB - 582 downloads)
Attachments DSC01562.JPG (126KB - 576 downloads)
Attachments DSC01563.JPG (98KB - 608 downloads)
Attachments DSC01564.JPG (136KB - 580 downloads)
Attachments DSC01565.JPG (136KB - 575 downloads)
Attachments DSC01566.JPG (119KB - 572 downloads)
Attachments DSC01567.JPG (149KB - 581 downloads)
Attachments DSC01568.JPG (137KB - 569 downloads)
Attachments DSC01569.JPG (160KB - 580 downloads)
Attachments DSC01570.JPG (185KB - 565 downloads)
Attachments DSC01571.JPG (180KB - 602 downloads)
Attachments DSC01572.JPG (122KB - 602 downloads)
Attachments DSC01573.JPG (117KB - 562 downloads)
Attachments DSC01574.JPG (128KB - 566 downloads)
Attachments DSC01575.JPG (128KB - 630 downloads)
Attachments DSC01576.JPG (104KB - 580 downloads)
Attachments DSC01577.JPG (137KB - 590 downloads)
Attachments DSC01578.JPG (162KB - 631 downloads)
Top of the page Bottom of the page
Administrator
Posted 11/8/2011 02:20 (#13473 - in reply to #13342)
Subject: Re: Forged 6G75 engine



Frequent flyer Gold

Posts: 1093
10005025555

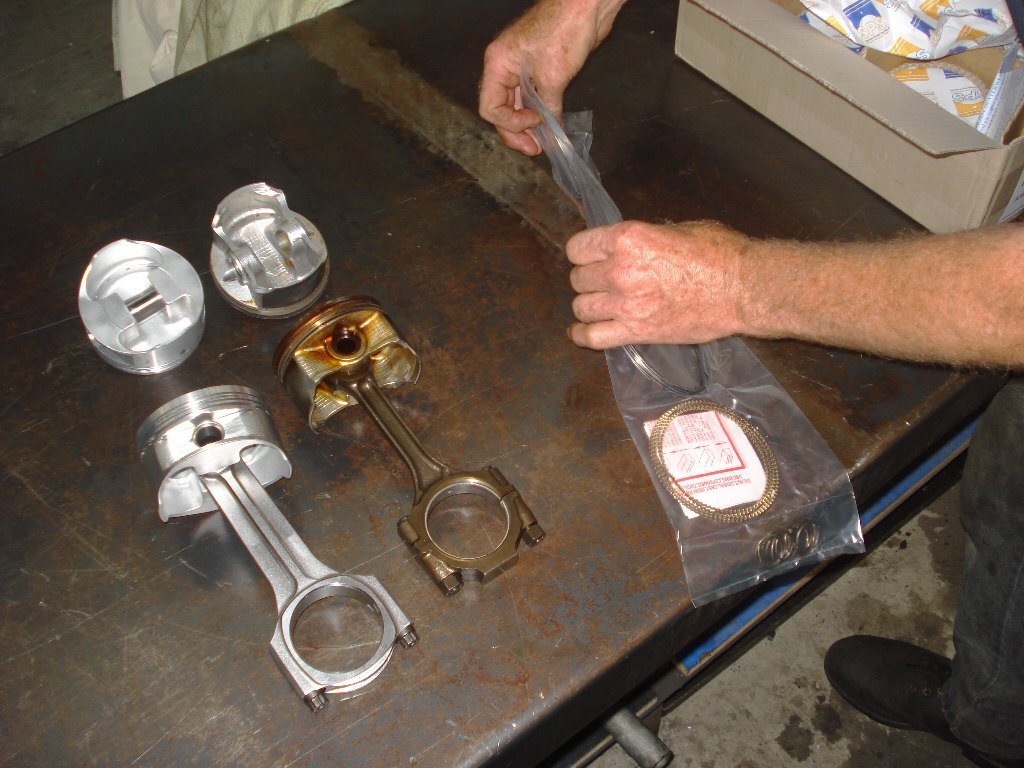

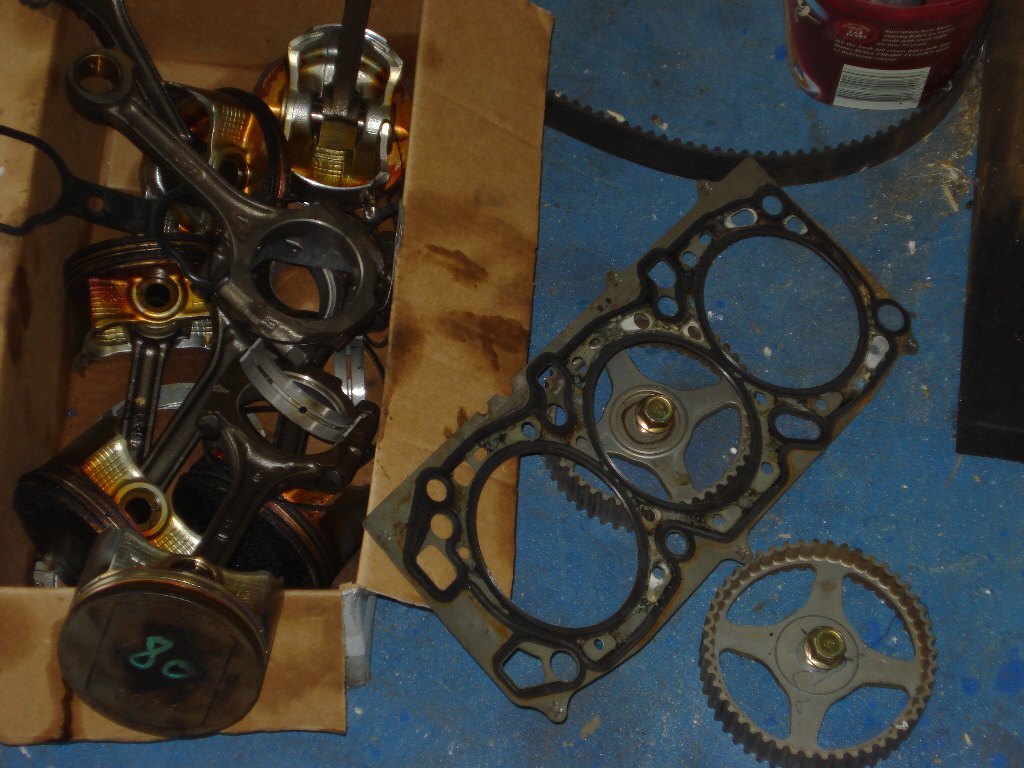

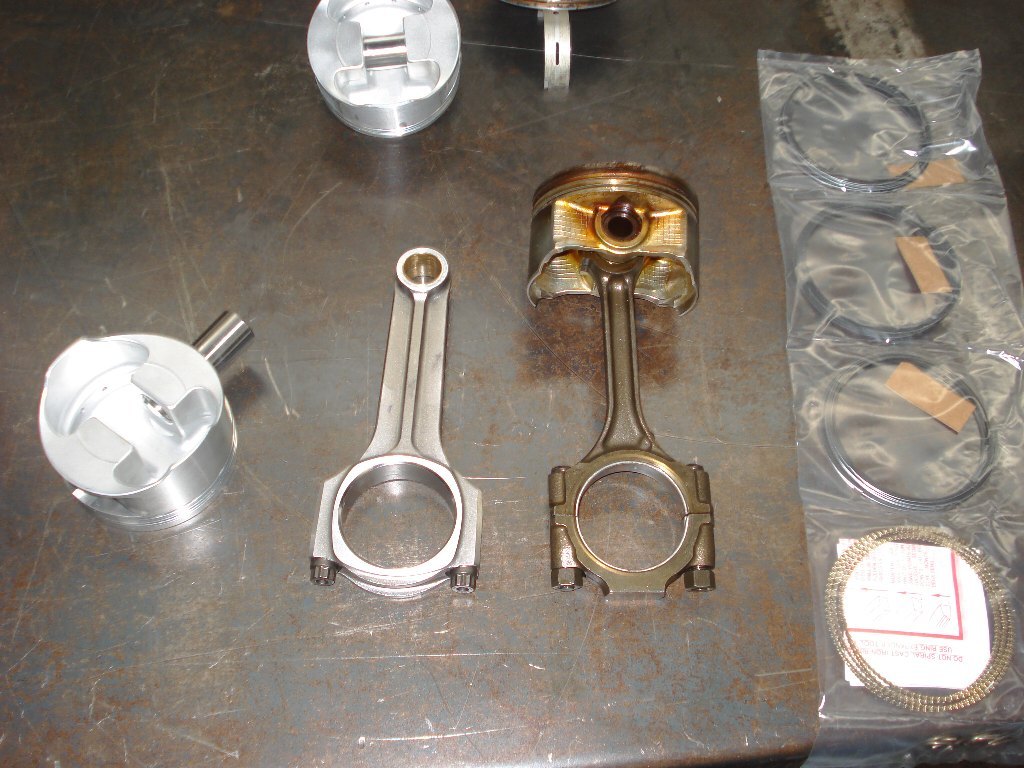

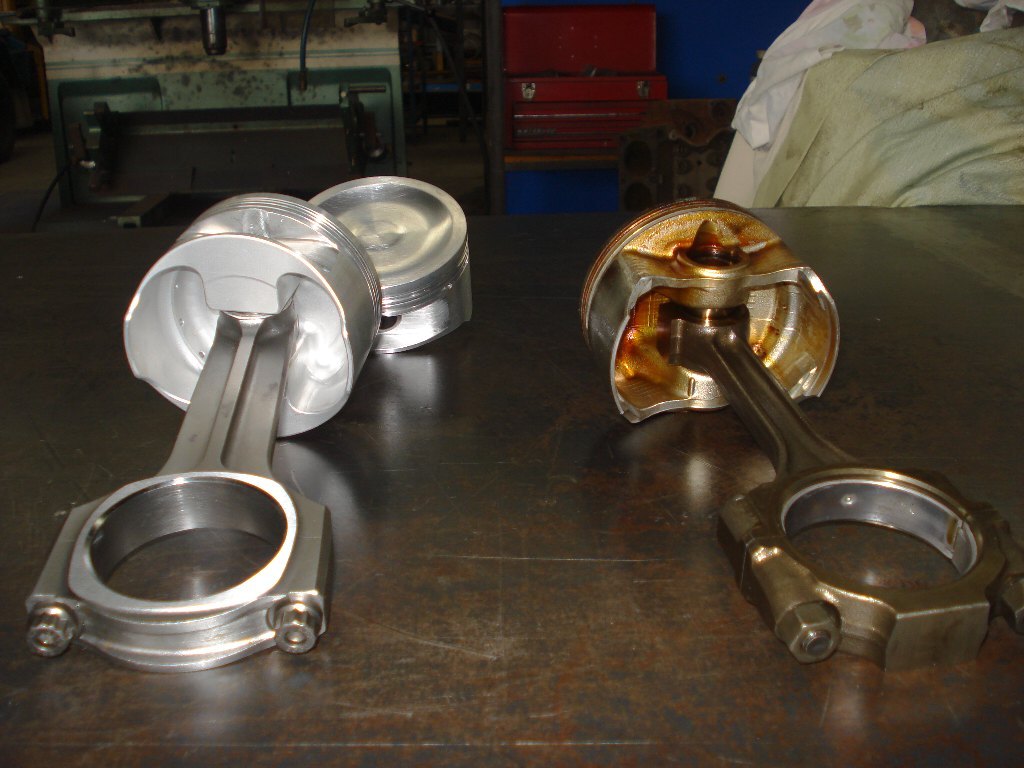

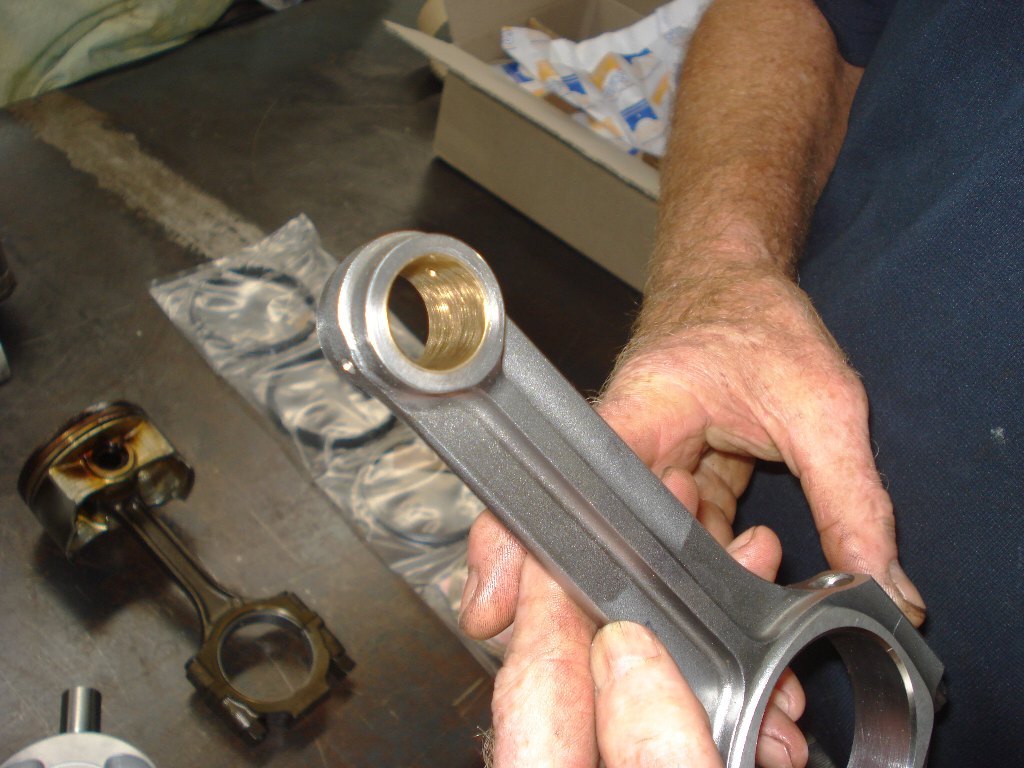

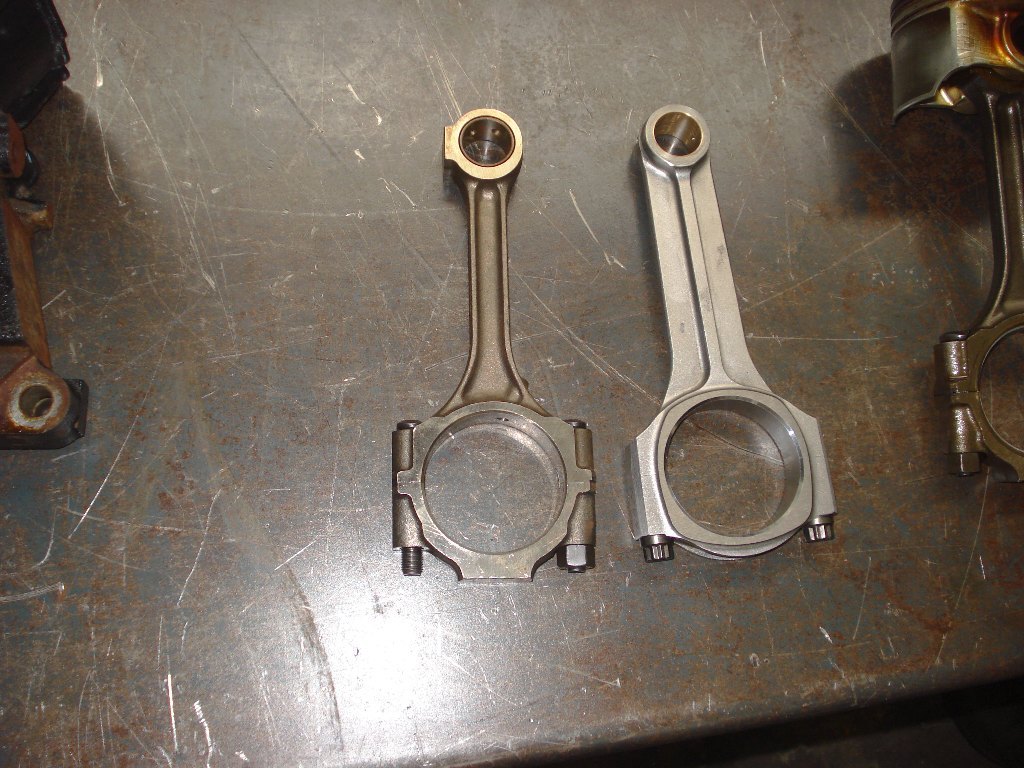

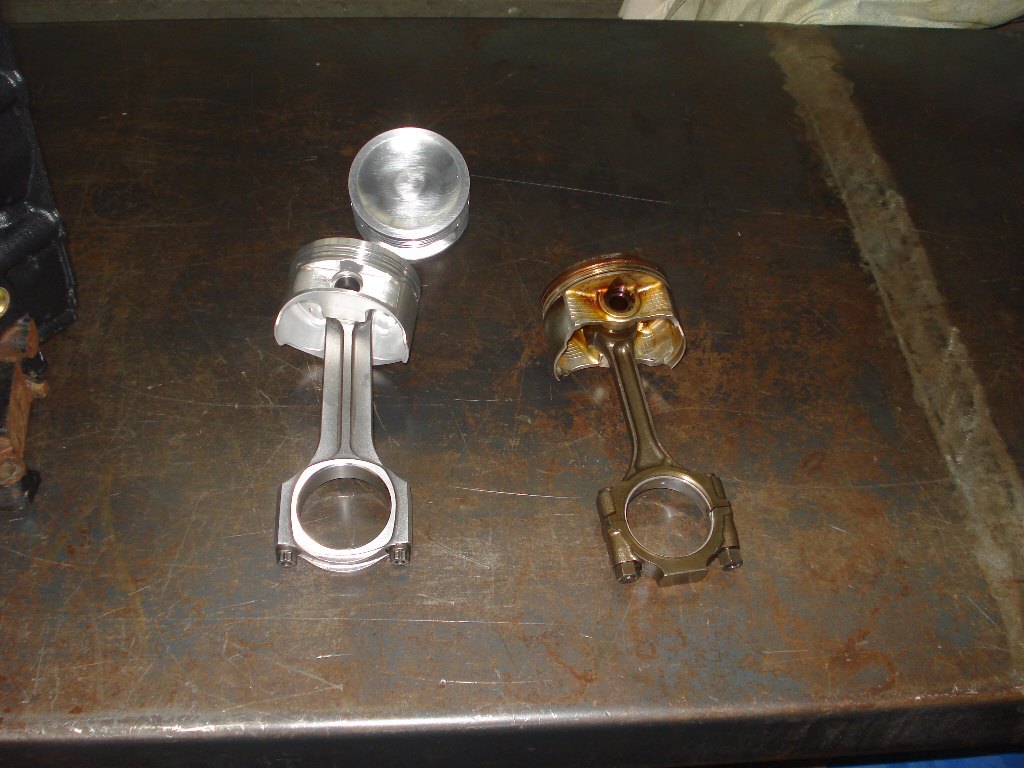

Location: An island off southern Tasmania.		The con rods are 35 grams lighter than the stock rods.

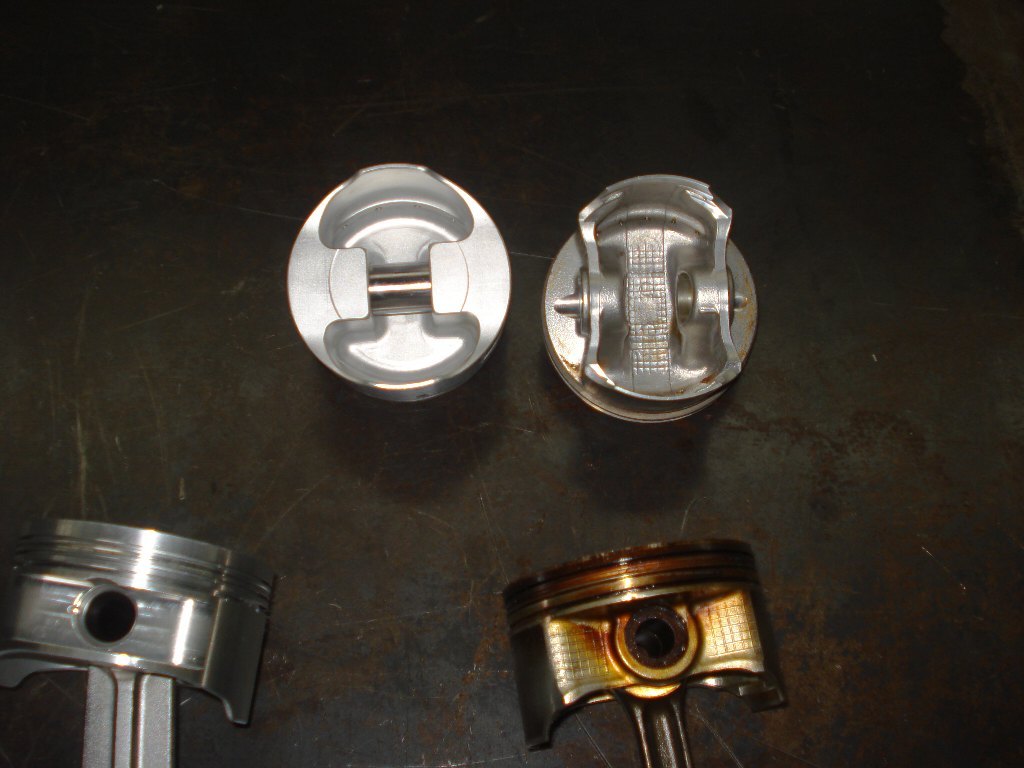

The piston is 5 grams lighter or almost identical in weight to the stock pistons, overall the rotating mass is slightly lighter.

The engine is noisier than stock when absolutely cold.
Top of the page Bottom of the page
wsbtt
Posted 11/8/2011 06:54 (#13475 - in reply to #13473)
Subject: Re: Forged 6G75 engine



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Is it noisier because its still tight?
Top of the page Bottom of the page
Administrator
Posted 11/8/2011 10:02 (#13480 - in reply to #13475)
Subject: Re: Forged 6G75 engine



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
wsbtt - 11/8/2011 06:54

Is it noisier because its still tight?



nah...no running in with a built engine...but they all do it when forged....I've done 10 thousand k's in it already....

Top of the page Bottom of the page
Godzilla
Posted 2/10/2011 17:03 (#13615 - in reply to #13342)
Subject: Re: Forged 6G75 engine



Frequent flyer Silver

Posts: 62
5055

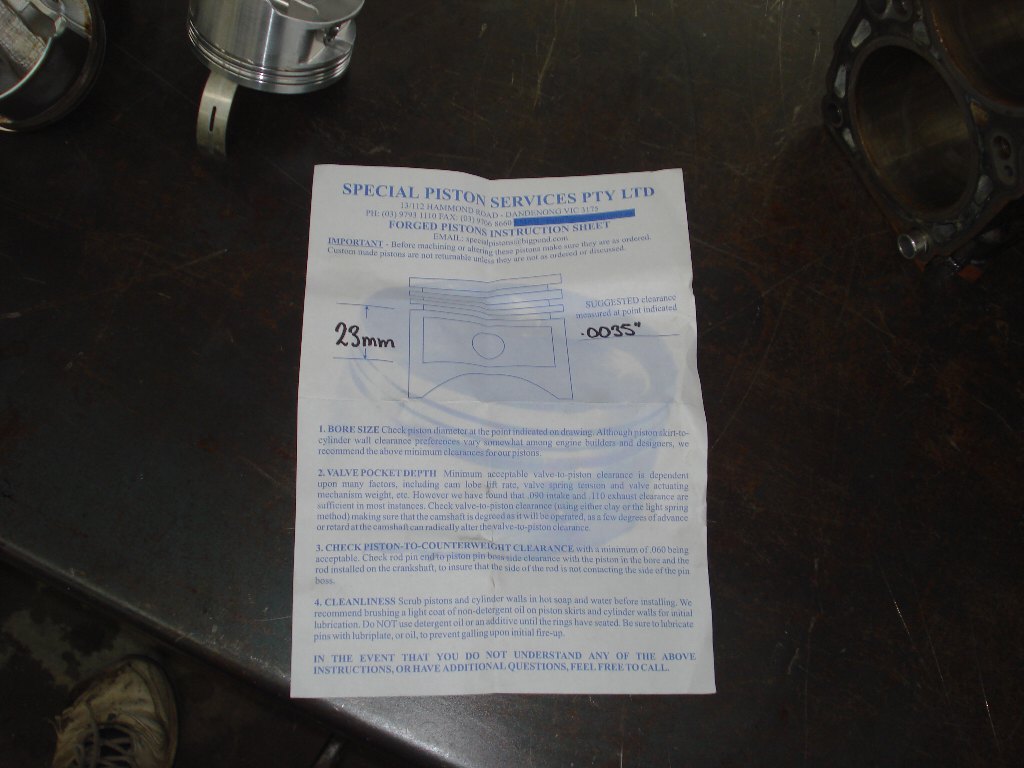

Forged pistons need different clearances, they tend to be a little noisier till they warm up and expand.
Top of the page Bottom of the page
Administrator
Posted 2/10/2011 18:48 (#13617 - in reply to #13615)
Subject: Re: Forged 6G75 engine



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
Godzilla - 2/10/2011 17:03

Forged pistons need different clearances, they tend to be a little noisier till they warm up and expand.



yep...takes about the same amount of time as it atkes for the car to switch from petrol to LPG.

Sounds like a bad bearing till shw warms up, as a precaution I always take it easy when cold anyway out of respect for technology and my wallet....LOL
Top of the page Bottom of the page
Administrator
Posted 16/7/2013 19:59 (#15408 - in reply to #13342)
Subject: Re: Forged 6G75 engine #1



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		This engine was recently dyno'ed at 270kw at the wheels with 710 Nm torque.

16 psi twin turbo boost.
Top of the page Bottom of the page
wsbtt
Posted 20/7/2013 11:43 (#15423 - in reply to #15408)
Subject: Re: Forged 6G75 engine #1



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Wow, i need that in my AWD magna
