SMT6 7th injector upgrade
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   Technical info for the 380 -> Sprintex,SMT6,etcMessage format

Administrator
Posted 20/9/2011 11:53 (#13594)
Subject: SMT6 7th injector upgrade



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		If you have upgraded the size of the 7th injector for the Sprintex supercharger then you may find the following re-mapping of the timing and injector settings useful.

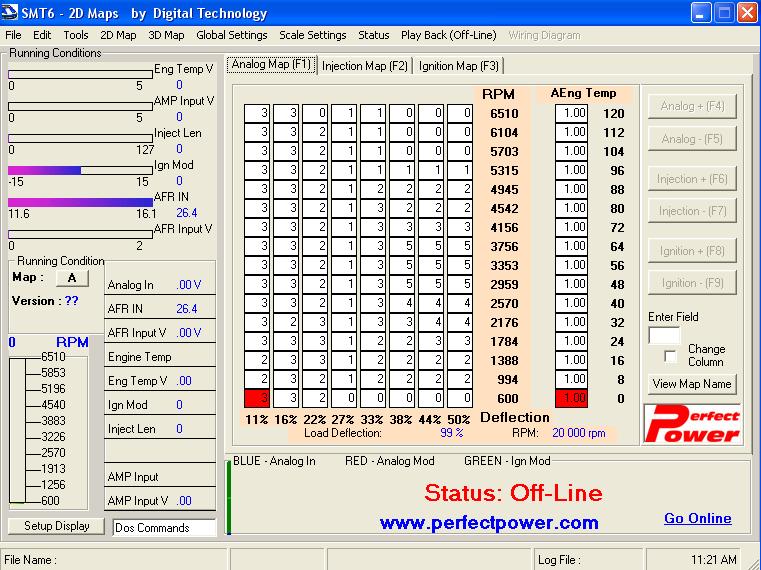

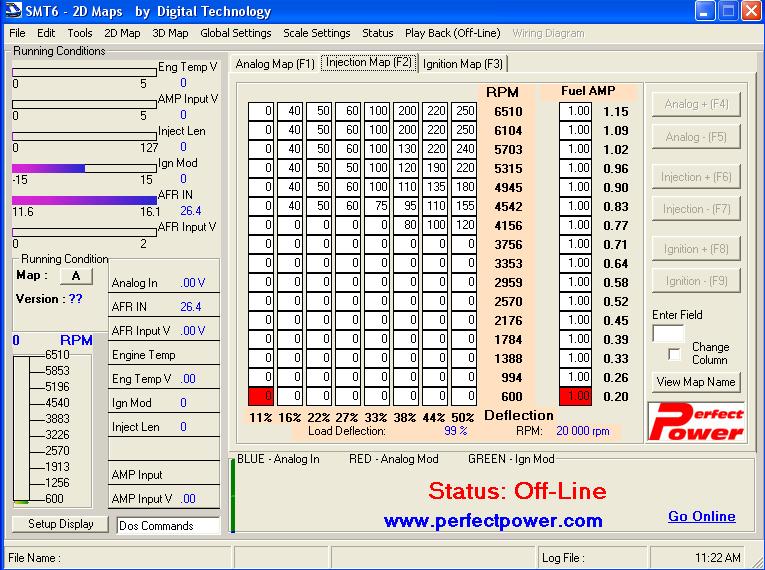

The attached screen shots are of my dyno'ed GT after the injector was upgraded....the screens are for petrol only mode.

The last map screen is for the special case of an LPG supercharged tune as per my GT....when running LPG/Petrol mode.




(7th inj upgraded screen 1.JPG)



(7th inj upgraded screen 2.JPG)



(7th inj upgraded screen 3.JPG)



(safe lpg tune.JPG)



Attachments
----------------
Attachments 7th inj upgraded screen 1.JPG (115KB - 636 downloads)
Attachments 7th inj upgraded screen 2.JPG (118KB - 666 downloads)
Attachments 7th inj upgraded screen 3.JPG (125KB - 670 downloads)
Attachments safe lpg tune.JPG (123KB - 645 downloads)
Top of the page Bottom of the page
wsbtt
Posted 25/10/2011 19:54 (#13757 - in reply to #13594)
Subject: Re: SMT6 7th injector upgrade



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Are these settings for the standard pulley or your 12 psi one
Top of the page Bottom of the page
z80
Posted 26/10/2011 08:05 (#13761 - in reply to #13757)
Subject: Re: SMT6 7th injector upgrade


Frequent flyer Gold

Posts: 516
500555
wsbtt - 25/10/2011 19:54

Are these settings for the standard pulley or your 12 psi one



Standard 76mm pulley...but with bigger injector.


but look carefully...no 7th injector pulse until around 4000 rpm...this is cause I have lpg as well.

Yours will be different, you can cut the 7th injector in way lower, based on 50% throttle position.

You can play with it or get it dynoed....I got mine dynoed then tweaked it.

Since you have no LPG, the cells below 4000 would probably have something in them, drive around with the laptop and an assistant, if it bogs down at a certaqin throttle position and rpm then thats where you need to play.


Compare it to the stock settings as well.
Top of the page Bottom of the page
savage3
Posted 24/11/2011 23:29 (#13808 - in reply to #13761)
Subject: Re: SMT6 7th injector upgrade




Posts: 8
5
Just reading up the part number of the Bosch injector that's included with the blower kit. Turns out it's a commonly used injector in ford falcons. 190cc injector. I'm dropping it in favor or 6 larger 470cc ones up from the stock ones.
Top of the page Bottom of the page
Administrator
Posted 25/11/2011 00:06 (#13809 - in reply to #13808)
Subject: Re: SMT6 7th injector upgrade



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
savage3 - 24/11/2011 23:29

Just reading up the part number of the Bosch injector that's included with the blower kit. Turns out it's a commonly used injector in ford falcons. 190cc injector. I'm dropping it in favor or 6 larger 470cc ones up from the stock ones.



yep...a better idea...as long as you can retune the ECU...in a 380 its not an option, the SMT6 essentially just drives the 7th injector.
Top of the page Bottom of the page
wsbtt
Posted 29/8/2013 19:52 (#15595 - in reply to #13594)
Subject: Re: SMT6 7th injector upgrade



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		To get mine dynoed , what will i have to do?
Top of the page Bottom of the page
Administrator
Posted 29/8/2013 22:01 (#15599 - in reply to #13594)
Subject: Re: SMT6 7th injector upgrade



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		I can send you my spare smt6 with the tune already done if you want?


then just plug in and see what you think....even stuff up the settings if you want a play...just send back to me when done?
Top of the page Bottom of the page
wsbtt
Posted 29/8/2013 22:07 (#15600 - in reply to #15599)
Subject: Re: SMT6 7th injector upgrade



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		That sounds ok, so how will i get that tune onto my ecu, im a little green in this arera, how will i get it dynoed, no one up here has heard of the SMT6
