Administrator	Posted 28/7/2011 11:24 (#13354) Subject: 6G75 strip down

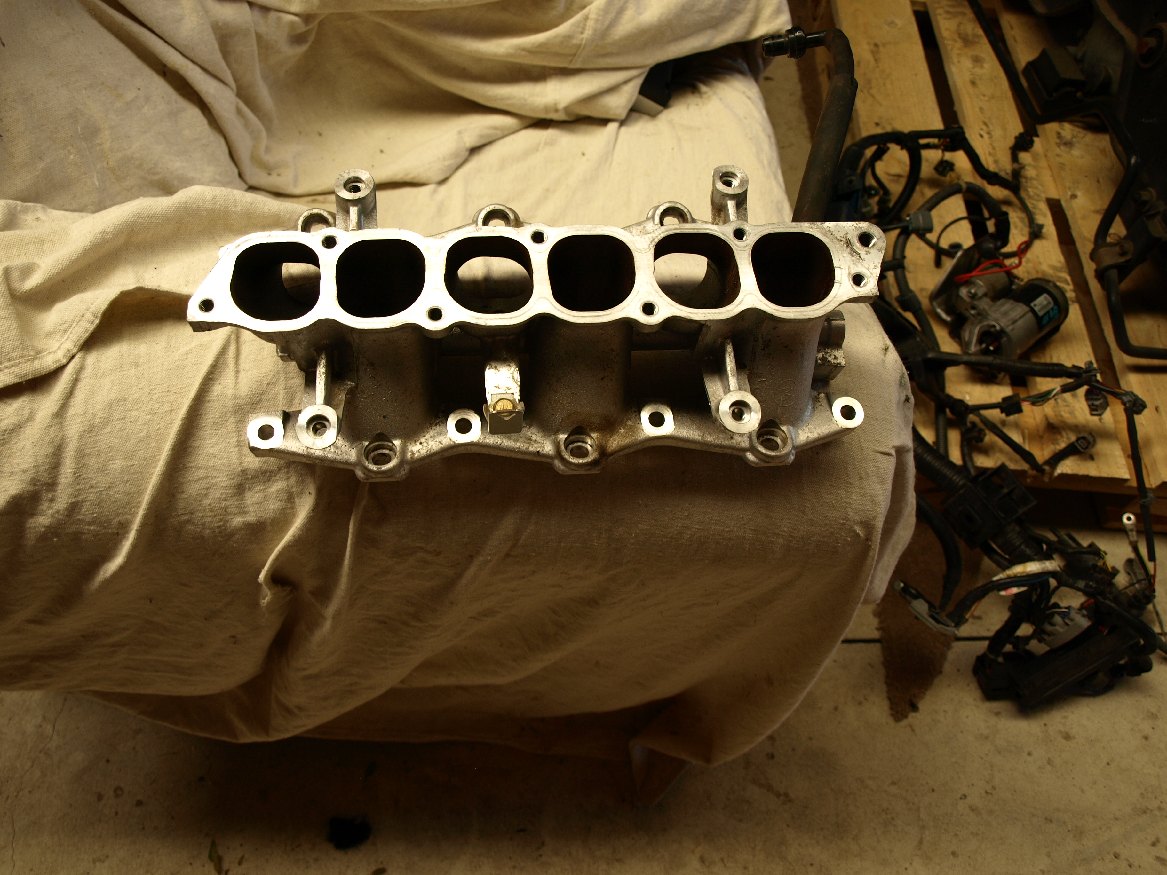

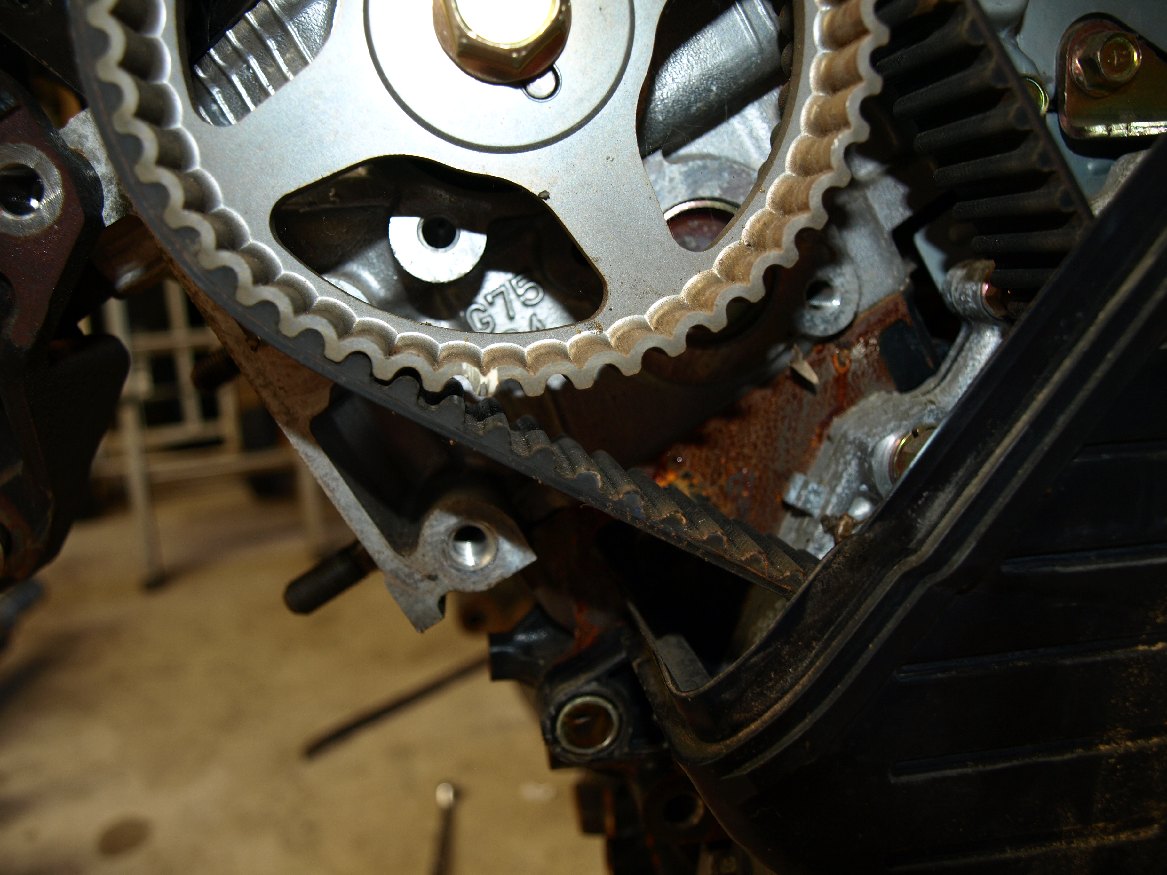

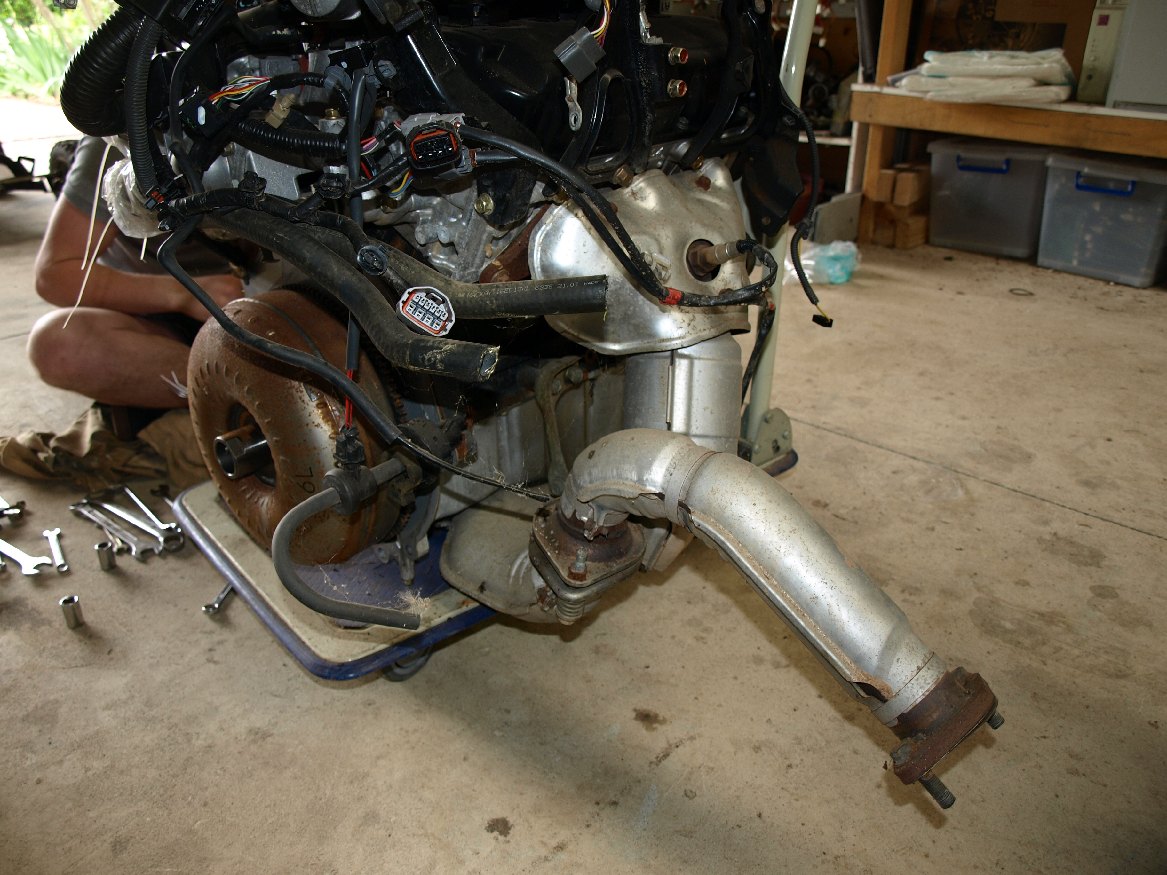

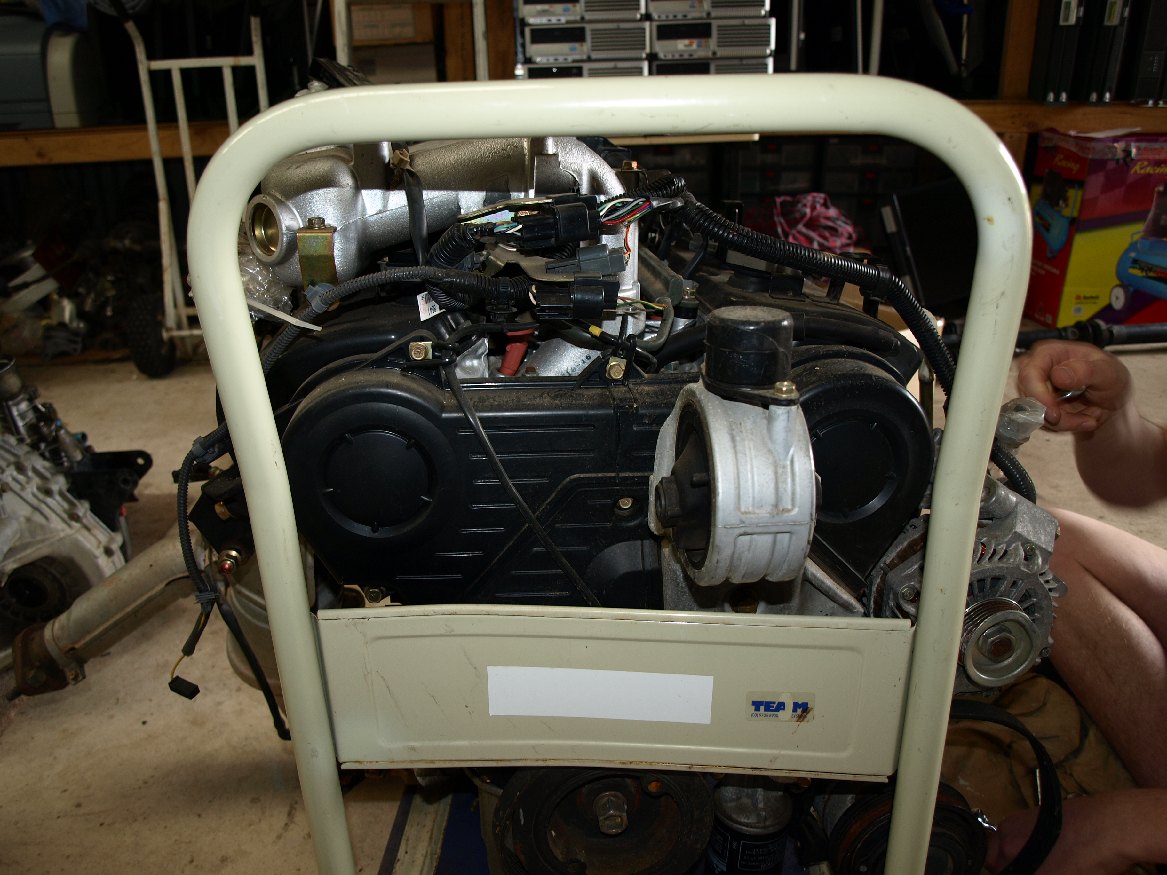

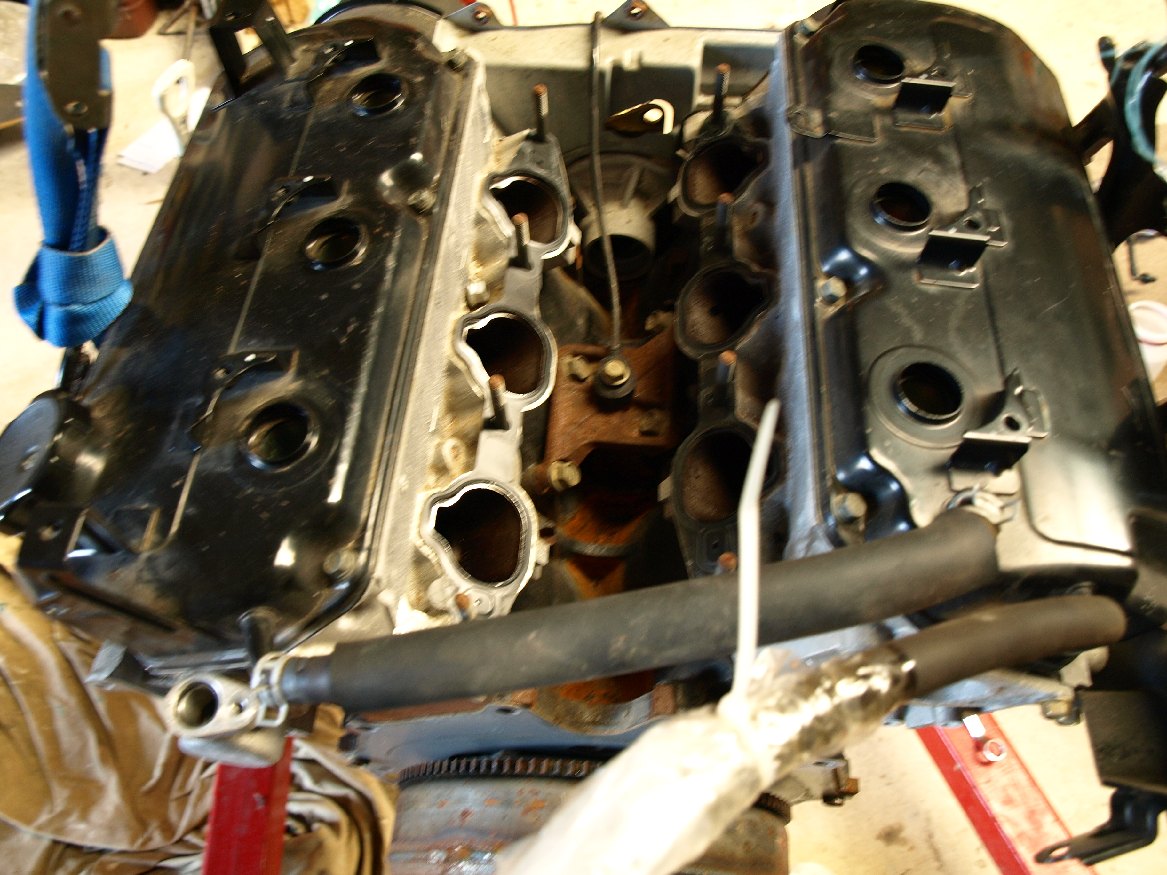

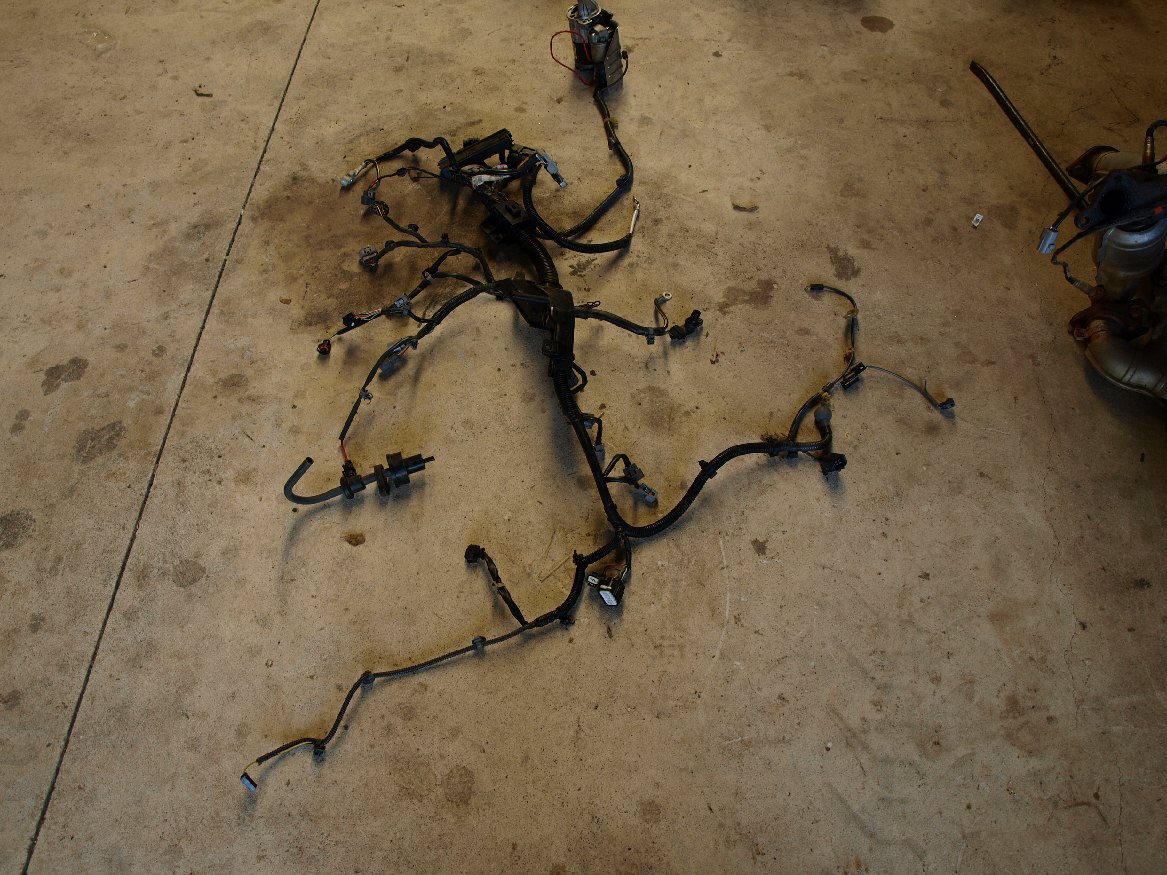

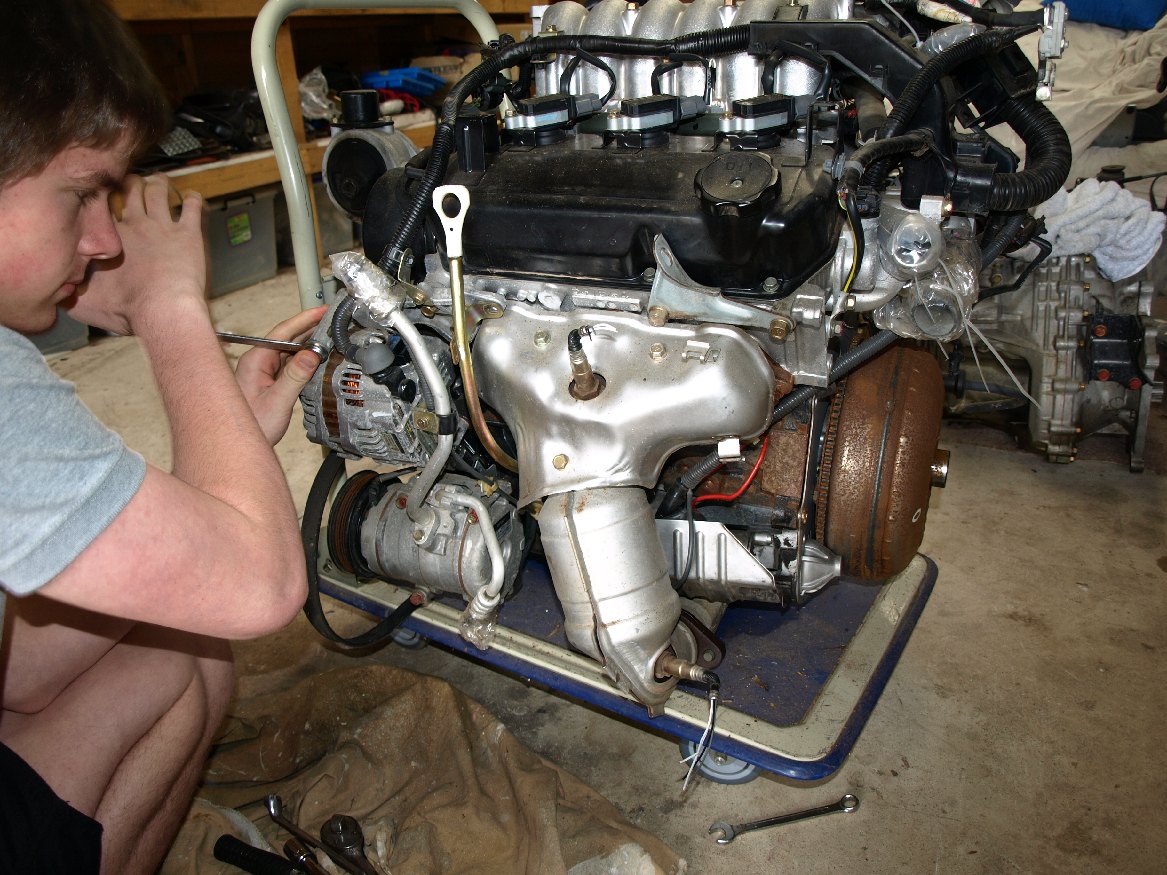

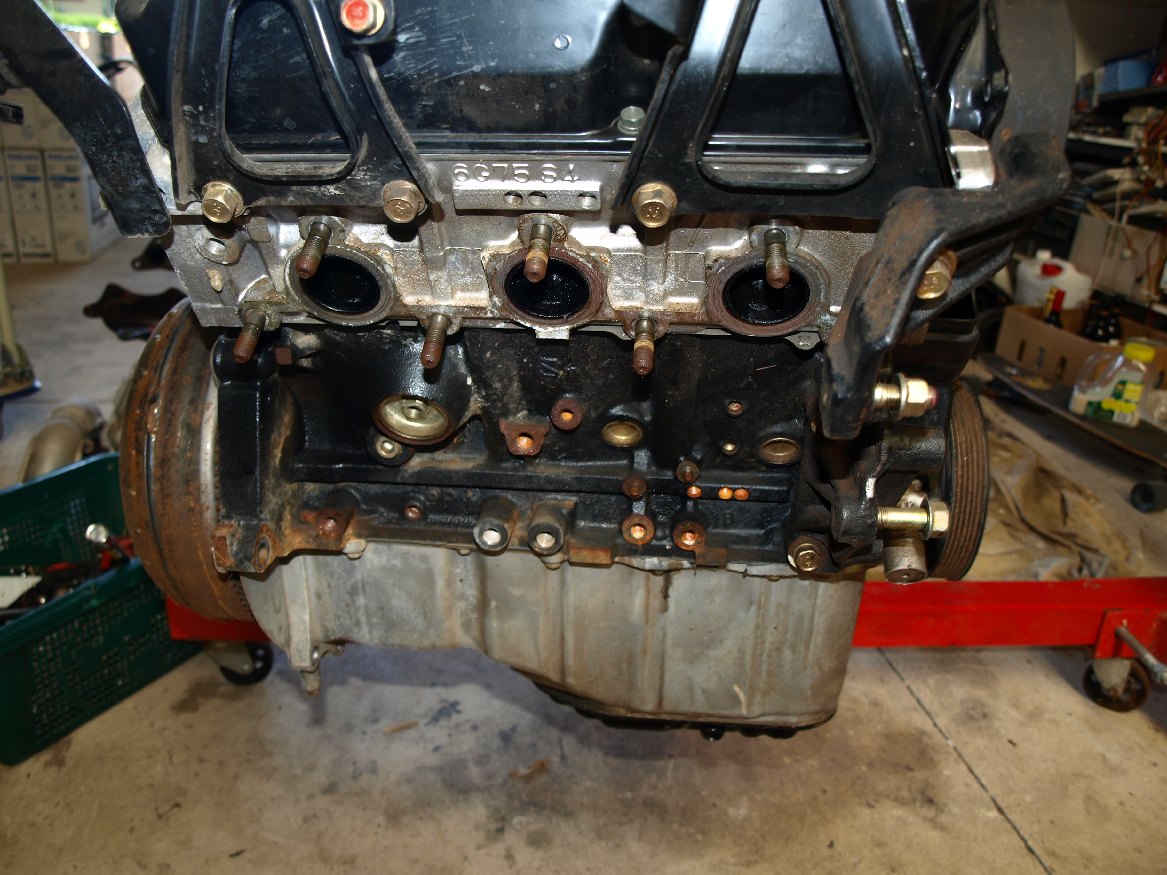

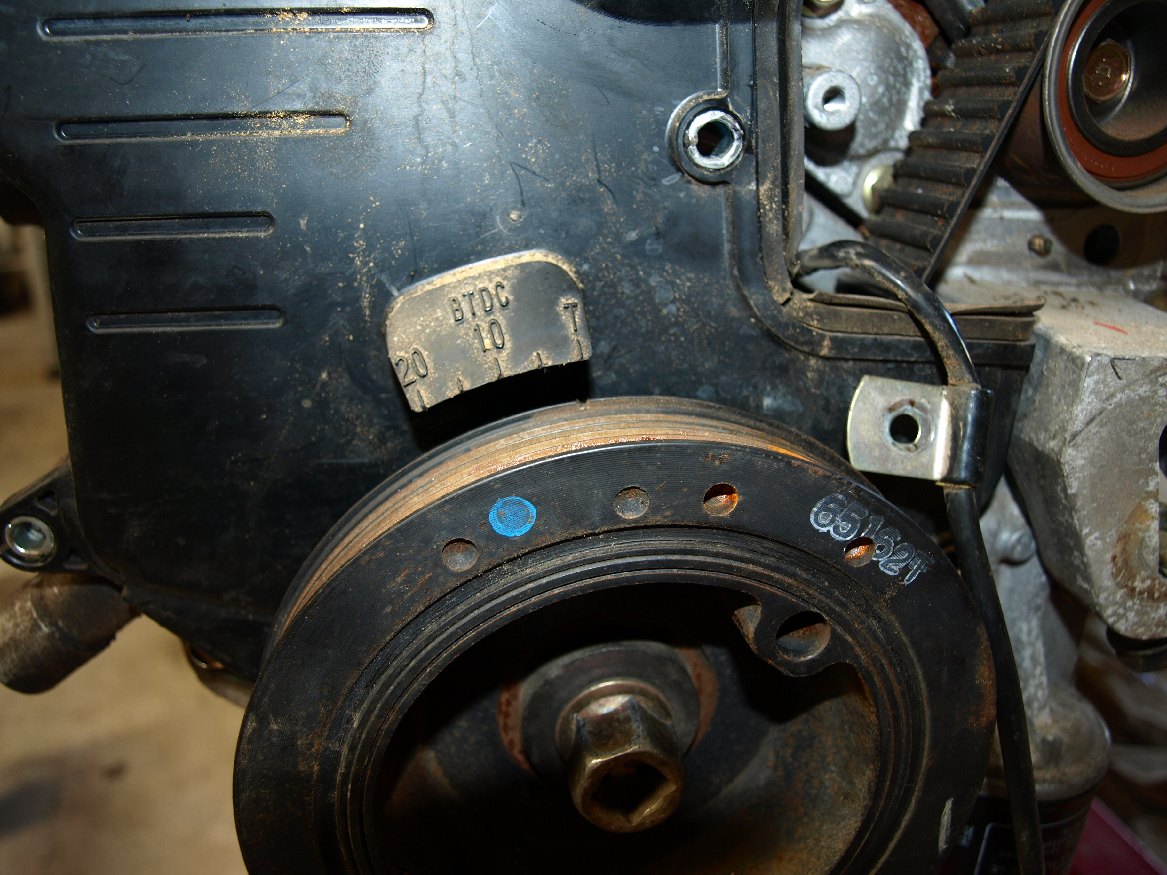

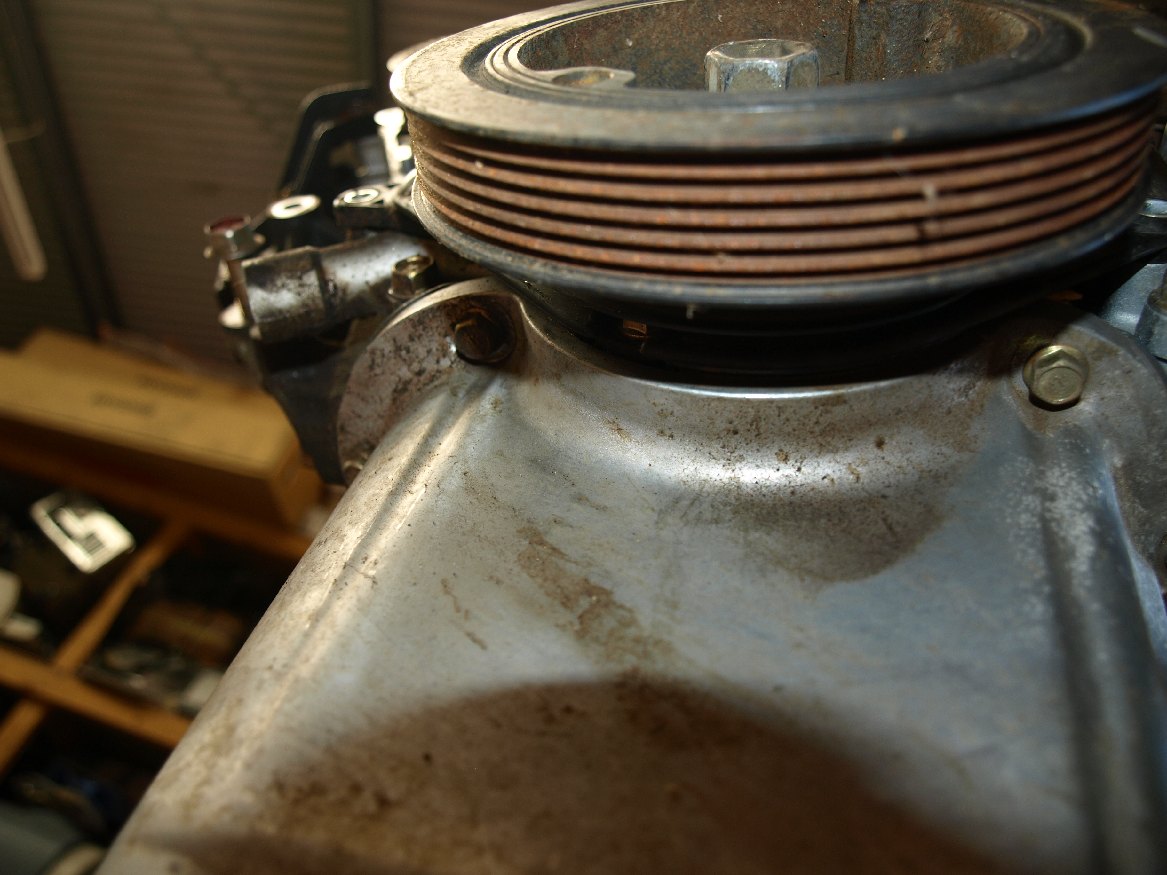

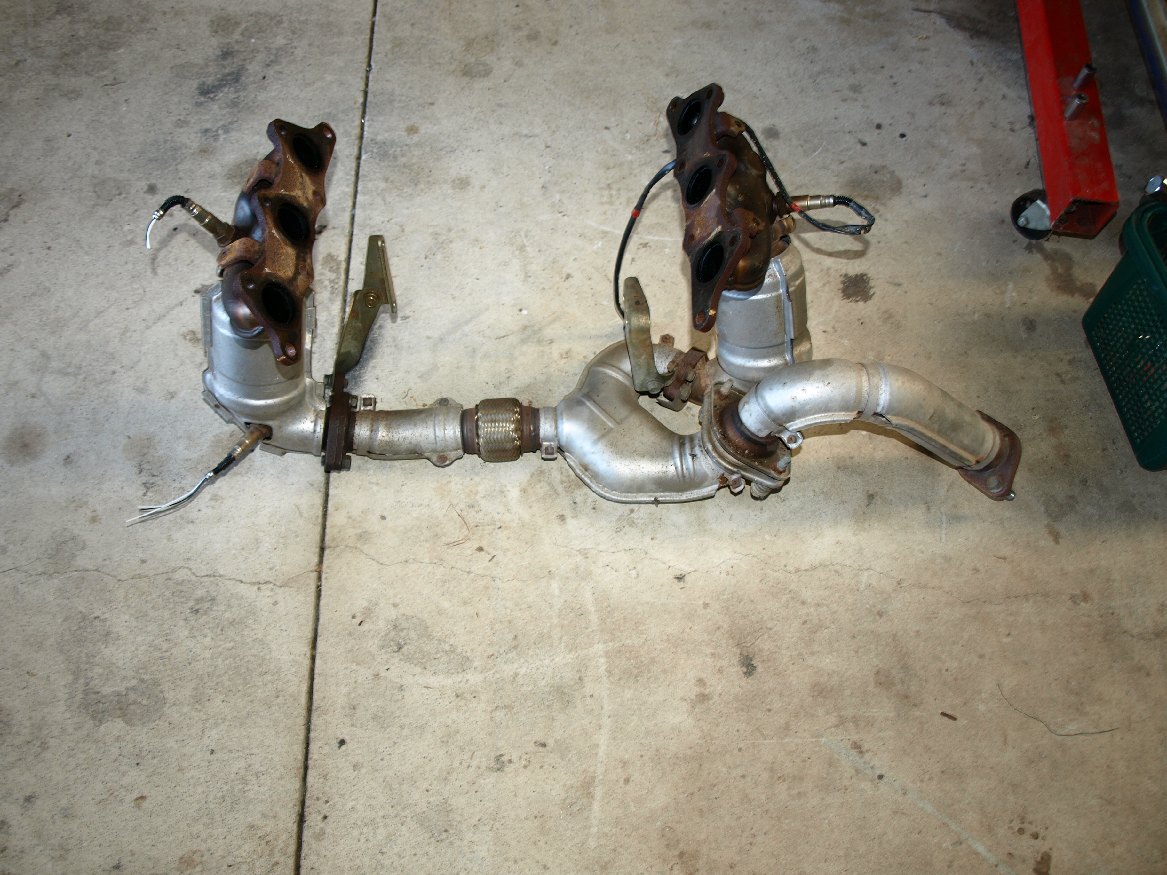

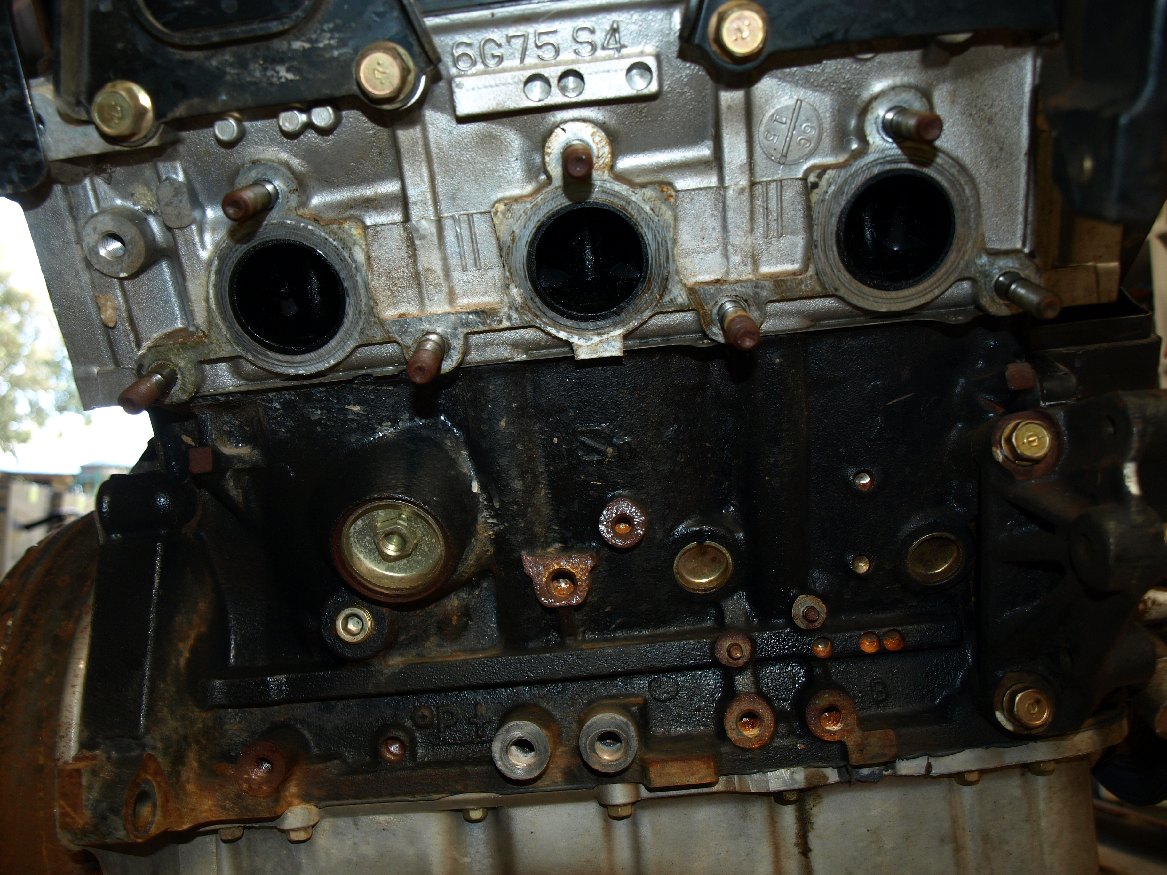

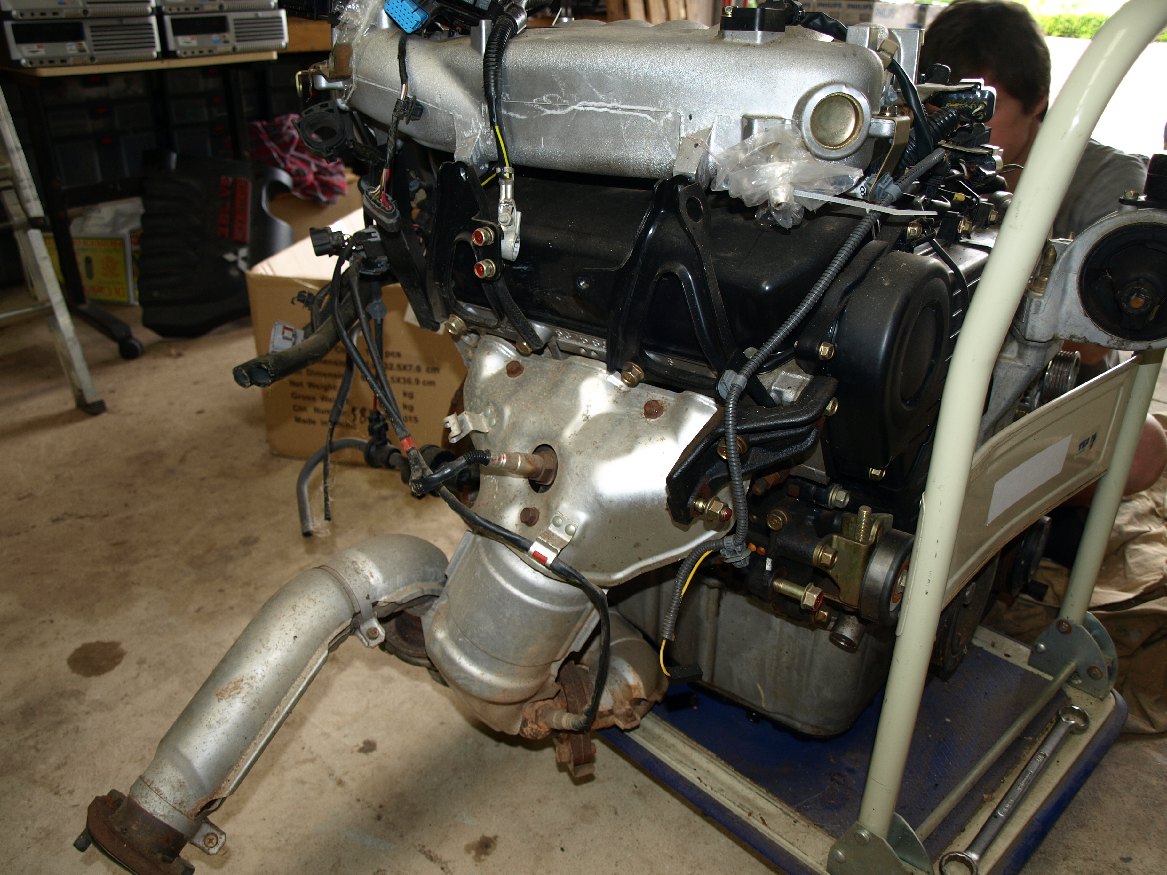

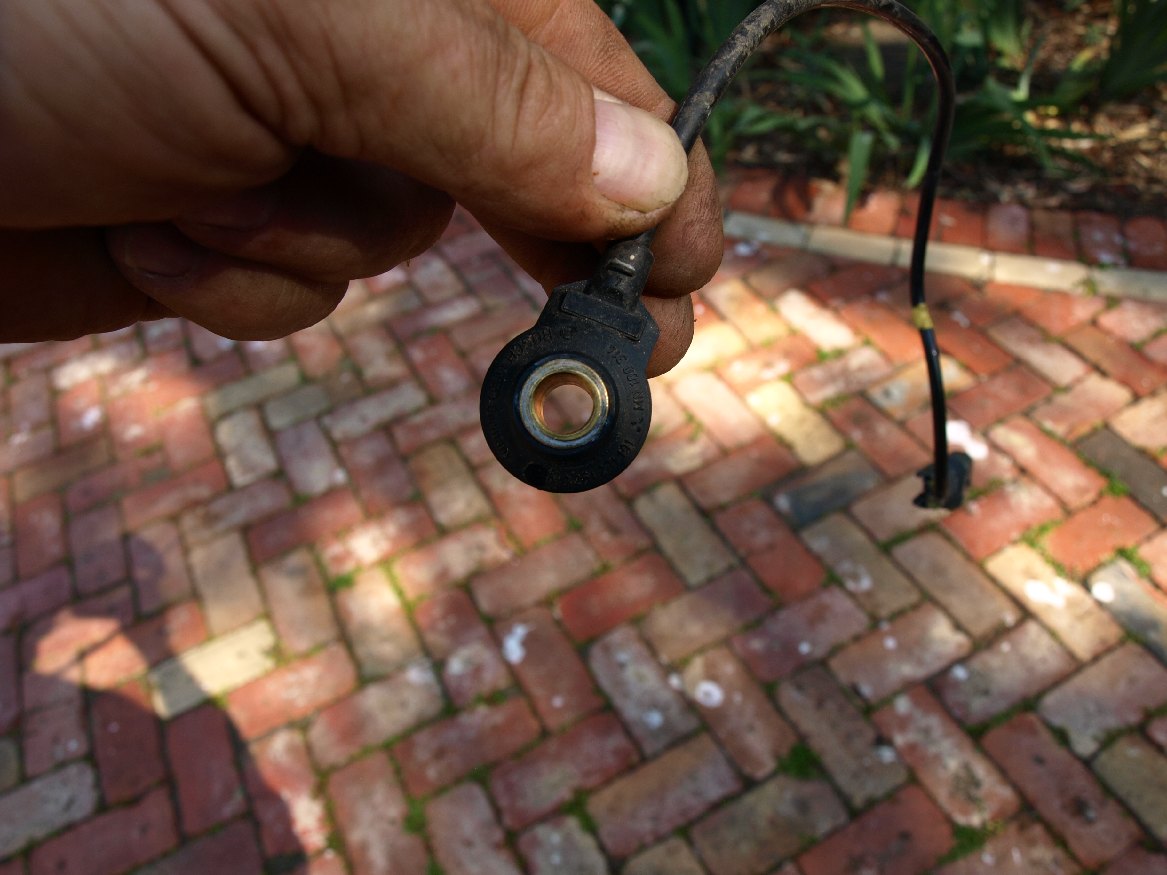

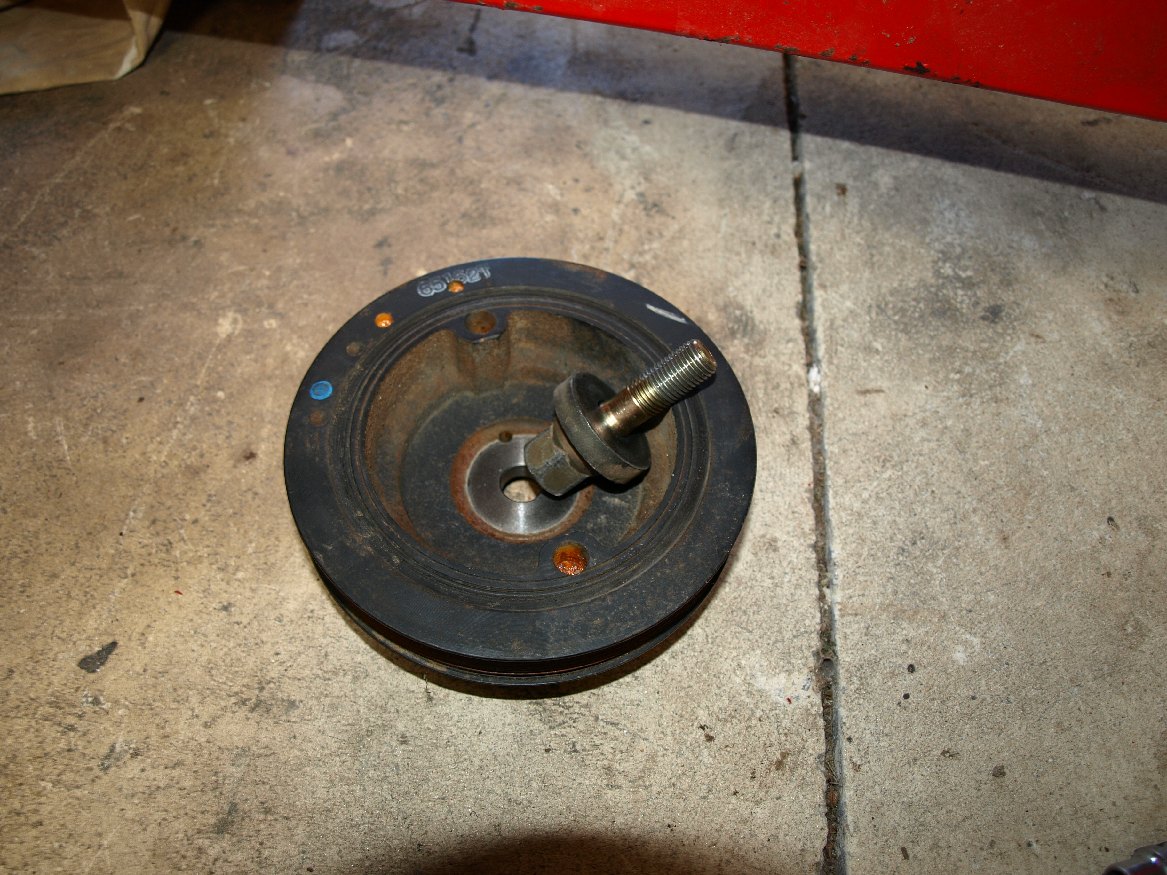

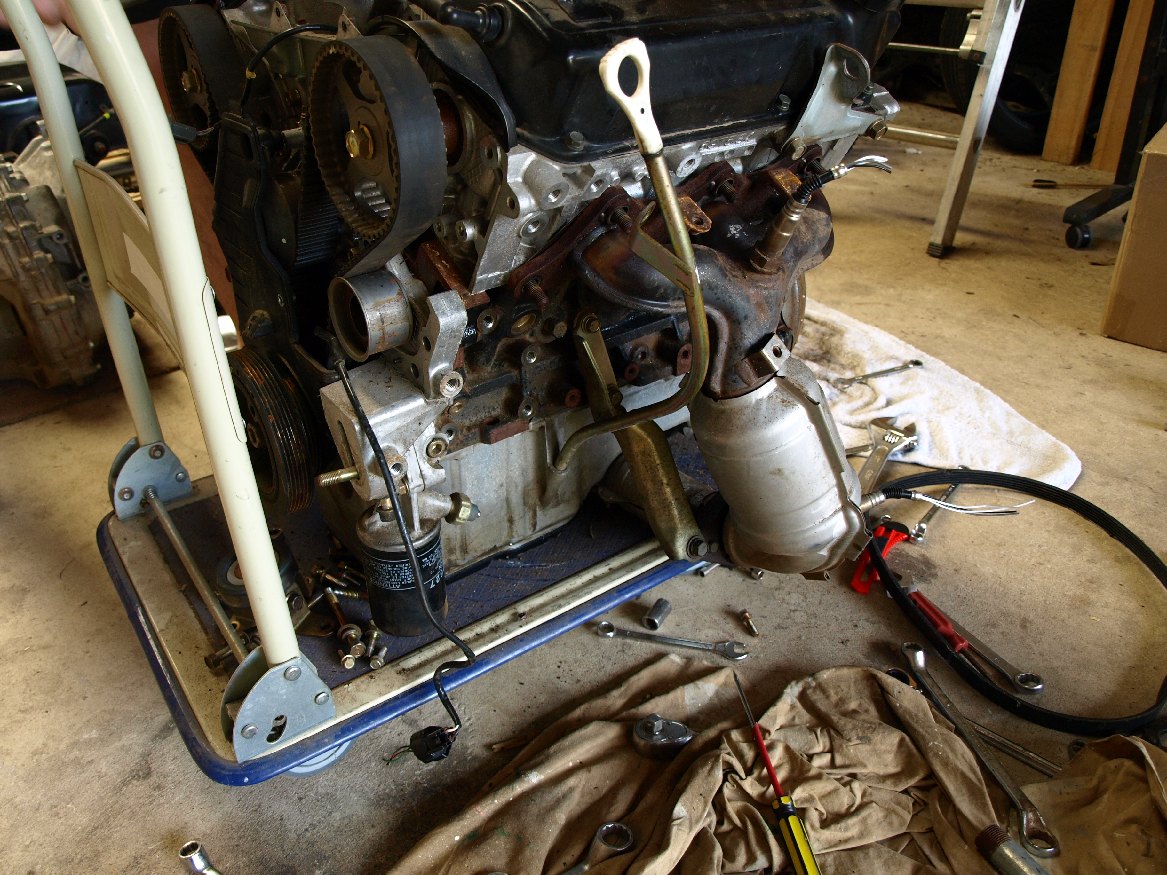

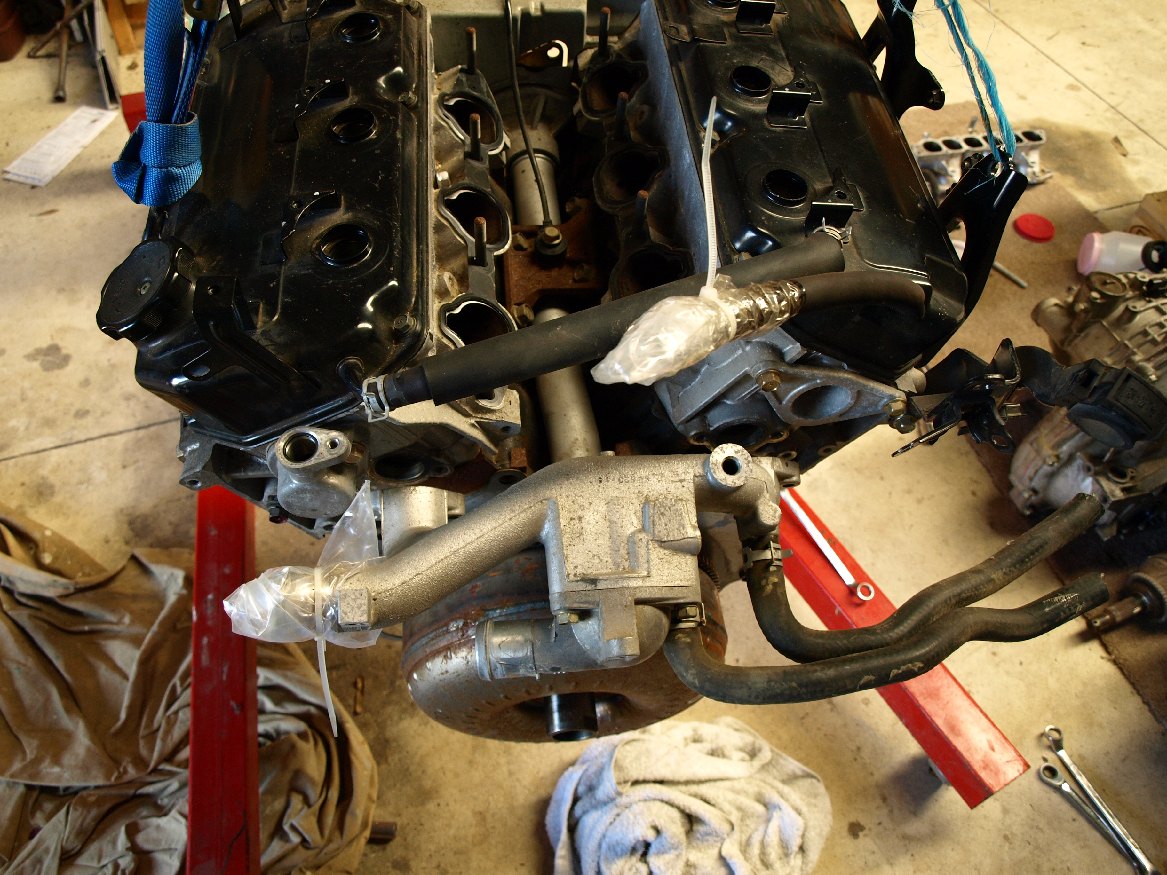

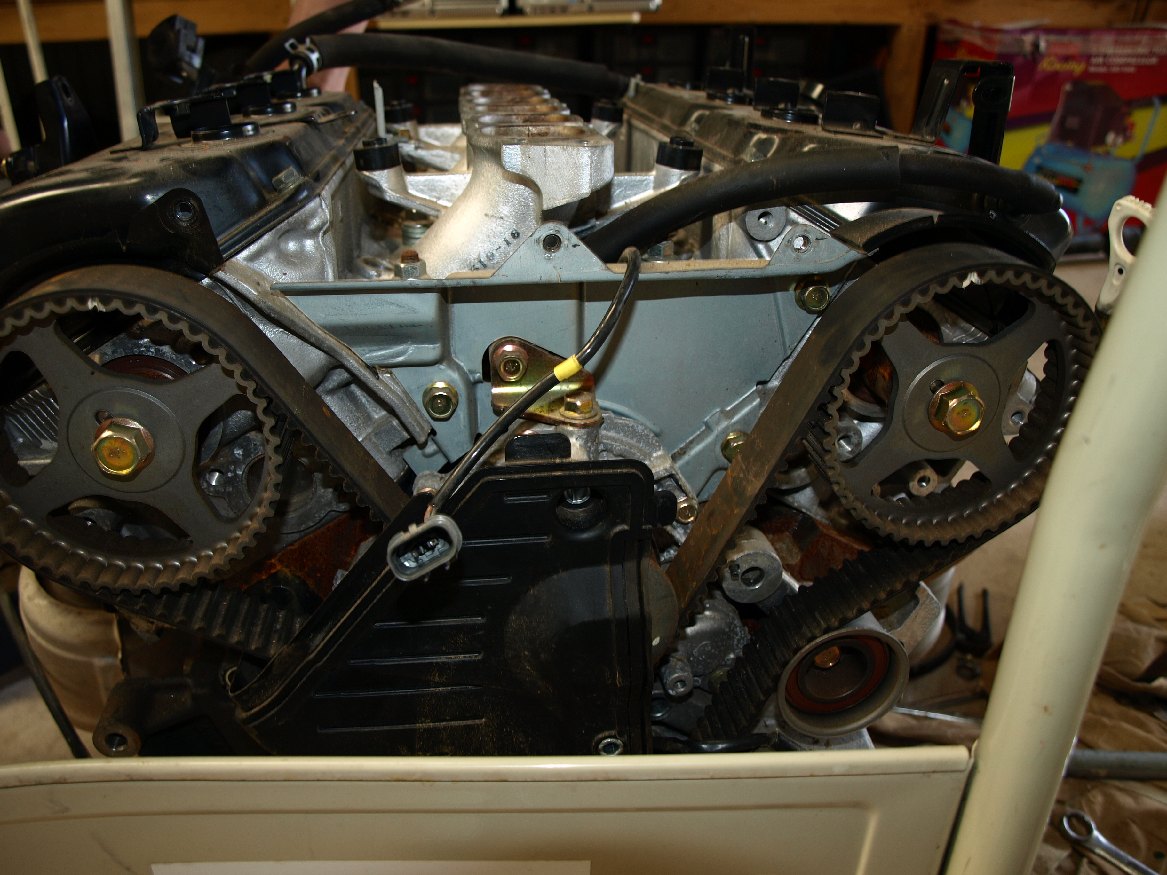

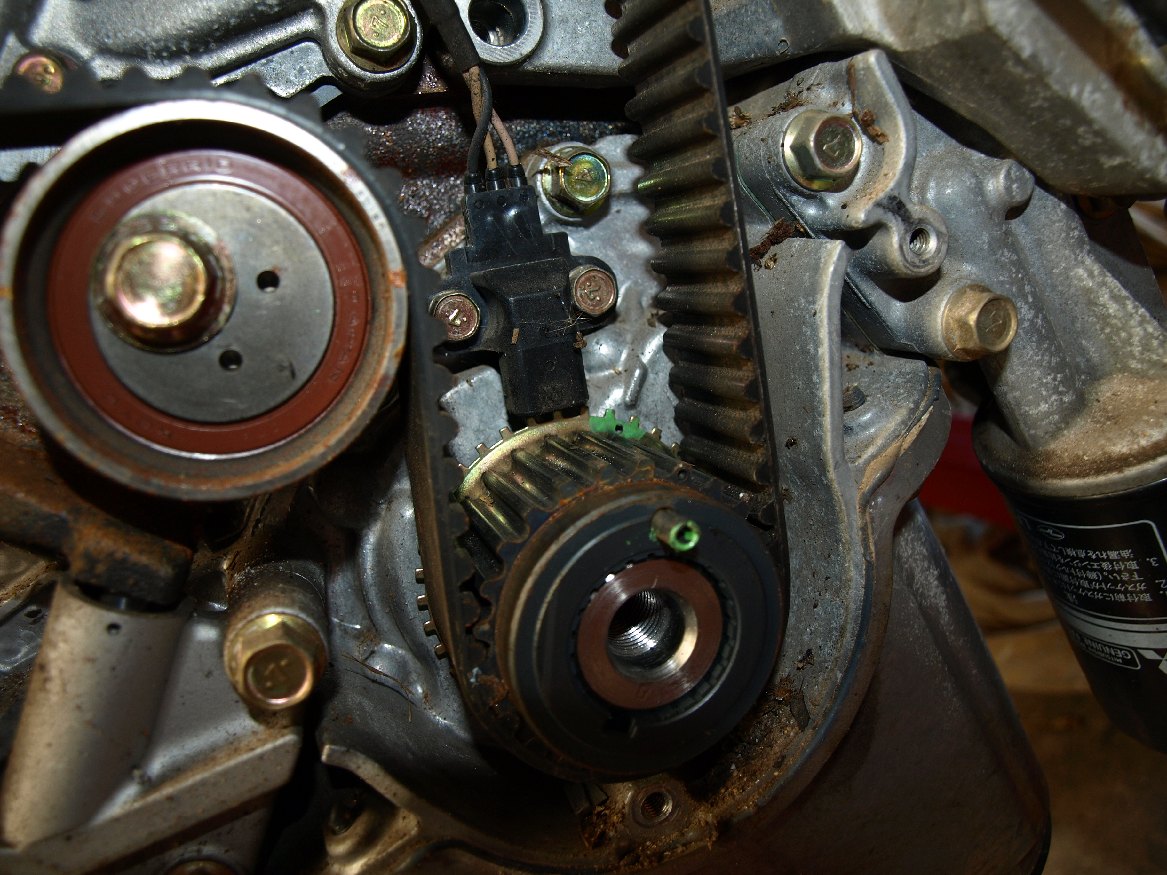

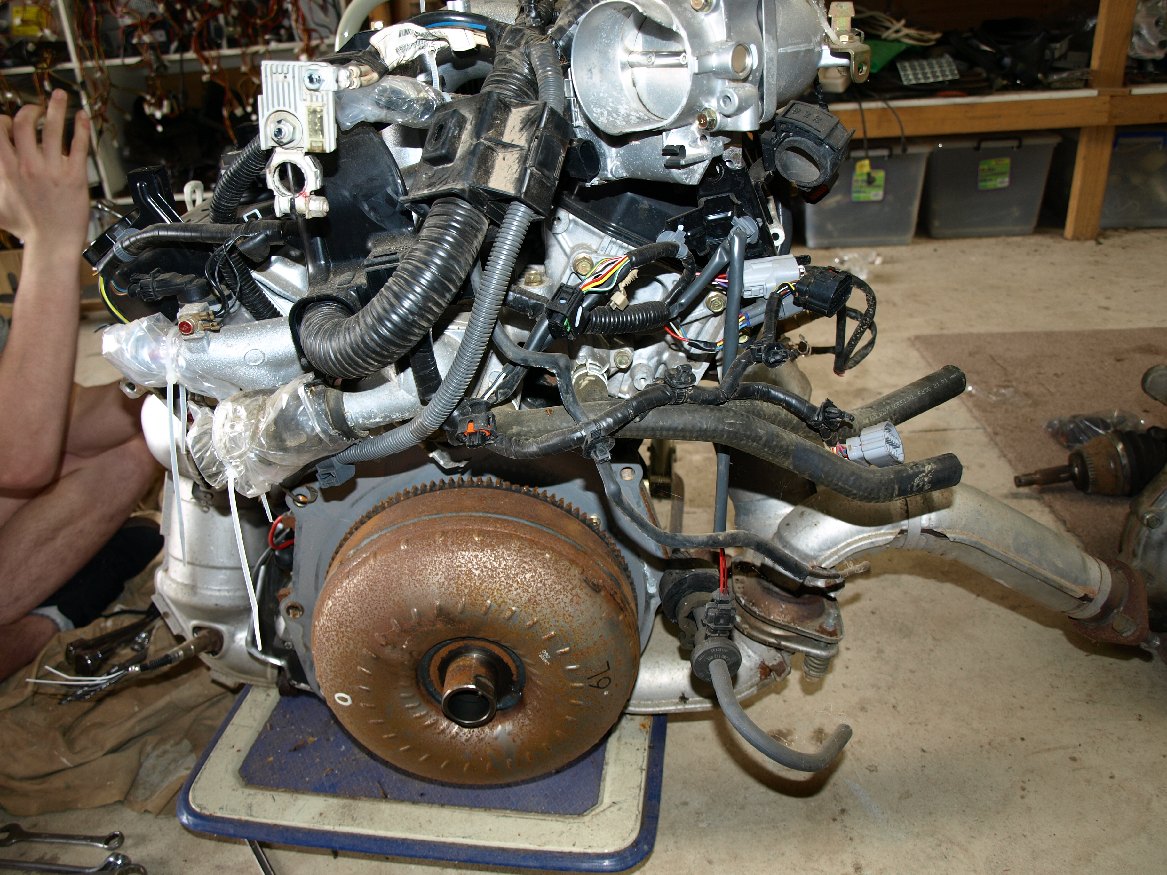

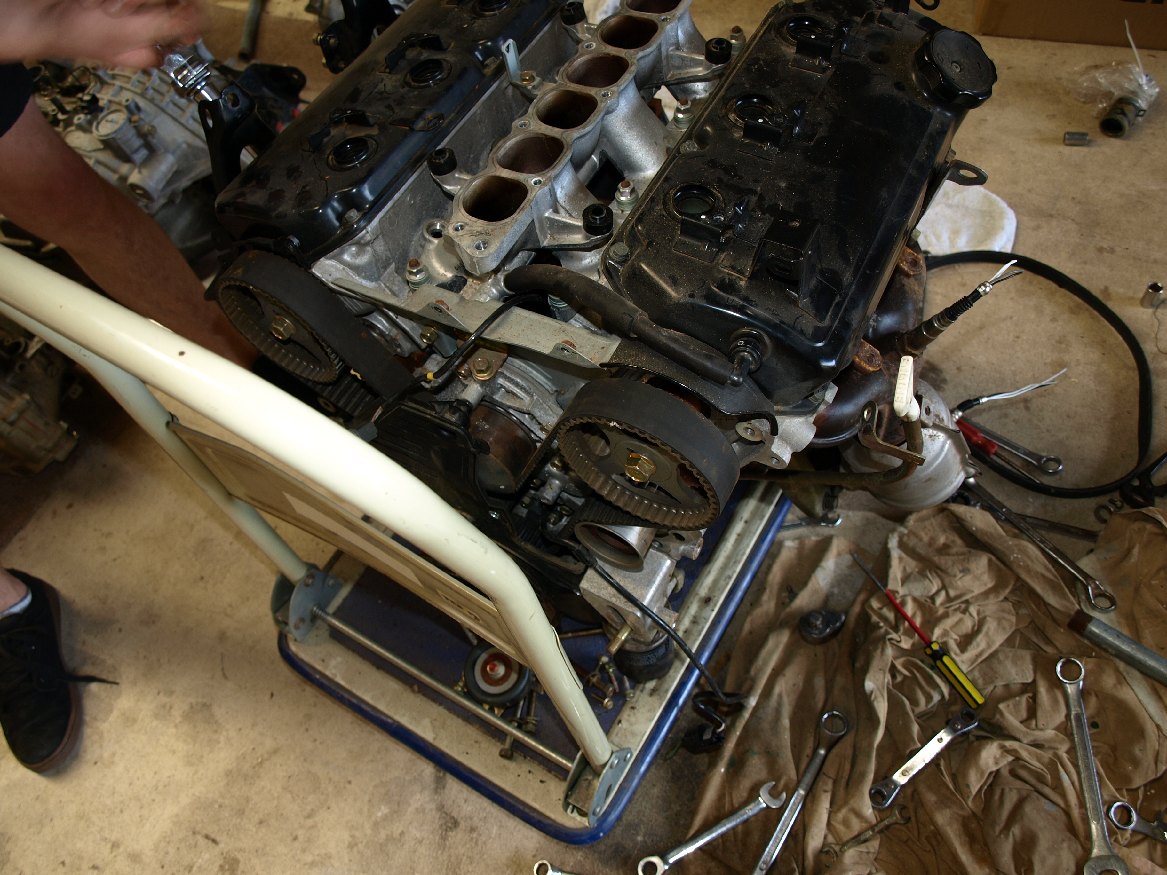

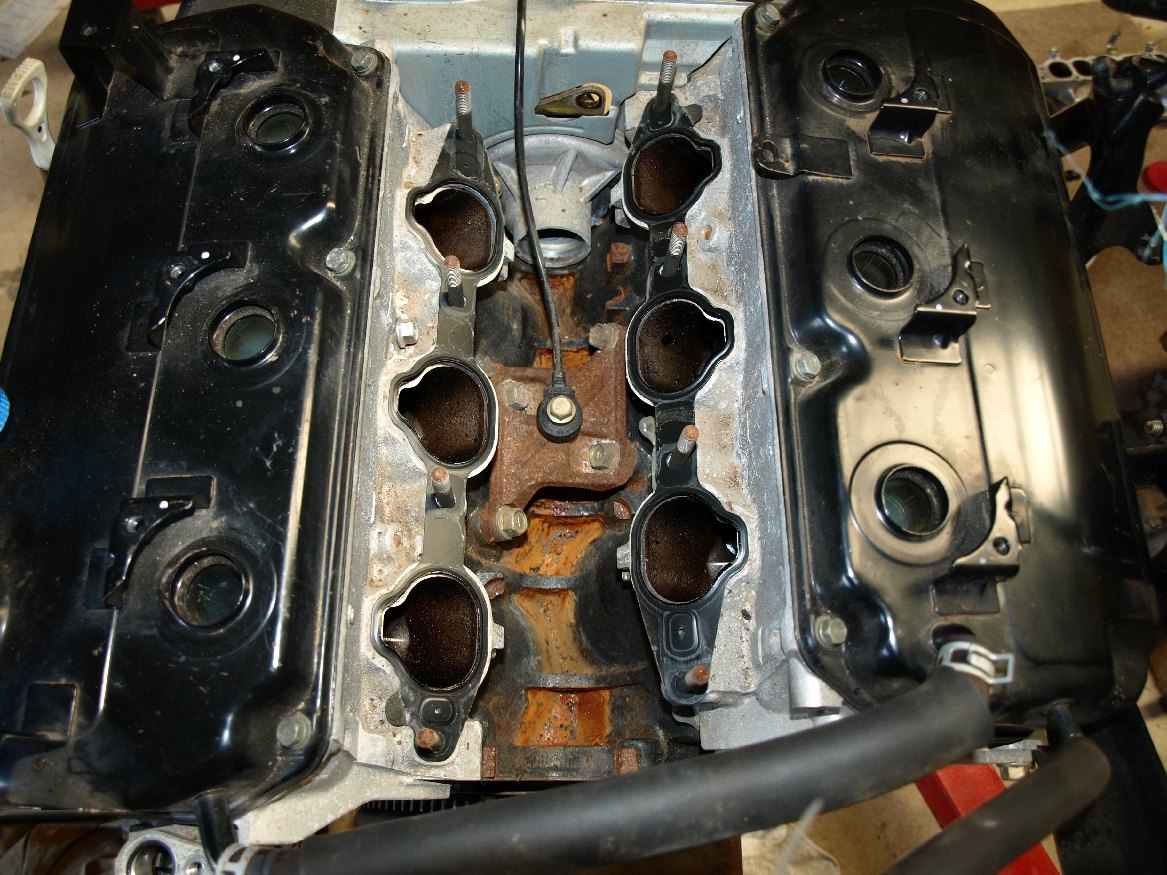

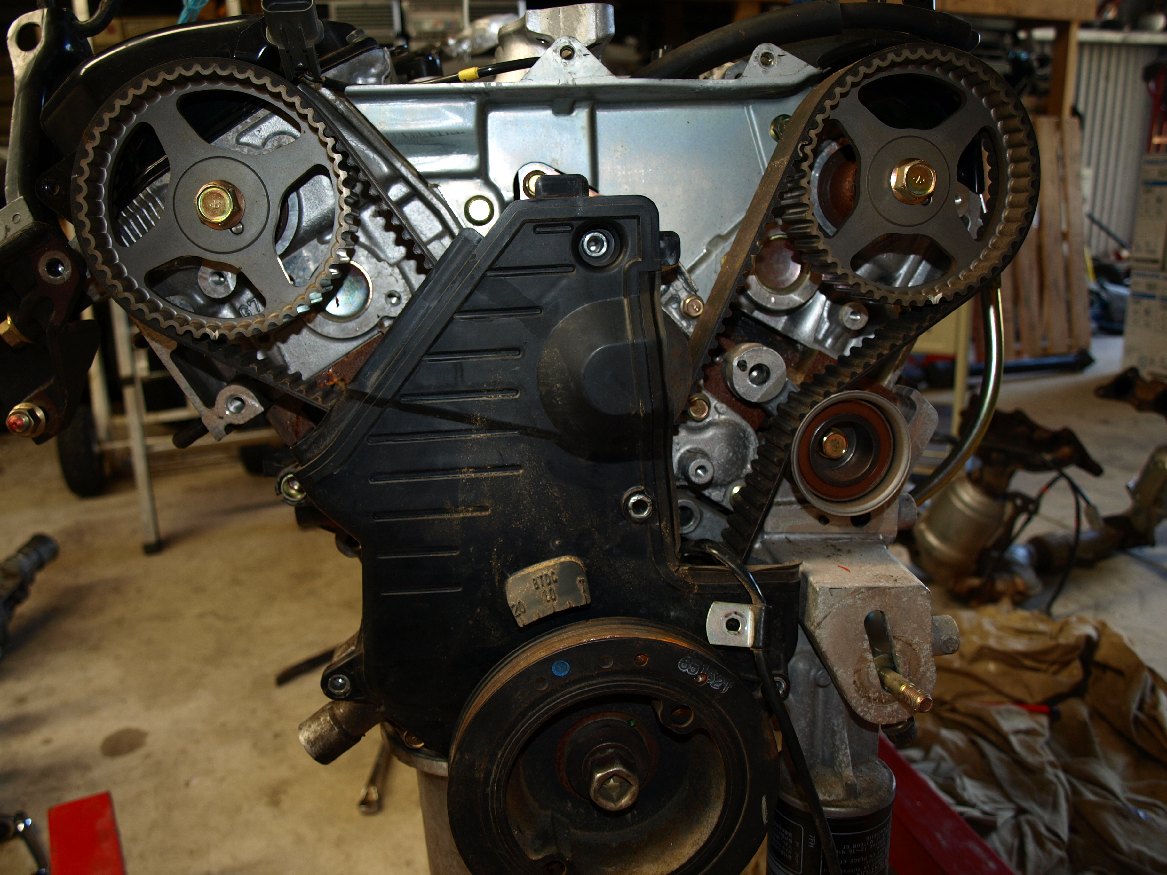

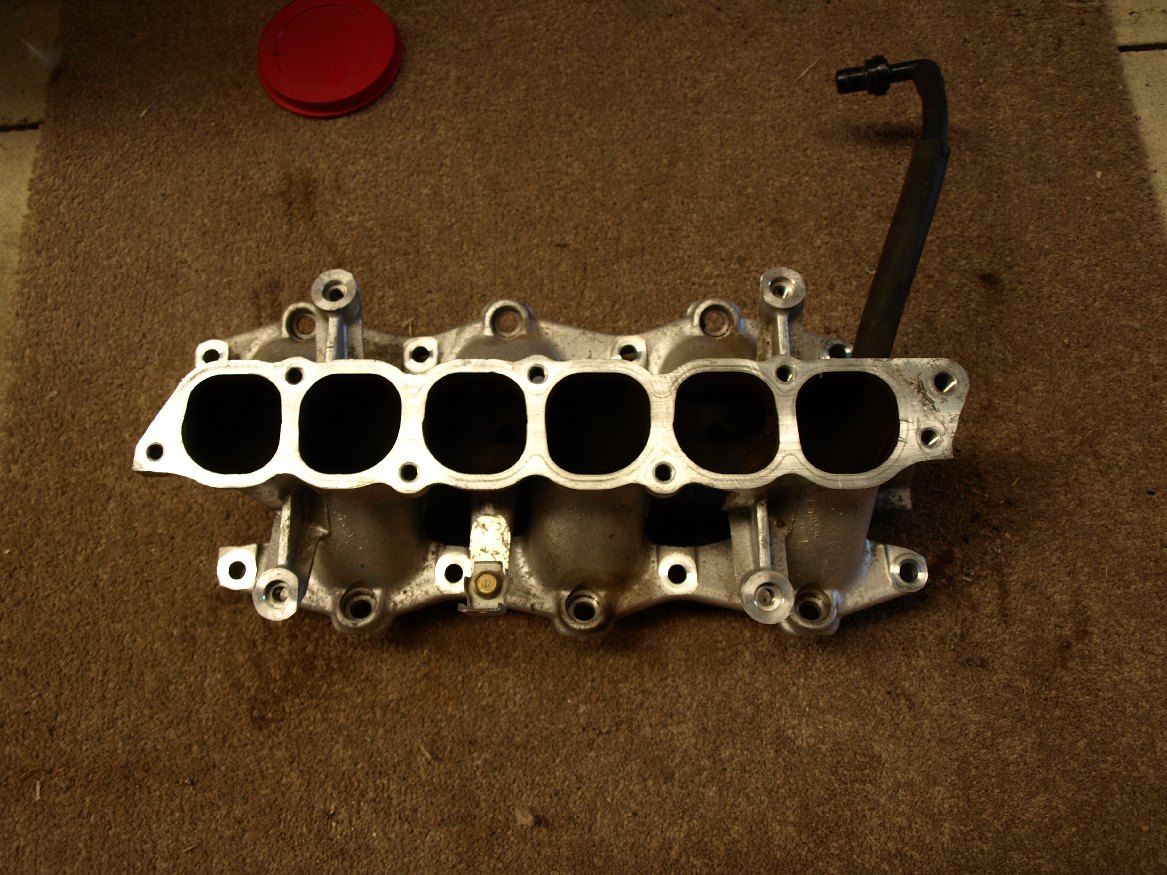

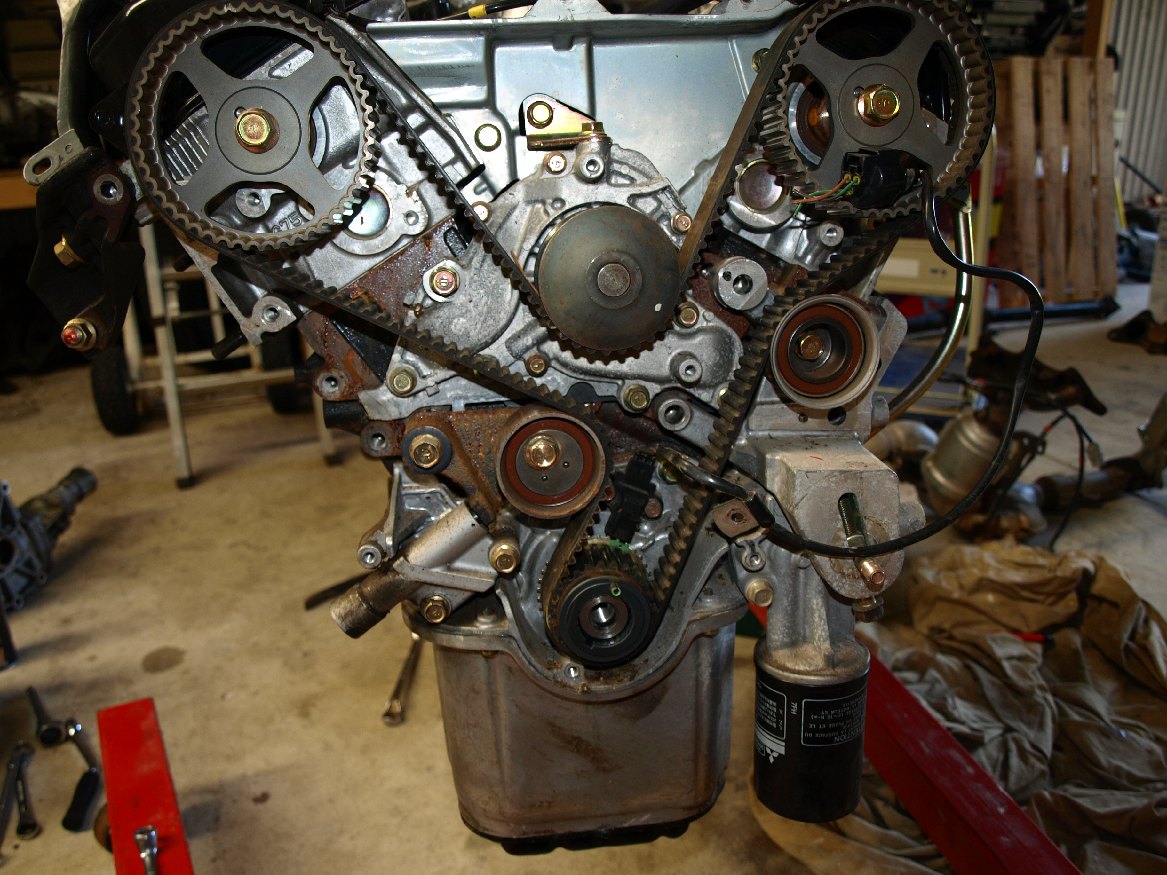

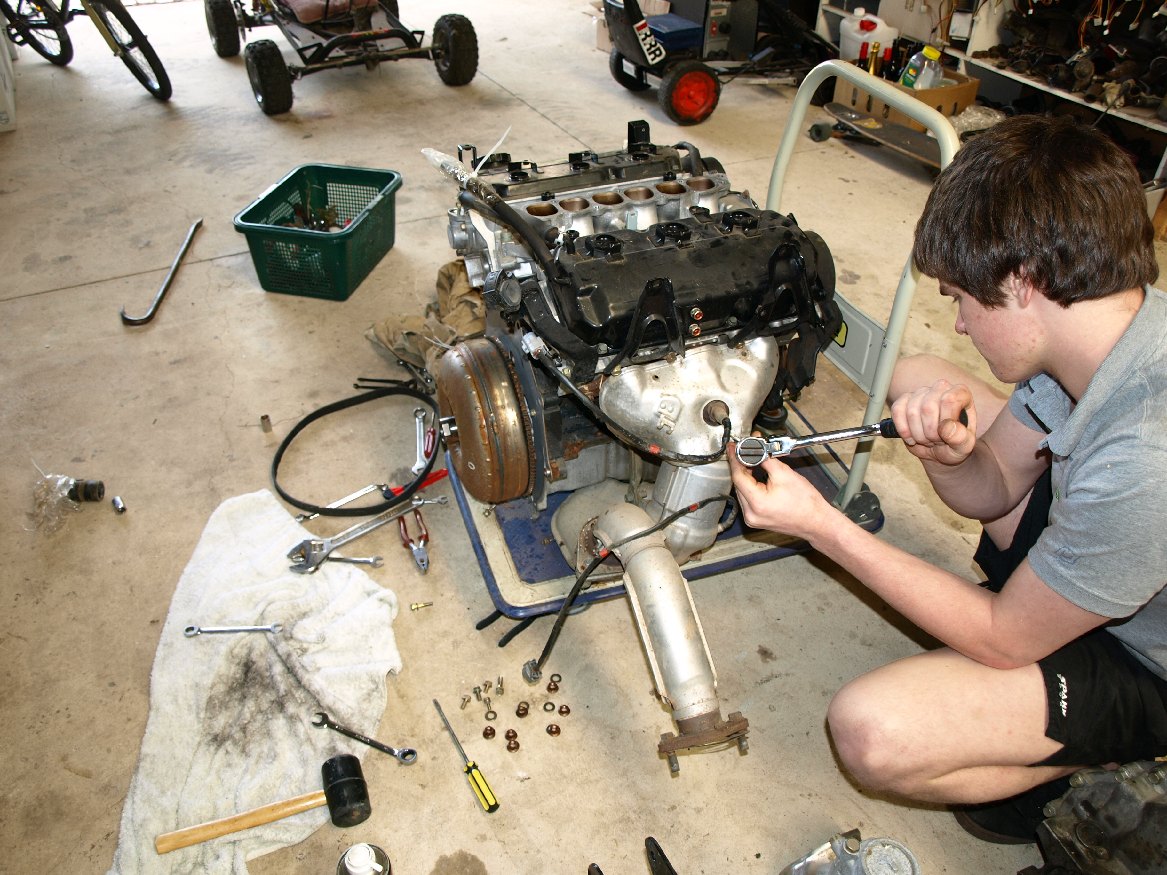

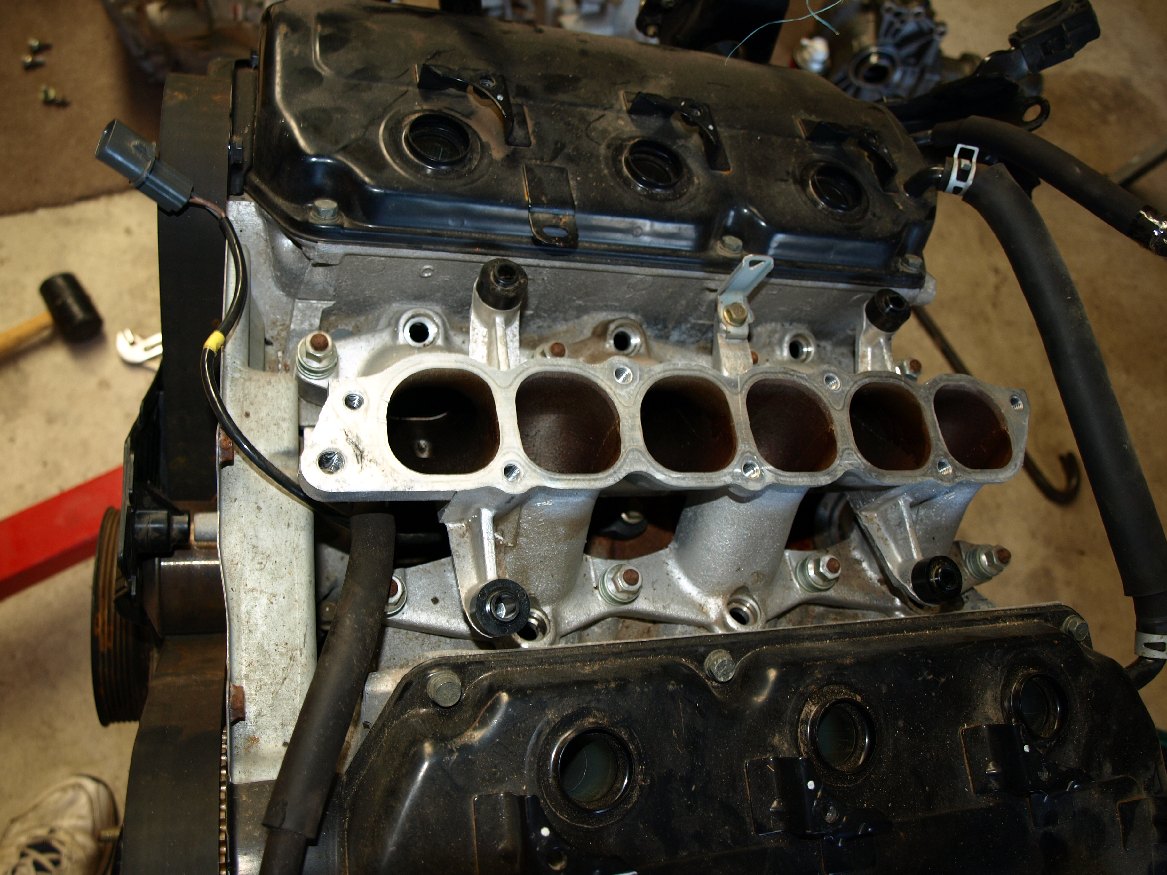

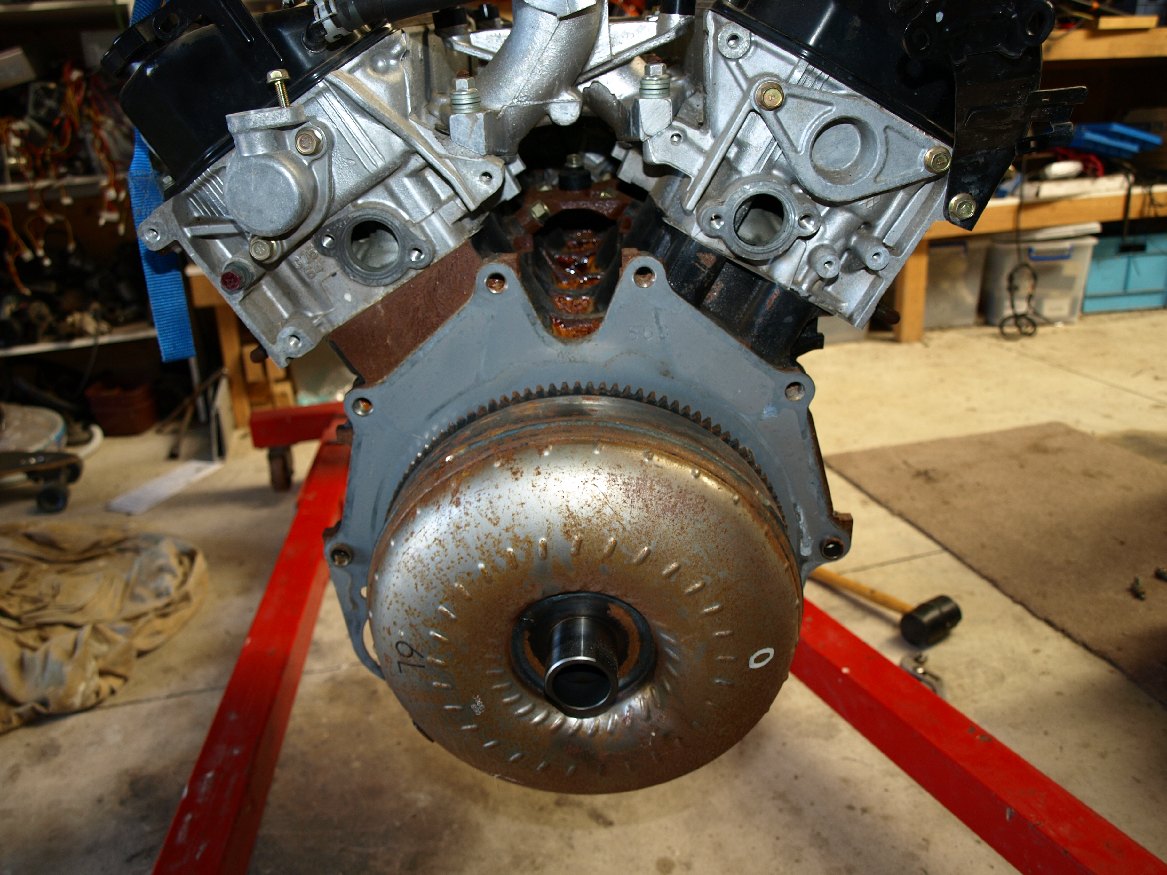

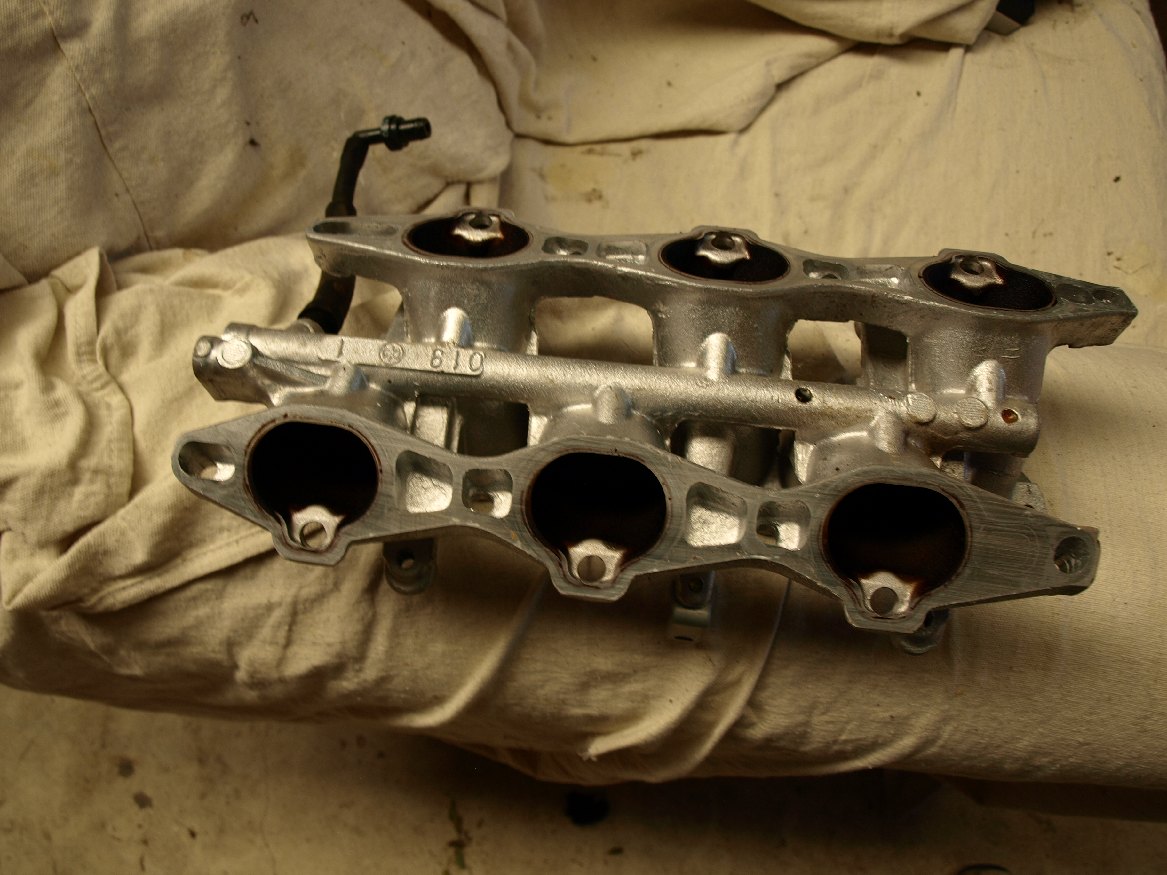

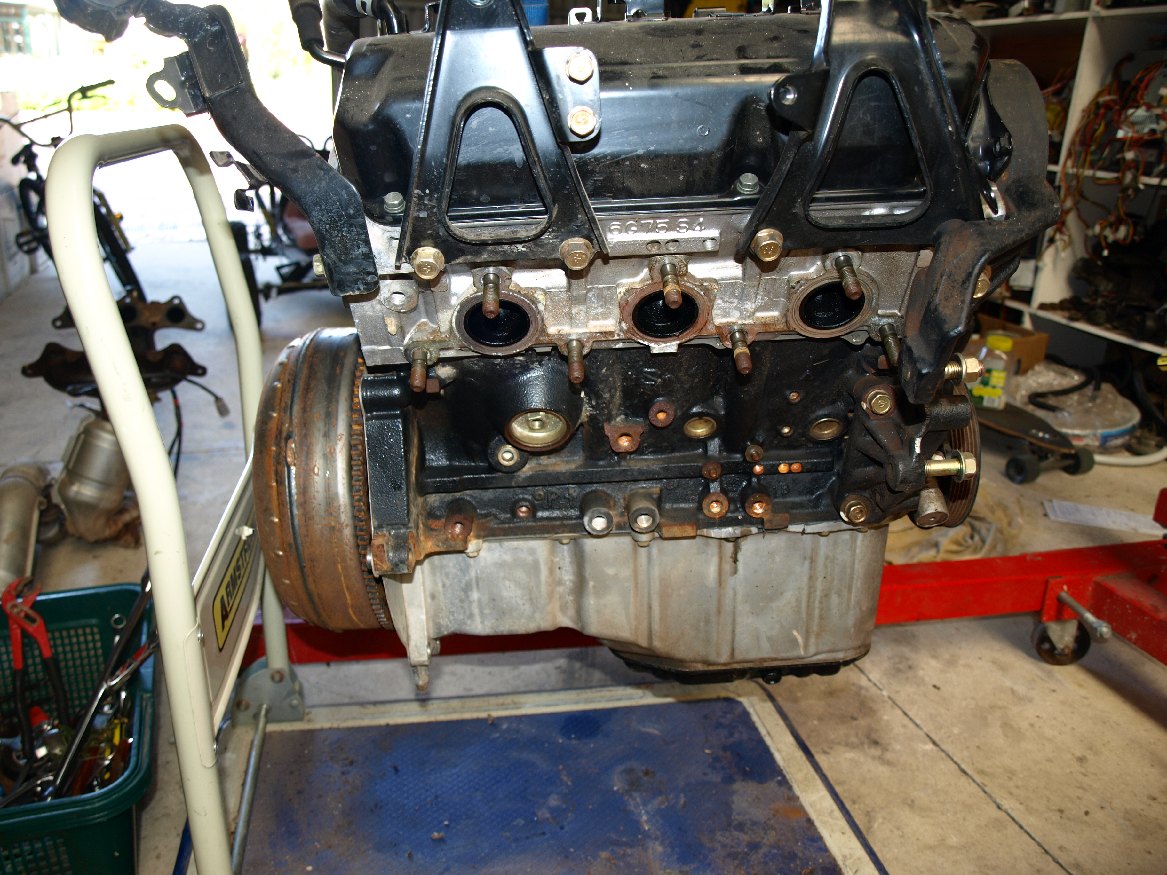

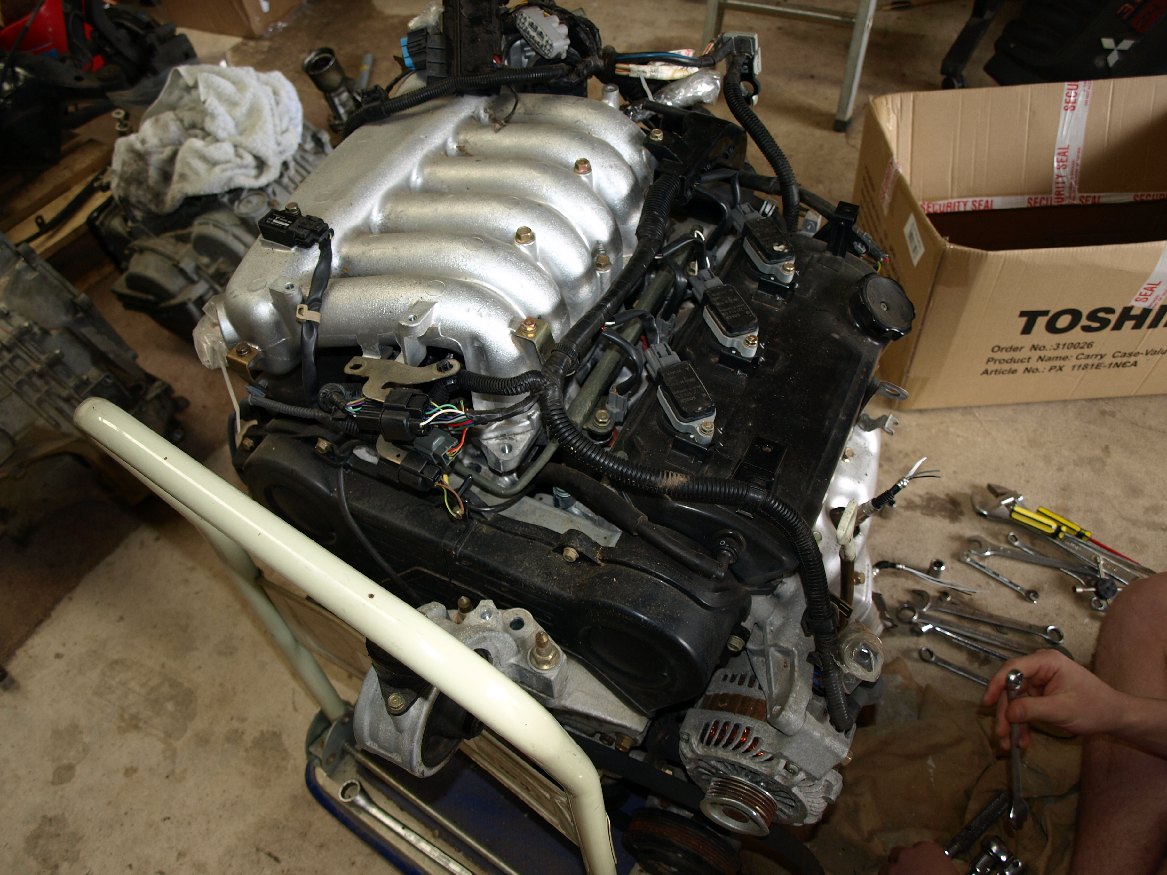

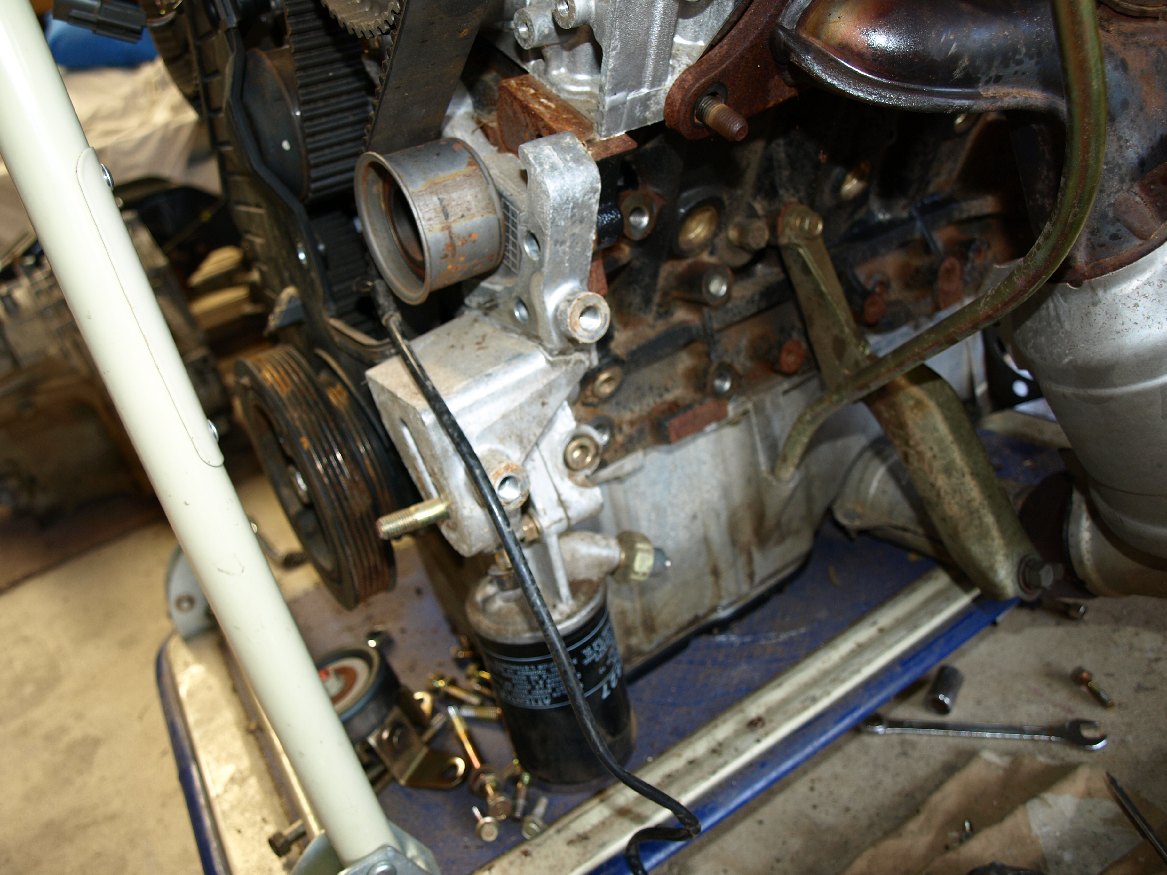

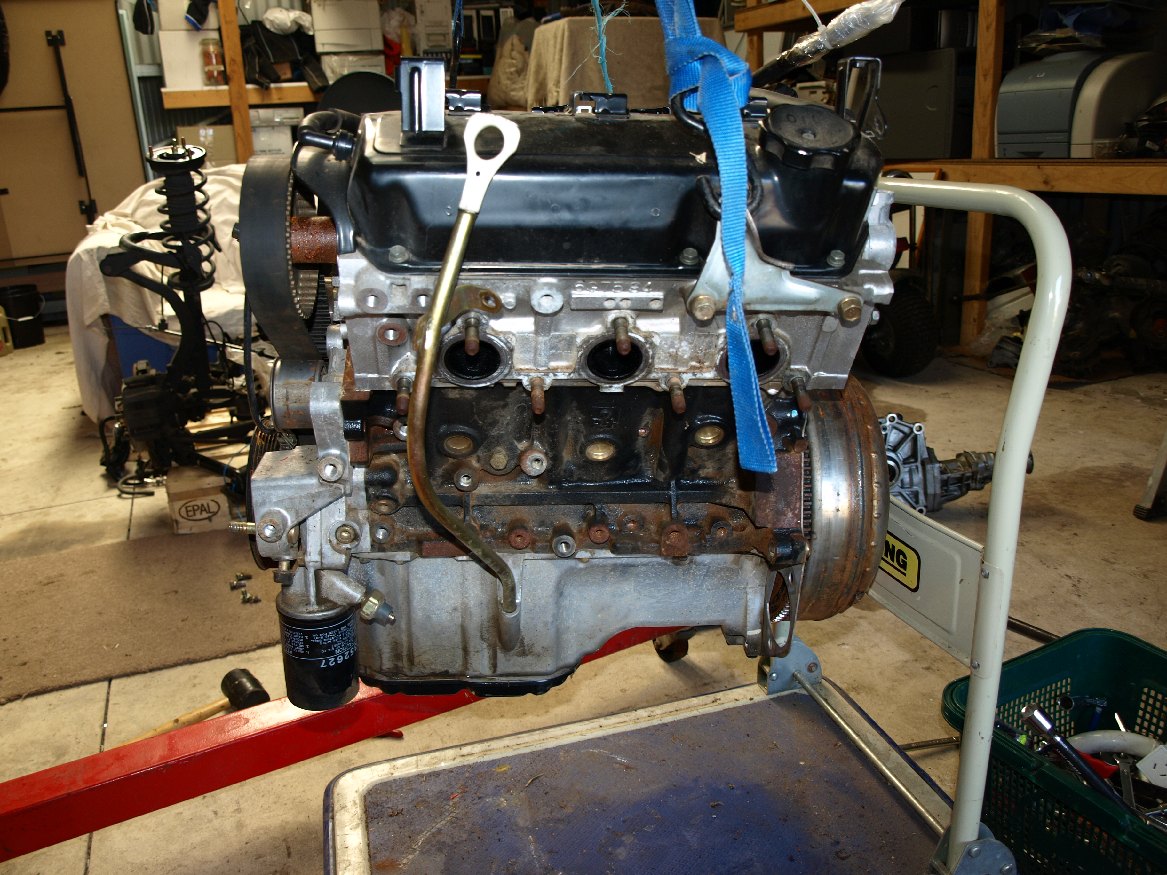

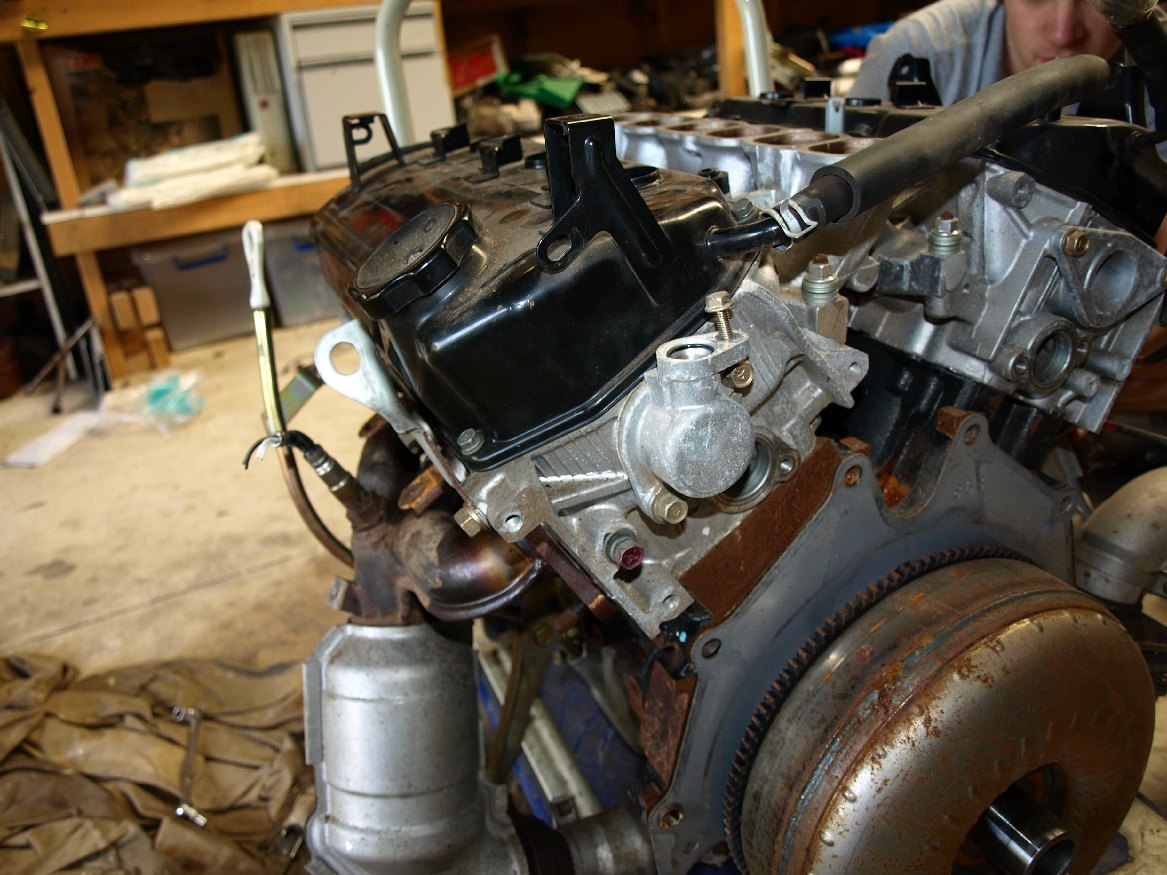

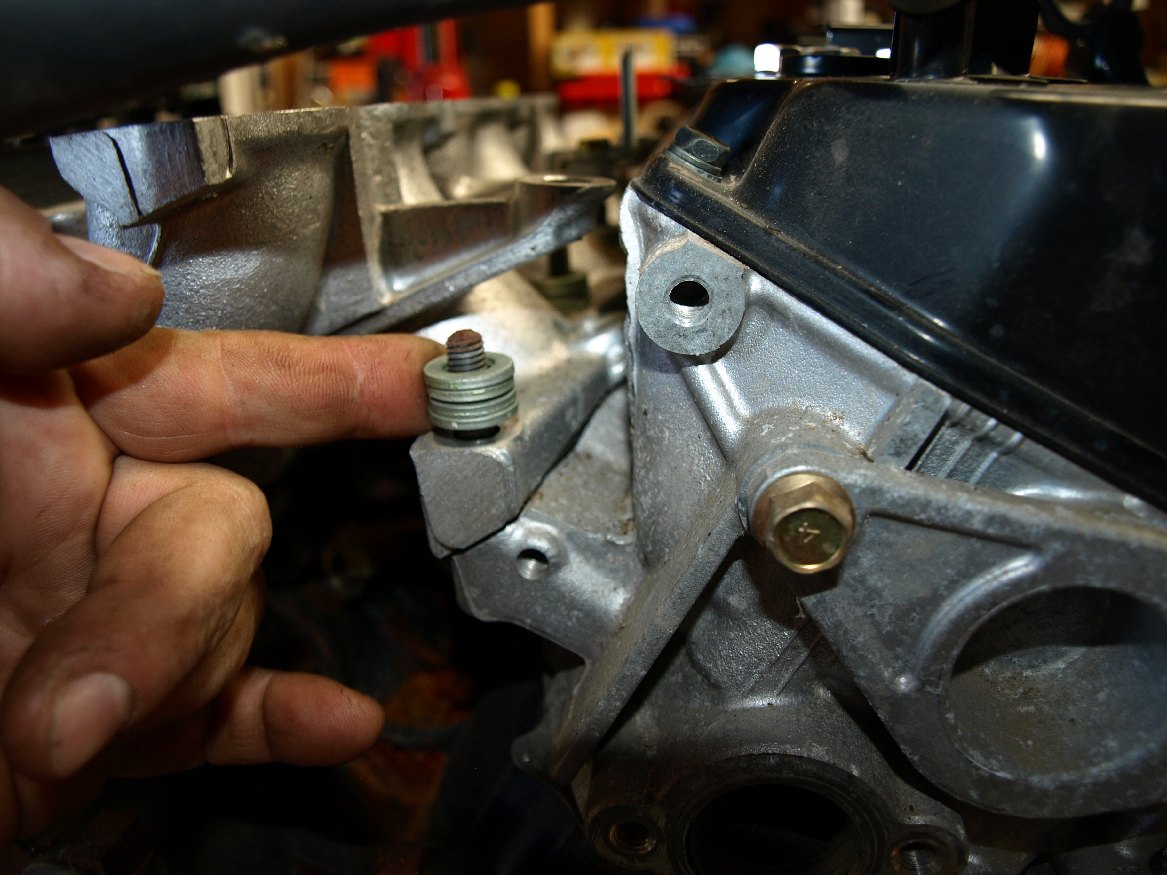

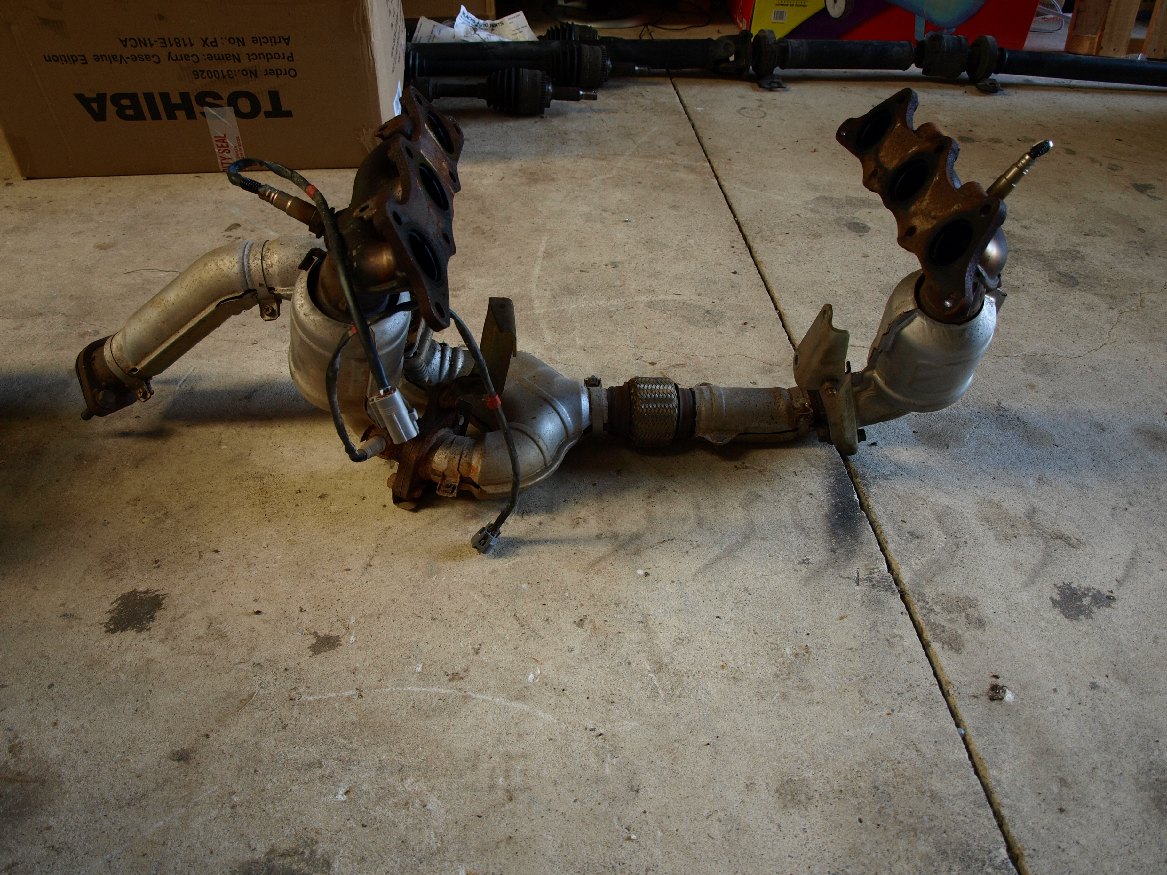

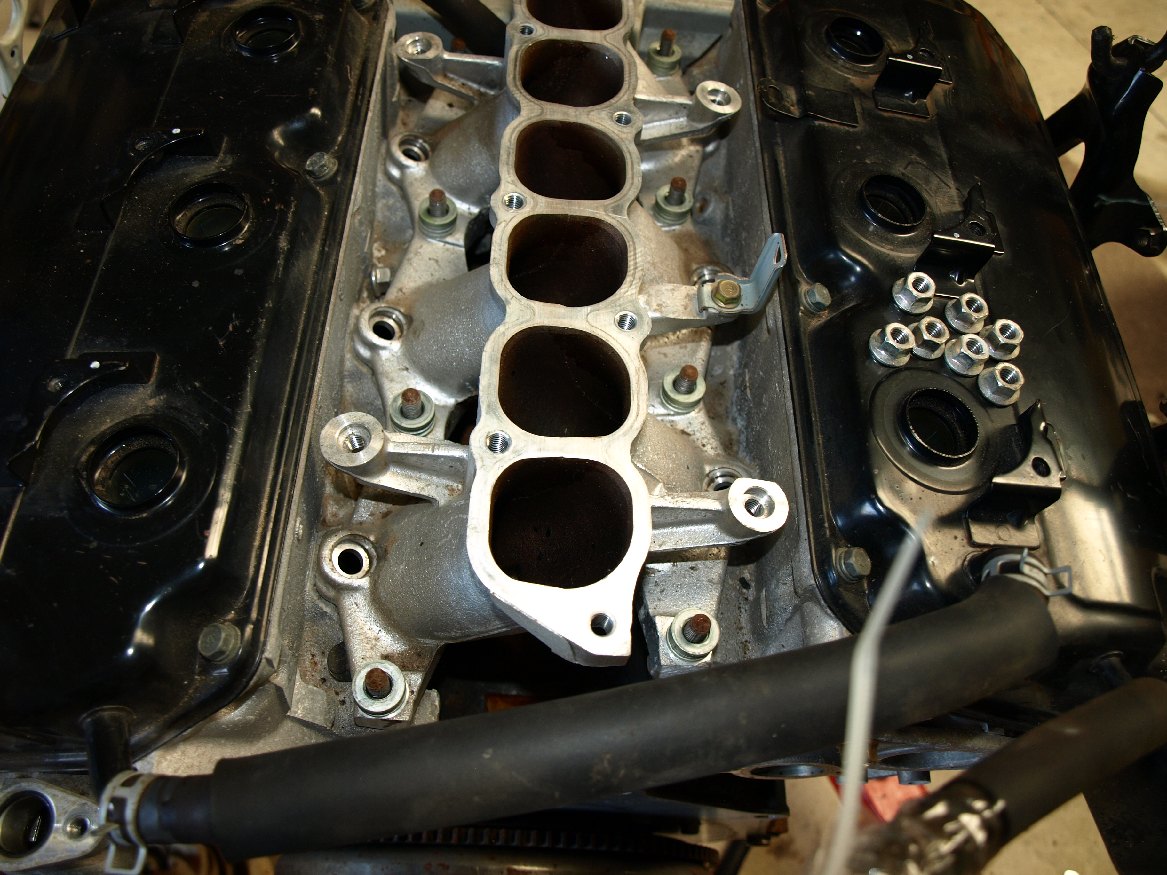

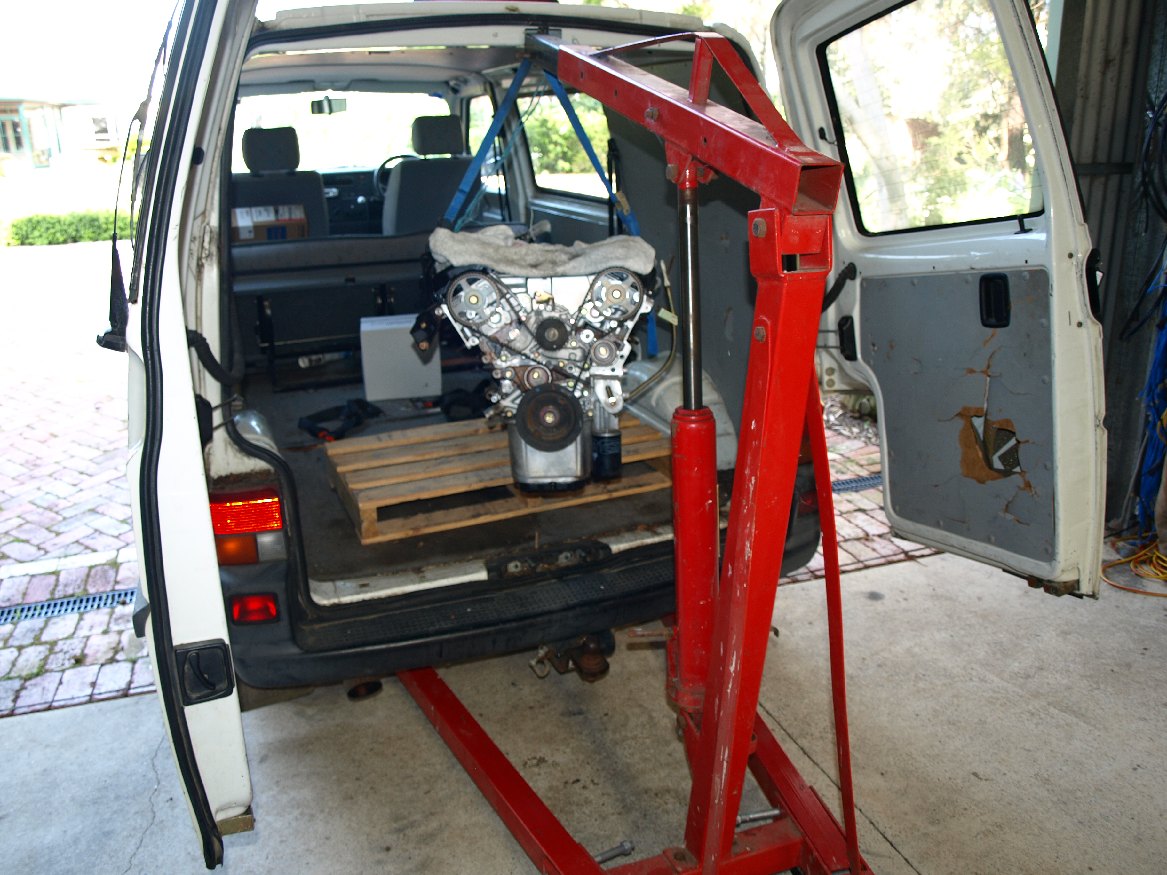

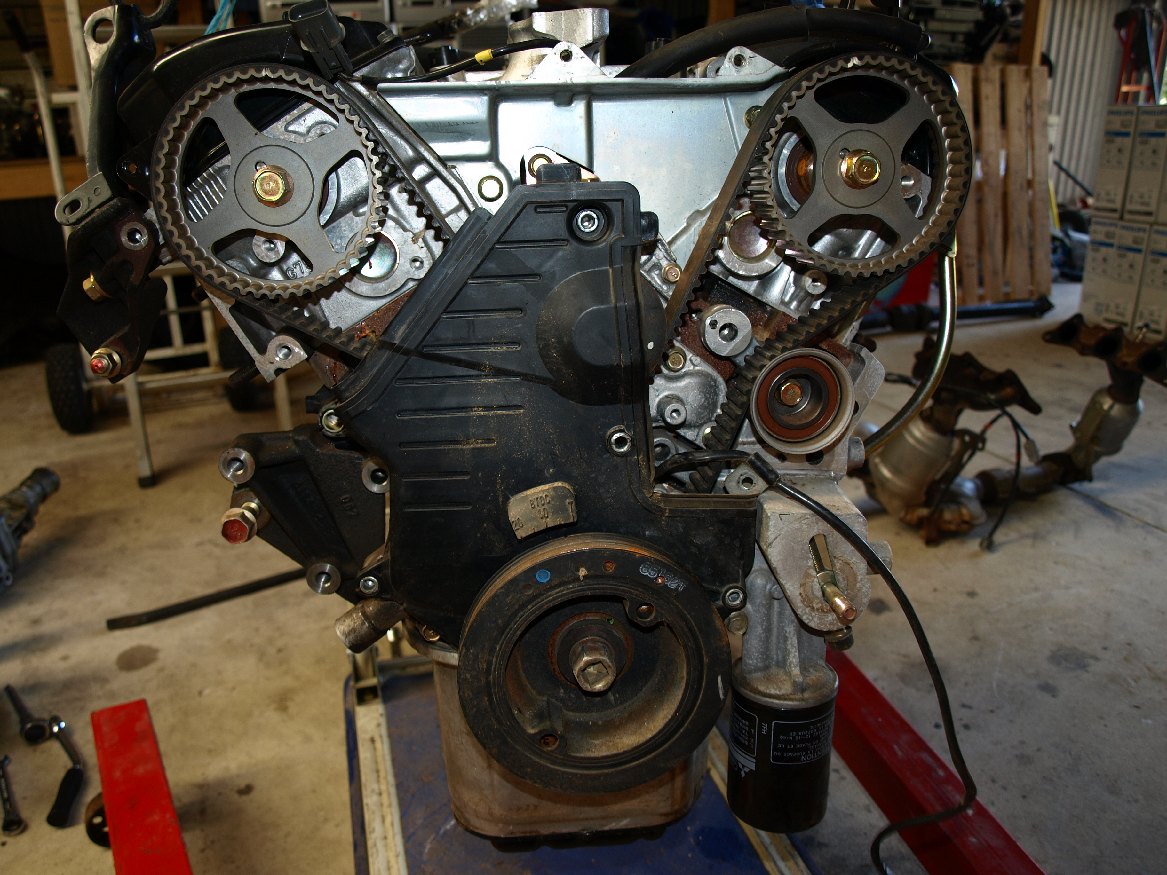

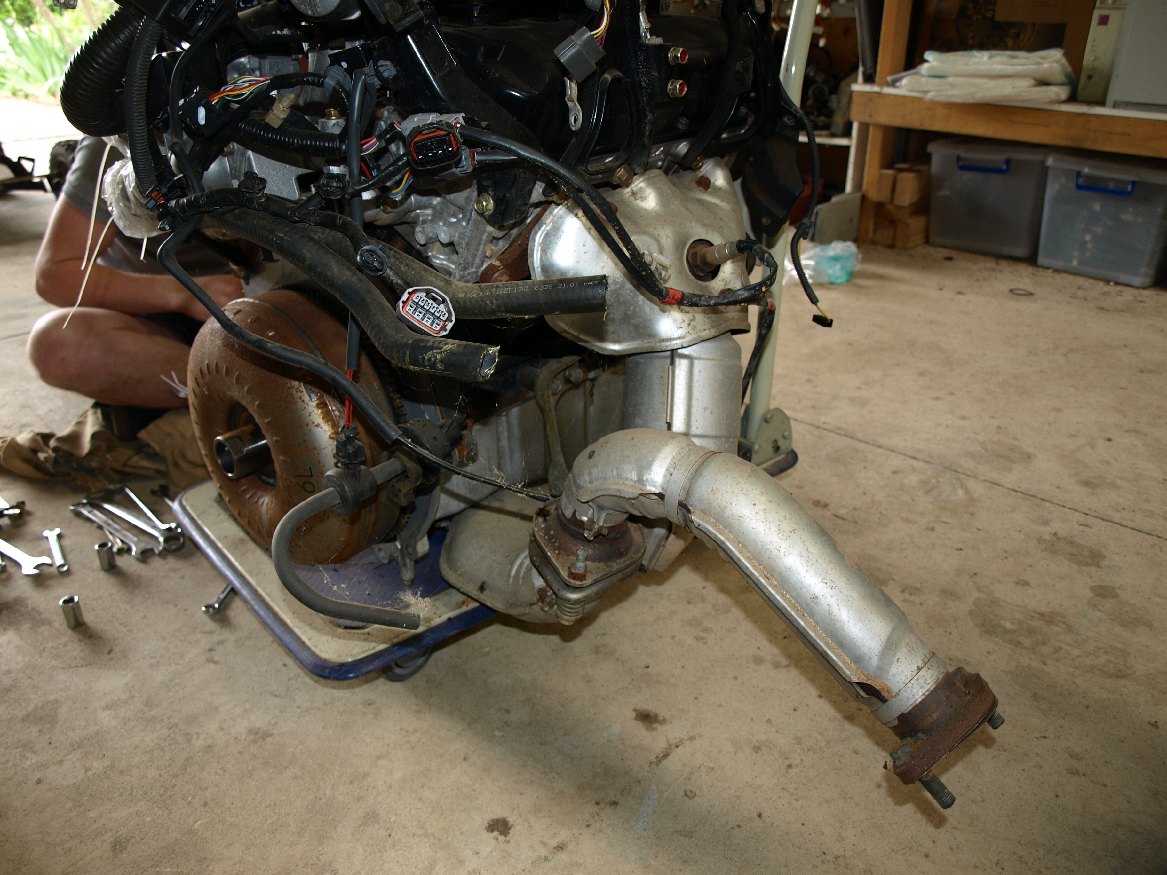

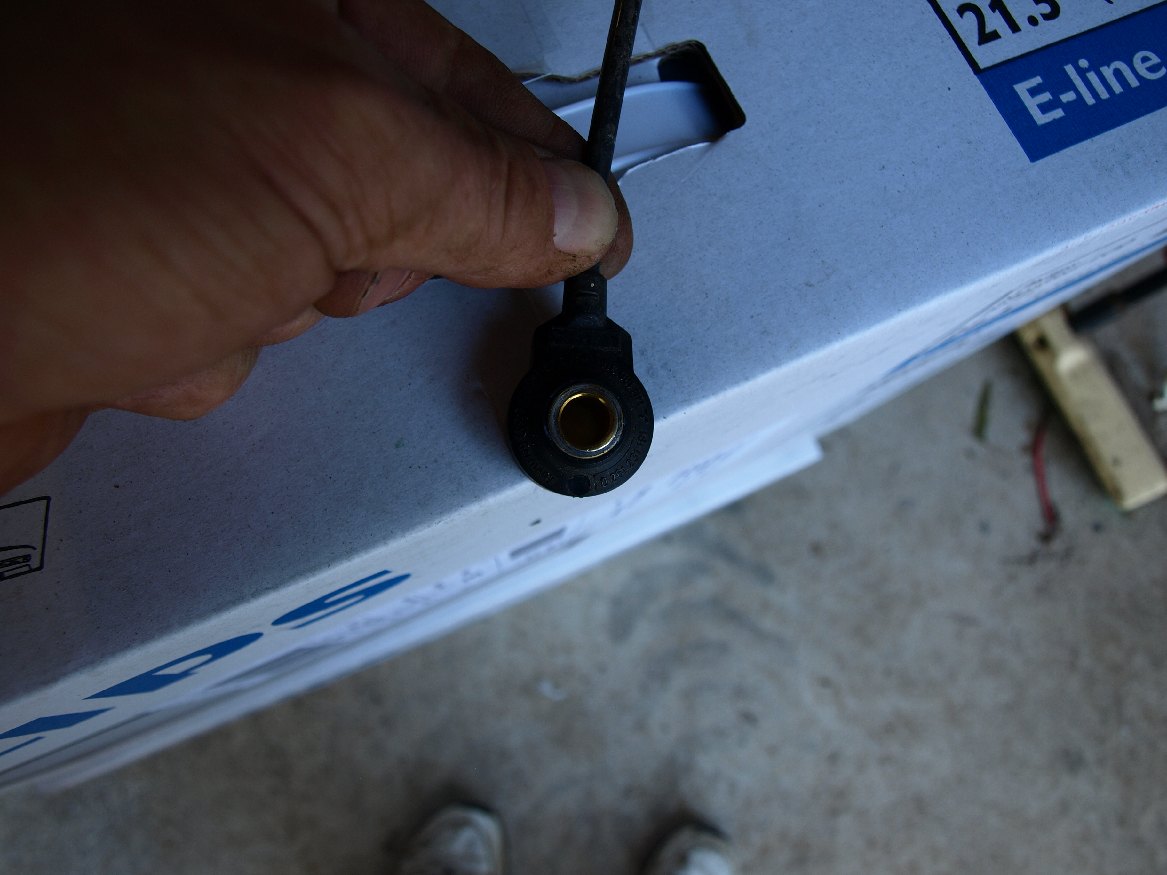

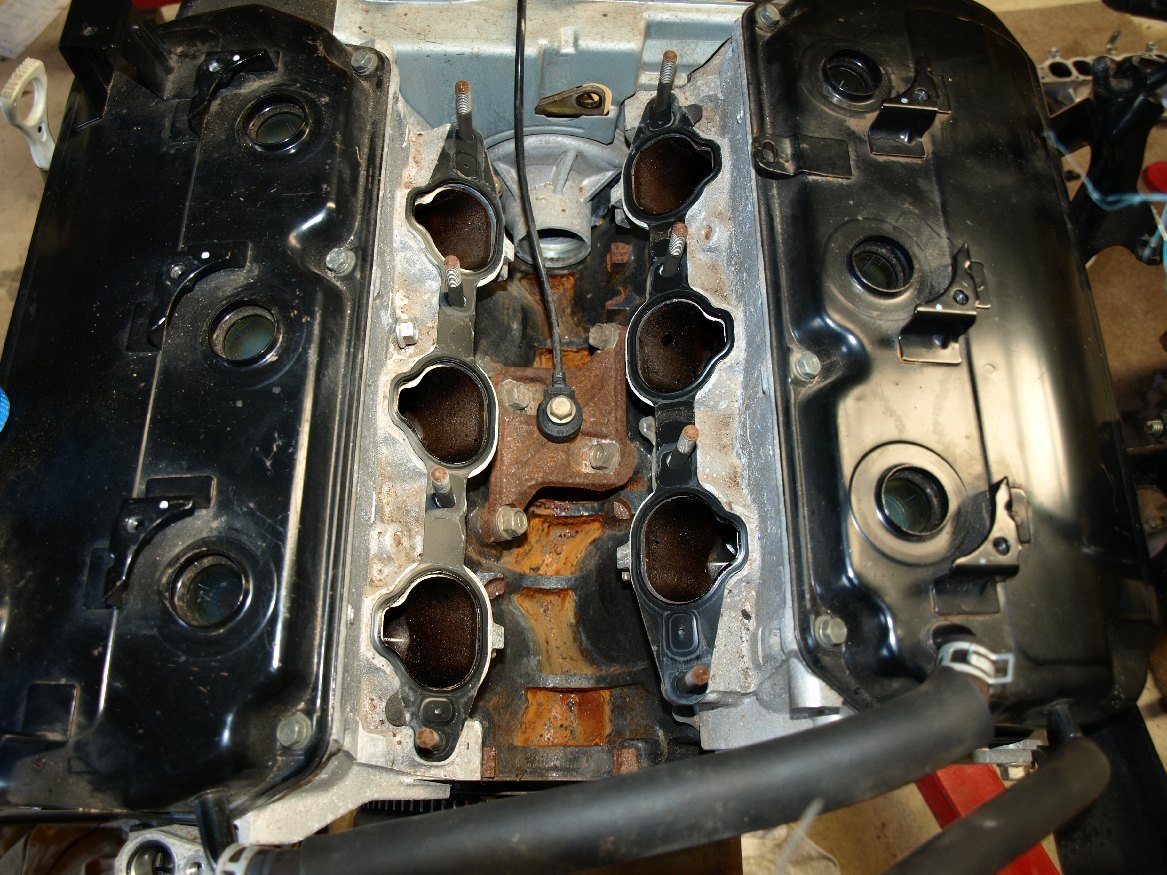

Frequent flyer Gold Posts: 1095 Location: An island off southern Tasmania.	Here are pics of my donor engine to the forged project. (cooling system under inlet manifold-push fir with o ring.JPG) (cracked oil filter mount.JPG) (crank angle sensor.JPG) (crank pulley and bolt-normal thread.JPG) (crank pulley off.JPG) (engine on trolley before pull down.JPG) (exhaust intact 2.JPG) (exhaust intact.JPG) (firewall side before pull down.JPG) (gotta pull the crank pulley off to get to last bolt holding cover on.JPG) (hidden timing belt cover screw behind crank pulley.JPG) (inlet manifold nut spacers.JPG) (knock sensor removed.JPG) (knock sensor under inlet manifold.JPG) (PA090232.JPG) (PA090233.JPG) (PA090234.JPG) (PA090235.JPG) (PA090236.JPG) (PA090237.JPG) (PA090238.JPG) (PA090240.JPG) (PA090241.JPG) (PA090243.JPG) (PA090244.JPG) (PA100247.JPG) (PA100251.JPG) (PA100253.JPG) (PA100254.JPG) (PA100259.JPG) (PA100260.JPG) (PA100268.JPG) (PA100269.JPG) (PA100270.JPG) (PA100272.JPG) (PA100276.JPG) (PA100278.JPG) (PA100279.JPG) (ready to go.JPG) (sending to engineworx.JPG) (TDC 1.JPG) (TDC 2.JPG) (TDC 3.JPG) (TDC 4.JPG) (three holes in head AND block.JPG) (timing belt layout.JPG) (transmission end view.JPG) (water in the Vee.JPG) (wiring loom.JPG) Attachments ---------------- cooling system under inlet manifold-push fir with o ring.JPG (245KB - 823 downloads) cracked oil filter mount.JPG (159KB - 784 downloads) crank angle sensor.JPG (302KB - 813 downloads) crank pulley and bolt-normal thread.JPG (244KB - 802 downloads) crank pulley off.JPG (190KB - 835 downloads) engine on trolley before pull down.JPG (220KB - 825 downloads) exhaust intact 2.JPG (218KB - 800 downloads) exhaust intact.JPG (270KB - 789 downloads) firewall side before pull down.JPG (220KB - 823 downloads) gotta pull the crank pulley off to get to last bolt holding cover on.JPG (223KB - 978 downloads) hidden timing belt cover screw behind crank pulley.JPG (146KB - 797 downloads) inlet manifold nut spacers.JPG (164KB - 769 downloads) knock sensor removed.JPG (99KB - 766 downloads) knock sensor under inlet manifold.JPG (247KB - 940 downloads) PA090232.JPG (185KB - 853 downloads) PA090233.JPG (209KB - 781 downloads) PA090234.JPG (271KB - 730 downloads) PA090235.JPG (209KB - 762 downloads) PA090236.JPG (250KB - 804 downloads) PA090237.JPG (268KB - 823 downloads) PA090238.JPG (224KB - 790 downloads) PA090240.JPG (221KB - 800 downloads) PA090241.JPG (249KB - 803 downloads) PA090243.JPG (187KB - 866 downloads) PA090244.JPG (182KB - 804 downloads) PA100247.JPG (248KB - 764 downloads) PA100251.JPG (203KB - 828 downloads) PA100253.JPG (236KB - 758 downloads) PA100254.JPG (204KB - 792 downloads) PA100259.JPG (225KB - 781 downloads) PA100260.JPG (203KB - 772 downloads) PA100268.JPG (209KB - 802 downloads) PA100269.JPG (193KB - 815 downloads) PA100270.JPG (167KB - 740 downloads) PA100272.JPG (224KB - 754 downloads) PA100276.JPG (198KB - 828 downloads) PA100278.JPG (140KB - 779 downloads) PA100279.JPG (119KB - 778 downloads) ready to go.JPG (240KB - 825 downloads) sending to engineworx.JPG (205KB - 701 downloads) TDC 1.JPG (159KB - 715 downloads) TDC 2.JPG (196KB - 739 downloads) TDC 3.JPG (205KB - 766 downloads) TDC 4.JPG (220KB - 948 downloads) three holes in head AND block.JPG (207KB - 749 downloads) timing belt layout.JPG (224KB - 1532 downloads) transmission end view.JPG (196KB - 742 downloads) water in the Vee.JPG (255KB - 759 downloads) wiring loom.JPG (260KB - 646 downloads)
wsbtt	Posted 6/2/2013 00:33 (#14842 - in reply to #13354) Subject: Re: 6G75 strip down
Frequent flyer Gold Posts: 421 Location: Brisbane,qld	Is it safe to remove the heads on my 75 clean her up and refit???, theres no trick to it
Administrator	Posted 6/2/2013 08:34 (#14843 - in reply to #13354) Subject: Re: 6G75 strip down
Frequent flyer Gold Posts: 1095 Location: An island off southern Tasmania.	you need a torque wrench. Loosen the middle bolt, then go clockwise in ever increasing radius till all undone. Then check stainless steel head gasket edges, they have a rubber type edge, if that's still okay I reuse it. Torque to 110nm starting at a middle bolt and in an increasing circle torque to 110, back to zero, then back to 110. Well thats what the book says to do and it worked for me on three engines so far...boosted as well. Of course before you do all that you need to set up timing belt and align both cams to the notch on the sump and the crank on TDC. The belt tensioner has a technique as well...you'll need apaper clip and a vice slowly compressing it till the pin hole lines up etc. Big job mate...probably will not gain you anything me thinks.
wsbtt	Posted 6/2/2013 13:47 (#14844 - in reply to #14843) Subject: Re: 6G75 strip down
Frequent flyer Gold Posts: 421 Location: Brisbane,qld	This is the motor, timing is all good, yeah didnt think i would gain anything other than saying i had done it..lol, i like to pull things apart as long as i can put it back the way it was, only way to learn hey, Advice much appreciated (2013-02-06 13.10.11.png) Attachments ---------------- 2013-02-06 13.10.11.png (61KB - 659 downloads)
Administrator	Posted 6/2/2013 18:03 (#14849 - in reply to #13354) Subject: Re: 6G75 strip down
Frequent flyer Gold Posts: 1095 Location: An island off southern Tasmania.	they really are a great engine.
Administrator	Posted 8/2/2013 11:14 (#14860 - in reply to #13354) Subject: Re: 6G75 strip down
Frequent flyer Gold Posts: 1095 Location: An island off southern Tasmania.	Hey mate, just remembered a youtube video I did for a guy about tensioningt head bolts...the slack way... http://www.youtube.com/watch?v=qIHpuHLDeHU
wsbtt	Posted 9/2/2013 20:10 (#14866 - in reply to #14860) Subject: Re: 6G75 strip down
Frequent flyer Gold Posts: 421 Location: Brisbane,qld	Like the wrench, thanks fot that
