380 rear catalytic example
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   Technical info for the 380 -> How to and DIY areaMessage format

Administrator
Posted 27/7/2011 23:03 (#13348)
Subject: 380 rear catalytic example



Frequent flyer Gold

Posts: 1093
10005025555

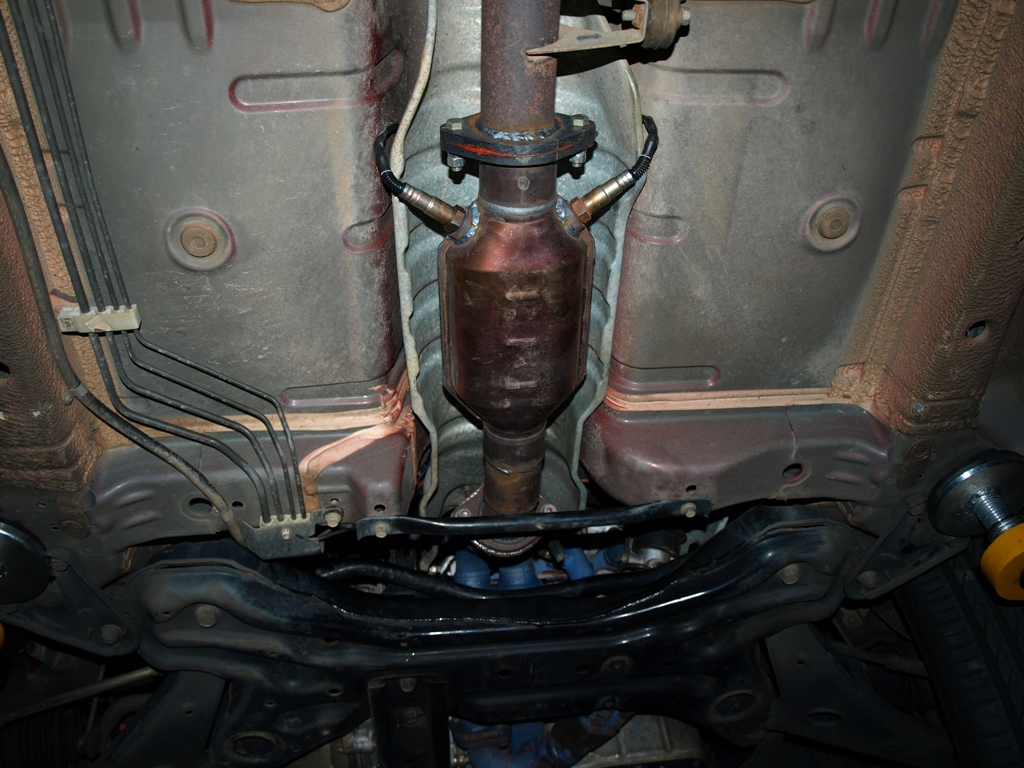

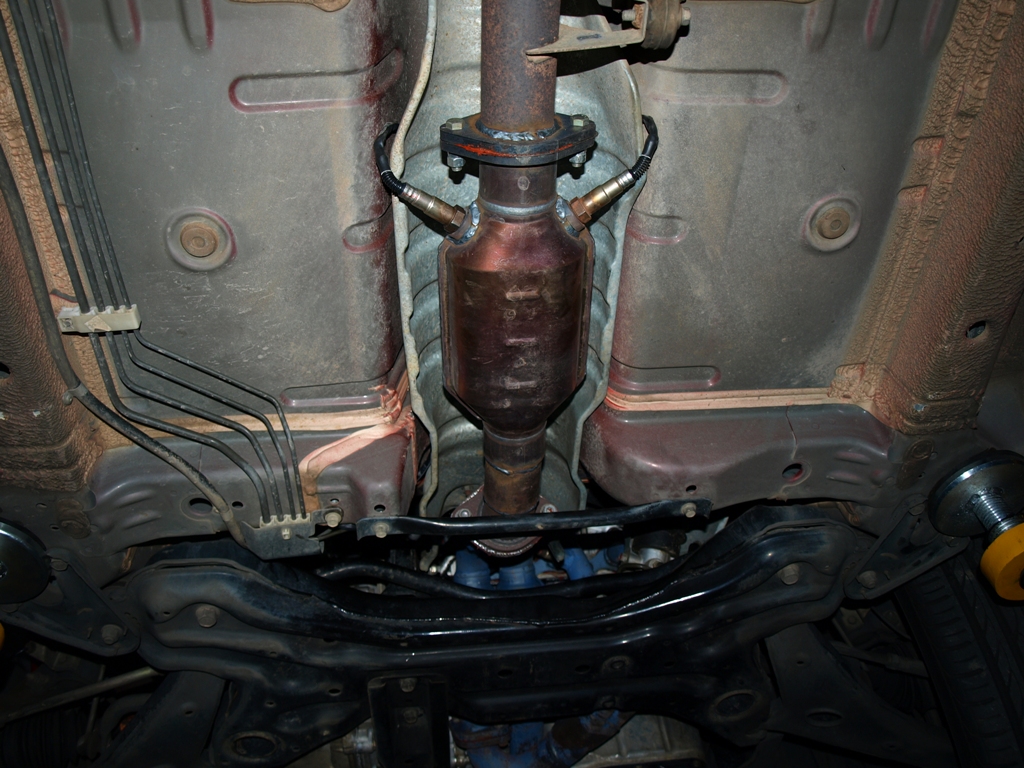

Location: An island off southern Tasmania.		Here is the rear 200 cpi cat i had fitted to mate up with the RPW extractors/headers to make the emissions compliant again.

Note the O2 sensors have been extended from the lower sections of each exhaust manifold.



(380 legal rear cat setup.jpg)



Attachments
----------------
Attachments 380 legal rear cat setup.jpg (512KB - 585 downloads)
Top of the page Bottom of the page
wsbtt
Posted 28/7/2011 22:36 (#13366 - in reply to #13348)
Subject: Re: 380 rear catalyctic example



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		is that 3'' pipe or 2.5''
Top of the page Bottom of the page
Administrator
Posted 28/7/2011 23:28 (#13369 - in reply to #13348)
Subject: Re: 380 rear catalyctic example



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		It's the stock pipe welded in place of the ineffective cat.

3 inch out of the extractors going into cat, 2.5 inch coming out of cat.

No performance improvement at all, just cmpliant emmissions...and the smell improvement was unbelievable.
Top of the page Bottom of the page
wsbtt
Posted 29/7/2011 20:59 (#13405 - in reply to #13348)
Subject: Re: 380 rear catalyctic example



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		whats the blue on the extractors?
Top of the page Bottom of the page
Godzilla
Posted 11/10/2011 22:05 (#13652 - in reply to #13348)
Subject: Re: 380 rear catalyctic example



Frequent flyer Silver

Posts: 62
5055
Thats a Aussie made Cateran 200 cell cat, i sell them.

http://www.ebay.com.au/itm/Universal-Catalytic-HIGH-FLOW-200-CPSI-converters-/130583255454?pt=AU_Car_Parts_Accessories&hash=item1e675e599e

That cat is pre 2005 Aus standards compliant.

Heaps of people pushing them as being legal on post 2005 cars.....wrong, very wrong, very misleading sales pitch.

I was talking to a agent the other day about them, to meet post 2005 emissions standards, there is no true high flow cat that will do it even though exhaust shops and sales people will tell you it will.

Im looking at their catalog right next to me......

If for some reason you get emissions tested, undo the flanges and bolt a stock cat on, you normally have 7 days if your called in.

Edited by Godzilla 11/10/2011 22:08
Top of the page Bottom of the page
Administrator
Posted 12/10/2011 08:33 (#13655 - in reply to #13348)
Subject: Re: 380 rear catalyctic example



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		LOL...that cat shit itself not long after...they replaced it under warranty...it is now a metal 200 cpi cat.

Will post an updated pic soon...
