Custom strut brace
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   Technical info for the 380 -> How to and DIY areaMessage format

Administrator
Posted 22/10/2011 14:52 (#13742)
Subject: Custom strut brace



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		The strut brace TMR supplied me with the supercharger kit is right above the blower with only about 15mm of clearance.

On hard take offs the blower would of course rise and bang on the strut brace, took a while to find that, the symptoms sounded like a loose front end.

It also blocked the air flow to my new bonnet ducts.

You gotta love living near geelong, so many places that fabricate stuff.

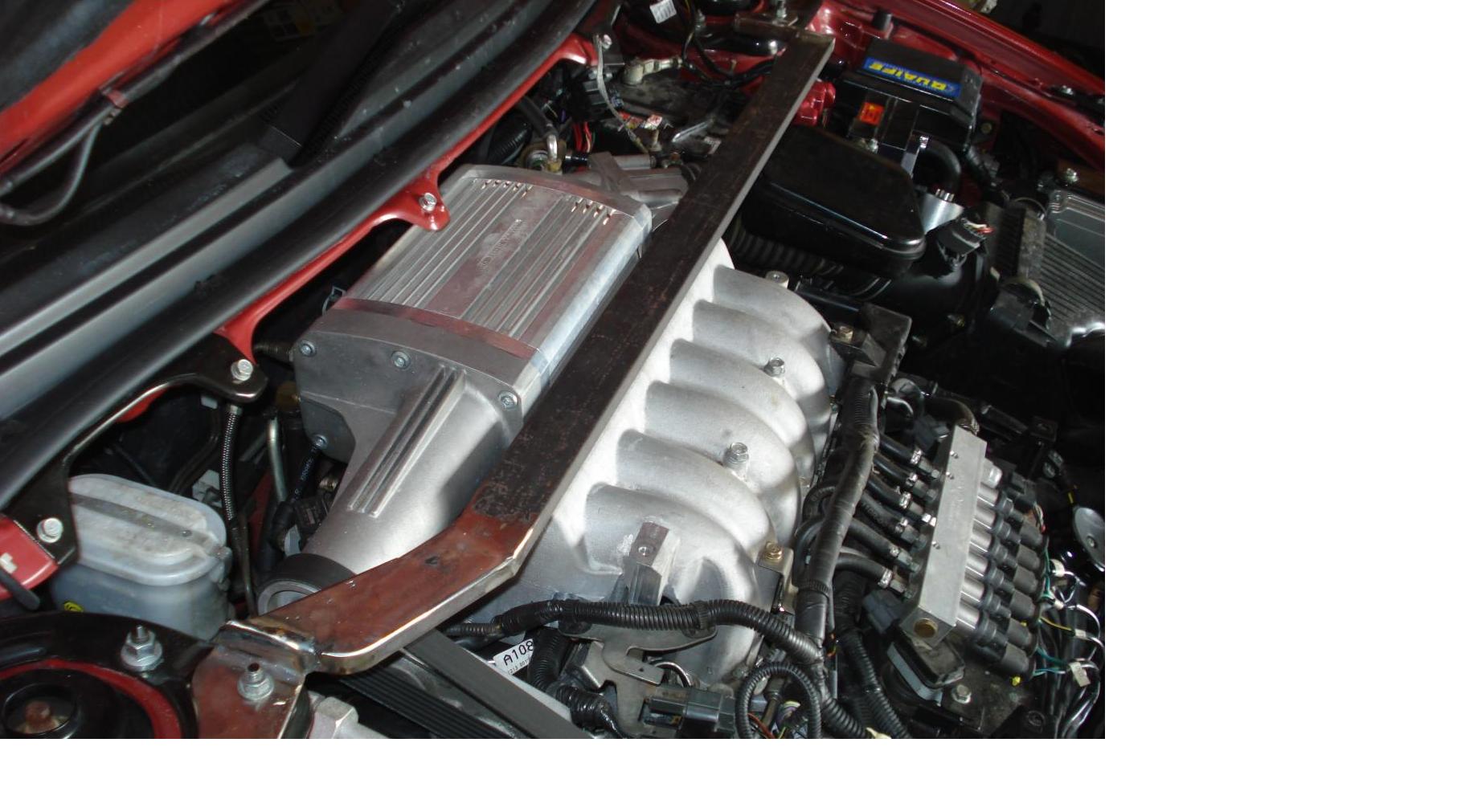

My local tractor repair guy knocked this strut brace up to clear the blower and everything else.

Yes...IT IS SOLID STEEL.....

$200 parts and labour.

Just gotta spray it black and away we go...LOL



(GT new brace to clear blower properly.JPG)



Attachments
----------------
Attachments GT new brace to clear blower properly.JPG (166KB - 570 downloads)
Top of the page Bottom of the page
Godzilla
Posted 22/10/2011 21:41 (#13744 - in reply to #13742)
Subject: Re: Custom strut brace



Frequent flyer Silver

Posts: 62
5055
LOL. solid steel?

How strong did you need it to be?

I would have suggested putting torque straps to the engine to stop it moving.

Simple sections of steel straps, one side bolted to something solid (either body or engine) and the other side with a elongated hole with its bolt locked to the other side but loose enough to slide through the elongated hole.

It allows engine flex to a limit before bottoming out in the hole and becoming solidly locked.
Top of the page Bottom of the page
Administrator
Posted 23/10/2011 11:30 (#13749 - in reply to #13744)
Subject: Re: Custom strut brace



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
Godzilla - 22/10/2011 21:41

LOL. solid steel?

How strong did you need it to be?

I would have suggested putting torque straps to the engine to stop it moving.

Simple sections of steel straps, one side bolted to something solid (either body or engine) and the other side with a elongated hole with its bolt locked to the other side but loose enough to slide through the elongated hole.

It allows engine flex to a limit before bottoming out in the hole and becoming solidly locked.



yeah solid steel...the guy who built it is used to building stuff in half inch thick steel...I shoulda known after he fixed the towbar on the John Deere tractor...LOL.

But a bit of black paint and a shape up and it just might look the goods and actually work as well


But yeah...the blower wont hit the brace anymore thats for sure....I dont mind a bit of engine movement, its a daily driver and my back knows about it if things are too stiff in the ride and vibration department.
Top of the page Bottom of the page
wsbtt
Posted 5/12/2011 22:09 (#13822 - in reply to #13749)
Subject: Re: Custom strut brace



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Ive noticed when starting my car theres a little nock coming from the front , could that be the SC hitting the brace ???????
Top of the page Bottom of the page
Administrator
Posted 6/12/2011 17:00 (#13824 - in reply to #13822)
Subject: Re: Custom strut brace



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
wsbtt - 5/12/2011 22:09

Ive noticed when starting my car theres a little nock coming from the front , could that be the SC hitting the brace ???????



you will see some slight alloy discolouration on the blower if it is...

put some powder or something on the blower or undo the strut brace amnd you'll soon see if the paint is scuffed...
Top of the page Bottom of the page
wsbtt
Posted 6/12/2011 17:57 (#13826 - in reply to #13824)
Subject: Re: Custom strut brace



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		thanks ,will check it out
Top of the page Bottom of the page
