Technical info for the 380 -> Sat Nav entertainment system	Message format

Posted 24/7/2012 09:24 (#14445)
Subject: Speed sensor connection

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

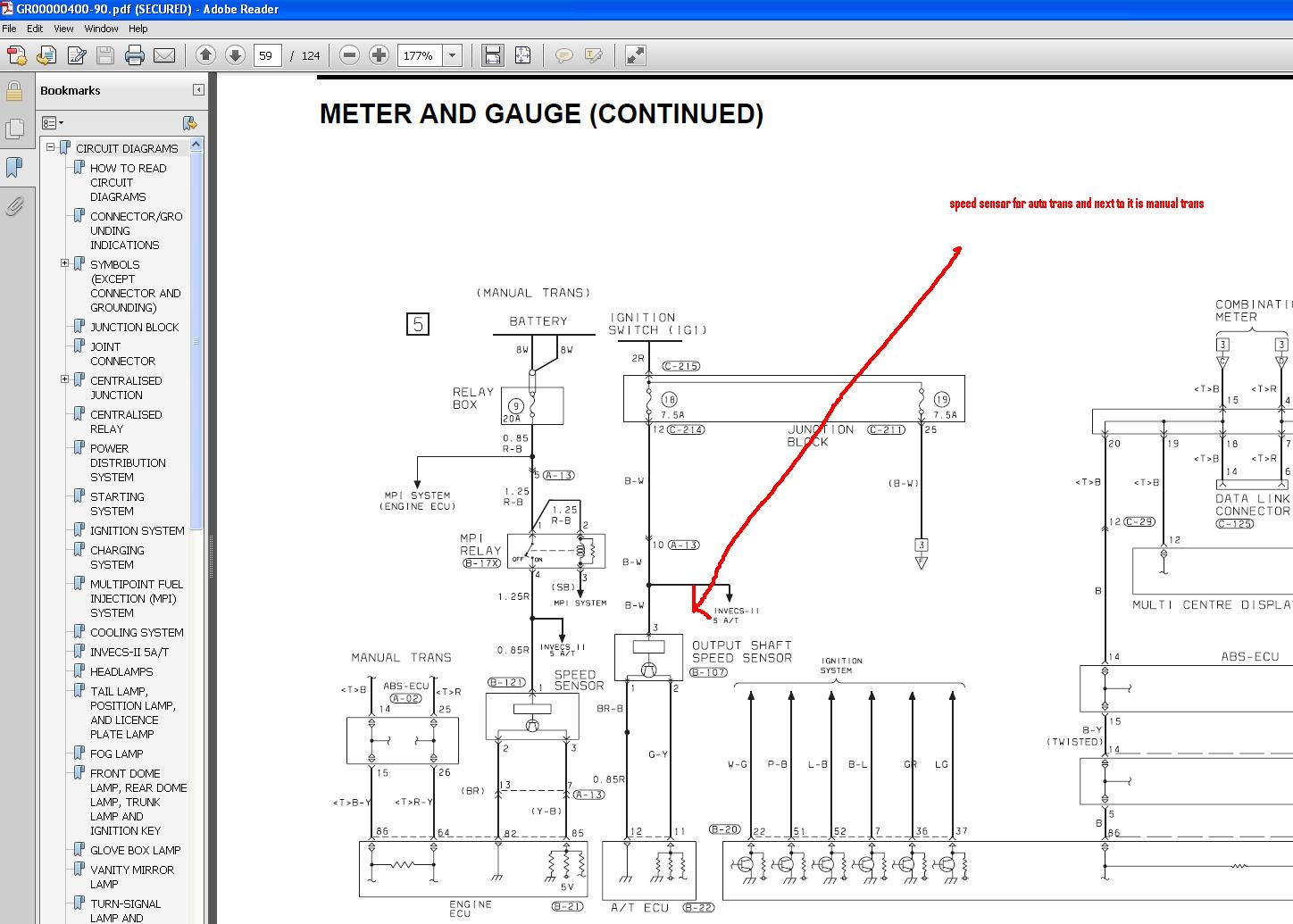

According to the electrical schematics the speed sensor signal can be tapped into a manual or an auto.

see atached pic....

(380 speed sensor.JPG)

Attachments
----------------

380 speed sensor.JPG (180KB - 554 downloads)

Posted 24/7/2012 10:20 (#14446 - in reply to #14445)
Subject: RE: Speed sensor connection

Frequent flyer Bronze

Posts: 30

Location: Launceston, Tasmania

so is that behind the speedo? Im no good at reading schematics!

Posted 25/7/2012 00:01 (#14447 - in reply to #14445)
Subject: Re: Speed sensor connection

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

It's a plug on the automatic transmission....

Posted 24/2/2013 14:47 (#14940 - in reply to #14445)
Subject: Re: Speed sensor connection

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

Speed pulse is the pink wire, 3rd pin on the large factory audio connector plug.
