How to repair rear window regulator on DB 380
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   Technical info for the 380 -> How to and DIY areaMessage format

Lateralnw
Posted 9/7/2014 02:13 (#16118)
Subject: How to repair rear window regulator on DB 380




Posts: 4


This method of repair requires little to no money to do.
It helps if you are handy with tools.

This fix was performed on a DB 380 VRX series 1 2005 model. I don't know if the window winder is the same on all models but it may at least give you some insight of what breaks and how to fix it.

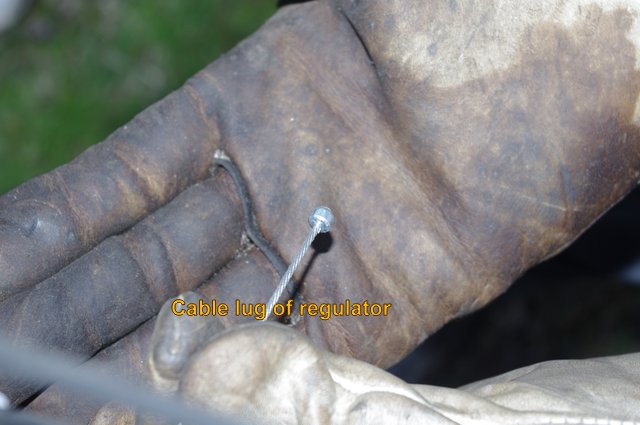

What happened in this case is the plastic that holds the end point of the cable broke. This plastic assembly is not made of very strong plastic.

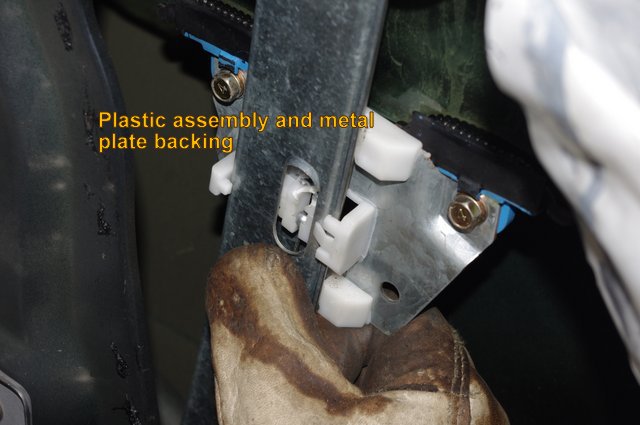

Remove the door trim to gain access to the window regulator assembly. Have a look at the photos to see the plastic section I am referring to.

What I have done is drilled a hole into the plate which also has some metal on it.

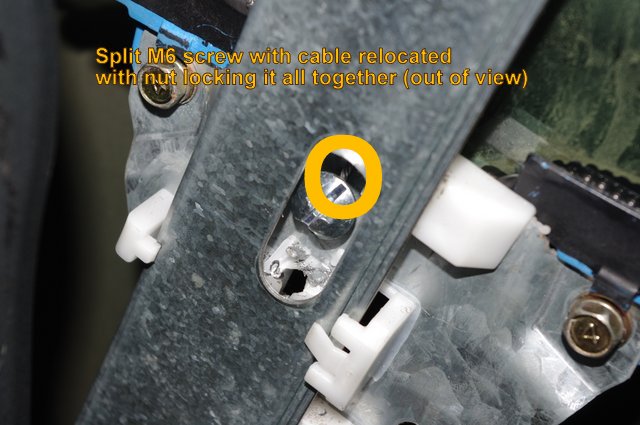

Then I found a screw with a large head on it and split the thread in to two sides. (use a hack saw to cut it or if you have a dremel with a cutting blade that will make life a lot easier)  I made the gap wide enough to allow the cable to fit in.

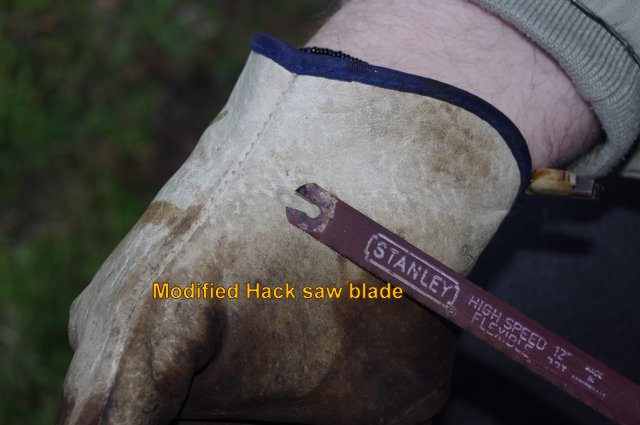

Pulling the cable taught using a modified hacksaw blade then placing the split screw over the cable and then pushed the screw in to the hole.
While holding tension on the screw to prevent it from popping out place the nut on the back of the metal plate and tighten.

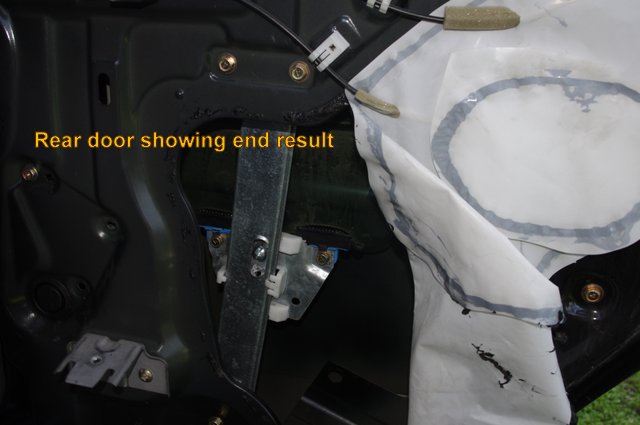

I hope the photos will help explain what I have just written.

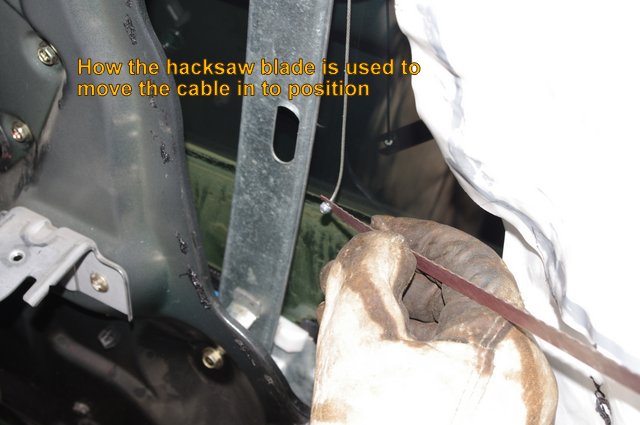

 The first photo is showing how I used the hack saw blade to get the cable from the jammed point.  In hindsight it would have been easier to have pulled the regulator out of the car first before repairing it!!





Edited by Lateralnw 9/7/2014 02:38




(DB 380 window regulator repair photos.JPG)



(DB 380 window regulator repair photos-001.JPG)



(DB 380 window regulator repair photos-002.JPG)



(DB 380 window regulator repair photos-003.JPG)



(DB 380 window regulator repair photos-004.JPG)



(DB 380 window regulator repair photos-005.JPG)



(DB 380 window regulator repair photos-006.JPG)



Attachments
----------------
Attachments DB 380 window regulator repair photos.JPG (56KB - 787 downloads)
Attachments DB 380 window regulator repair photos-001.JPG (53KB - 688 downloads)
Attachments DB 380 window regulator repair photos-002.JPG (54KB - 663 downloads)
Attachments DB 380 window regulator repair photos-003.JPG (55KB - 759 downloads)
Attachments DB 380 window regulator repair photos-004.JPG (53KB - 762 downloads)
Attachments DB 380 window regulator repair photos-005.JPG (66KB - 724 downloads)
Attachments DB 380 window regulator repair photos-006.JPG (45KB - 784 downloads)
Top of the page Bottom of the page
Administrator
Posted 11/7/2014 09:01 (#16125 - in reply to #16118)
Subject: Re: How to repair rear window regulator on DB 380



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Fantastic write up mate, excellent work.

As a courtesy I have expedited your access to the workshop manuals area of the forum so that you can get any information you require.

Welcome to the forum.
Top of the page Bottom of the page
Lateralnw
Posted 11/7/2014 12:16 (#16128 - in reply to #16125)
Subject: Re: How to repair rear window regulator on DB 380




Posts: 4

Hi, thanks for the feed back and the access rights.

LateralNw
Top of the page Bottom of the page
ashley186
Posted 10/9/2014 11:29 (#16170 - in reply to #16118)
Subject: Re: How to repair rear window regulator on DB 380




Posts: 19
555
Location: Bendigo, VIC		Awesome write up, does anyone know what it is that breaks in the front regulators. They just seem to die ?
