Administrator

Posted 26/2/2013 18:39 (#14952)
Subject: Left bank.right bank,bank1,bank2

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

When you get an OBD code and need to find the O2 sensor remember this..

LEFT BANK or BANK1 is the radiator side in a front wheel drive.

Sensor 1 is the top sensor
Sensor 2 is the bottom sensor.

So Bank 2 sensor 2 is the firewall side lower O2 sensor.

Piece of cake eh?

Cashie

Posted 27/2/2013 16:46 (#14954 - in reply to #14952)
Subject: Re: Left bank.right bank,bank1,bank2

Frequent flyer Bronze

Posts: 45

Location: Perth, WA

Handy to know, have been playing with my bluetooth OBD reader and was wondering this..

Telpat16

Posted 17/3/2013 16:42 (#14998 - in reply to #14954)
Subject: Re: Left bank.right bank,bank1,bank2

Frequent flyer Gold

Posts: 108
100

Location: NEWPORT QLD

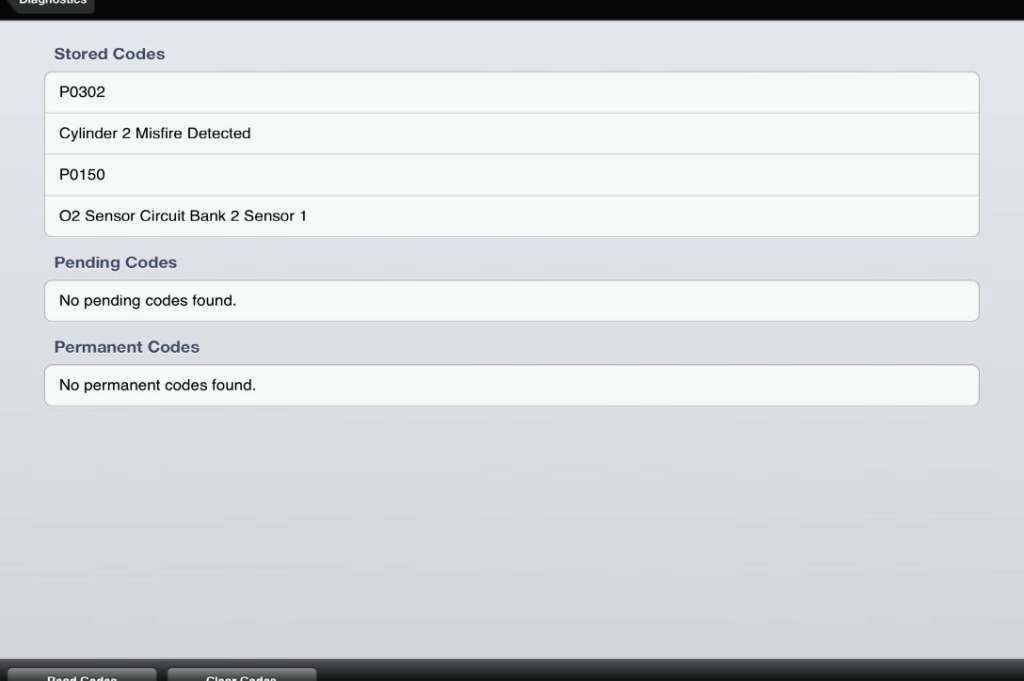

I partly disagree Agree Left bank = Front Bank = radiator side But all my codes leading to Front sensor replacement and fault finding showed front bank as bank 2. Even disconnected Sensor 1 Front Bank to confirm DTC's in screen capture below:

Edited by Telpat16 27/3/2013 14:47

(Sensor Code.jpg)

Attachments
----------------

Sensor Code.jpg (41KB - 608 downloads)
