MAF sensor photos
Jump to page : 1 2 3
Now viewing page 2 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

wsbtt
Posted 26/3/2012 08:45 (#14128 - in reply to #14110)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		are you saying you could flash the 380 ecu?
Top of the page Bottom of the page
stayer
Posted 26/3/2012 14:16 (#14129 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Yes, now it can be done. For that you need to buy the unit MMCflash № 2, on the site Evoscan. com
Top of the page Bottom of the page
stayer
Posted 26/3/2012 15:01 (#14135 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555

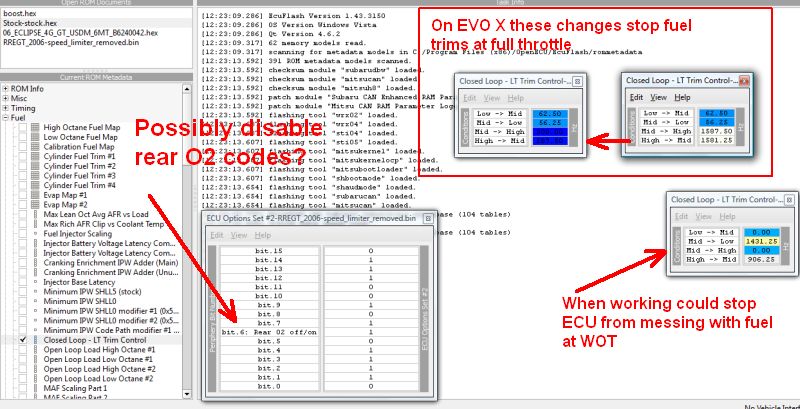

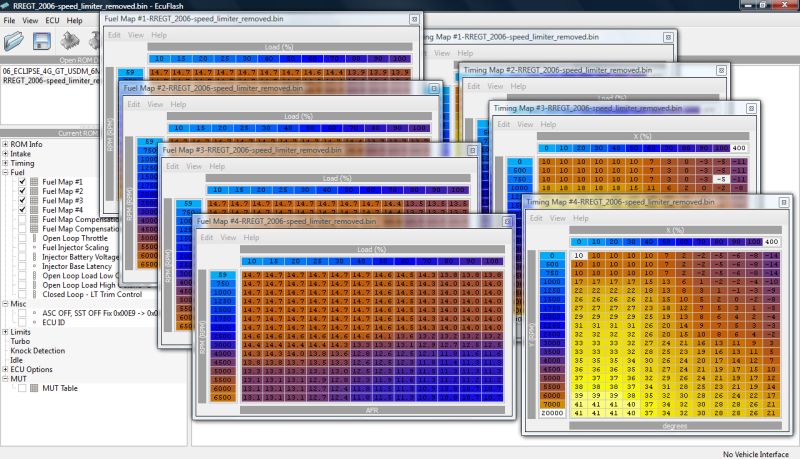

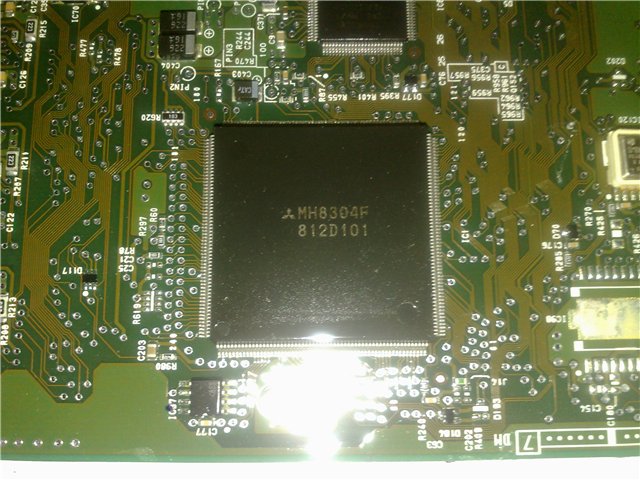

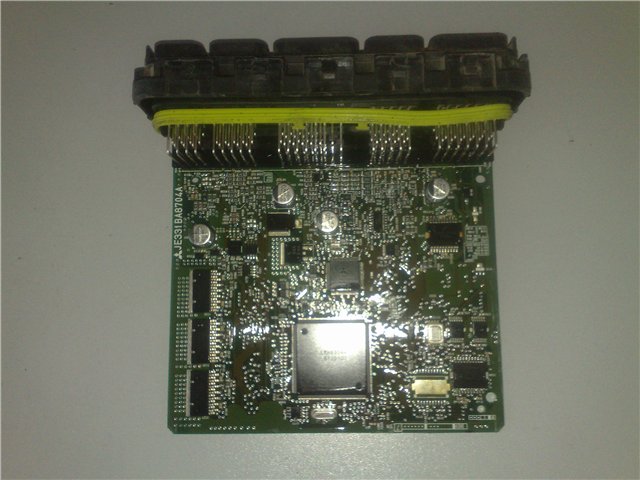

Location: Russia, Perm		This Eclipse ECU. But 380 the same MH 8302 F. For example 9G ECU is a little different MH 8304 F. I opened that would see my ECU.



(fuel-ign_maps.jpg)



(trims-o2.jpg)



(99e0bf4294f3.jpg)



(820c664a81c2.jpg)



Attachments
----------------
Attachments fuel-ign_maps.jpg (95KB - 656 downloads)
Attachments trims-o2.jpg (88KB - 637 downloads)
Attachments 99e0bf4294f3.jpg (83KB - 671 downloads)
Attachments 820c664a81c2.jpg (57KB - 633 downloads)
Top of the page Bottom of the page
wsbtt
Posted 26/3/2012 17:38 (#14136 - in reply to #14135)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		I pretty much know nothing about this topic, does the mmcflash plug into a laptop which is plugged into the car, can you edit the maps that are loaded or what, how does it work?????
Top of the page Bottom of the page
stayer
Posted 26/3/2012 18:55 (#14137 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		You need to purchase a cable open port 2. Download the program ECUflash on the site OpenECU.com (free of charge) and to buy the program Evoscan (25$) If you buy the cable (OP2) on the site evoscan, then the price of$20. For models up to 2003 it was enough. However, ECUflash does not read processors like H8. In order to open the ECU will need to buy a unit MMCflash №2.(287$) This unit will allow read and write new data. Editing tables in the program ECUflash.
Top of the page Bottom of the page
stayer
Posted 26/3/2012 19:23 (#14138 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		However, if you have no experience of work with the program ECUflash, I do not recommend you to do it yourself. Ask for help who worked with this program. When you first open the ECU, be sure to make a backup copy. In case of failure, you can restore the ECU.
Top of the page Bottom of the page
Administrator
Posted 26/3/2012 23:39 (#14139 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 1093
10005025555

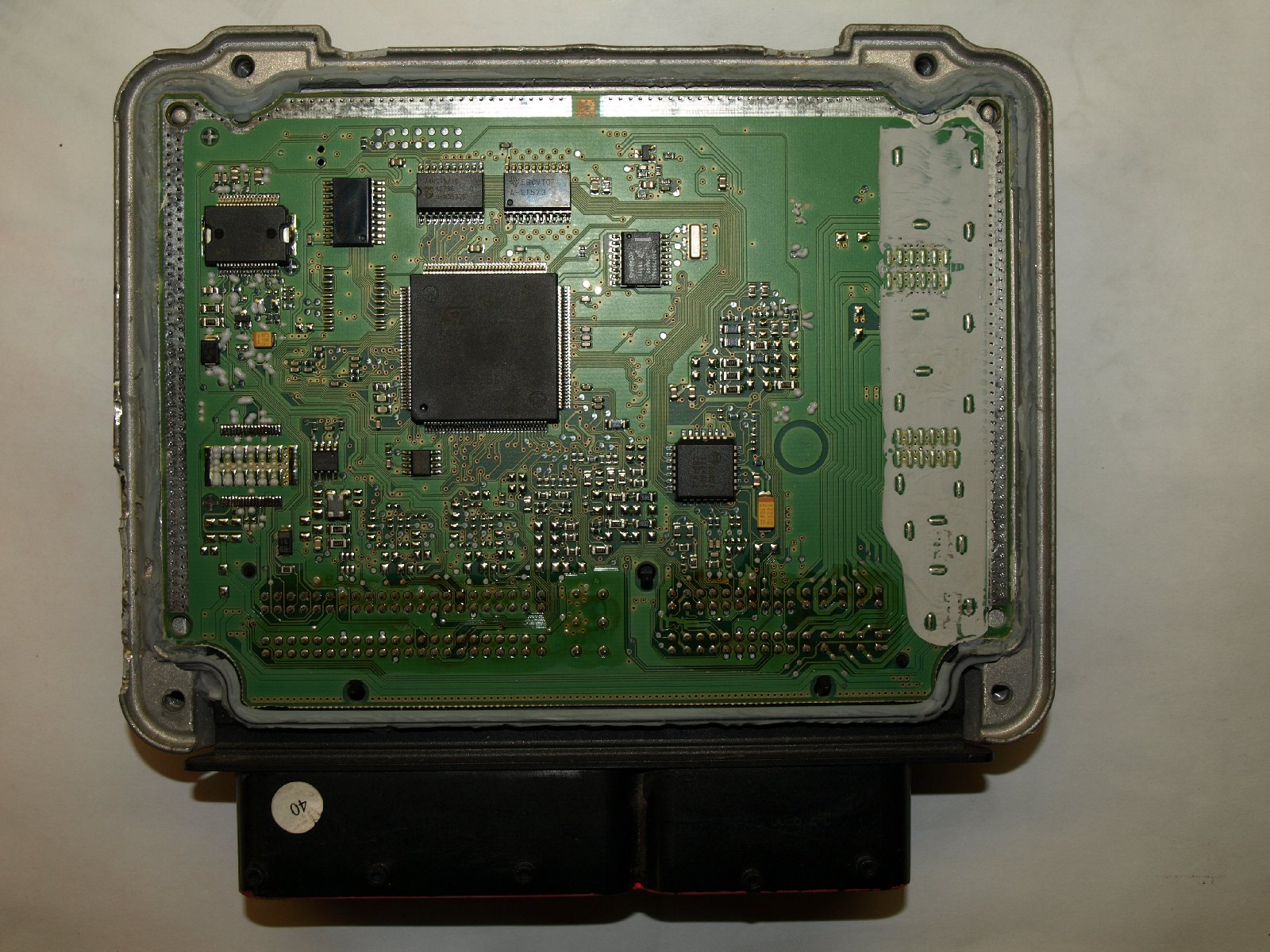

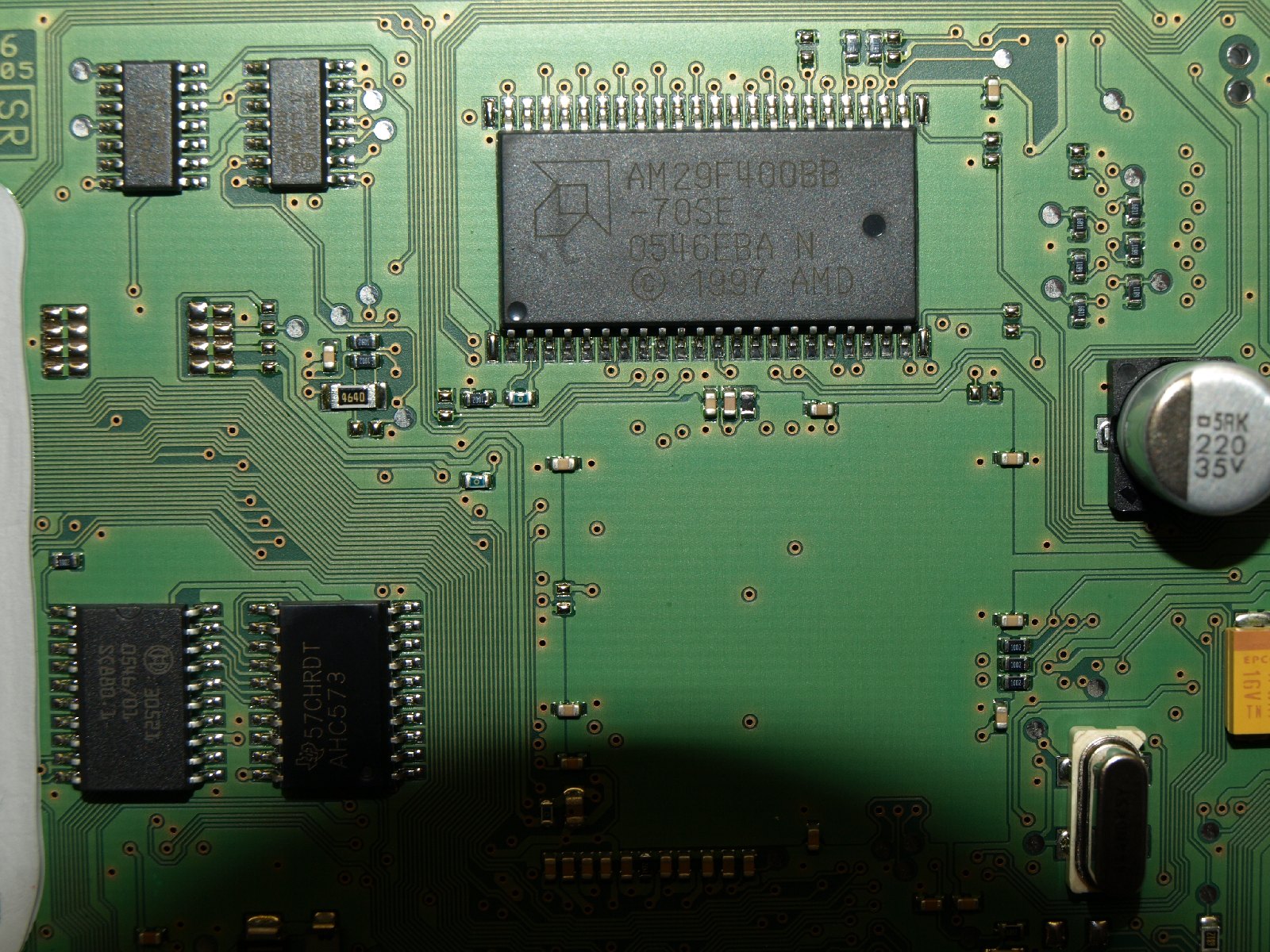

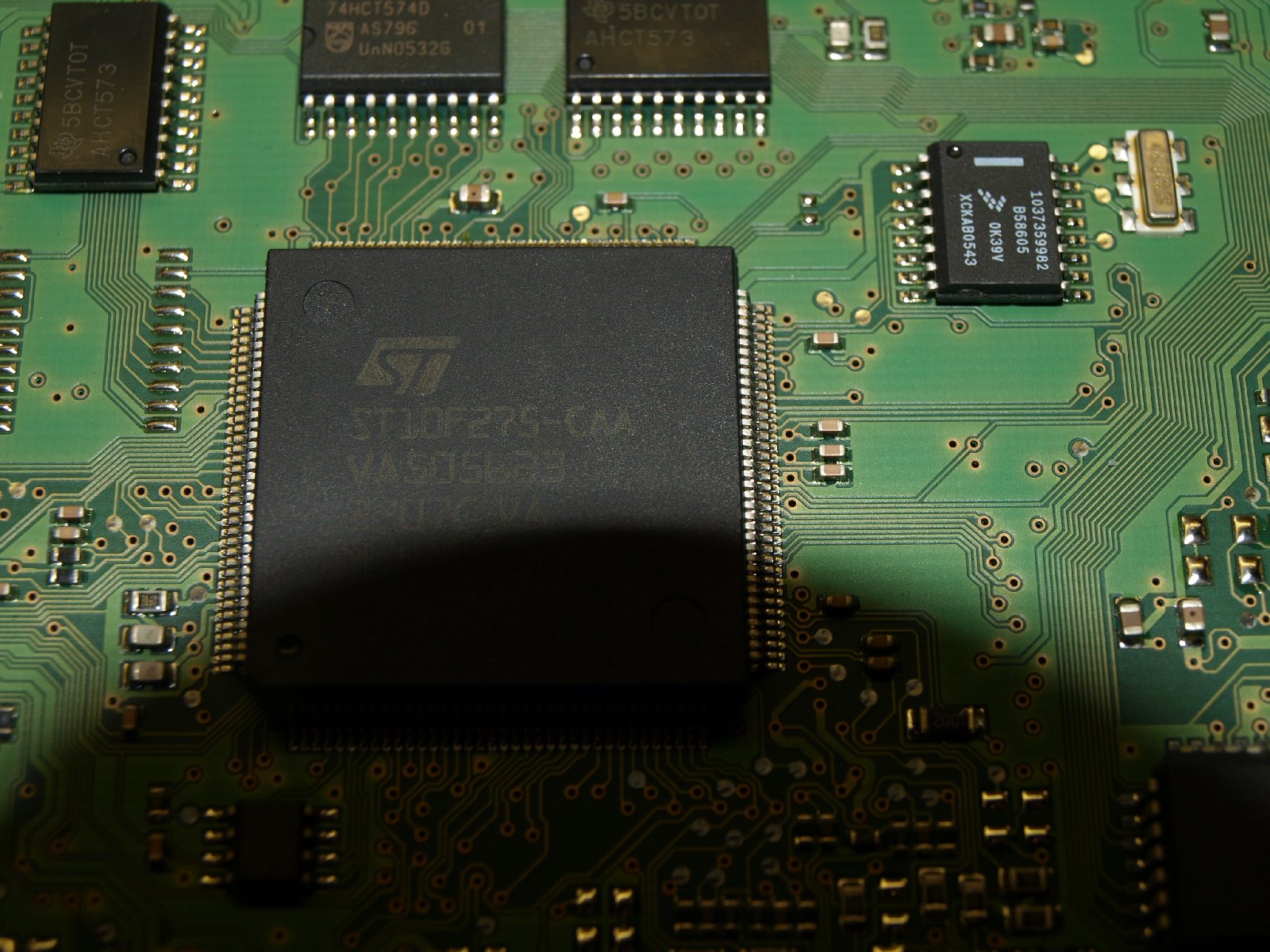

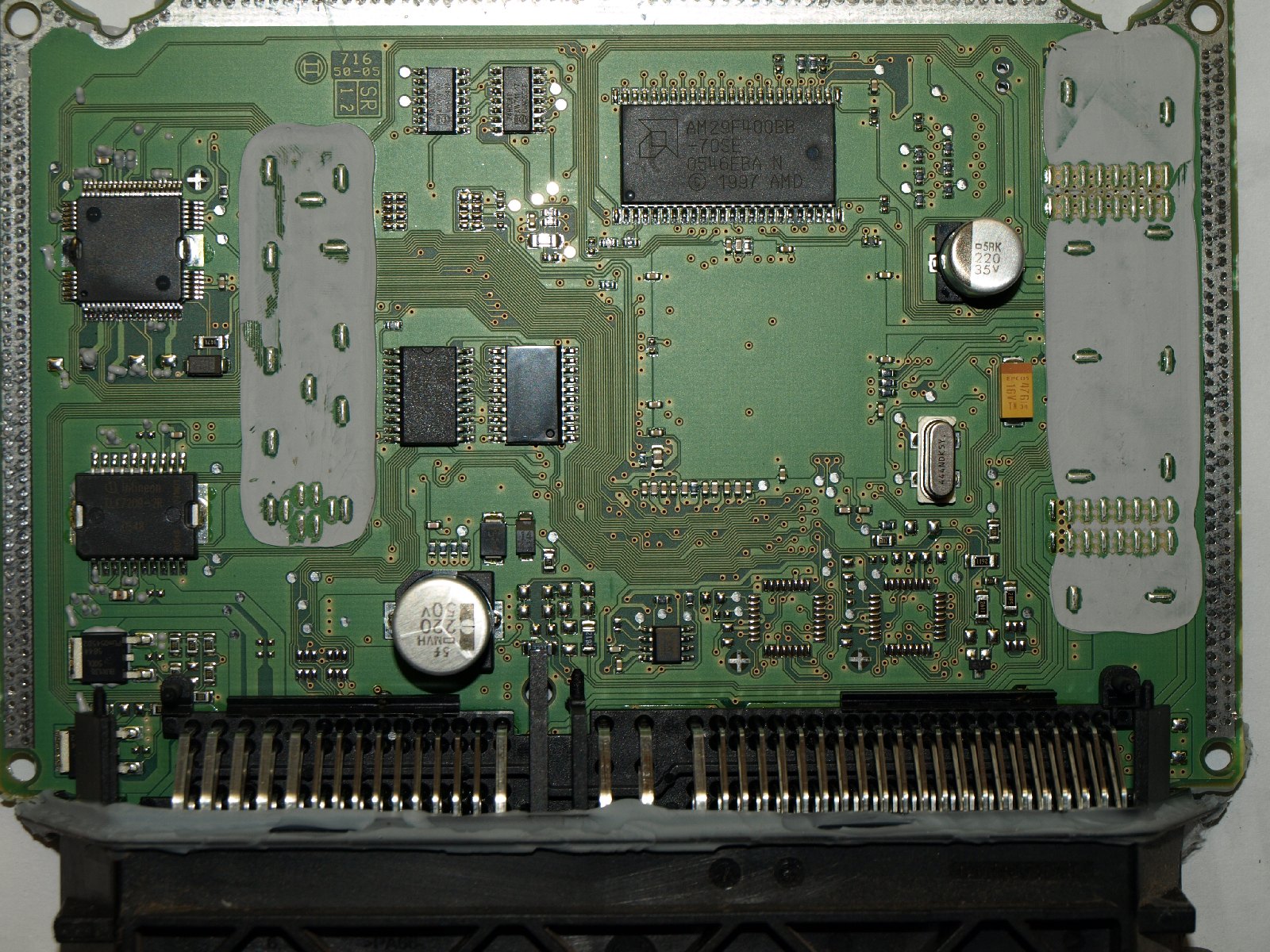

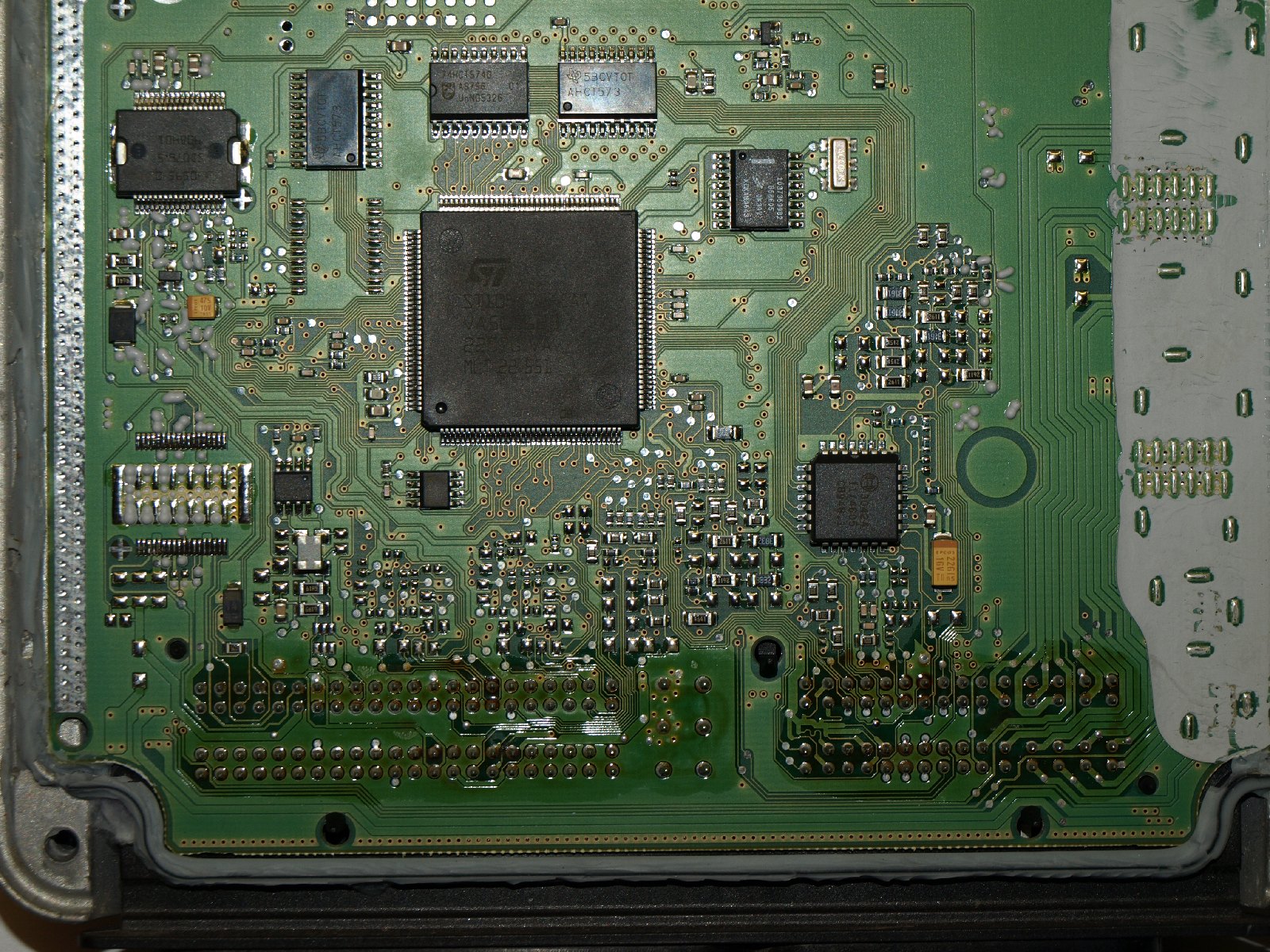

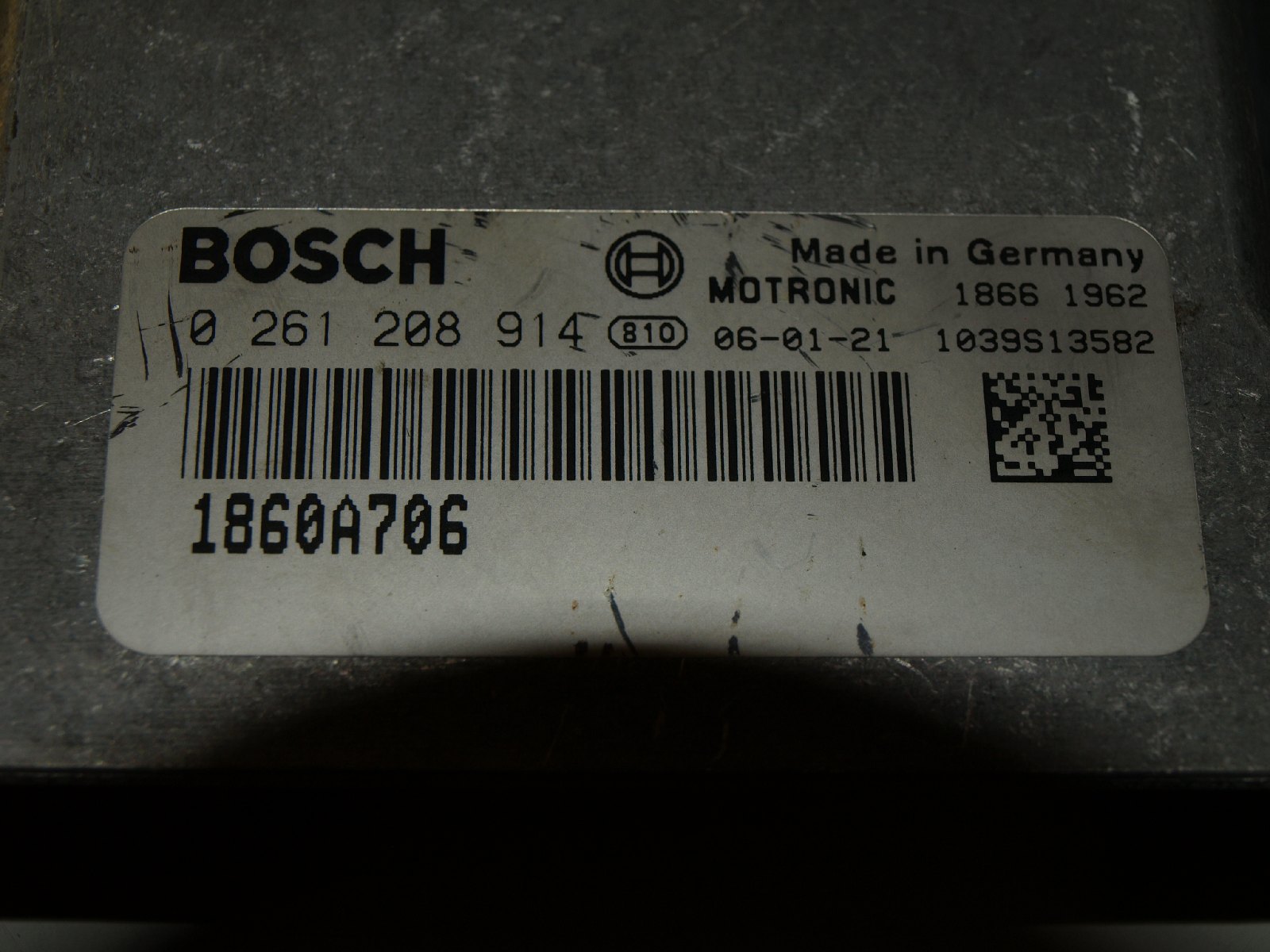

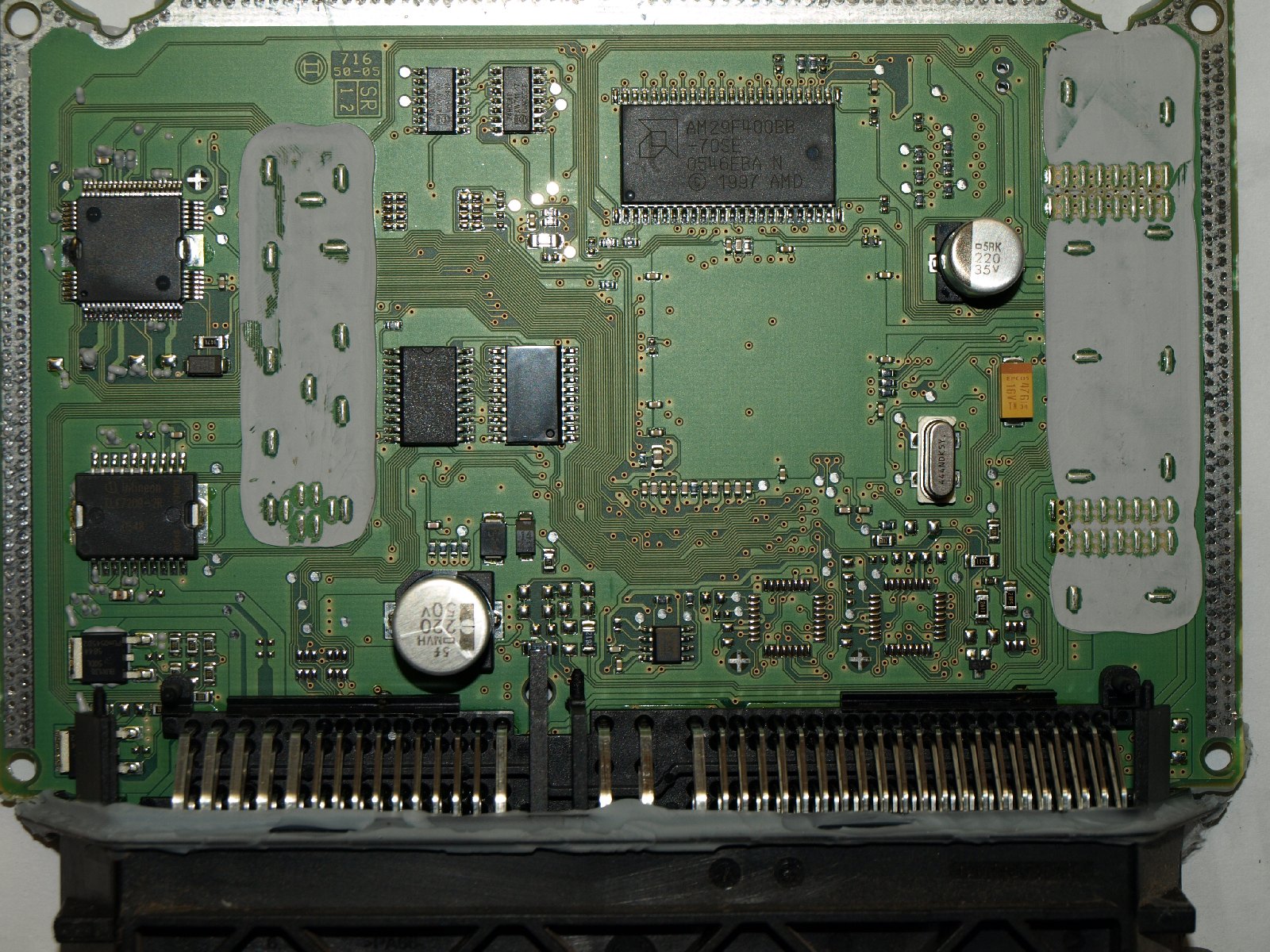

Location: An island off southern Tasmania.		Stayer...our CPU is an STi chip.....completely different to anything else.



(P1180035.JPG)



(P1180042.JPG)



(P1180036.JPG)



(P1180037.JPG)



(P1180039.JPG)



(P1180046.JPG)



Attachments
----------------
Attachments P1180035.JPG (415KB - 587 downloads)
Attachments P1180042.JPG (371KB - 616 downloads)
Attachments P1180036.JPG (632KB - 725 downloads)
Attachments P1180037.JPG (538KB - 766 downloads)
Attachments P1180039.JPG (507KB - 576 downloads)
Attachments P1180046.JPG (234KB - 604 downloads)
Top of the page Bottom of the page
stayer
Posted 27/3/2012 00:16 (#14140 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		No, this is called remarking. Your old name of Bosch. New MH8302
Top of the page Bottom of the page
stayer
Posted 27/3/2012 00:30 (#14141 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		I think you need to contact support and ask this question. http://www.evoscan.com/helpdesk/ It is not difficult.
Top of the page Bottom of the page
Administrator
Posted 27/3/2012 00:36 (#14142 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		connectors and wiring completely different not just cpu chip....stayer.
Top of the page Bottom of the page
