MAF sensor photos
Jump to page : 1 2 3
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

Administrator
Posted 11/3/2012 18:10 (#14101)
Subject: MAF sensor photos



Frequent flyer Gold

Posts: 1093
10005025555

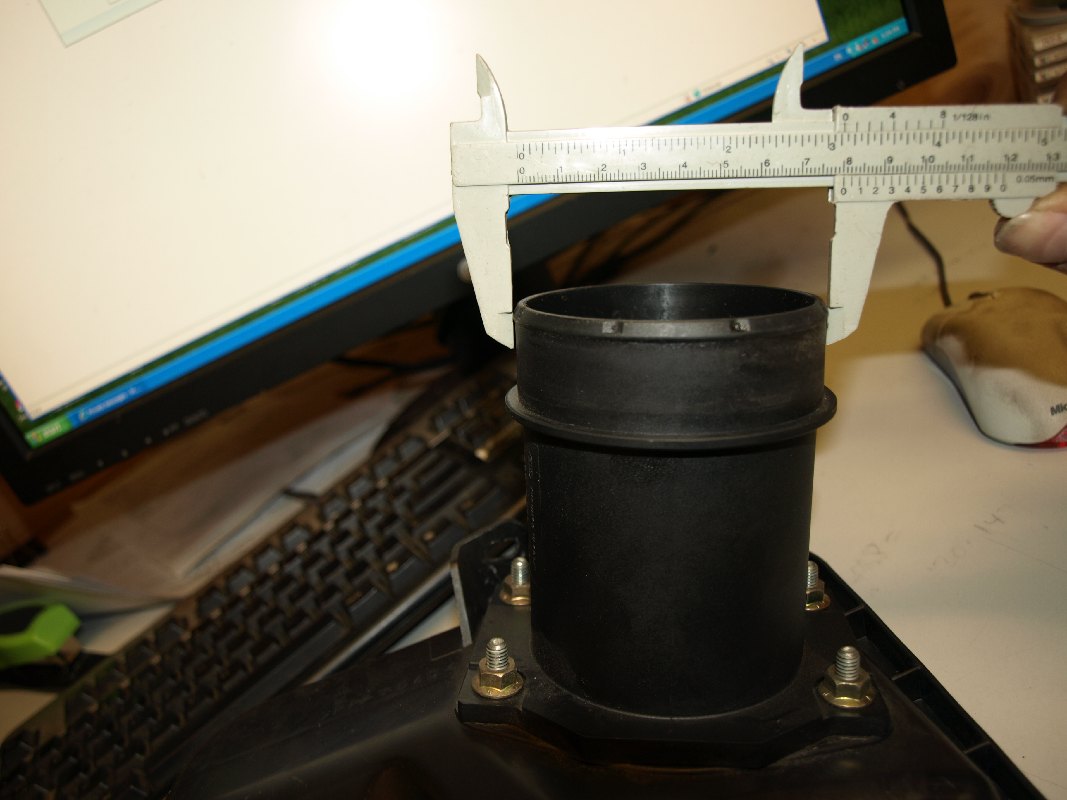

Location: An island off southern Tasmania.		Here are some high res photos as you requested Stayer...





(P3110060.JPG)



(P3110061.JPG)



(P3110062.JPG)



(P3110063.JPG)



(P3110065.JPG)



Attachments
----------------
Attachments P3110060.JPG (109KB - 624 downloads)
Attachments P3110061.JPG (93KB - 619 downloads)
Attachments P3110062.JPG (88KB - 571 downloads)
Attachments P3110063.JPG (88KB - 608 downloads)
Attachments P3110065.JPG (100KB - 595 downloads)
Top of the page Bottom of the page
stayer
Posted 11/3/2012 22:07 (#14102 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Where are the pictures? And still I would like to know the inner and outer diameter of a pipe in which the MAF sensor. Thank You!
Top of the page Bottom of the page
Administrator
Posted 12/3/2012 18:06 (#14103 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Sorry stayer...have a look again please.
Top of the page Bottom of the page
stayer
Posted 12/3/2012 18:29 (#14104 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		ok
Top of the page Bottom of the page
stayer
Posted 12/3/2012 20:09 (#14105 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Thank you for the information. It is obvious that the parts are different. 2.4 l has an internal diameter of 68 mm and outer 73 mm. MAF sensor obviously has also other parameters. I want to install the compressor and increase the bandwidth by using FIC. For this we need a sensor from a greater volume.
Top of the page Bottom of the page
Administrator
Posted 13/3/2012 09:11 (#14106 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		I would try the one you have got first.

It should work....extra fuel will be your biggest problem.

The 3.8 litre MAF works fine with 12 psi boost for me.

On the 3.8L supercharger from sprintex they use an extra fuel injector just after the throttle body to deliver extra fuel above 4000 rpm to all cylinders.
Top of the page Bottom of the page
stayer
Posted 13/3/2012 16:15 (#14107 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Additional injector I will not install. I will reflash ECU. This allows you to set all the parameters, including fuel. If you are interested, I can open a thread on your forum. Just you have motors 3.8 L. and you probably don't it will be interesting as it is for 2.4
Top of the page Bottom of the page
Administrator
Posted 13/3/2012 22:47 (#14108 - in reply to #14107)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		we have completely different ECU...ours cannot be unlocked stayer.

But please post anyway, it may interest some people.
Top of the page Bottom of the page
stayer
Posted 14/3/2012 02:43 (#14109 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Oh, no! You are behind the progress. It was impossible to September 2011. Now is the unit of MMCflash from Evoscan. Look at their website evoscan.com and choose for yourself
Top of the page Bottom of the page
stayer
Posted 14/3/2012 03:29 (#14110 - in reply to #14101)
Subject: Re: MAF sensor photos



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		My ECU processor 8304F, too, was not previously open. Your ECU processor 8302F. Me and you'll need the same block MMCflash №2. I know how to do it.
Top of the page Bottom of the page
