The Exterior. Change of the bumper.
Jump to page : 1 2 3
Now viewing page 2 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

stayer
Posted 26/12/2011 18:00 (#13948 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

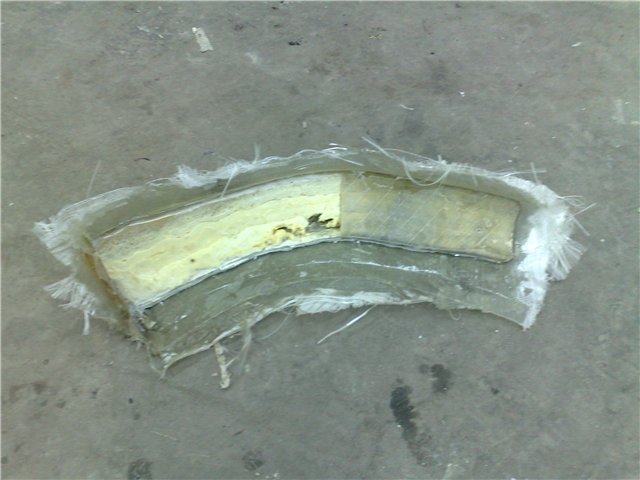

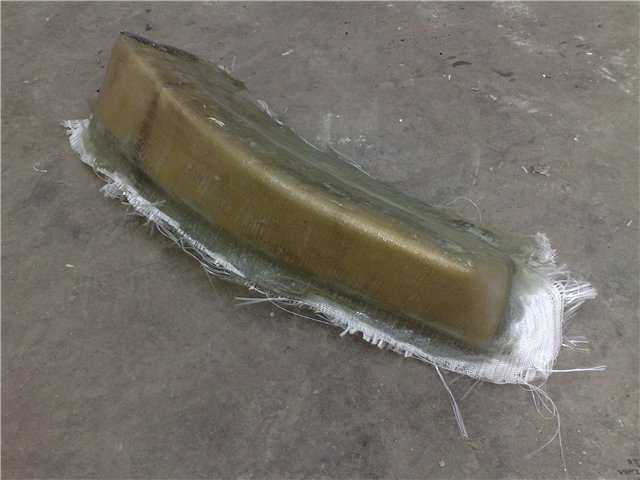

Location: Russia, Perm		After drying, remove the fangs and take out the inside of the foam.



(4e95c0f18a45.jpg)



(cc269c904b8b.jpg)



Attachments
----------------
Attachments 4e95c0f18a45.jpg (48KB - 569 downloads)
Attachments cc269c904b8b.jpg (52KB - 552 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:05 (#13949 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

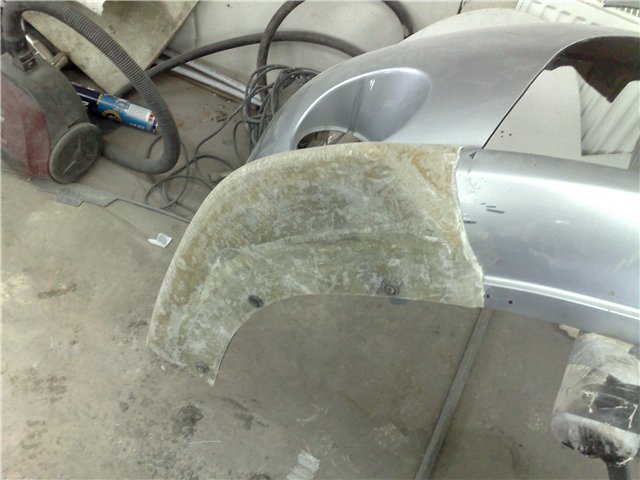

Location: Russia, Perm		Cut off the excess fabric. Drilling holes, the fangs are almost ready.



(8e0c1be660c5.jpg)



(3c91c0ca951a.jpg)



Attachments
----------------
Attachments 8e0c1be660c5.jpg (54KB - 541 downloads)
Attachments 3c91c0ca951a.jpg (41KB - 539 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:08 (#13950 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

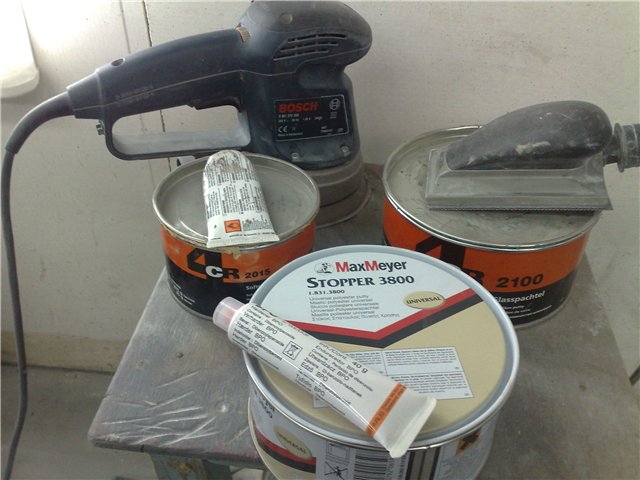

Location: Russia, Perm		Then put on fang fillers.



(1d50d5285464.jpg)



(f4a32e4635c9.jpg)



Attachments
----------------
Attachments 1d50d5285464.jpg (56KB - 571 downloads)
Attachments f4a32e4635c9.jpg (57KB - 536 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:10 (#13951 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

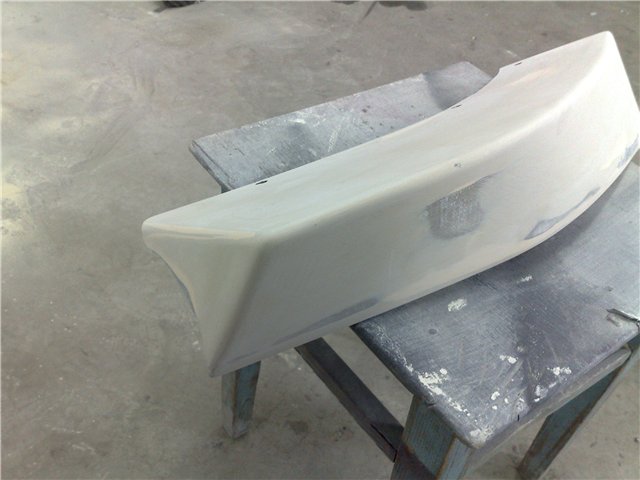

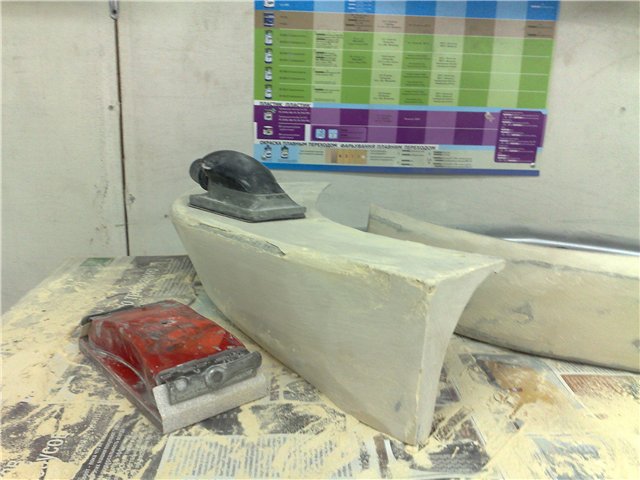

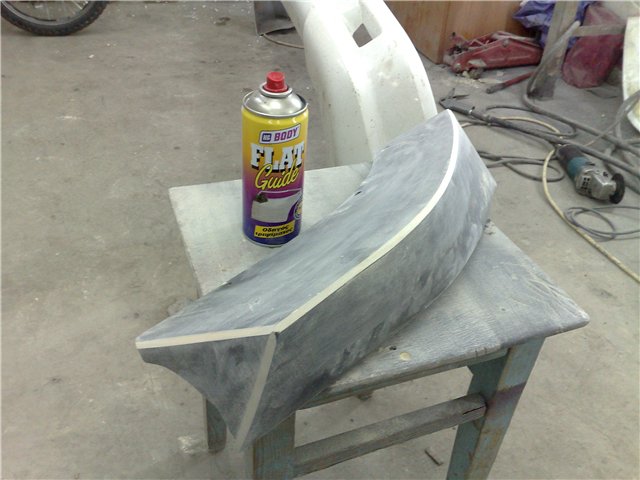

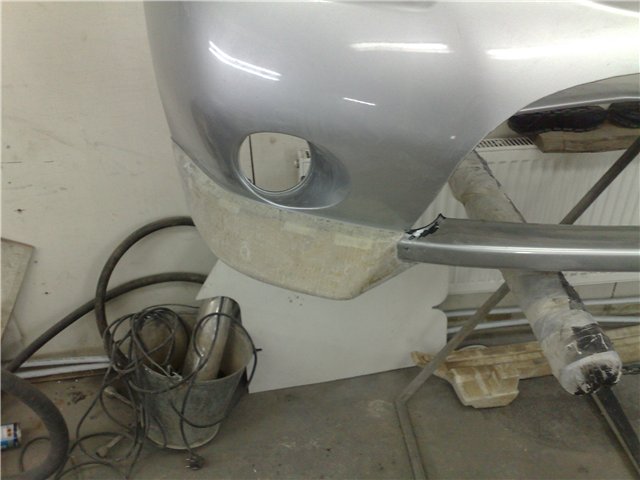

Location: Russia, Perm		It is necessary to get a good surface.



(b9203231551e.jpg)



(3c3690bb6a3f.jpg)



(af661ac2f1be.jpg)



Attachments
----------------
Attachments b9203231551e.jpg (42KB - 539 downloads)
Attachments 3c3690bb6a3f.jpg (53KB - 559 downloads)
Attachments af661ac2f1be.jpg (43KB - 548 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:15 (#13952 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

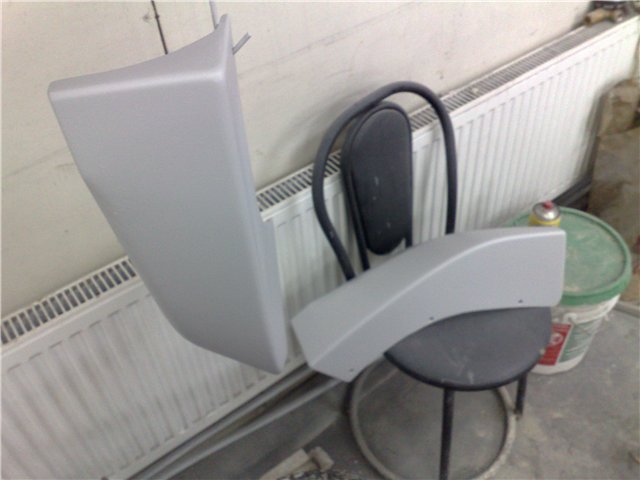

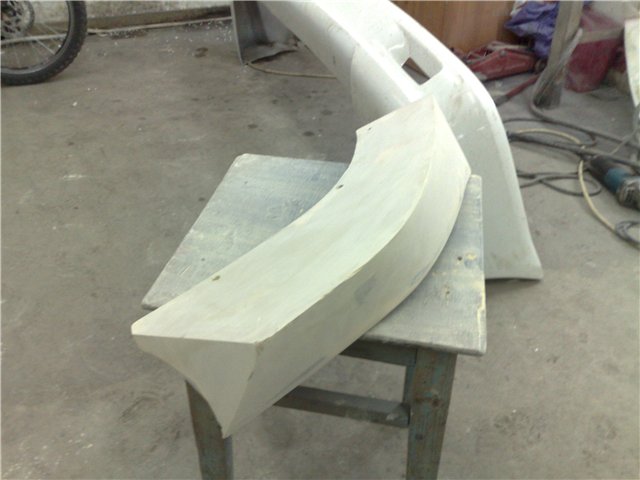

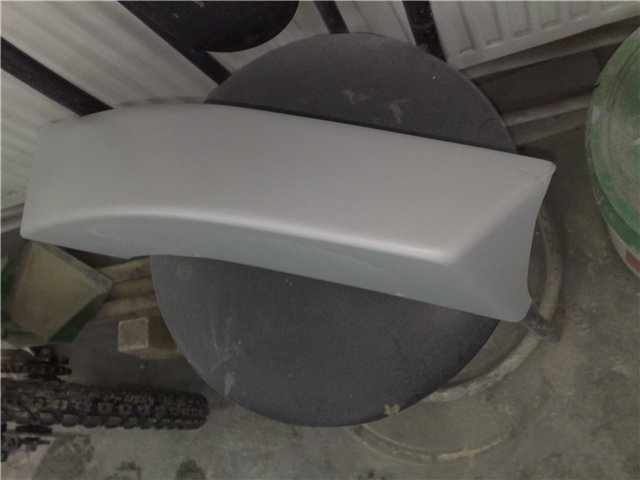

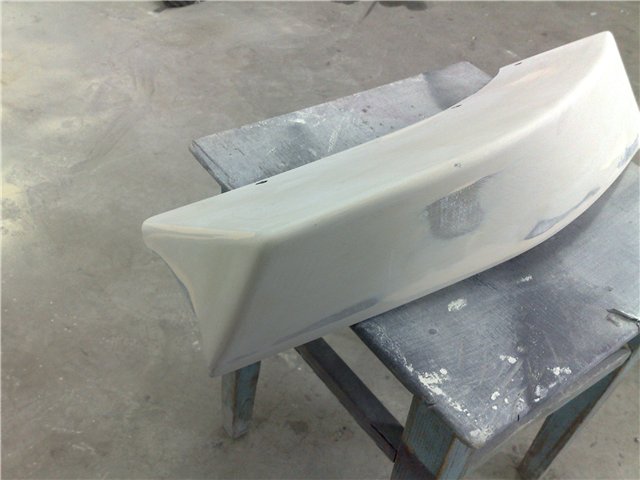

Location: Russia, Perm		Put the priming



(a2e25336f41c.jpg)



(dcc46e00021f.jpg)



Attachments
----------------
Attachments a2e25336f41c.jpg (38KB - 546 downloads)
Attachments dcc46e00021f.jpg (34KB - 522 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:18 (#13953 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

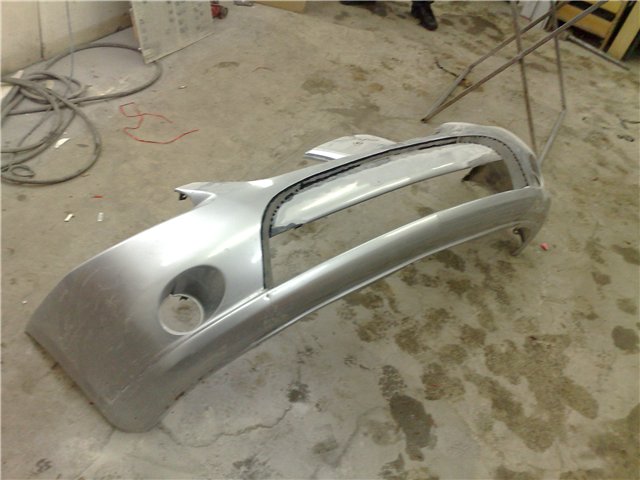

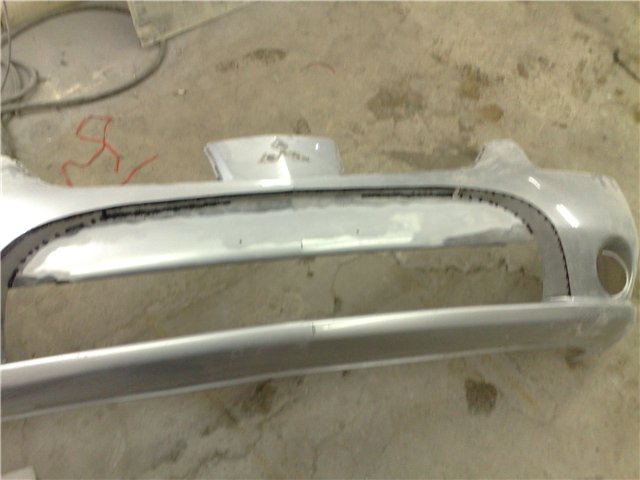

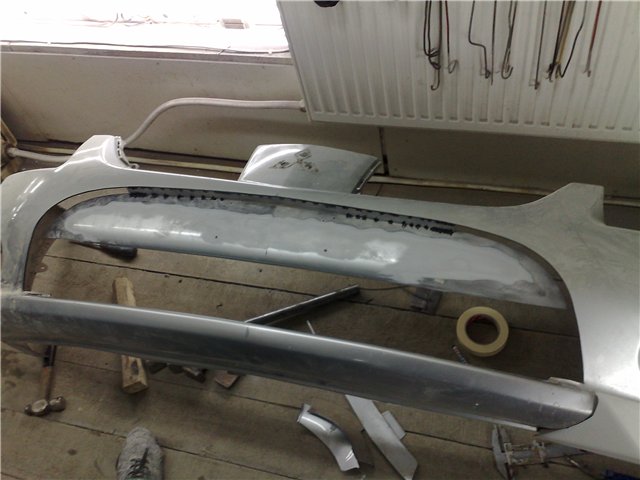

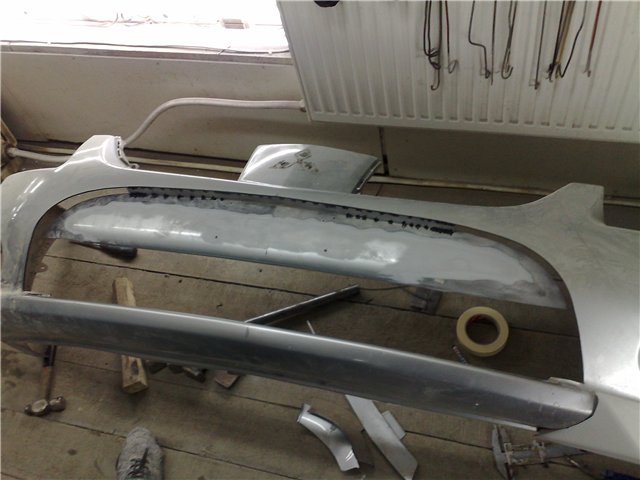

Location: Russia, Perm		Temporarily defer fangs. Now you must make the mouth of the bumper. First use of a soldering iron. The part that was cut off earlier, welded to the bumper.



(6cd91e69394c.jpg)



(b8862622c148.jpg)



(d15e0c829cae.jpg)



Attachments
----------------
Attachments 6cd91e69394c.jpg (51KB - 554 downloads)
Attachments b8862622c148.jpg (48KB - 563 downloads)
Attachments d15e0c829cae.jpg (39KB - 532 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:26 (#13954 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

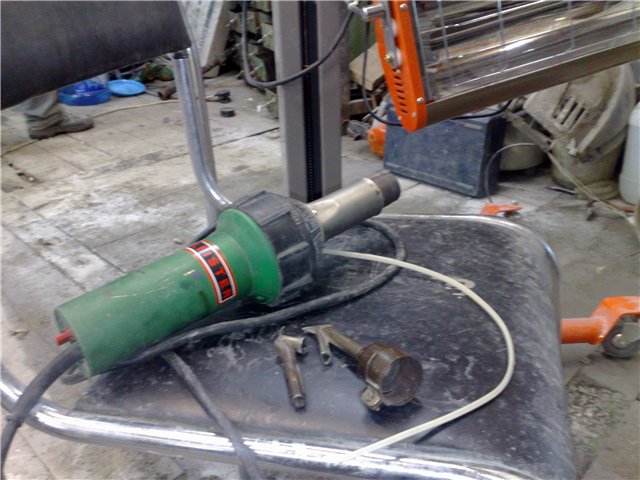

Location: Russia, Perm		Now need dryer.



(73cfb7b26c7e.jpg)



(0caba2af90a0.jpg)



(2cf46b4eddc7.jpg)



Attachments
----------------
Attachments 73cfb7b26c7e.jpg (66KB - 557 downloads)
Attachments 0caba2af90a0.jpg (55KB - 547 downloads)
Attachments 2cf46b4eddc7.jpg (59KB - 550 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:29 (#13955 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

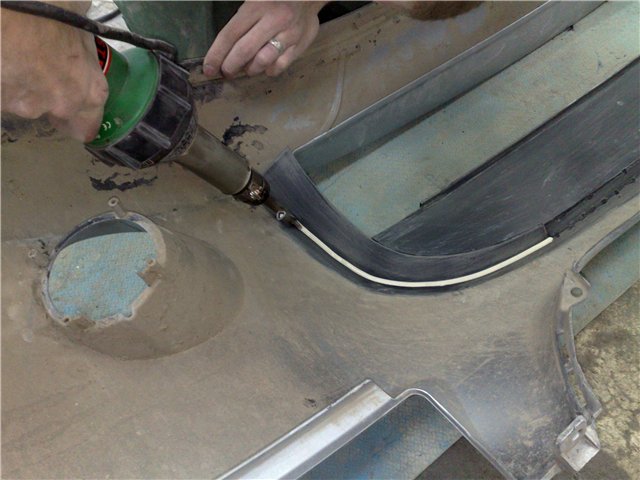

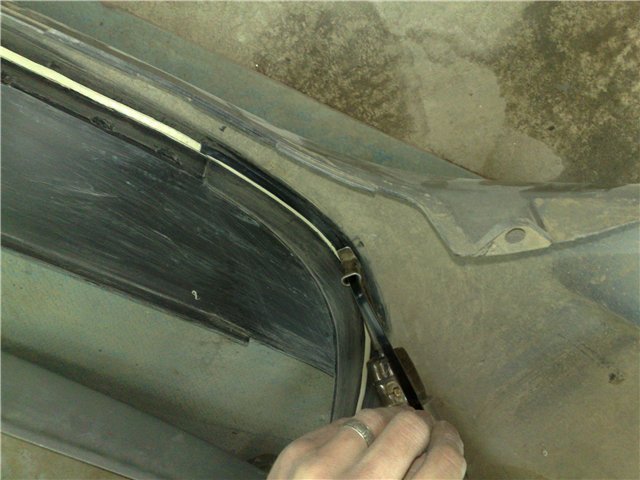

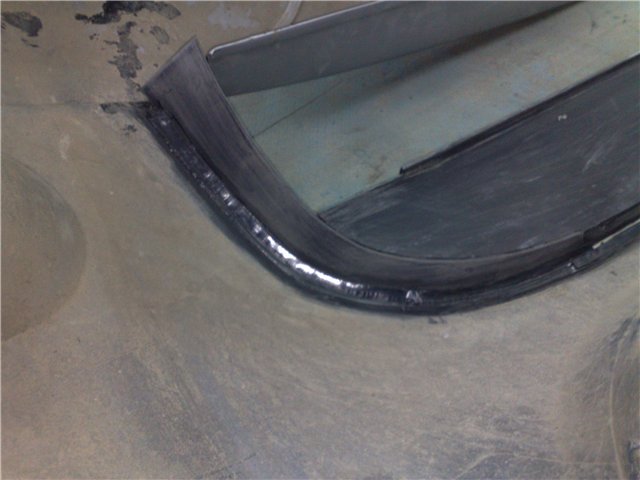

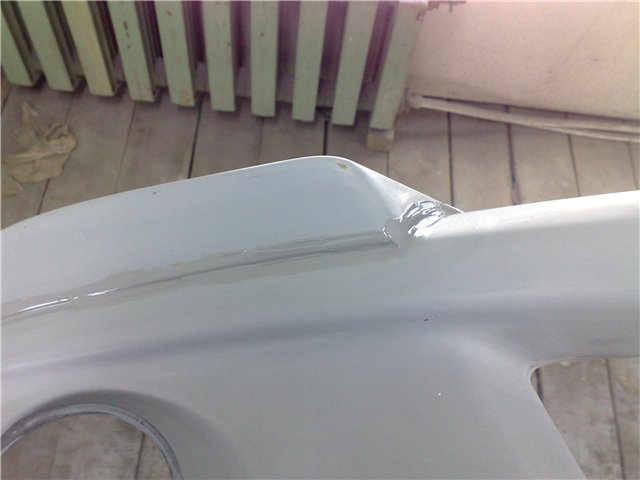

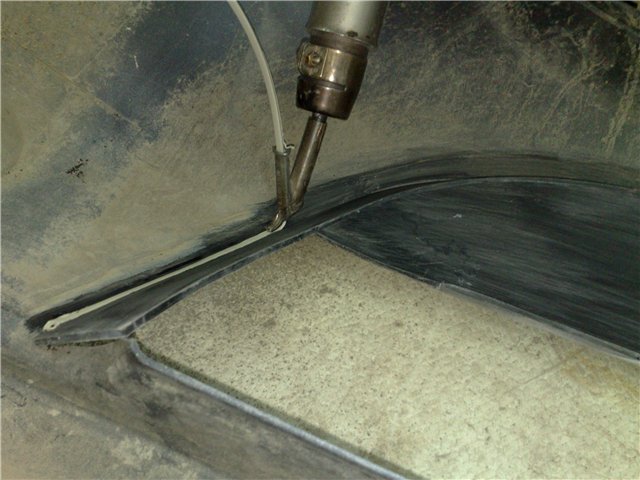

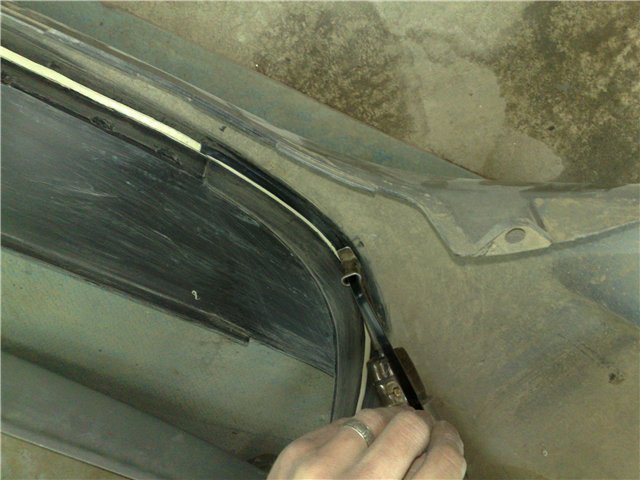

Location: Russia, Perm		On the inner side of the bumper written kind of polypropylene. You need to pick up the solder on the number. The welding seam to do with the two parties. It is a monolithic structure.



(3bb417168097.jpg)



(e4c9b7d43be2.jpg)



Attachments
----------------
Attachments 3bb417168097.jpg (56KB - 572 downloads)
Attachments e4c9b7d43be2.jpg (41KB - 536 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:31 (#13956 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

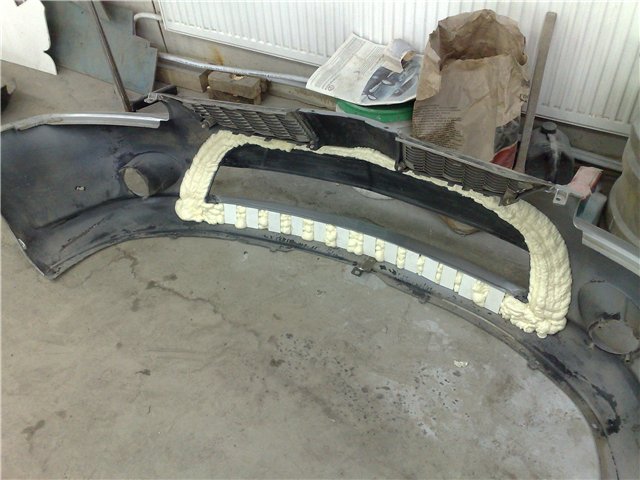

Location: Russia, Perm		Further it is necessary to strengthen the inner side of the bumper foam.



(a2b44581a81d.jpg)



Attachments
----------------
Attachments a2b44581a81d.jpg (61KB - 562 downloads)
Top of the page Bottom of the page
stayer
Posted 26/12/2011 18:35 (#13957 - in reply to #13938)
Subject: Re: The Exterior. Change of the bumper.



Frequent flyer Gold

Posts: 286
100100502555

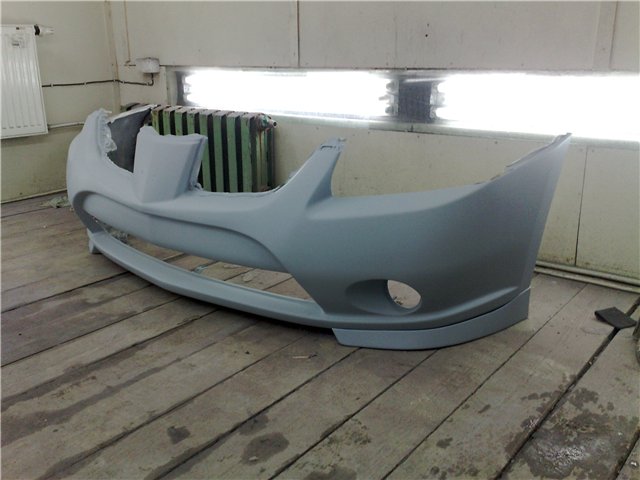

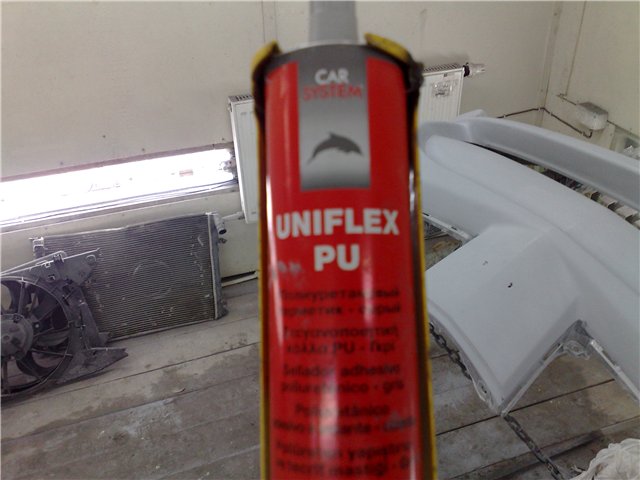

Location: Russia, Perm		Now you can paste the lips to the bumper



(d81668918e34.jpg)



(2ac645614cb7.jpg)



(32742548e32c.jpg)



Attachments
----------------
Attachments d81668918e34.jpg (46KB - 571 downloads)
Attachments 2ac645614cb7.jpg (46KB - 568 downloads)
Attachments 32742548e32c.jpg (34KB - 519 downloads)
Top of the page Bottom of the page
