380GTL series 3 - back from near death
Jump to page : 1 2 3
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Back from near deathMessage format

Administrator
Posted 29/12/2012 07:10 (#14684)
Subject: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Bought this little gem from the salvage auctions yesterday.

Undercarriage damage, dunno what they hit but it punctured both head lights...just missing the chassis rails...luckily!

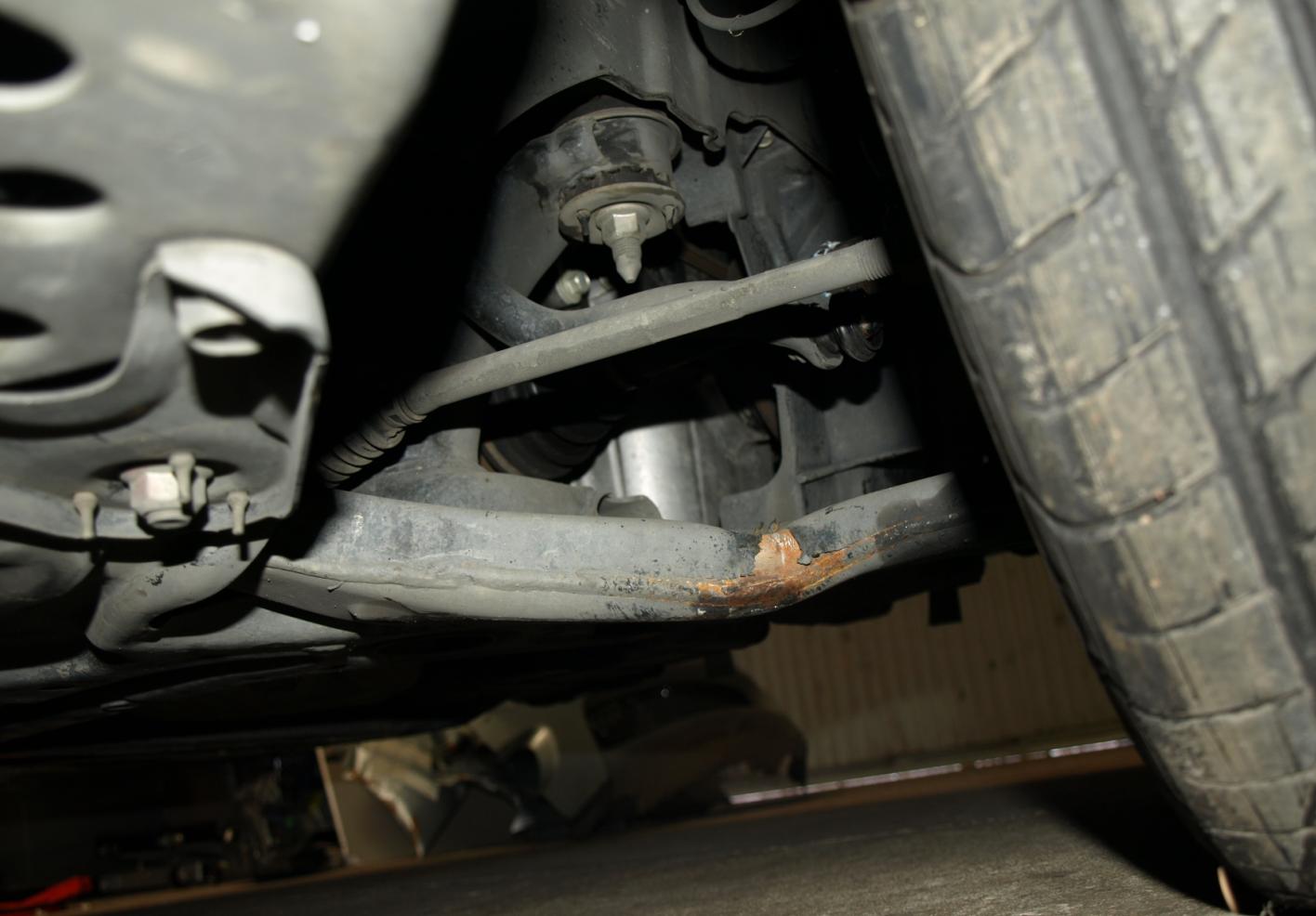

Both front wheels got pushed back bending the lower wishbone suspension arms....an easy replacement repair.

But...beautiful white/cream leather, sunroof...low mileage engine, full electric seats, bluetooth and 5 stacker CD player.

Embarassingly cheap.





(380GTL wreck4 front view.JPG)



(380GTL wreck4 front.JPG)



(380GTL wreck4 interior view.JPG)



(380GTL wreck4 smaller.JPG)



(380gtl both headlights smashed.JPG)



(380gtl wishbone bent.JPG)



Attachments
----------------
Attachments 380GTL wreck4 front view.JPG (54KB - 562 downloads)
Attachments 380GTL wreck4 front.JPG (149KB - 554 downloads)
Attachments 380GTL wreck4 interior view.JPG (44KB - 543 downloads)
Attachments 380GTL wreck4 smaller.JPG (83KB - 554 downloads)
Attachments 380gtl both headlights smashed.JPG (162KB - 518 downloads)
Attachments 380gtl wishbone bent.JPG (102KB - 574 downloads)
Top of the page Bottom of the page
Administrator
Posted 29/12/2012 18:41 (#14687 - in reply to #14684)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Compliance plate is dec 2007....VIN 31xxx made in the last few batches I would say.

she doesn't start...no 12v to fuel pump, just gotta figure where the fuel pump wiring goes to and from where...
Top of the page Bottom of the page
RM380
Posted 30/12/2012 15:59 (#14689 - in reply to #14684)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Bronze

Posts: 34
255
Location: South Australia		Hasn't the fuel pump got a cut off switch that is activated when the air bags are deployed. This is to stop fuel being pumped out after an accident.
There should be a reset switch for it.
Top of the page Bottom of the page
Administrator
Posted 31/12/2012 09:40 (#14690 - in reply to #14684)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Air bags weren't deployed in this one so I looked further by removing both guards.

Half an hour later with the soldering iron and heatshrink tube she started and runs smooth as silk.

The wiper washer area tends to foul the loom almost evry time on these, the loom goes from the drivers side dashboard fuse box-out the drivers side guard-round the front of the car to the ECU's and back in side the other guard to the passenger side dashboard.

A loop around the front it seems, probably so airbags work if loom gets cut?



(Wiring loom cut around washer bottle-fuel pump no go.JPG)



(wiring loom repaired-car started.JPG)

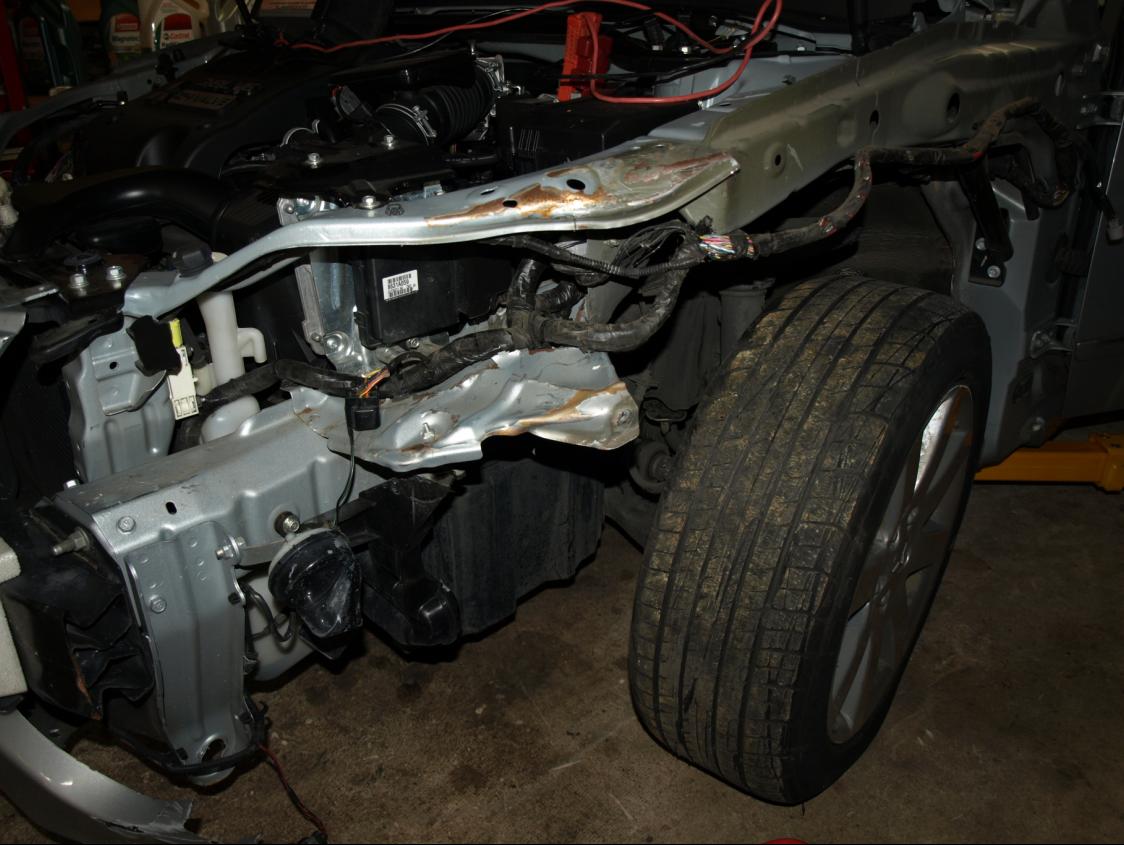

(passenger side guard removed.JPG)

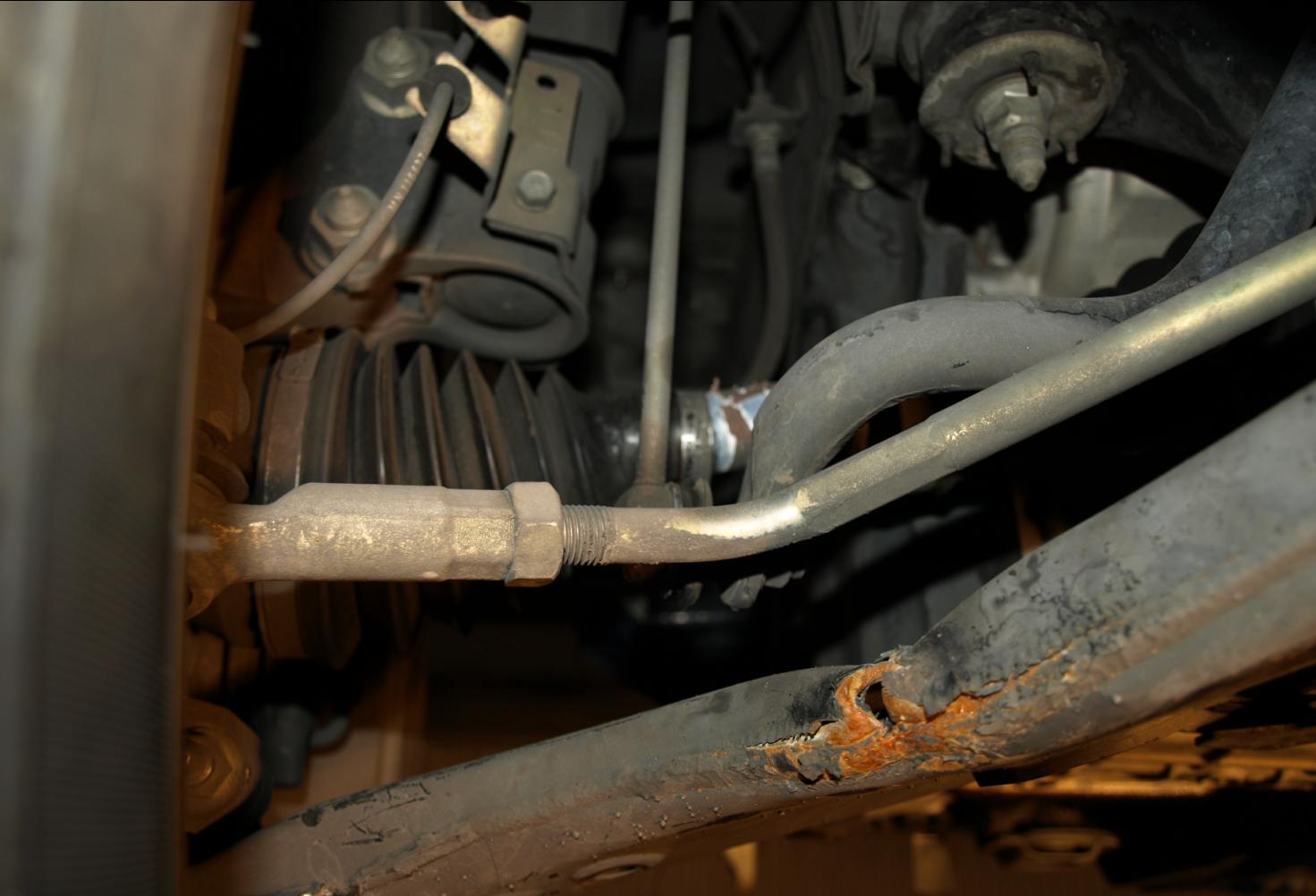

(380 gtl bent steering rod.JPG)



Attachments
----------------
Attachments Wiring loom cut around washer bottle-fuel pump no go.JPG (161KB - 552 downloads)
Attachments wiring loom repaired-car started.JPG (94KB - 580 downloads)
Attachments passenger side guard removed.JPG (112KB - 532 downloads)
Attachments 380 gtl bent steering rod.JPG (107KB - 547 downloads)
Top of the page Bottom of the page
Administrator
Posted 31/12/2012 09:44 (#14691 - in reply to #14684)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Luckily both chassis rails were missed in the collision...much easier to repair than mere wishbone arms.

rang around all the wreckers to get arms and Eddy's in Adelaide said just get new ones...about 90 bucks each...sounds good to me...
Top of the page Bottom of the page
Administrator
Posted 1/1/2013 09:21 (#14692 - in reply to #14684)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		Repaired wiring loom.



(loom repaired.JPG)



Attachments
----------------
Attachments loom repaired.JPG (157KB - 553 downloads)
Top of the page Bottom of the page
wsbtt
Posted 2/1/2013 00:24 (#14697 - in reply to #14692)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		what are your plans for this baby
Top of the page Bottom of the page
Administrator
Posted 2/1/2013 08:54 (#14700 - in reply to #14697)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.
wsbtt - 2/1/2013 00:24

what are your plans for this baby


will probably just give it away like the last one....as sillly as it sounds...
Top of the page Bottom of the page
wsbtt
Posted 4/1/2013 22:27 (#14709 - in reply to #14700)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Thats nice of you
Top of the page Bottom of the page
Administrator
Posted 7/1/2013 15:28 (#14719 - in reply to #14684)
Subject: Re: 380GTL series 3 - back from near death



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		a bunch of parts that i got today to be painted...





(all the new bits.JPG)



Attachments
----------------
Attachments all the new bits.JPG (223KB - 555 downloads)
Top of the page Bottom of the page
