Supercharger for 4G69 MIVEC (part 1)
Jump to page : 1 2 3
Now viewing page 2 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

stayer
Posted 22/12/2011 23:56 (#13895 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

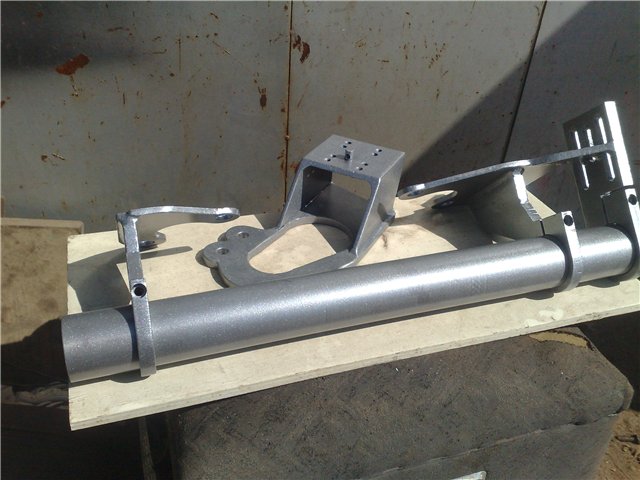

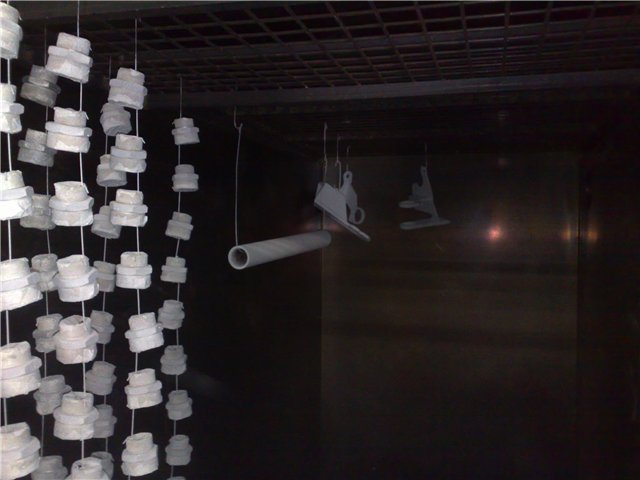

Location: Russia, Perm		After that how all the pieces falling into place, finally welding work. Stripping. And painting powder in a high-temperature chamber.

Edited by stayer 22/12/2011 23:58




(d00cfd7caa8b.jpg)



(525cd7d50111.jpg)



Attachments
----------------
Attachments d00cfd7caa8b.jpg (41KB - 809 downloads)
Attachments 525cd7d50111.jpg (57KB - 821 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:02 (#13896 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

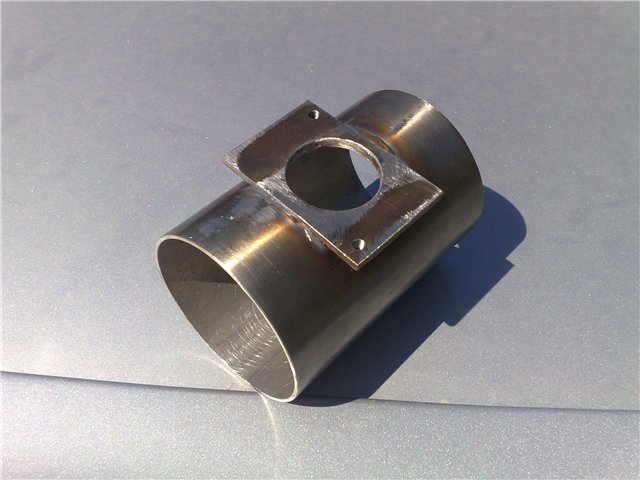

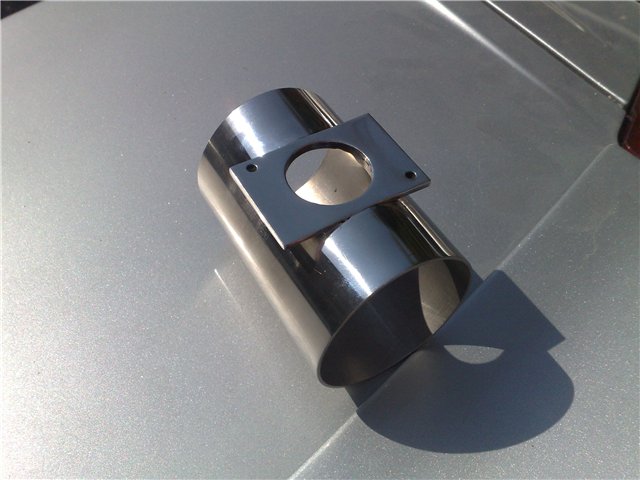

Location: Russia, Perm		The next step is installation of the sensors. For MAF sensor, produced a pipe. The first photo after manufacture, the second after polishing.



(fd4a75e82a54.jpg)



(2f7f403641e2.jpg)



Attachments
----------------
Attachments fd4a75e82a54.jpg (52KB - 835 downloads)
Attachments 2f7f403641e2.jpg (47KB - 842 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:07 (#13897 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

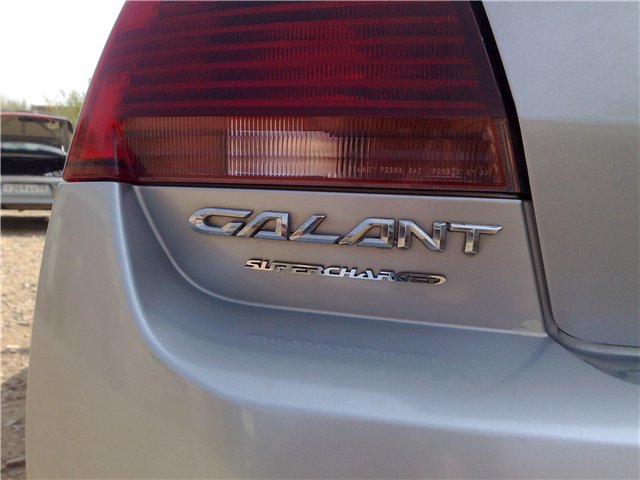

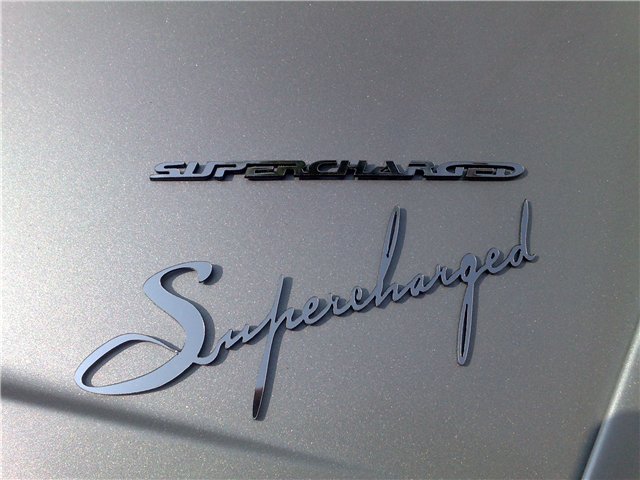

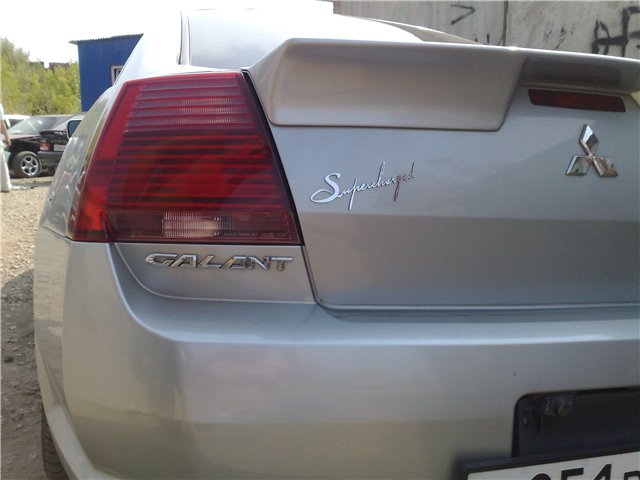

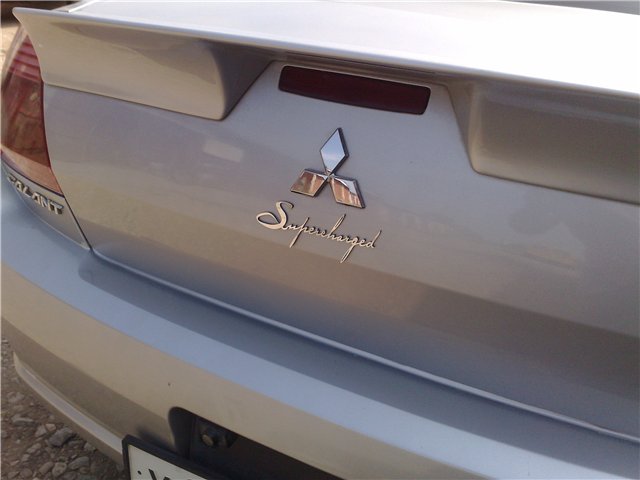

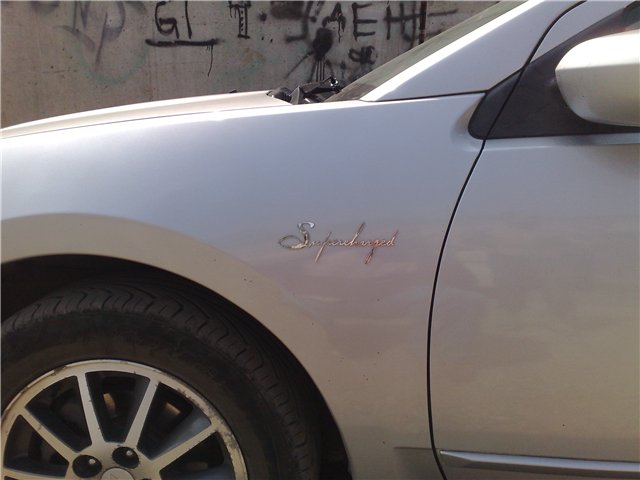

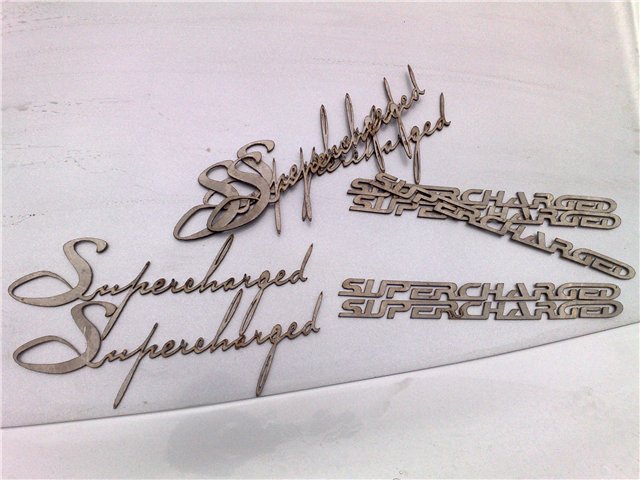

Location: Russia, Perm		In parallel with the installation of the compressor, i did inscriptions. My friend from the forum club 9g.ru (welcome) designer. He made computer inscriptions. Inscriptions liked me and i cut them with a laser. Here are some options for accommodation.



(bdfd2c25a392.jpg)



(e7203e136acf.jpg)



(2c87b9ee7125.jpg)



(04c7f0d28024.jpg)



(4cea8622cdae.jpg)



(d2ef6ab30b49.jpg)



(d9c3f9f4c7b0.jpg)



(fbc0d32eaf98.jpg)



Attachments
----------------
Attachments bdfd2c25a392.jpg (23KB - 872 downloads)
Attachments e7203e136acf.jpg (24KB - 838 downloads)
Attachments 2c87b9ee7125.jpg (59KB - 820 downloads)
Attachments 04c7f0d28024.jpg (57KB - 812 downloads)
Attachments 4cea8622cdae.jpg (41KB - 833 downloads)
Attachments d2ef6ab30b49.jpg (40KB - 825 downloads)
Attachments d9c3f9f4c7b0.jpg (34KB - 819 downloads)
Attachments fbc0d32eaf98.jpg (39KB - 840 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:13 (#13898 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

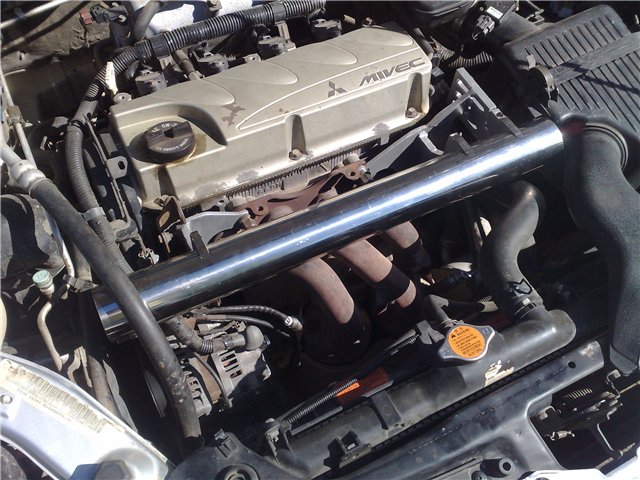

Location: Russia, Perm		Later I closed the shaft of the pipe made of polished steel.



(a8cd5faa7b4e.jpg)



Attachments
----------------
Attachments a8cd5faa7b4e.jpg (86KB - 1100 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:20 (#13899 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

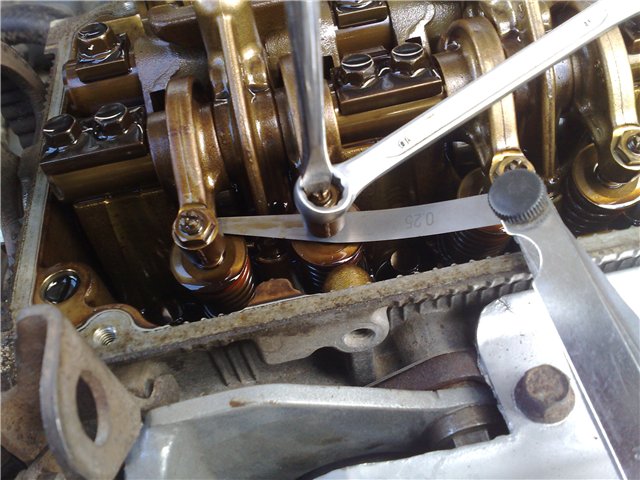

Location: Russia, Perm		Then I started to do the valve cover. In the engine 4G69 MIVEC no hydraulic compensators valve clearance. So, when I removed the valve cover I increased the clearance in the valve at the 0.05 mm



(8670a9902a97.jpg)



Attachments
----------------
Attachments 8670a9902a97.jpg (74KB - 828 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:25 (#13900 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

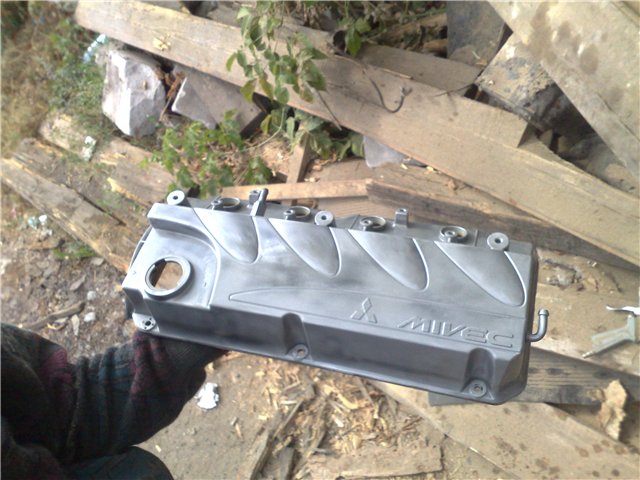

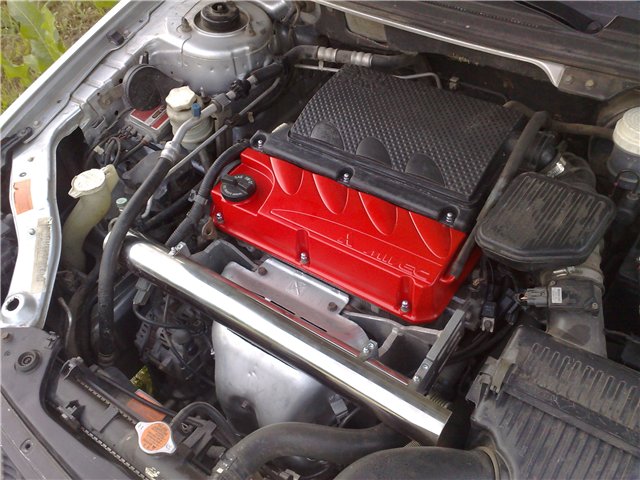

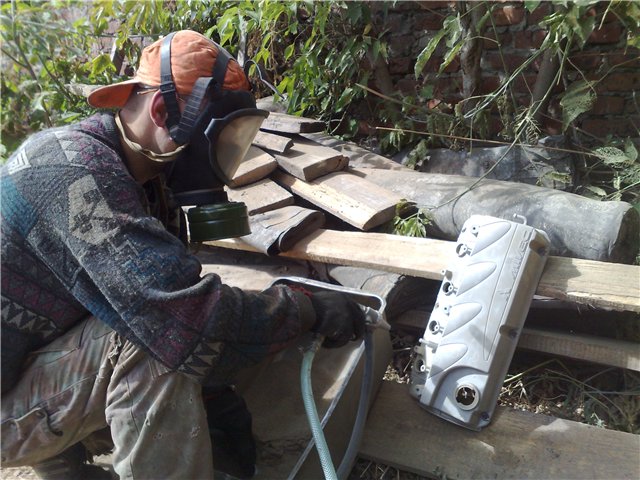

Location: Russia, Perm		The cover of the processed with the help of the sand car. Coloring powder paint. And so began to look the engine.



(9275d3e02f90.jpg)



(6ed4ba369c5c.jpg)



(ef816dc09bff.jpg)



(6955273d42bb.jpg)



Attachments
----------------
Attachments 9275d3e02f90.jpg (87KB - 833 downloads)
Attachments 6ed4ba369c5c.jpg (70KB - 918 downloads)
Attachments ef816dc09bff.jpg (42KB - 822 downloads)
Attachments 6955273d42bb.jpg (79KB - 1076 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:29 (#13901 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

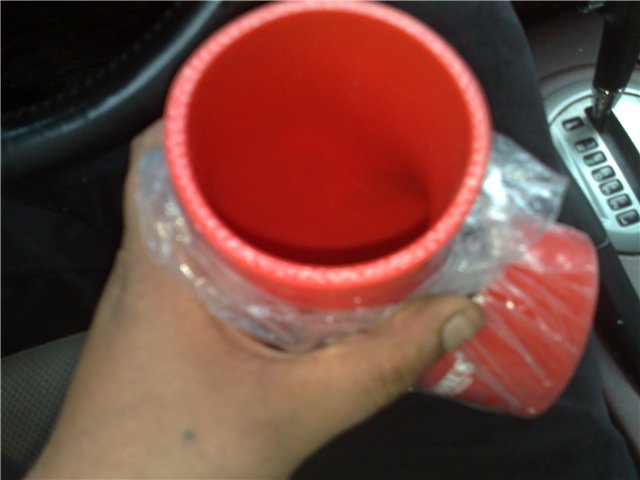

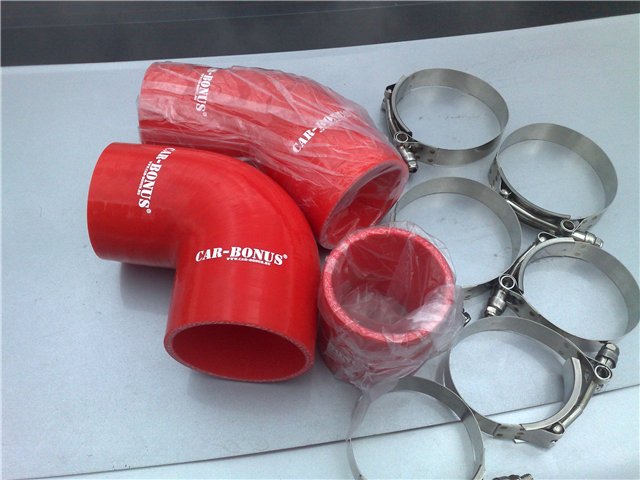

Location: Russia, Perm		For the connection of pipes. I ordered in Europe silicone tubes.



(01cdf89a2479.jpg)



(13e5e609ee1d.jpg)



Attachments
----------------
Attachments 01cdf89a2479.jpg (34KB - 862 downloads)
Attachments 13e5e609ee1d.jpg (54KB - 868 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:32 (#13902 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

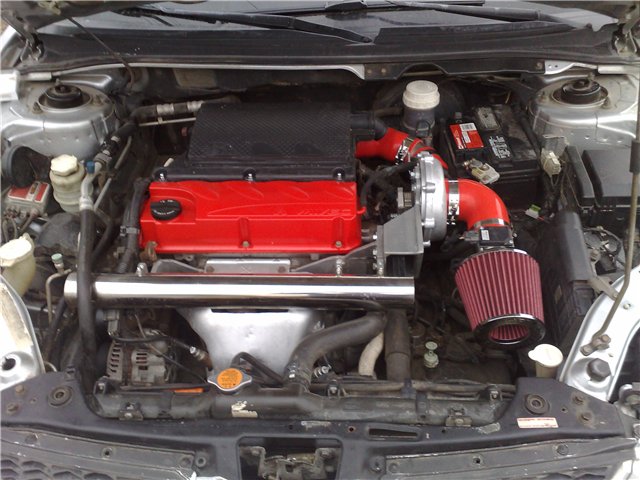

Location: Russia, Perm		The last step. I'm all gathered. And started the engine. Oh, God, how I love that sound!!!!!!!!



(a93f923935ee.jpg)



Attachments
----------------
Attachments a93f923935ee.jpg (72KB - 1532 downloads)
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:34 (#13903 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		The first start. The black lines on the pavement. Acceleration 0-60 mph 5,8 seconds. What i have power? Power i designed before the installation of the compressor. An increase can be considered by the formula: Р(ек)=Р(е)х(Р(ка) : Р(0)) , where P(ek) - increase capacity, P(e) - original power, P(ka) - boost pressure, P (0) - atmospheric pressure. So 4G69 - 160 hp. Boost pressure - 10,15 PSI. Atmospheric pressure - 14,5 PSI. Enter values in the formula. 160 x (10.15 : 14.5) = 112 Such an increase will boost 10,15 PSI. This will give if there is no loss on the belt drive, for example turbo. Therefore enter loss coefficient K(lf). He is 10 - 11%. 160 + 112 -10% = 244.8 hp
Top of the page Bottom of the page
stayer
Posted 23/12/2011 00:35 (#13904 - in reply to #13885)
Subject: Re: Supercharger for 4G69 MIVEC (part 1)



Frequent flyer Gold

Posts: 286
100100502555

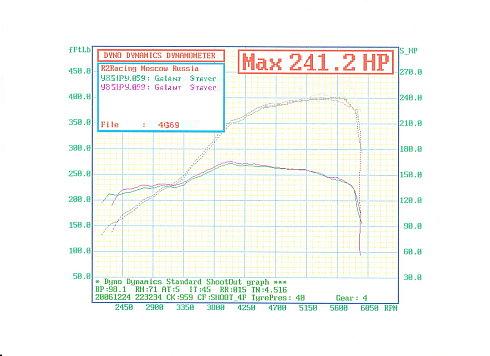

Location: Russia, Perm		I went to dino. AND this is what he showed. This confirms my calculations.



(47569a372eaf.jpg)



Attachments
----------------
Attachments 47569a372eaf.jpg (24KB - 832 downloads)
Top of the page Bottom of the page
