Ventilation hood.
Jump to page : 1 2
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

stayer
Posted 6/10/2014 19:22 (#16188)
Subject: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Hi all!
After I installed the turbo, I wanted to make a ventilation hood. Firstly, it will improve the blowing of the main radiator. And secondly, it will highlight the look of the car.
However, I do not advocate extreme tuning. I saw how it was done John for his 380. But I like how it is carried out for the EVO X. And I wanted to do the same.

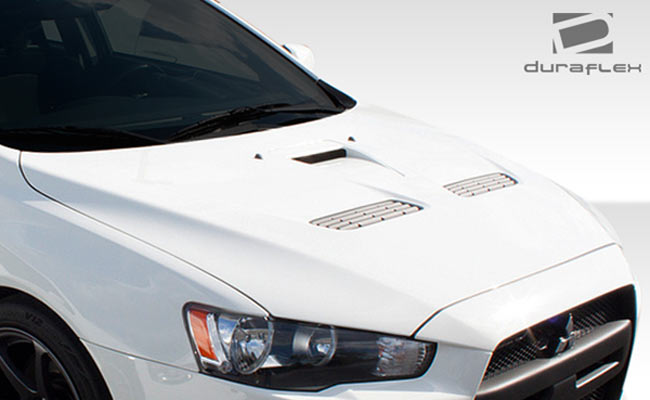

Ventilation hood for the EVO X consists of 3 parts. This two grids and one big nostril. I decided to do only the lattice.




("""""""""" ²Ð.jpg)



Attachments
----------------
Attachments """""""""" ²Ð.jpg (32KB - 627 downloads)
Top of the page Bottom of the page
stayer
Posted 6/10/2014 19:25 (#16189 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555

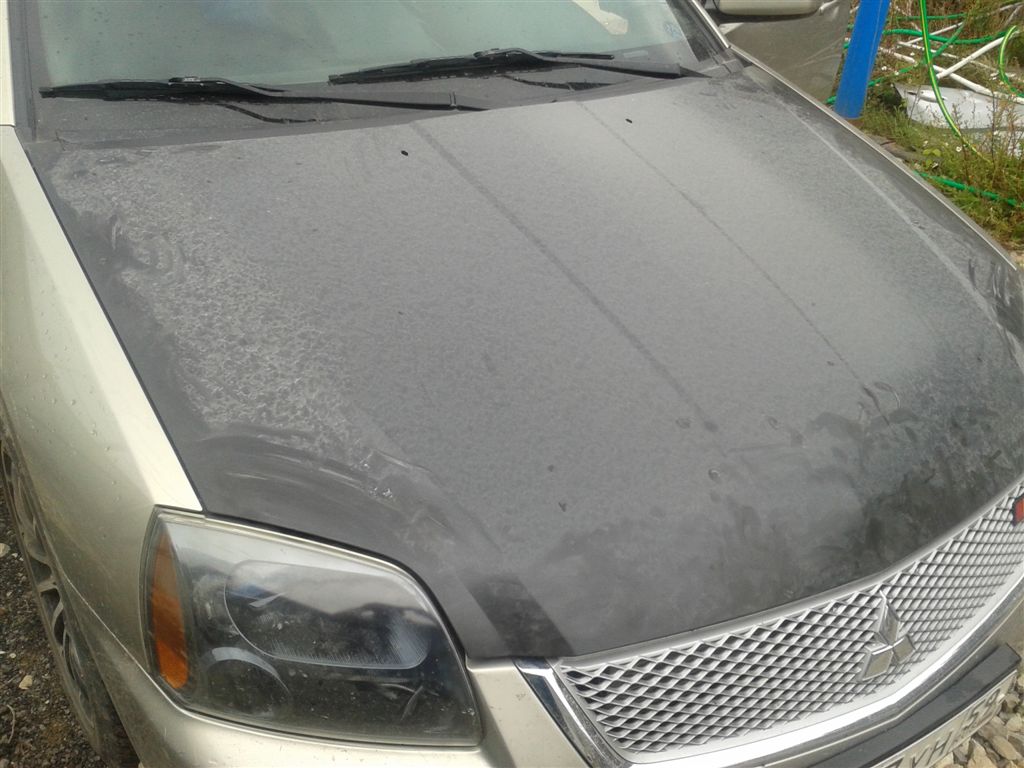

Location: Russia, Perm		I bought the hood. Checked the clearances. You can continue.



(20140828_170829.jpg)



Attachments
----------------
Attachments 20140828_170829.jpg (129KB - 593 downloads)
Top of the page Bottom of the page
stayer
Posted 6/10/2014 19:33 (#16190 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555

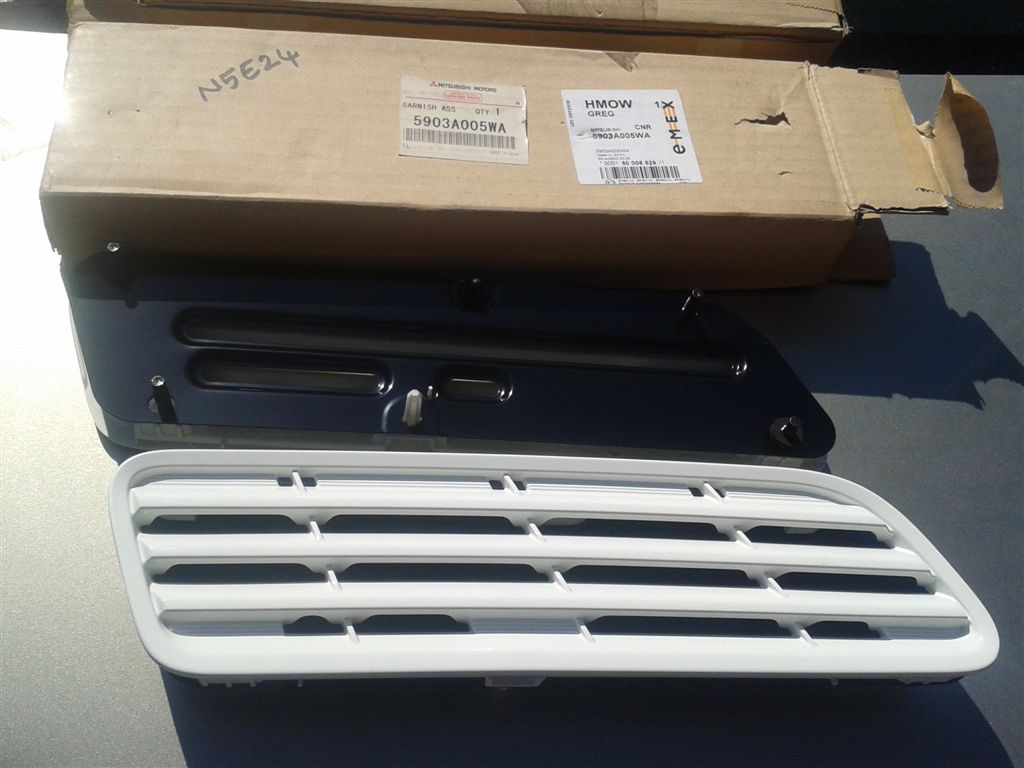

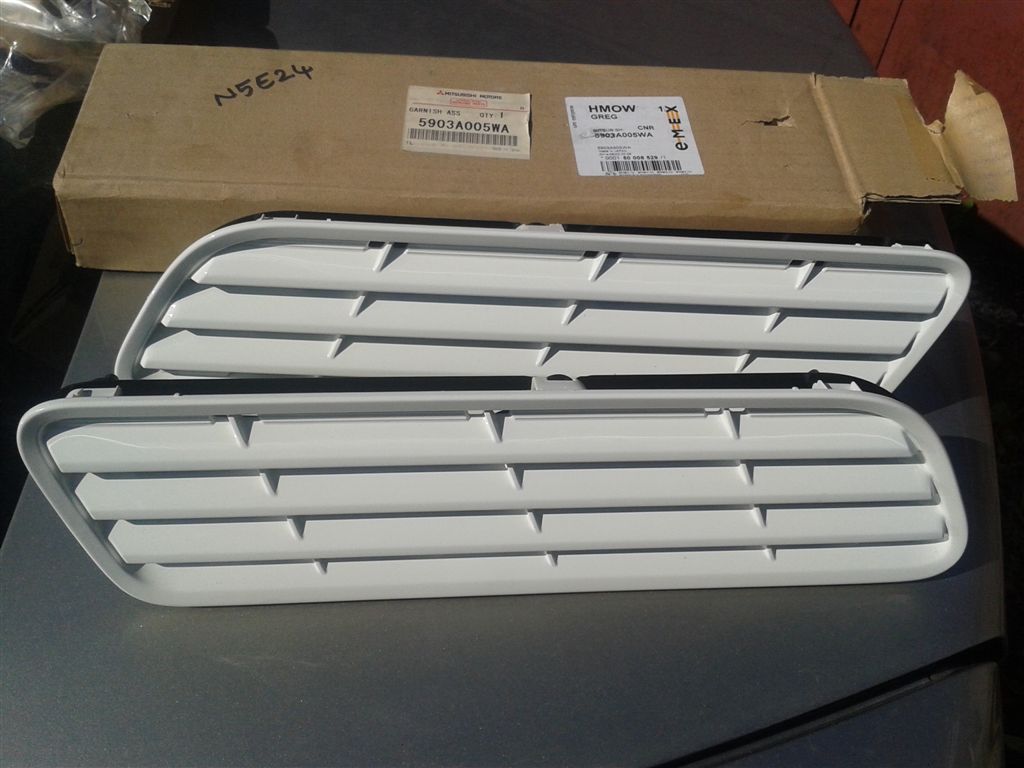

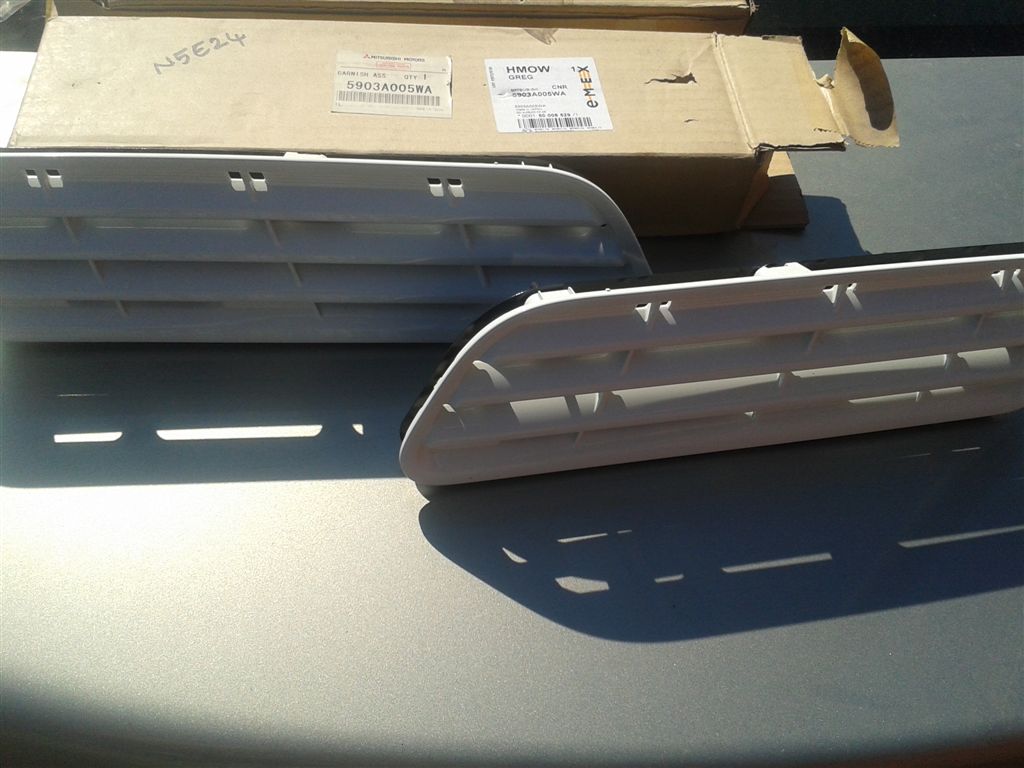

Location: Russia, Perm		I also bought a lattice EVO X.



(20140821_161247.jpg)



(20140821_161309.jpg)



(20140821_161331.jpg)



Attachments
----------------
Attachments 20140821_161247.jpg (100KB - 607 downloads)
Attachments 20140821_161309.jpg (105KB - 642 downloads)
Attachments 20140821_161331.jpg (103KB - 638 downloads)
Top of the page Bottom of the page
stayer
Posted 6/10/2014 19:43 (#16191 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555

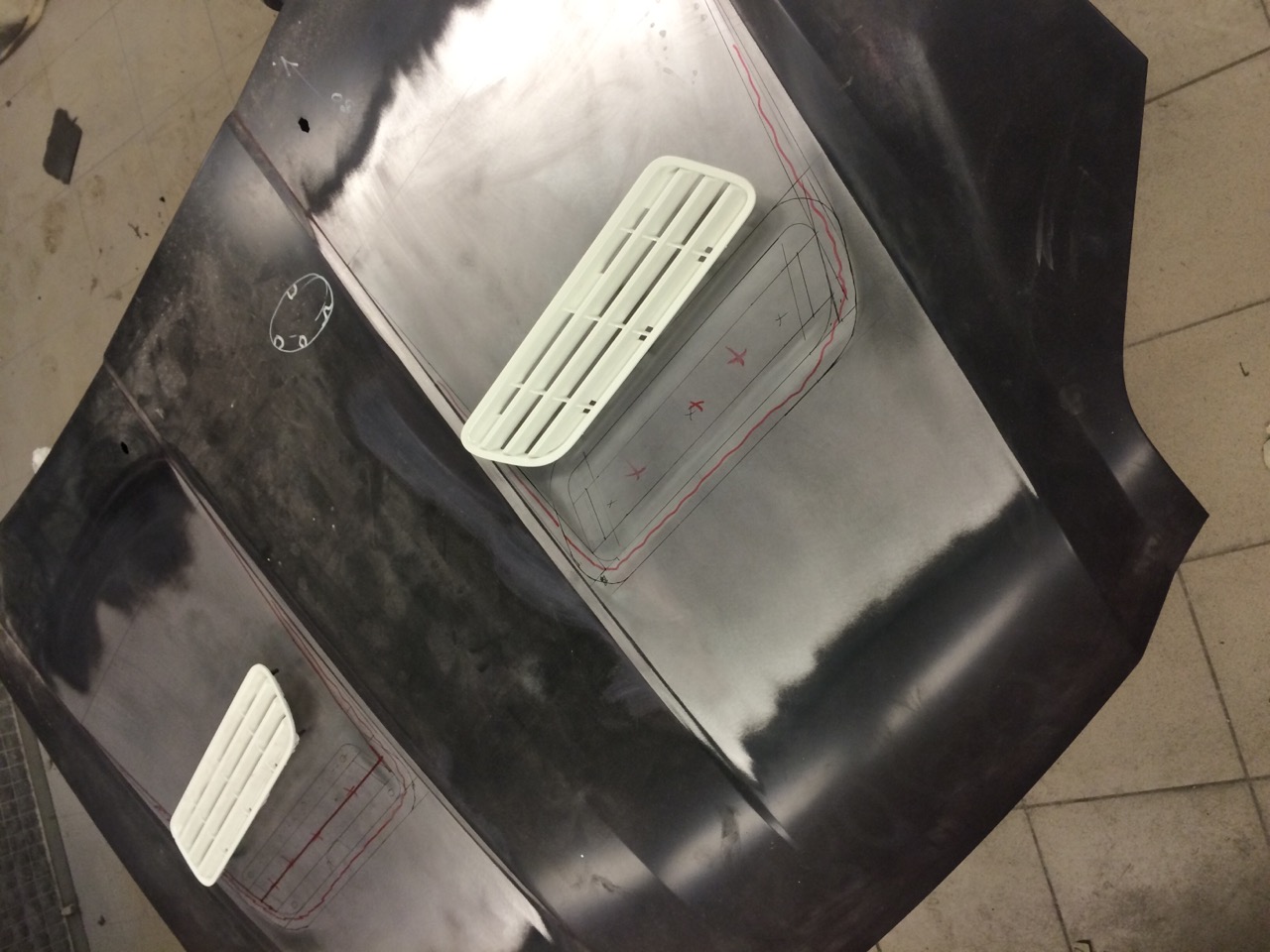

Location: Russia, Perm		So, proceed. First you have to apply the markup.



(image-de10581b6e006a8490f10e0f4ba6cb5cf0a105500e8c49e55c1f6e54ed0e995b-V.jpg)



Attachments
----------------
Attachments image-de10581b6e006a8490f10e0f4ba6cb5cf0a105500e8c49e55c1f6e54ed0e995b-V.jpg (211KB - 642 downloads)
Top of the page Bottom of the page
stayer
Posted 6/10/2014 19:59 (#16192 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555

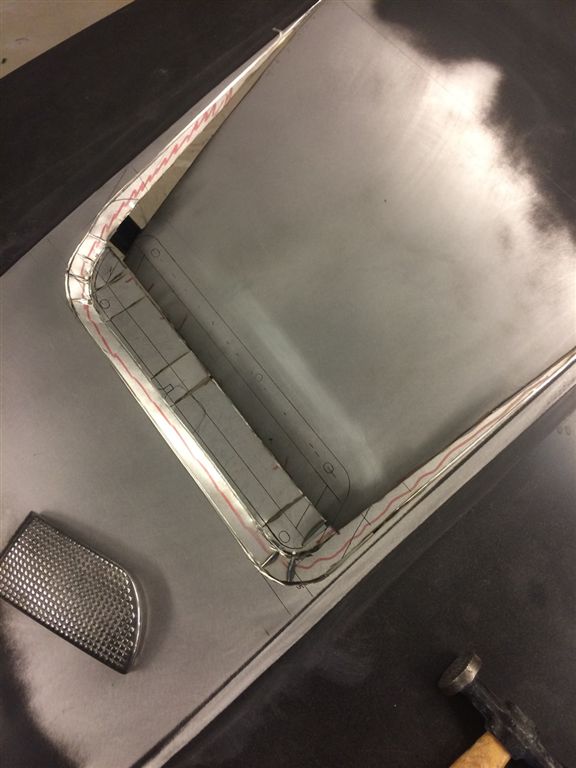

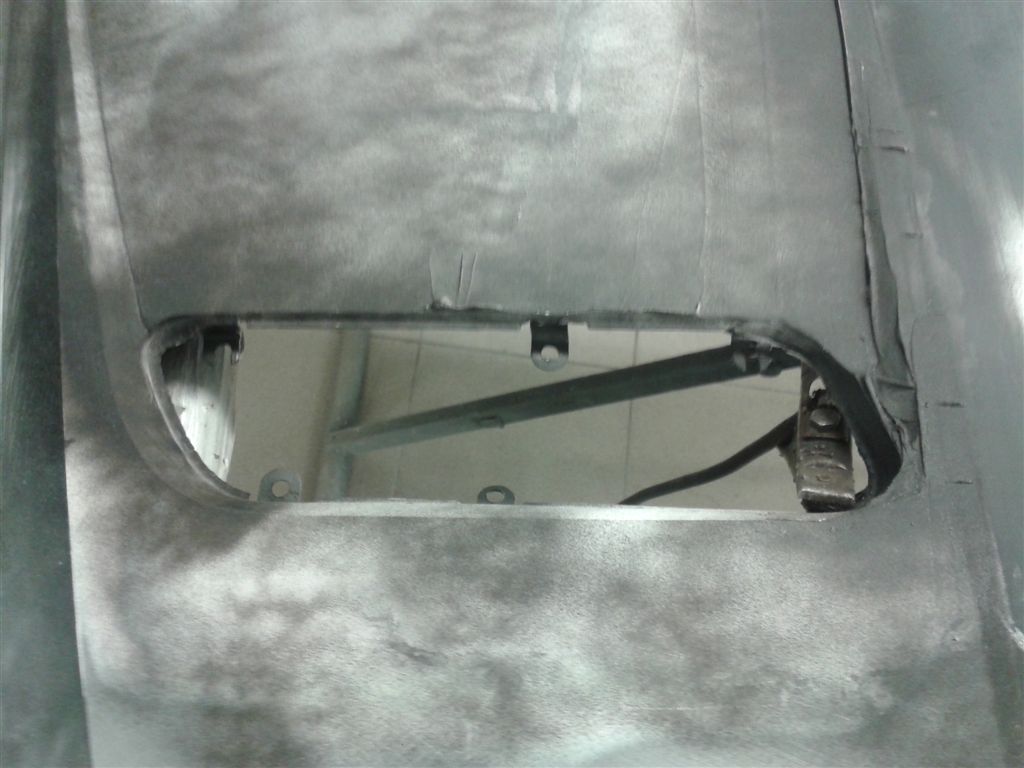

Location: Russia, Perm		Then begin to cut.



(image-859d56692a888c1890aaa41750b6e583644e76de6c1c2a437919467e3eba18c5-V.jpg)



Attachments
----------------
Attachments image-859d56692a888c1890aaa41750b6e583644e76de6c1c2a437919467e3eba18c5-V.jpg (54KB - 615 downloads)
Top of the page Bottom of the page
stayer
Posted 6/10/2014 20:08 (#16193 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555

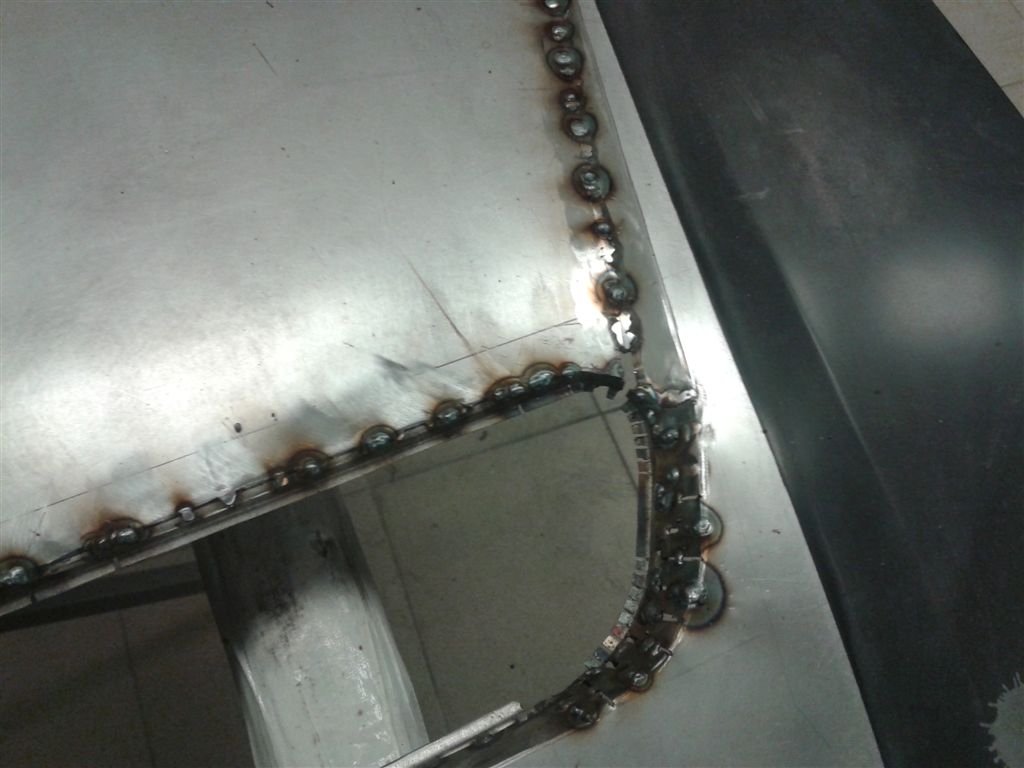

Location: Russia, Perm		The metal is very thin. Welding should be carried out very carefully.



(image-d32a9cff57ed6f5d2d85180c5ecb0c27a735d240b8e6717e02988dc8b64a3a87-V.jpg)



Attachments
----------------
Attachments image-d32a9cff57ed6f5d2d85180c5ecb0c27a735d240b8e6717e02988dc8b64a3a87-V.jpg (85KB - 625 downloads)
Top of the page Bottom of the page
stayer
Posted 6/10/2014 20:11 (#16194 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		While that's all. I think I will finish before the end of the week. To be continued.
Top of the page Bottom of the page
Administrator
Posted 14/10/2014 17:00 (#16196 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		That looks great Stayer.

I wanted to do the same but it would have cost much more money and at the time I had a supercharger at the rear.

If I was doing it new I would do your choice for sure.
Top of the page Bottom of the page
stayer
Posted 14/10/2014 19:04 (#16197 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 286
100100502555

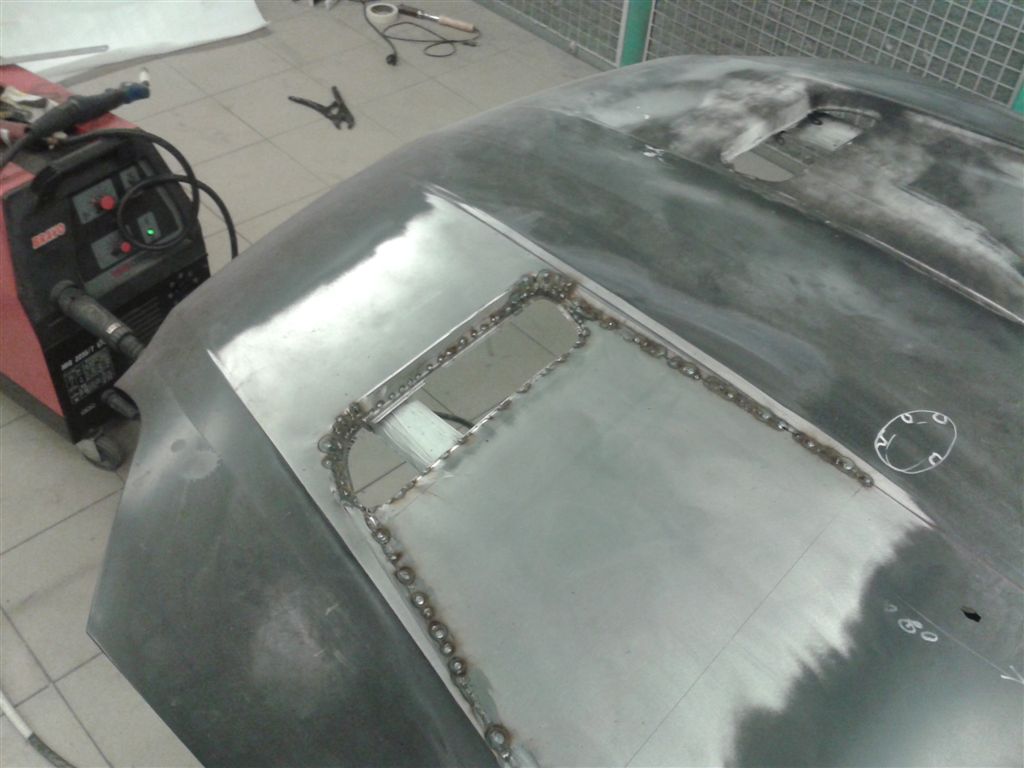

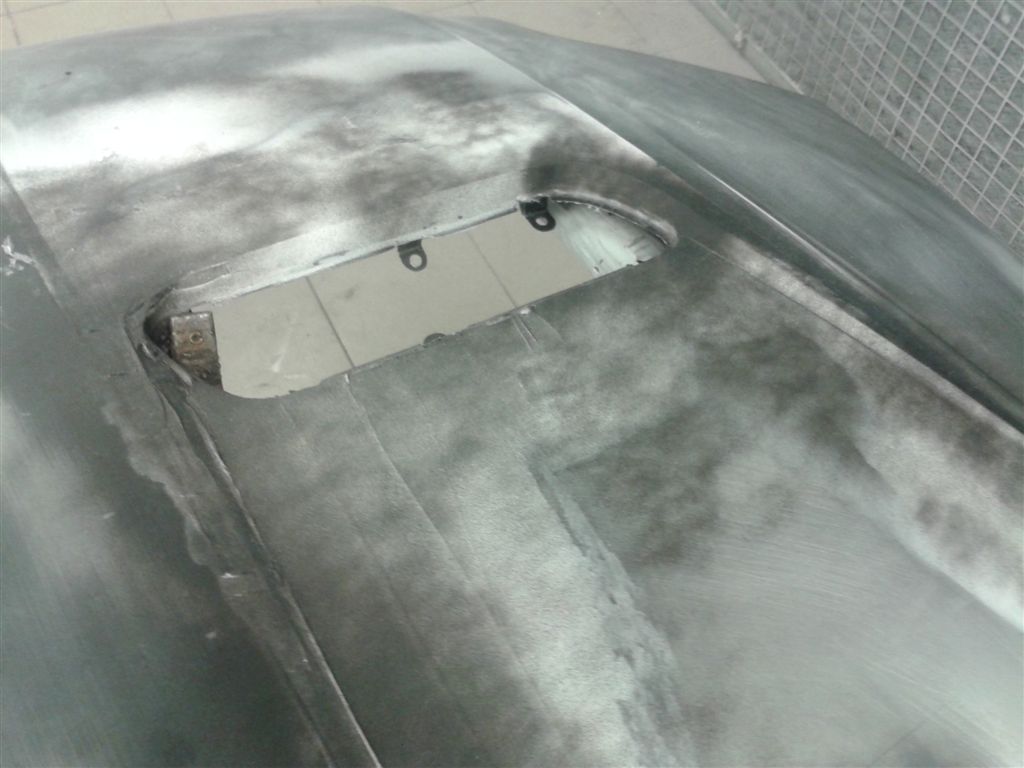

Location: Russia, Perm		Unfortunately there is no enough free time. The project is moving very slowly. Here are some more photos.



(20141013_153223.jpg)



(20141013_153253.jpg)



(20141013_153207.jpg)



(20141013_153244.jpg)



Attachments
----------------
Attachments 20141013_153223.jpg (87KB - 624 downloads)
Attachments 20141013_153253.jpg (92KB - 607 downloads)
Attachments 20141013_153207.jpg (96KB - 621 downloads)
Attachments 20141013_153244.jpg (95KB - 619 downloads)
Top of the page Bottom of the page
Administrator
Posted 16/10/2014 22:56 (#16198 - in reply to #16188)
Subject: Re: Ventilation hood.



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		That looks like a big...big...job.
Top of the page Bottom of the page
