 Stayer. AUX connection, iPod, ipad, iphone, and other equipment.Jump to page : 1 2 Now viewing page 1 [10 messages per page] | View previous thread :: View next thread |
| 380 Projects section -> Stayer's projects | Message format |
stayer |
| ||

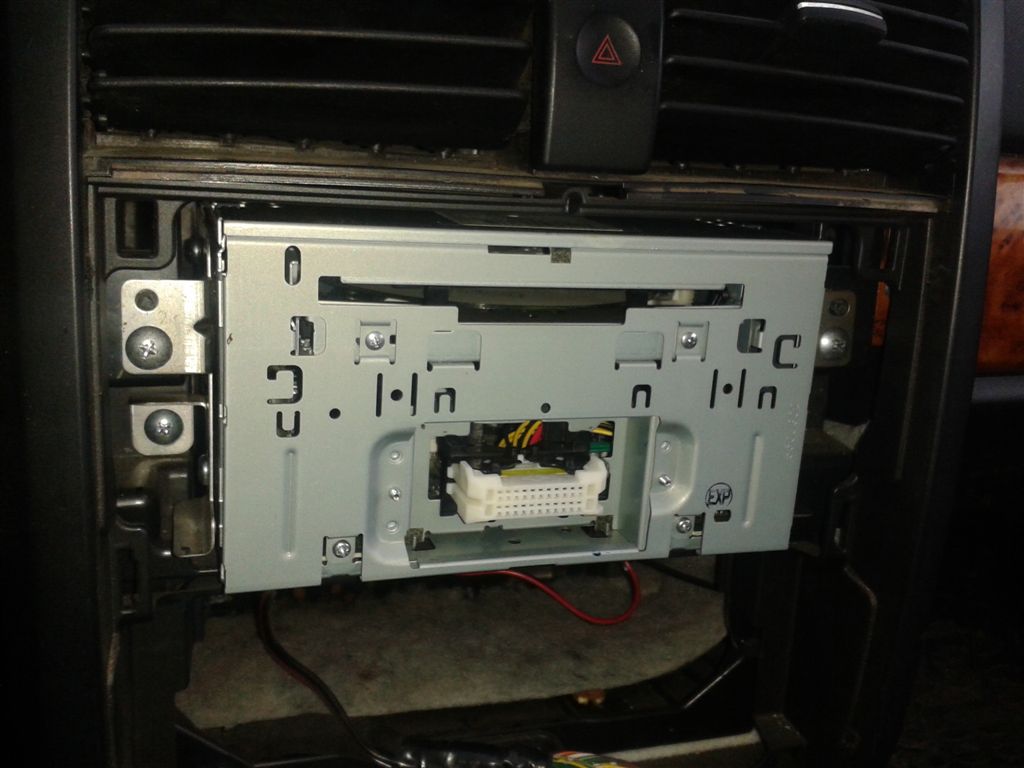

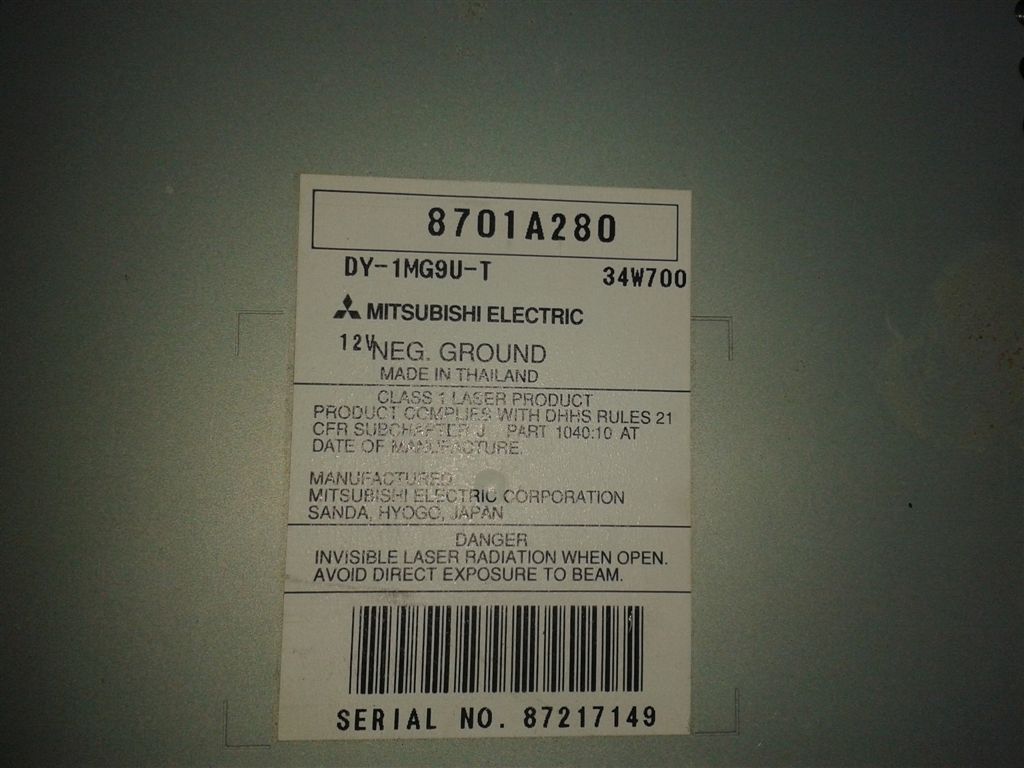

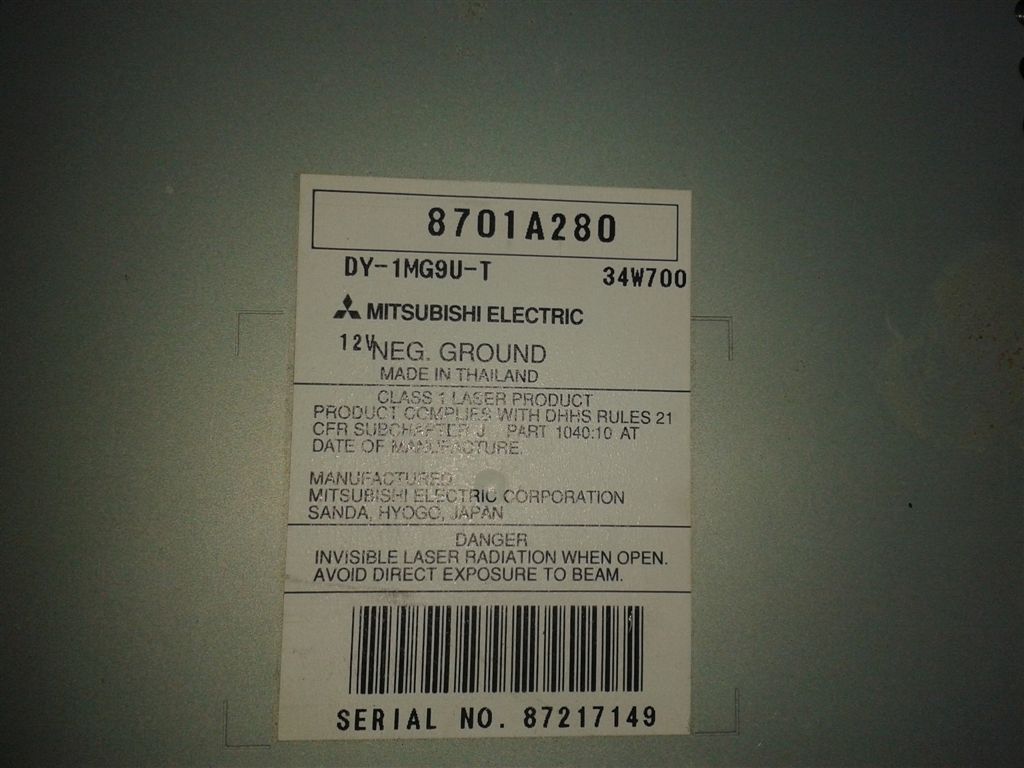

 Frequent flyer Gold Posts: 286    Location: Russia, Perm | Hi people! Set myself the task connect the standard receiver various equipment. I deleted the unit from the car. Disassembled and studied circuitry. The results are not comforting. In this unit, you cannot connect to the AUX. That which is given to the image of the "AUX" on the monitor, it is formed in the front panel. The front panel is the same for all units 9G Galant and 380. The only difference for the left and right steering, they are mirrored. Here is my unit However, not all so is bad. There is a way to connect, I want to tell you how I did it. (20140210_164050.jpg) Attachments ----------------  20140210_164050.jpg (106KB - 553 downloads) | ||
| |||
| stayer |
| ||

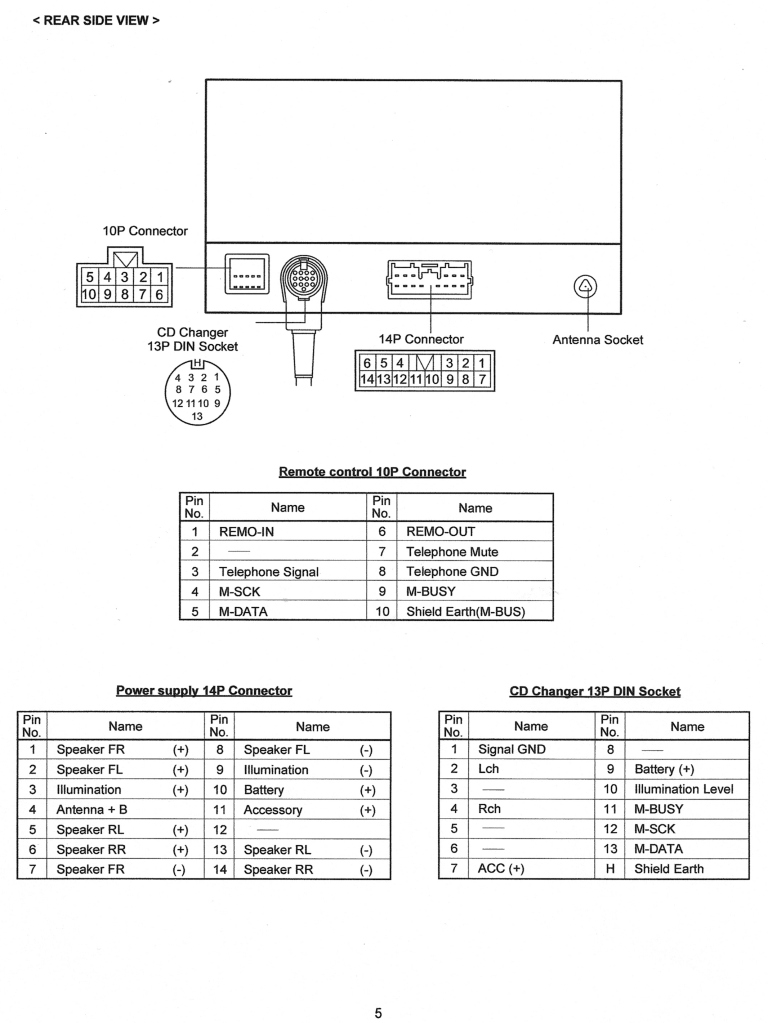

Frequent flyer Gold Posts: 286 Location: Russia, Perm | My and your receiver has the back side. ("""""""""".jpg) Attachments ---------------- """""""""".jpg (202KB - 551 downloads) | ||
| |||
| stayer |
| ||

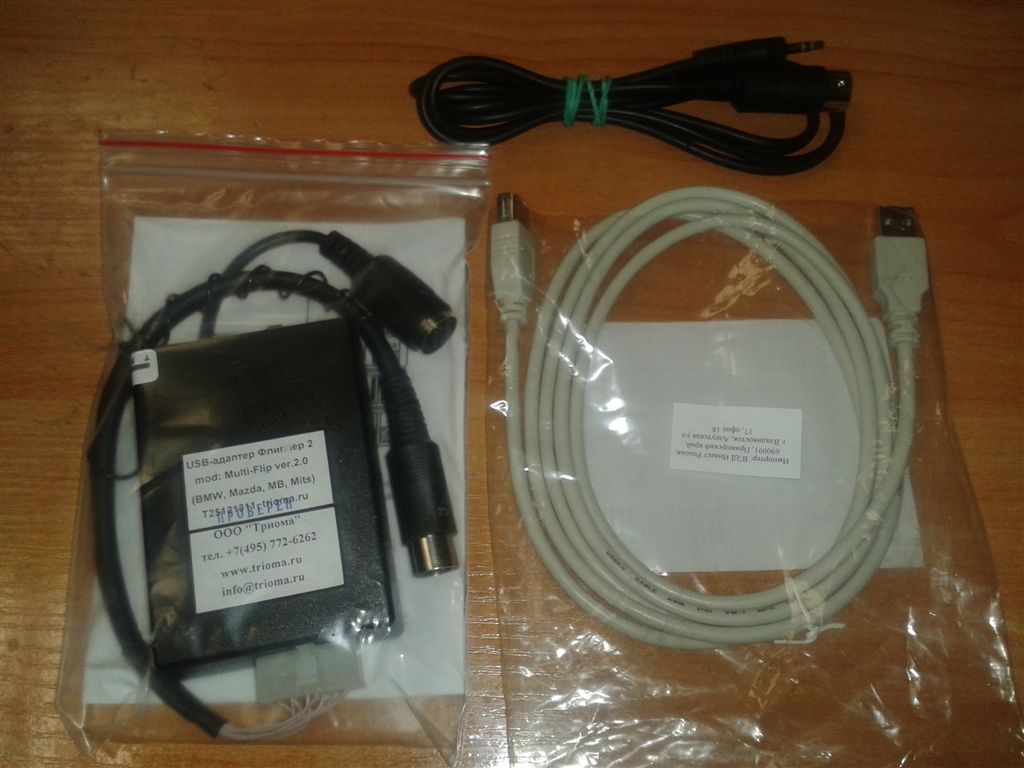

Frequent flyer Gold Posts: 286 Location: Russia, Perm | The device has an output for the CD changer. Accordingly unit can be fooled. He thinks that we have connected a regular CD changer. Russia has an engineering company that develops emulators signals CD changers. I bought this device. This MultyFlip ver2.0 (20140210_134536.jpg) Attachments ---------------- 20140210_134536.jpg (105KB - 559 downloads) | ||
| |||
| stayer |
| ||
Frequent flyer Gold Posts: 286 Location: Russia, Perm | |||
| |||
| stayer |
| ||

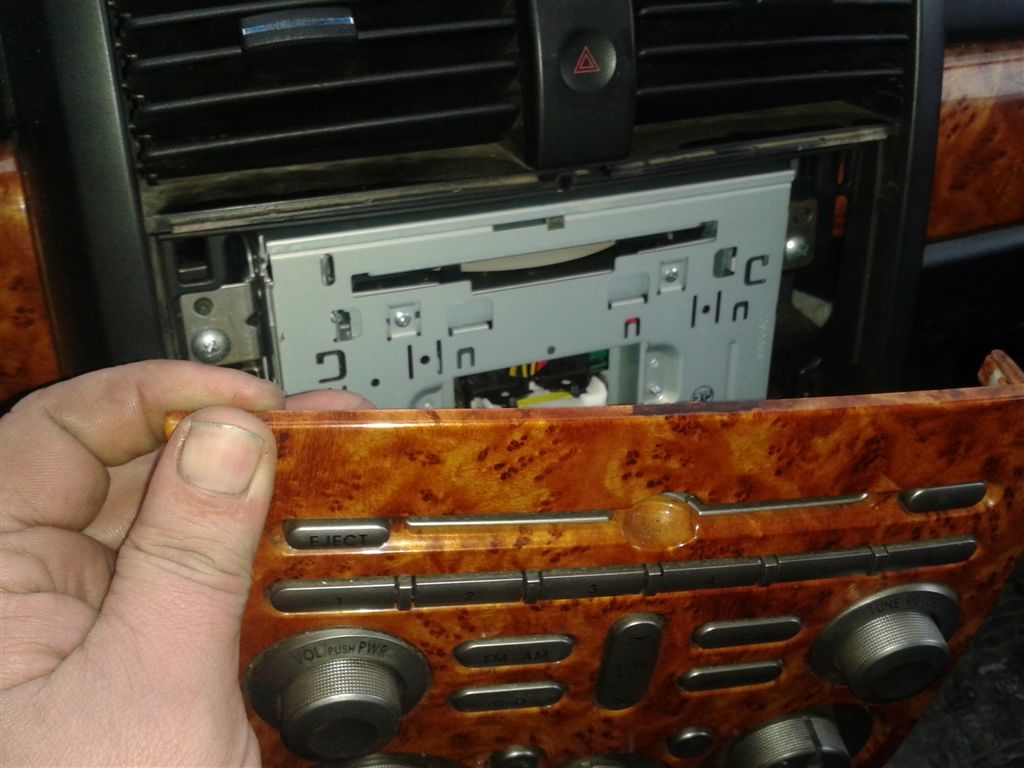

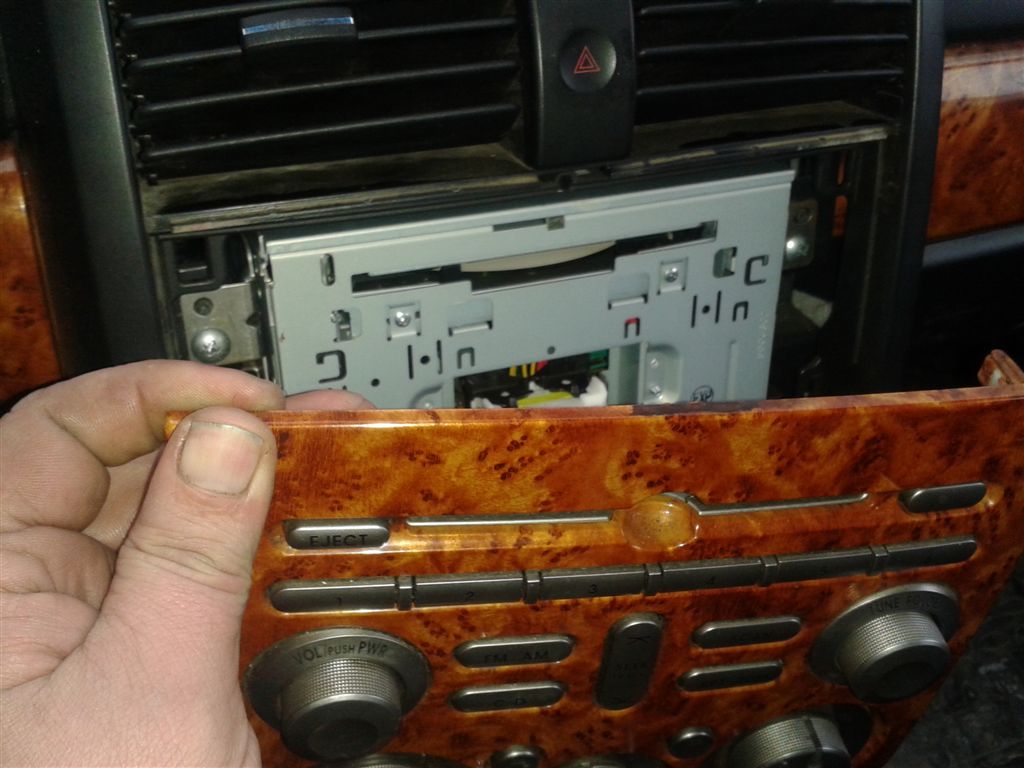

Frequent flyer Gold Posts: 286 Location: Russia, Perm | Now you have to connect the device. Remove the front panel. (20140210_163901.jpg) Attachments ---------------- 20140210_163901.jpg (115KB - 580 downloads) | ||
| |||
| stayer |
| ||
Frequent flyer Gold Posts: 286 Location: Russia, Perm | Loosen 4 bolts and remove. (20140210_163920.jpg) Attachments ---------------- 20140210_163920.jpg (94KB - 550 downloads) | ||
| |||
| stayer |
| ||

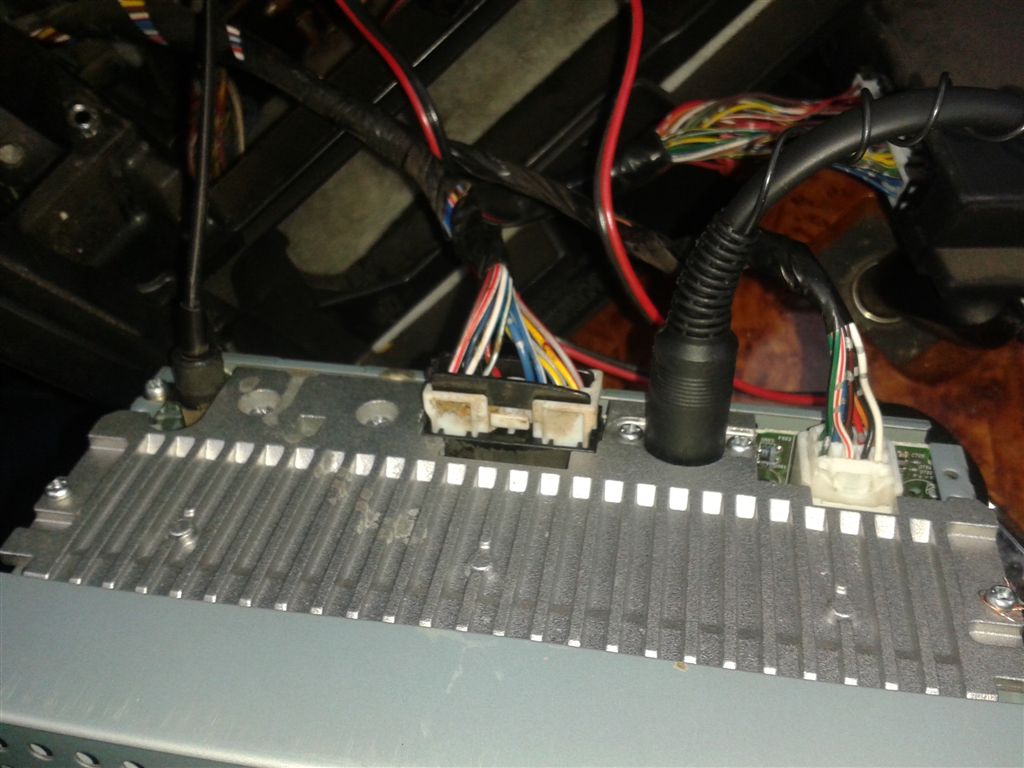

Frequent flyer Gold Posts: 286 Location: Russia, Perm | From the back side connect the device into 13 pin connector. The black wire is screwed to the chassis.(right in the corner). Edited by stayer 11/2/2014 16:42 (20140210_164318.jpg) Attachments ---------------- 20140210_164318.jpg (114KB - 541 downloads) | ||
| |||
| stayer |
| ||

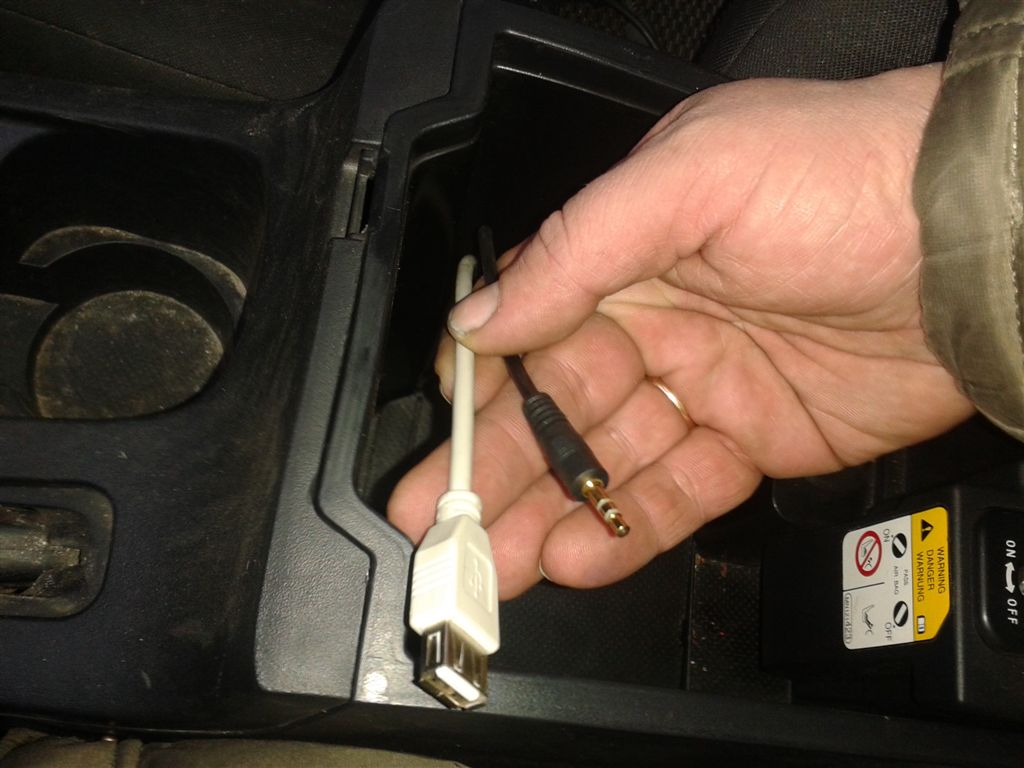

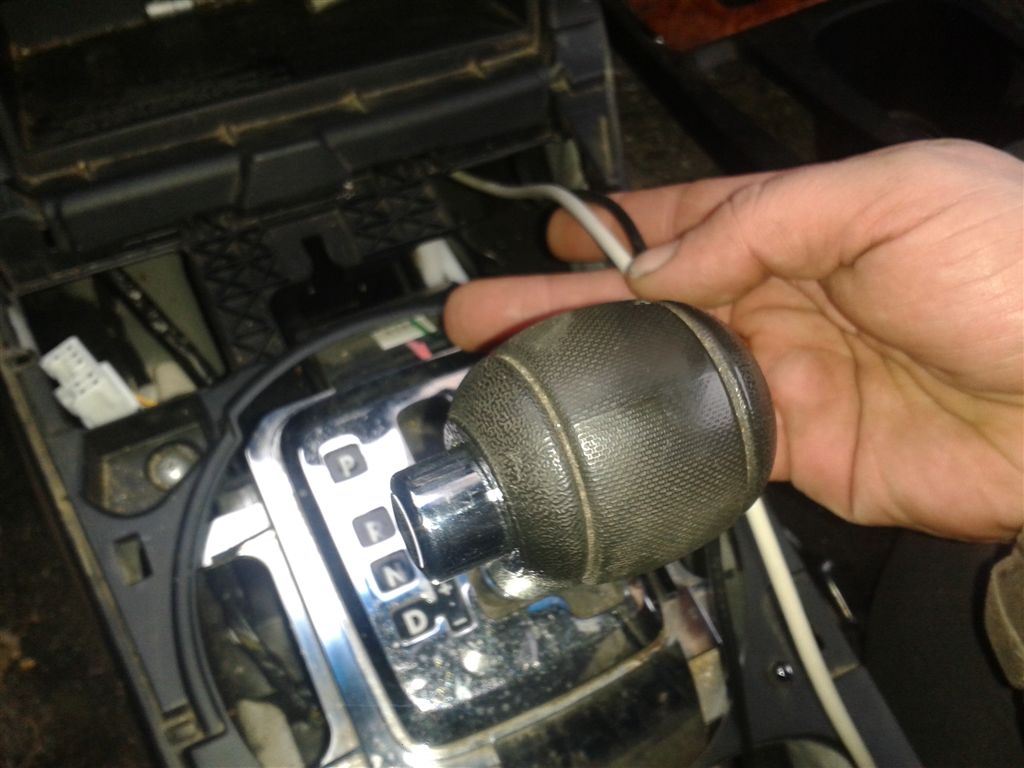

Frequent flyer Gold Posts: 286 Location: Russia, Perm | Next, connect the device to the usb cable and the minijack cable. Unit can be installed in place. I chose to put cables in the armrest. But of course, that it is possible to reach anywhere (glove box, between the seats, or any other). (20140210_170509.jpg) (20140210_173053.jpg) Attachments ---------------- 20140210_170509.jpg (105KB - 559 downloads) 20140210_173053.jpg (105KB - 562 downloads) | ||
| |||
| stayer |
| ||

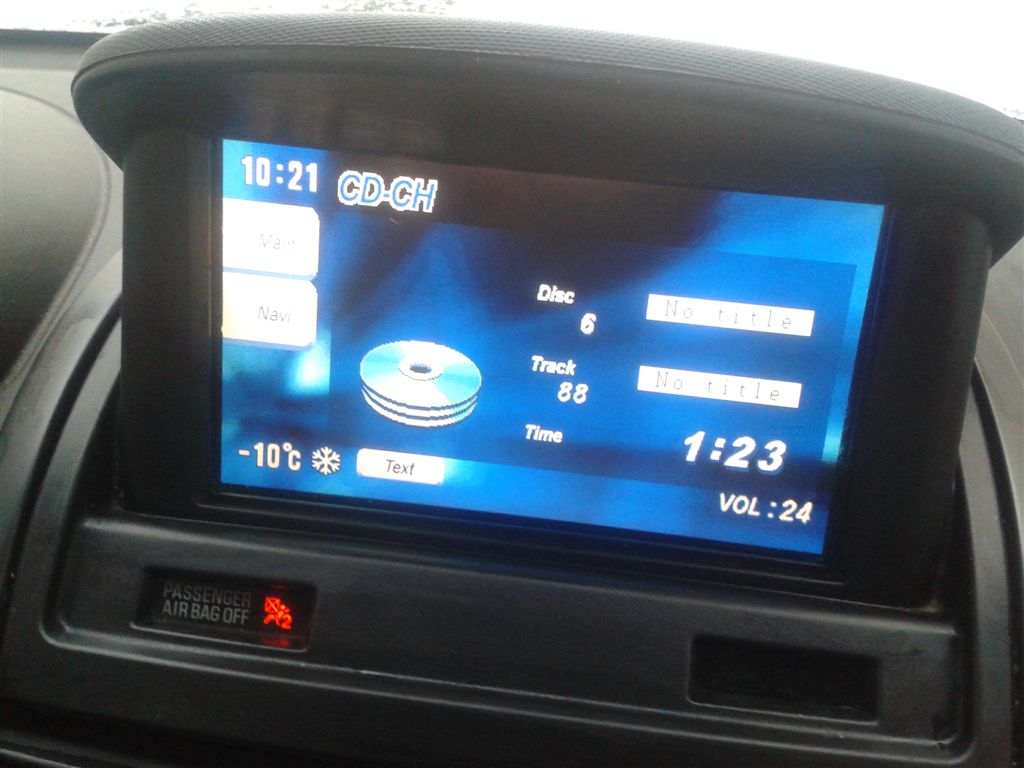

Frequent flyer Gold Posts: 286 Location: Russia, Perm | To activate a device, double-click the CD button. On the monitor will display "CD-CH". (20140211_102143.jpg) Attachments ---------------- 20140211_102143.jpg (99KB - 577 downloads) | ||
| |||
| stayer |
| ||
Frequent flyer Gold Posts: 286 Location: Russia, Perm | |||
| |||
