Interior. Immersion printing.
Jump to page : 1 2
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> Stayer's projectsMessage format

stayer
Posted 24/12/2011 22:02 (#13928)
Subject: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Hello. I want to tell how did the plastic parts of the interior. I bought 9G in november 2010. I don 't like the grey plastic lining. As cheap chinese boombox. I decided to fix it.



(1fcedc0ea9c3.jpg)



Attachments
----------------
Attachments 1fcedc0ea9c3.jpg (48KB - 592 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:03 (#13929 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		I have a small workshop on the tuning and customizing cup..So, the details removed from the vehicle.



(4af097fdaf73.jpg)



Attachments
----------------
Attachments 4af097fdaf73.jpg (58KB - 544 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:06 (#13930 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555

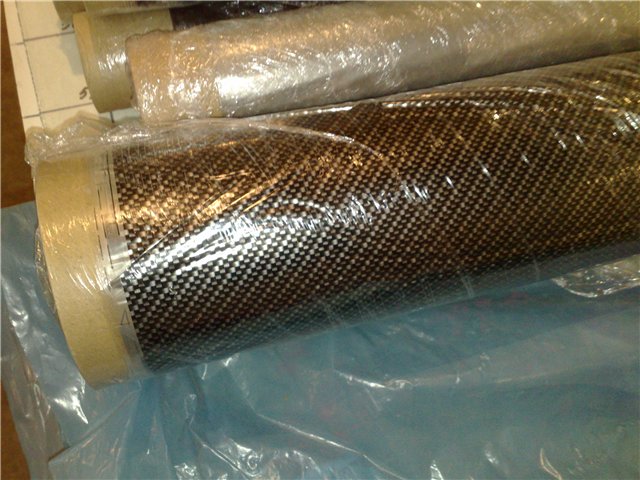

Location: Russia, Perm		I have a few coatings. I chose the tree.



(8c6240510467.jpg)



(60c18b2918d1.jpg)



Attachments
----------------
Attachments 8c6240510467.jpg (74KB - 562 downloads)
Attachments 60c18b2918d1.jpg (68KB - 538 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:08 (#13931 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		Initially it is necessary to apply the color of the base.



(30b810fee06c.jpg)



(72db65235088.jpg)



Attachments
----------------
Attachments 30b810fee06c.jpg (51KB - 569 downloads)
Attachments 72db65235088.jpg (52KB - 551 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:10 (#13932 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		After the dried begin printing. It is necessary to arrange coating on the surface of the water. Remove air bubbles under the surface. Apply activator for the beginning of a chemical reaction.



(670162c6f3c0.jpg)



(f1c58e44a6bd.jpg)



Attachments
----------------
Attachments 670162c6f3c0.jpg (71KB - 525 downloads)
Attachments f1c58e44a6bd.jpg (67KB - 554 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:15 (#13933 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		The chemical reaction dissolves coating. On the surface of the water remains only a figure of paint. Panel looked so after the imerse looks like this.



(c4ed33ffaa6e.jpg)



(9c031c8b5f98.jpg)



(ff0ee3180c92.jpg)



(42e0be7b5c90.jpg)



(8bc534d17c4b.jpg)



Attachments
----------------
Attachments c4ed33ffaa6e.jpg (66KB - 571 downloads)
Attachments 9c031c8b5f98.jpg (57KB - 541 downloads)
Attachments ff0ee3180c92.jpg (63KB - 574 downloads)
Attachments 42e0be7b5c90.jpg (63KB - 580 downloads)
Attachments 8bc534d17c4b.jpg (71KB - 572 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:20 (#13934 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555
Location: Russia, Perm		coating automotive lacquer and drying.



(7f9059d3484e.jpg)



(27afaa41db11.jpg)



(598e4bb258cd.jpg)



Attachments
----------------
Attachments 7f9059d3484e.jpg (68KB - 557 downloads)
Attachments 27afaa41db11.jpg (65KB - 571 downloads)
Attachments 598e4bb258cd.jpg (70KB - 562 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:23 (#13935 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555

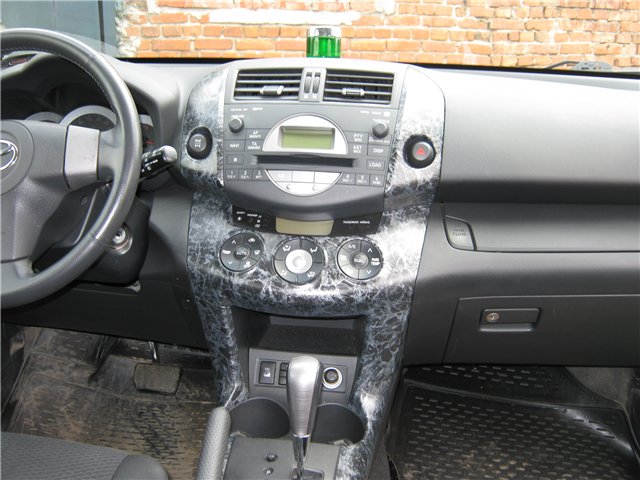

Location: Russia, Perm		Install parts on the car. Sunny, clear day doing a photo shoot.

Edited by stayer 24/12/2011 22:23




(3a2d03e285af.jpg)



(3de615bac87c.jpg)



(758227ea4515.jpg)



(bdeb22ac13f6.jpg)



(f1440e17b098.jpg)



Attachments
----------------
Attachments 3a2d03e285af.jpg (61KB - 552 downloads)
Attachments 3de615bac87c.jpg (42KB - 560 downloads)
Attachments 758227ea4515.jpg (56KB - 565 downloads)
Attachments bdeb22ac13f6.jpg (43KB - 562 downloads)
Attachments f1440e17b098.jpg (57KB - 531 downloads)
Top of the page Bottom of the page
stayer
Posted 24/12/2011 22:30 (#13936 - in reply to #13928)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 286
100100502555

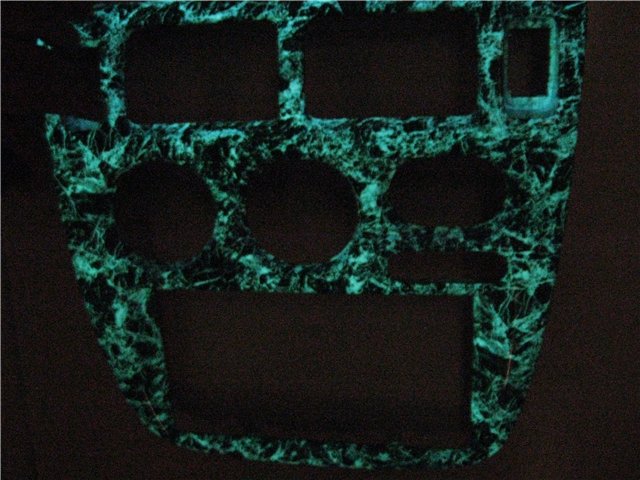

Location: Russia, Perm		In the cabin was comfortable. Work in the cabins of other brands of cars. If the base is to make from the luminescent paint, then in the darkness panel lights. in the daylight looks like stone.[



(9f704868a18b.jpg)



(32d8a885bc10.jpg)



(9236508627ed.jpg)



(f6b368eb4ea1.jpg)



(f94a30ea6730.jpg)



(f55438609555.jpg)



(07951314c84e.jpg)



(bda29c76c830.jpg)



Attachments
----------------
Attachments 9f704868a18b.jpg (71KB - 555 downloads)
Attachments 32d8a885bc10.jpg (67KB - 553 downloads)
Attachments 9236508627ed.jpg (62KB - 580 downloads)
Attachments f6b368eb4ea1.jpg (66KB - 589 downloads)
Attachments f94a30ea6730.jpg (65KB - 539 downloads)
Attachments f55438609555.jpg (61KB - 558 downloads)
Attachments 07951314c84e.jpg (67KB - 550 downloads)
Attachments bda29c76c830.jpg (74KB - 556 downloads)
Top of the page Bottom of the page
wsbtt
Posted 25/12/2011 02:06 (#13937 - in reply to #13936)
Subject: Re: Interior. Immersion printing.



Frequent flyer Gold

Posts: 421
1001001001005555
Location: Brisbane,qld		Awesome stuff !! where do you get this material, especially the carbon look, can it be done here in oz?

Edited by wsbtt 26/12/2011 22:39
