380 without ABS/TCL ecu
Jump to page : 1
Now viewing page 1 [10 messages per page]		View previous thread :: View next thread
   380 Projects section -> ECU information for the 380Message format

Administrator
Posted 3/9/2013 00:01 (#15639)
Subject: 380 without ABS/TCL ecu



Frequent flyer Gold

Posts: 1093
10005025555
Location: An island off southern Tasmania.		a while ago I was asked how to get a 6G75 running without connection to the car.

the stumbling block is the ABS ecu.

it is part of the canbus wiring loop and needs to be bypassed.

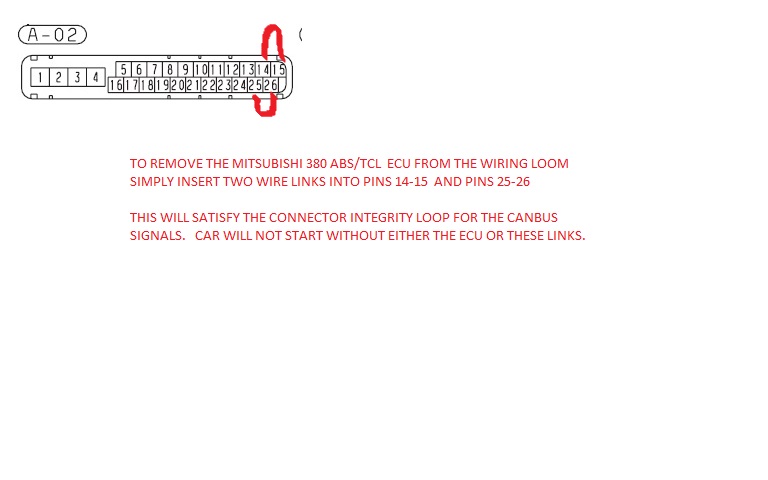

this mod should do the trick.



(380 ABS ECU MOD.jpg)



Attachments
----------------
Attachments 380 ABS ECU MOD.jpg (44KB - 541 downloads)
