Mitsubishi 380 All Wheel drive Jump to page : 1 2 3 4 5 6 Now viewing page 6 [10 messages per page]	View previous thread :: View next thread
380 Projects section -> All Wheel Drive 380	Message format

Administrator

Posted 10/12/2012 10:57 (#14654 - in reply to #14651)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

savage3 - 9/12/2012 21:41

What I was thinking if you used the outlander transfer case, you could ditch the spacers and have the tail shaft pass over the steering rack.

You're probably right...the things to consider are the length of the rack and the turns ratio as well as the pump connections and the column connection...as well as drive ratio?

(that's a mouthful...

)

Don't suppose you've got one laying around that you can spare for a few minutes?

With my raised setup the posts are only an adjustable jig for fabricating triangular plates to weld to the K-frame, then a hoop over to firm it up.
I am also suggesting to reverse the tie rod ends and custom fabricate additional length in them to even things up a bit.

BTW those special bolts were 20 dollars each.....

savage3

Posted 10/12/2012 22:38 (#14655 - in reply to #14654)
Subject: Re: Mitsubishi 380 All Wheel drive

Posts: 8

I wish I could help you out with the transfer case. I don't know how far you've gotten with your AWD project, just throwing it out there as a suggestion. Have to keep in mind ratios between the transfer case and the rear diff. I'd be worried about the output of the outlander transfer case hitting the firewall..

Just throwing it out there anyway. Might save you some effort - or create more headache for you. You see to have some connections, you might be able to borrow a case from a wreckers or something.

Nothing's cheap when it comes to doing one off things for cars. The mivec valve housing cost me $700 to have machined and sleved, just to slot the distributor onto. Interesting thing is your "friend" on the other forums apparently has a manual AWD up and going. That's the next avenue I intend to go up pending reliability and more importantly pictures.

Edited by savage3 10/12/2012 22:40

Administrator

Posted 10/12/2012 23:45 (#14656 - in reply to #14655)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

savage3 - 10/12/2012 22:38

I wish I could help you out with the transfer case. I don't know how far you've gotten with your AWD project, just throwing it out there as a suggestion. Have to keep in mind ratios between the transfer case and the rear diff. I'd be worried about the output of the outlander transfer case hitting the firewall..

Just throwing it out there anyway. Might save you some effort - or create more headache for you. You see to have some connections, you might be able to borrow a case from a wreckers or something.

Nothing's cheap when it comes to doing one off things for cars. The mivec valve housing cost me $700 to have machined and sleved, just to slot the distributor onto. Interesting thing is your "friend" on the other forums apparently has a manual AWD up and going. That's the next avenue I intend to go up pending reliability and more importantly pictures.

Yeah...anyone can get a manual AWD Magna put together.

I know all about one offs too...the LSD was a much bigger project than we all thought it would be.....4500 dollars inc the Quaife.

hey...I appreciate your suggestions mate.

RM380

Posted 21/3/2013 20:32 (#15001 - in reply to #13349)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Bronze

Posts: 34

Location: South Australia

How is the AWD project progressing?
Is this the way to tame the turbo tyre shredding qualities?

Administrator

Posted 21/3/2013 23:19 (#15002 - in reply to #15001)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

RM380 - 21/3/2013 20:32

How is the AWD project progressing?
Is this the way to tame the turbo tyre shredding qualities?

It's on the back burner sizzling away.....

Other projects need completion first...

ashley186

Posted 16/5/2013 12:37 (#15165 - in reply to #13349)
Subject: Re: Mitsubishi 380 All Wheel drive

Posts: 19

Location: Bendigo, VIC

This is awesome, keen to see progress.

Perry's 380 VRX

Posted 9/8/2014 05:37 (#16135 - in reply to #13349)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Bronze

Posts: 33

Been a while since we've heard any update on this?
Have you managed to go any further with this build, or is it still waiting for another day?

Administrator

Posted 10/8/2014 17:23 (#16137 - in reply to #13349)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

I have dropped all projects for the time being cause I bought a private island off the coast of Tasmania and am busy building jetty, ramp,pontoon, houde, solar power, desalination unit etc etc etc

Also had to buy a boat big enough to take a car on to my island.

That's all, I'll be done soon...LOL

Administrator

Posted 10/6/2015 00:14 (#16286 - in reply to #13349)
Subject: Re: Mitsubishi 380 All Wheel drive

Frequent flyer Gold

Posts: 1093
1000

Location: An island off southern Tasmania.

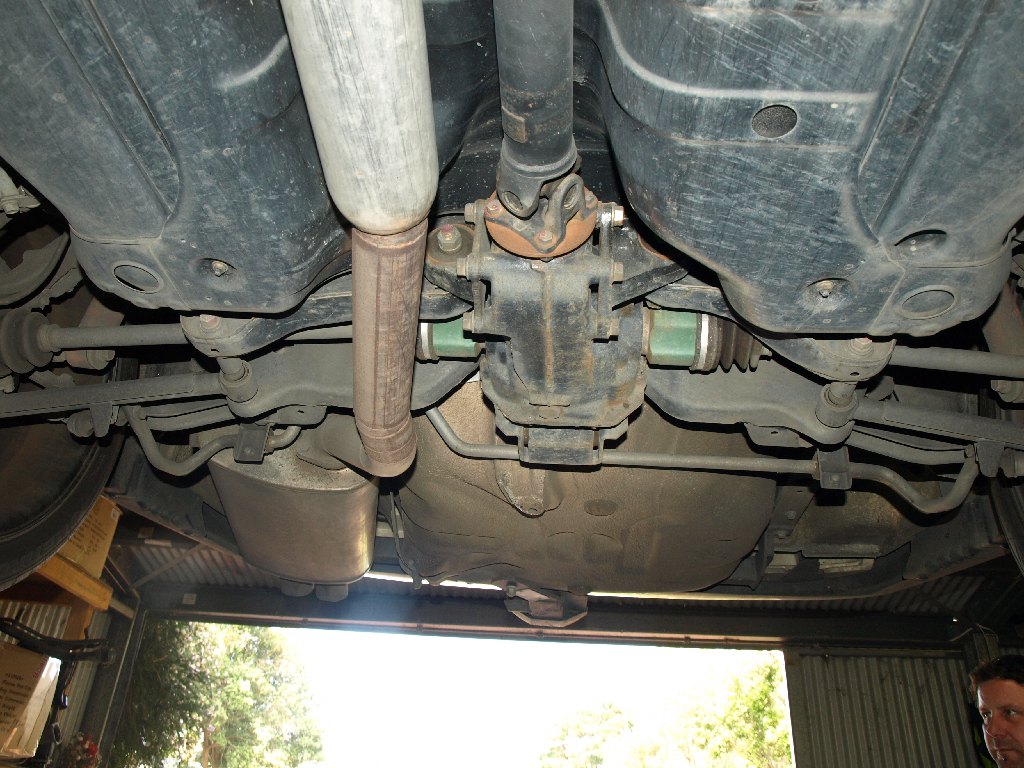

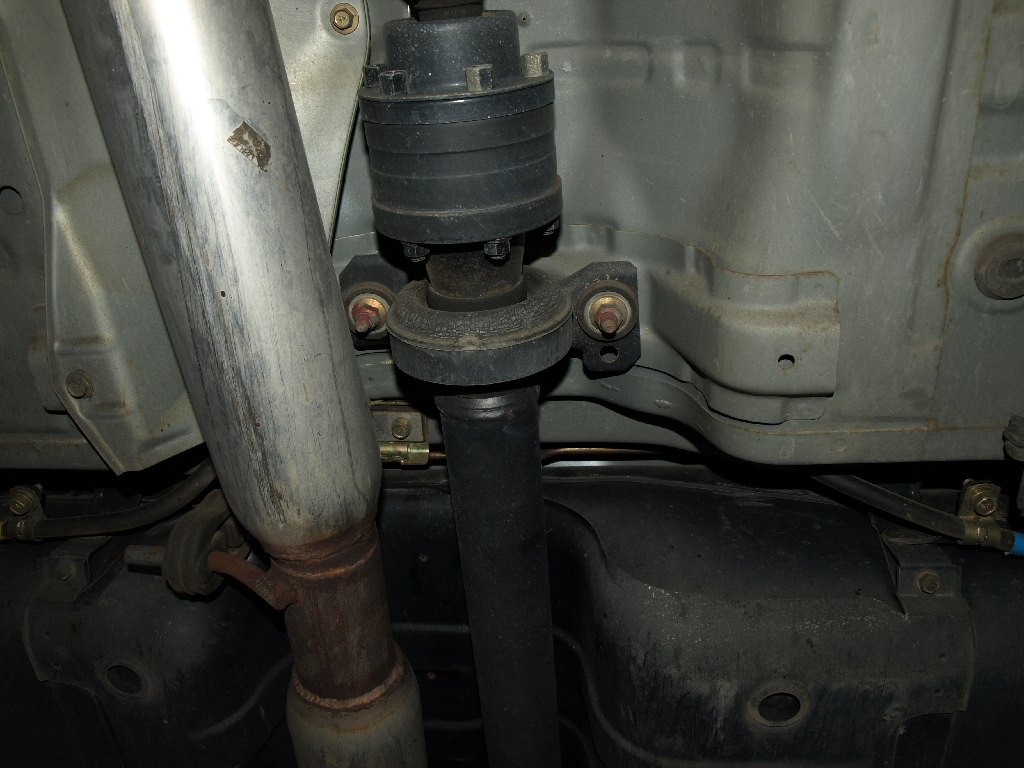

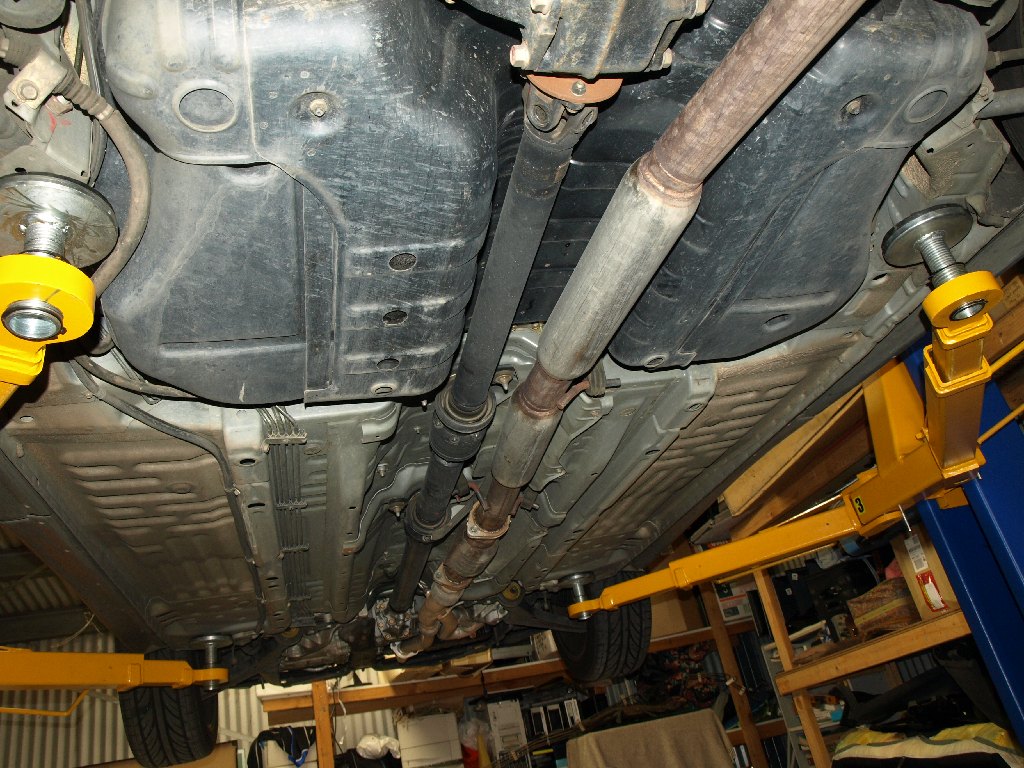

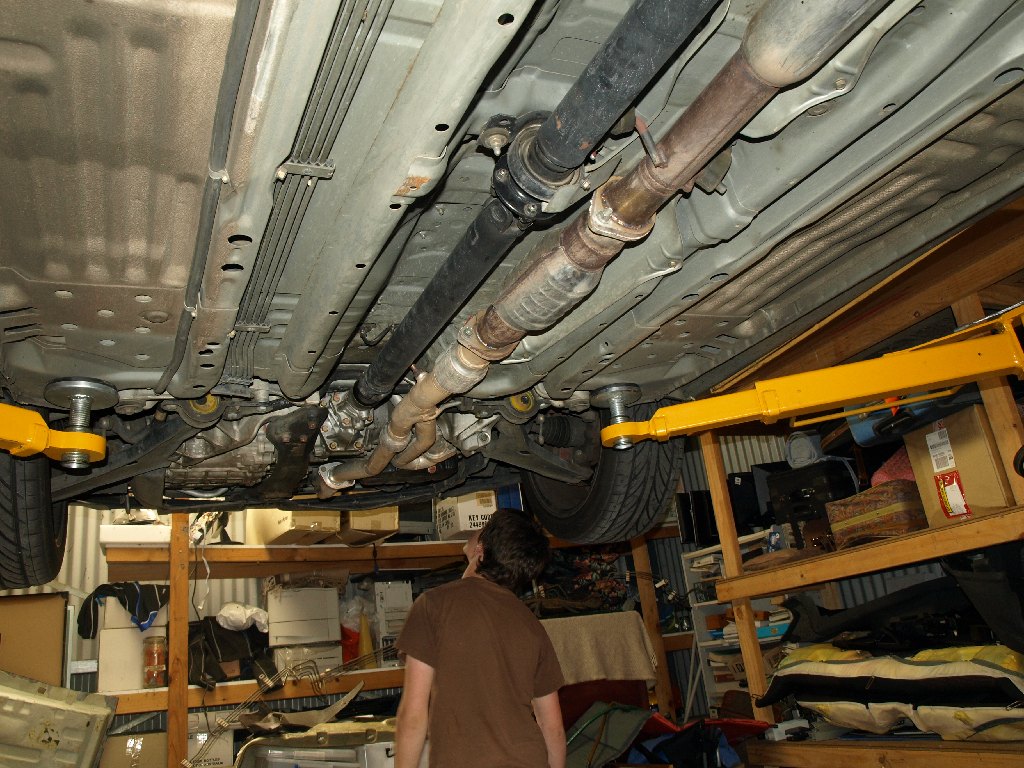

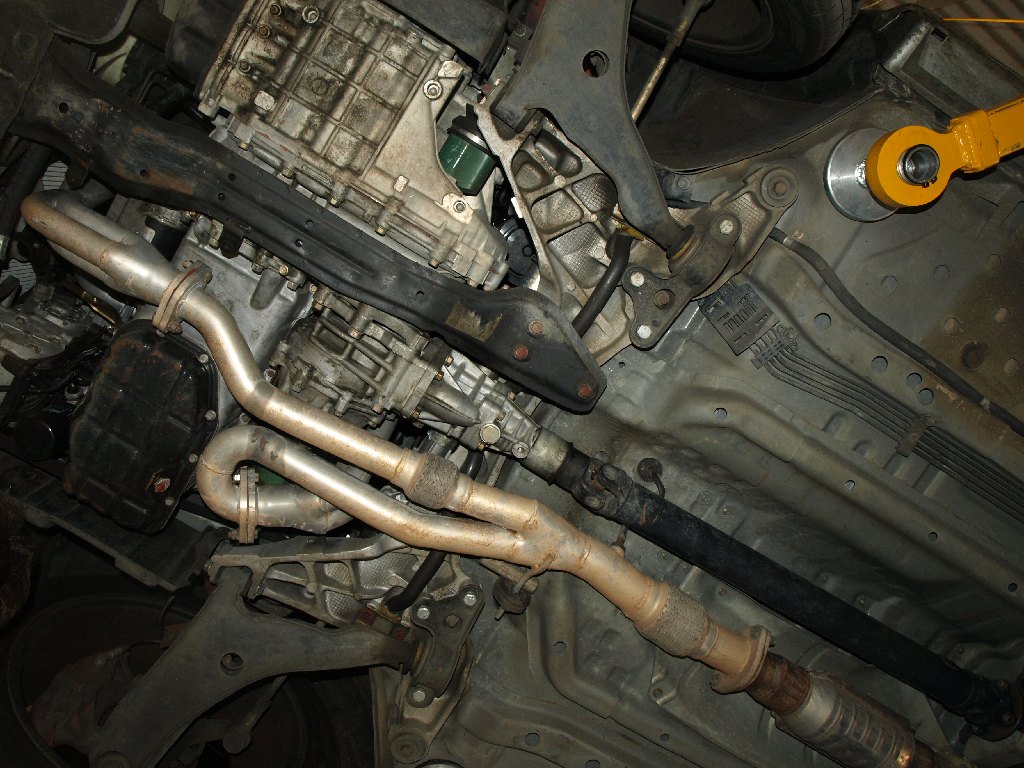

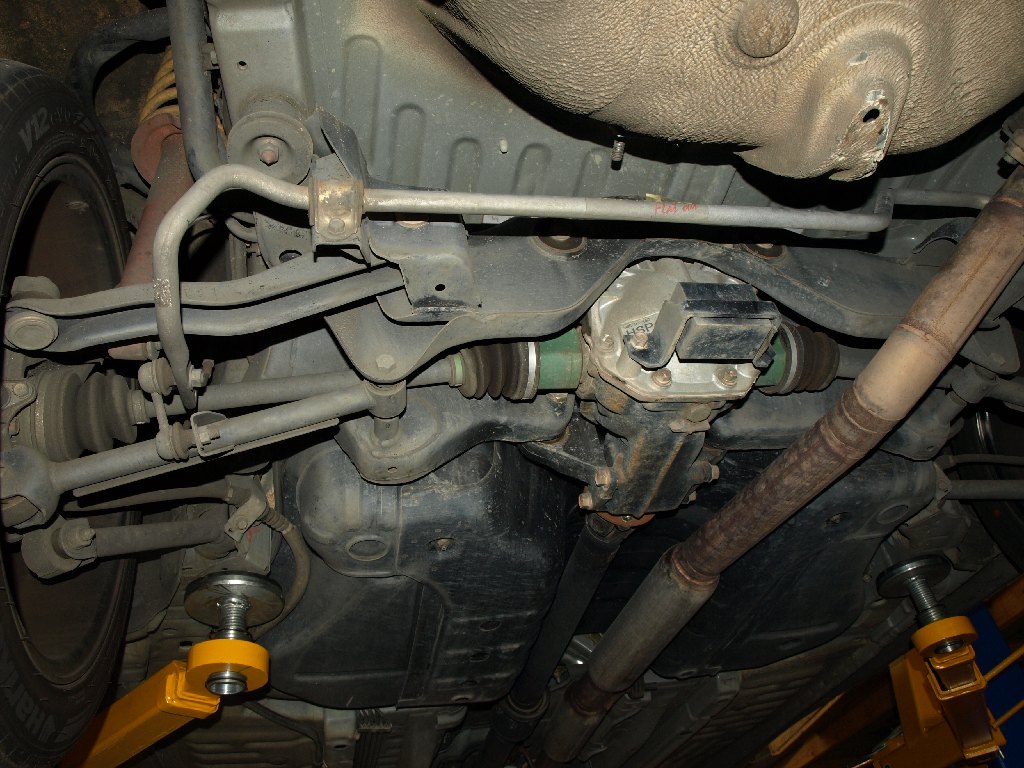

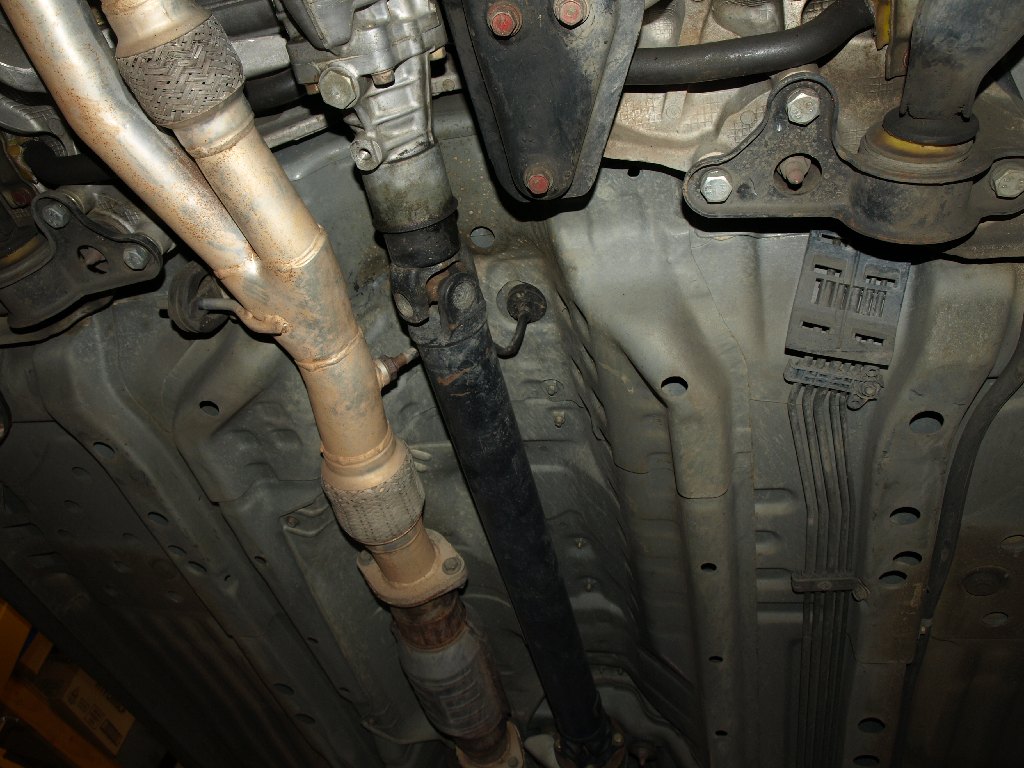

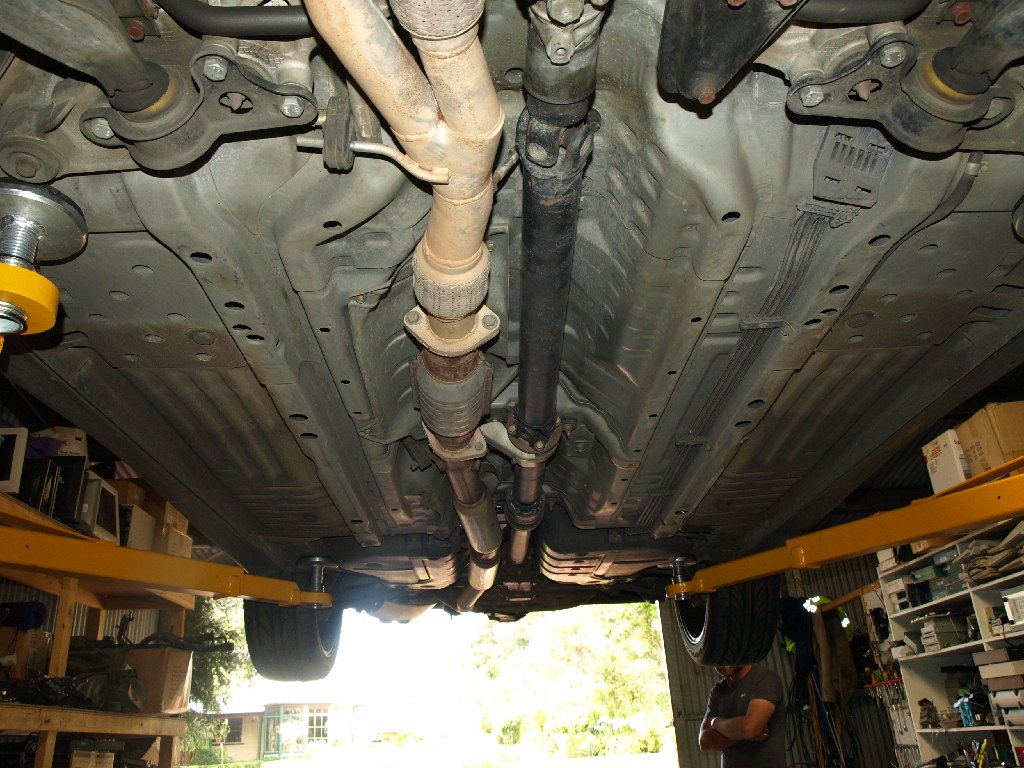

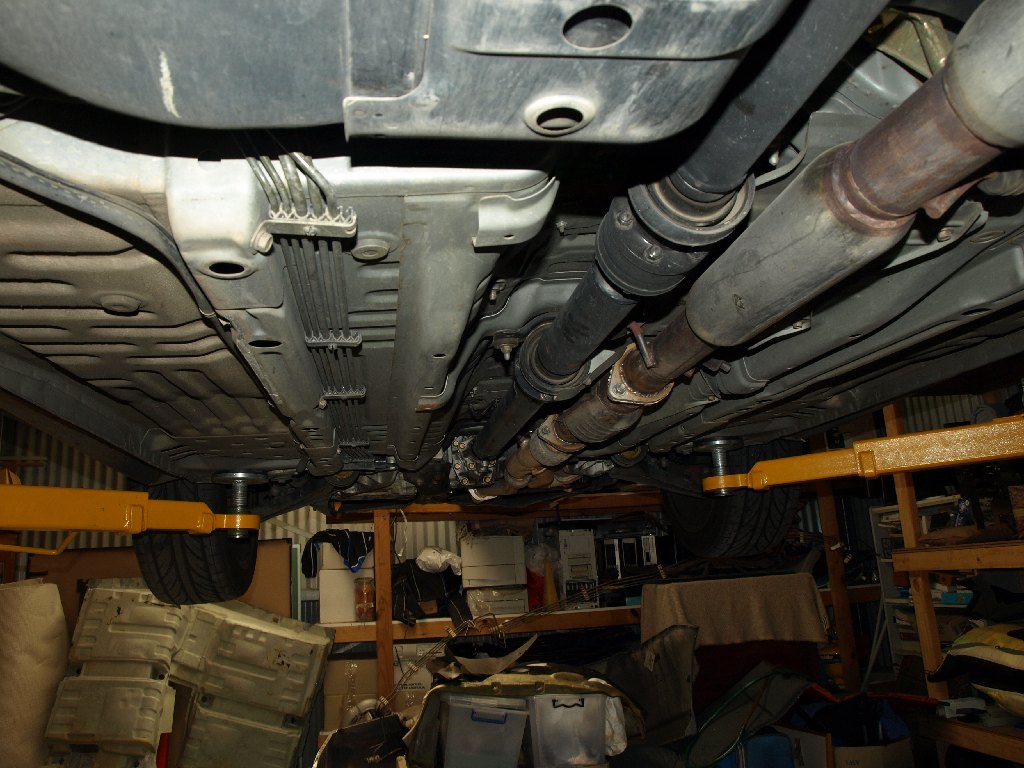

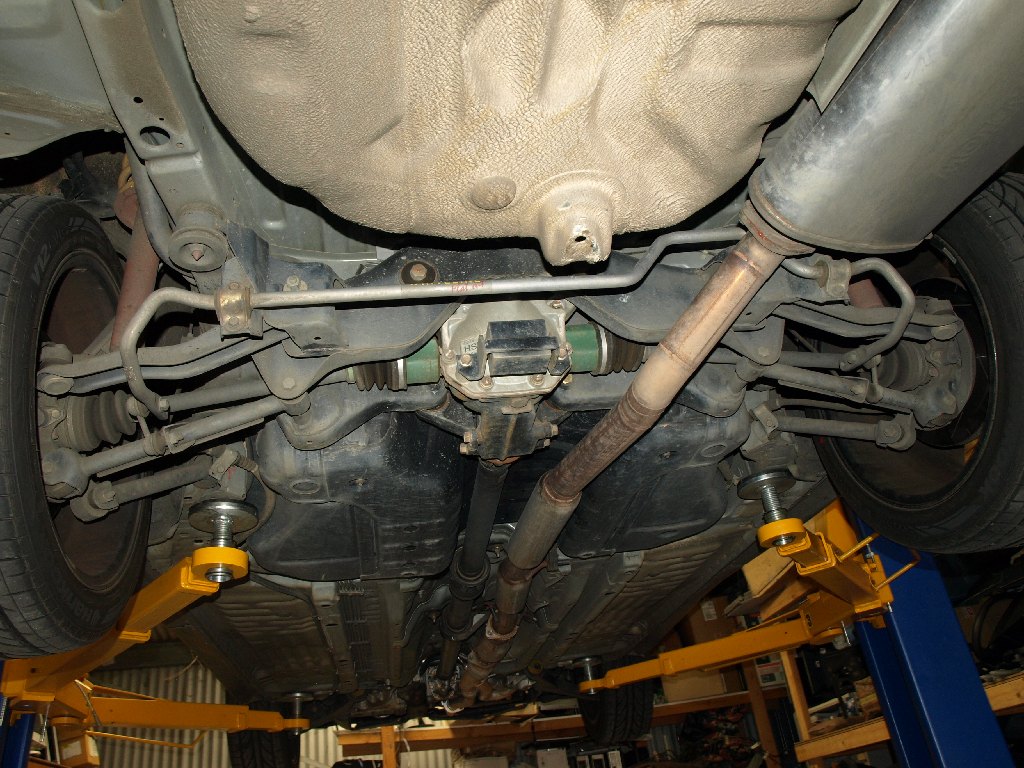

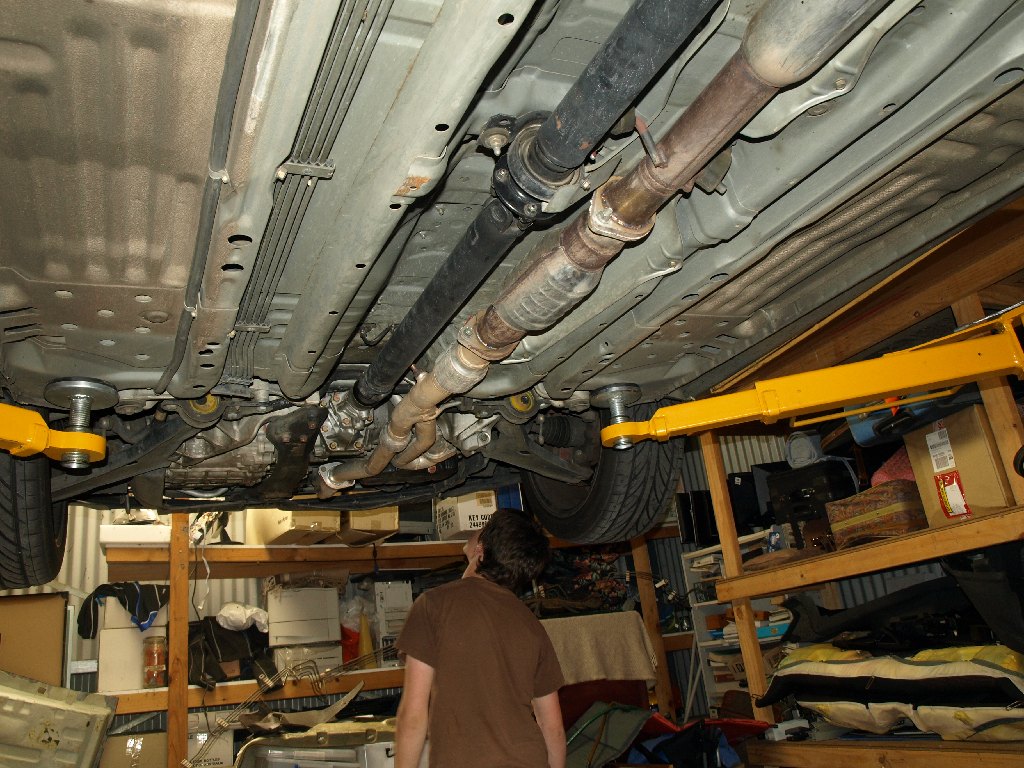

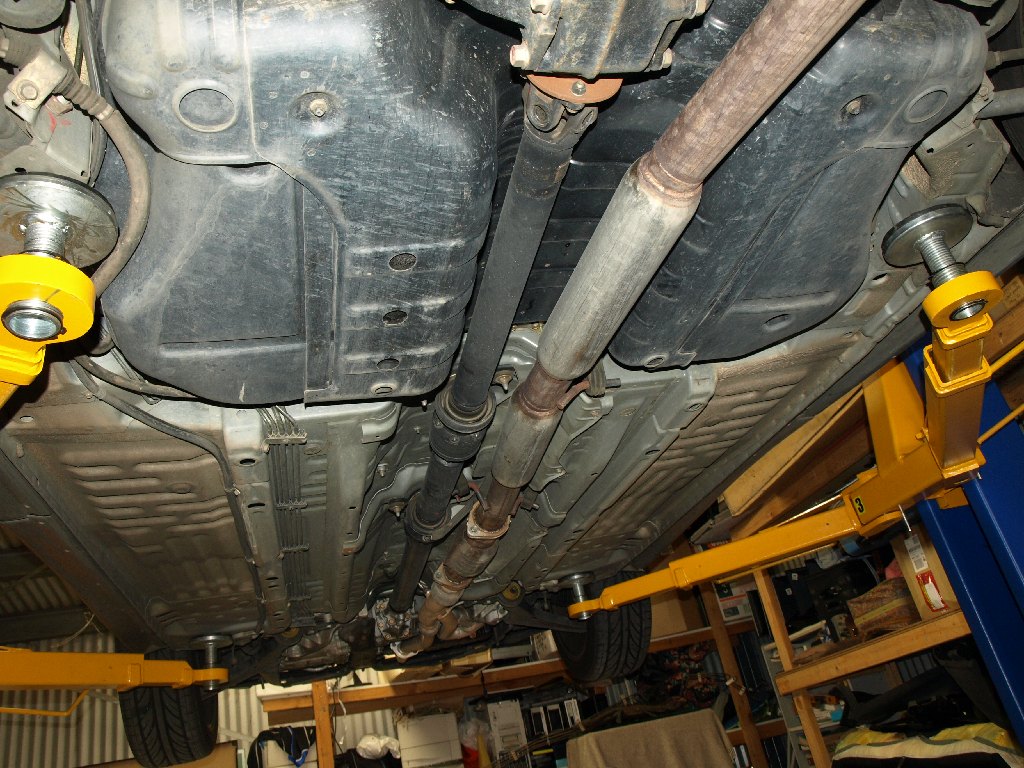

here is the underside of an AWD magna for reference
