Frequent flyer Gold
Posts: 286

Location: Russia, Perm | Hi all!
After I installed the turbo, I wanted to make a ventilation hood. Firstly, it will improve the blowing of the main radiator. And secondly, it will highlight the look of the car.

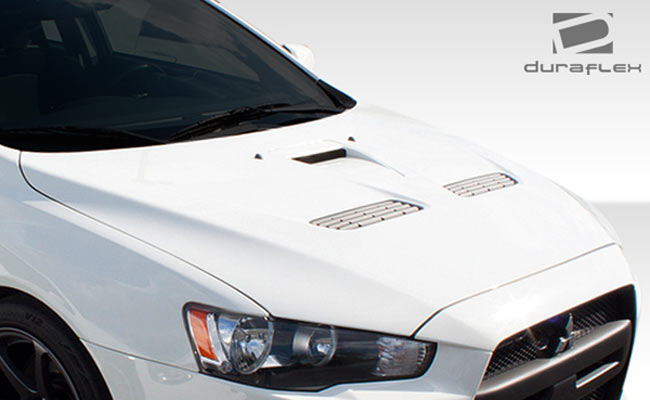

However, I do not advocate extreme tuning. I saw how it was done John for his 380. But I like how it is carried out for the EVO X. And I wanted to do the same.
Ventilation hood for the EVO X consists of 3 parts. This two grids and one big nostril. I decided to do only the lattice.
 ("""""""""" ²Ð.jpg)
Attachments
----------------
 """""""""" ²Ð.jpg (32KB - 628 downloads)
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | I bought the hood. Checked the clearances. You can continue.
 (20140828_170829.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | I also bought a lattice EVO X.
 (20140821_161247.jpg)
 (20140821_161309.jpg)
 (20140821_161331.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | So, proceed. First you have to apply the markup.
 (image-de10581b6e006a8490f10e0f4ba6cb5cf0a105500e8c49e55c1f6e54ed0e995b-V.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | Then begin to cut.
 (image-859d56692a888c1890aaa41750b6e583644e76de6c1c2a437919467e3eba18c5-V.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286

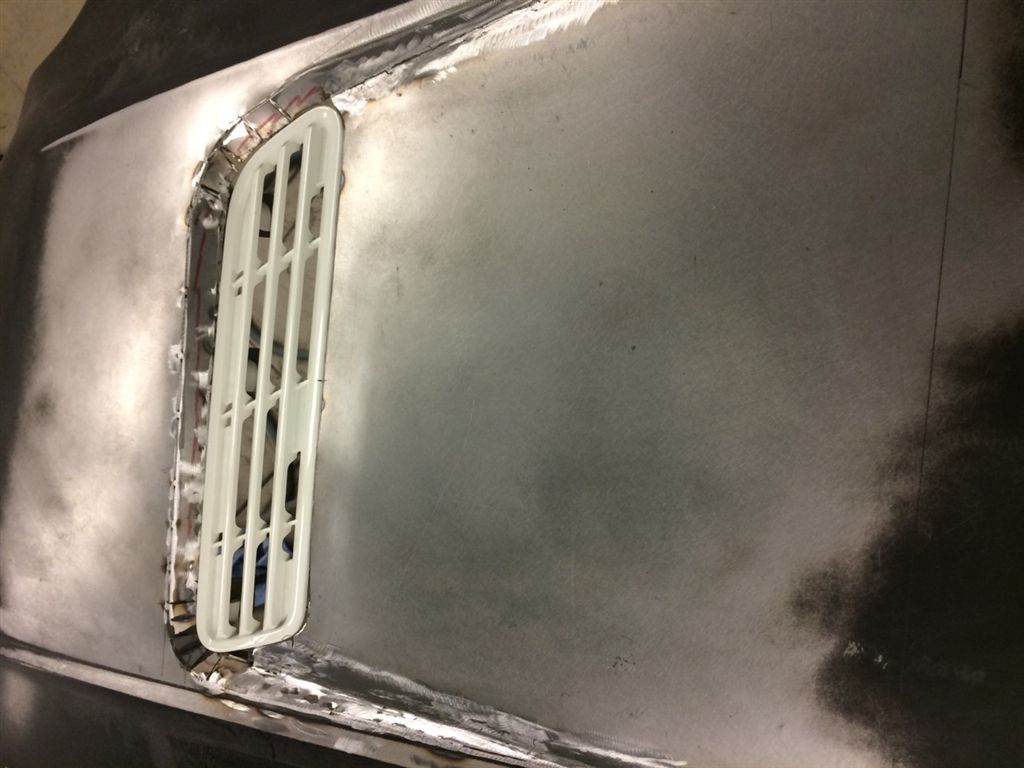

Location: Russia, Perm | The metal is very thin. Welding should be carried out very carefully.
 (image-d32a9cff57ed6f5d2d85180c5ecb0c27a735d240b8e6717e02988dc8b64a3a87-V.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | While that's all. I think I will finish before the end of the week. To be continued. |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | That looks great Stayer.
I wanted to do the same but it would have cost much more money and at the time I had a supercharger at the rear.
If I was doing it new I would do your choice for sure. |
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | Unfortunately there is no enough free time. The project is moving very slowly. Here are some more photos.
 (20141013_153223.jpg)
 (20141013_153253.jpg)
 (20141013_153207.jpg)
 (20141013_153244.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | That looks like a big...big...job. |
|
| |
|
Frequent flyer Bronze
Posts: 47
Location: Geelong, Vic | That's looking good Stayer..... A+
I admire the fact that you are doing it the proper way and not as sometimes you see in the street that they buy these aftermarket vents and glue it on the hood (sometime they don't even do the hole as well)
Can't wait to see it finished! |
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | Thanks guys!
I also saw glued lattice. This is ridiculous. I want to say that before you do this or that thing, we need to understand the technical feasibility of this improvement. It is not enough to make holes and put lattice. Should be a deepening of 2-3 cm. Is no longer required. I saw blowing in a wind tunnel. If we take the usual bonnet, then it is laminar (smooth) air flow. And there is pressure. If you deepen to 2-3 cm, appears low pressure and turbulence. If the location to install the grille, the air will come out in an area of low pressure. If you do not do the recess, the effect is lost. This effect is used on many sports cars since the 60s. |
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | work is nearing the finish line. Now the coating liquid filler and preparation for painting. A few photos.
 (20141028_102959.jpg)
 (20141028_103009.jpg)
 (20141028_103028.jpg)
 (20141028_103039.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | Looking very professional Stayer.
Good work. |
|
| |
|
Frequent flyer Gold
Posts: 286

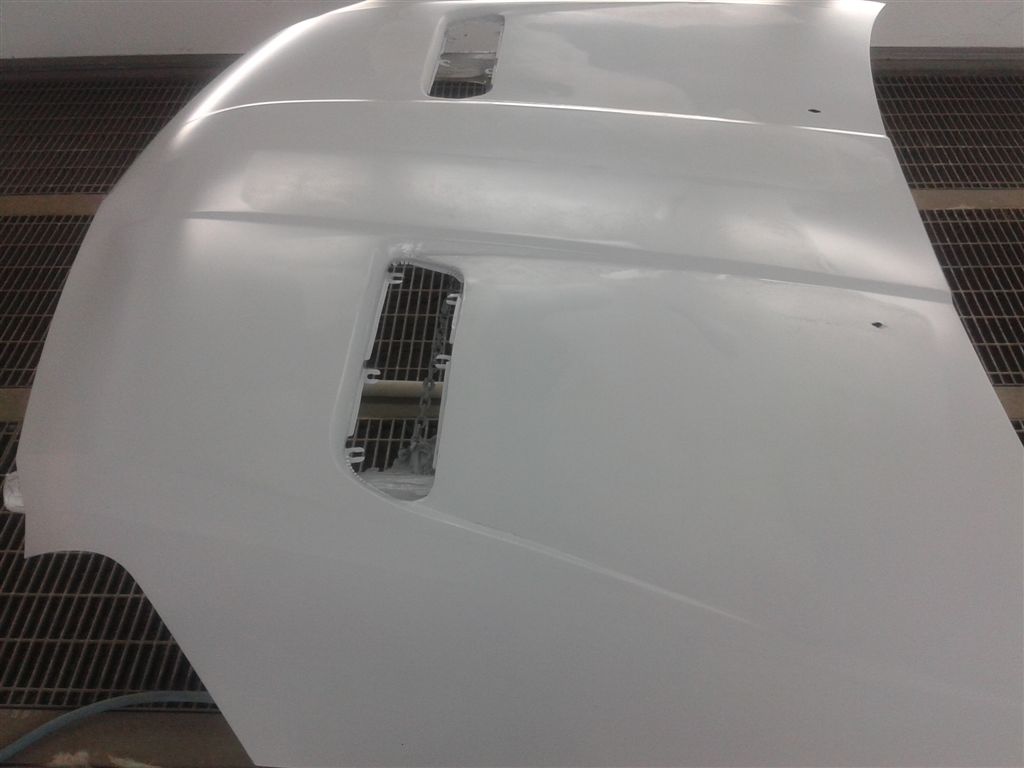

Location: Russia, Perm | Now the hood painted. Grille to paint with acrylic paint for plastic. This weekend will set the hood on the car.
 (image-1e9230150075a3be4bd5f7b45064d76b69f0da8517c701ff5b0a0806bb0c6b99-V.jpg)
 (image-d5a0f1000944bd656fc4da51e89f1a6613d7103ded2989fcaa8763b49e4234a8-V.jpg)
 (image-4d616218ab1bcebc56c9752b7e67c4b59e1e00e13131d2ea4f5fb91d4f64430c-V.jpg)
 (image-6cbf8546b4a0ea2b07ebb074ebe8cff369cfad49eed8b1cc9ad7db0ff5de46da-V.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Bronze
Posts: 47
Location: Geelong, Vic | Stayer have you finished this install, very keen to see the final finished product on the car!!
|
|
| |
