The Exterior. Change of the bumper.

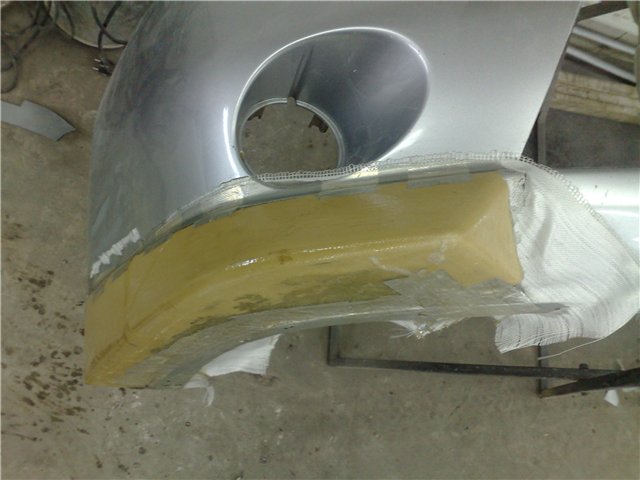

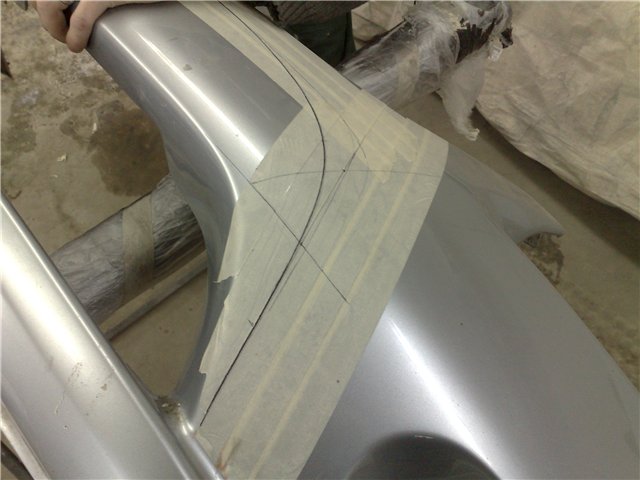

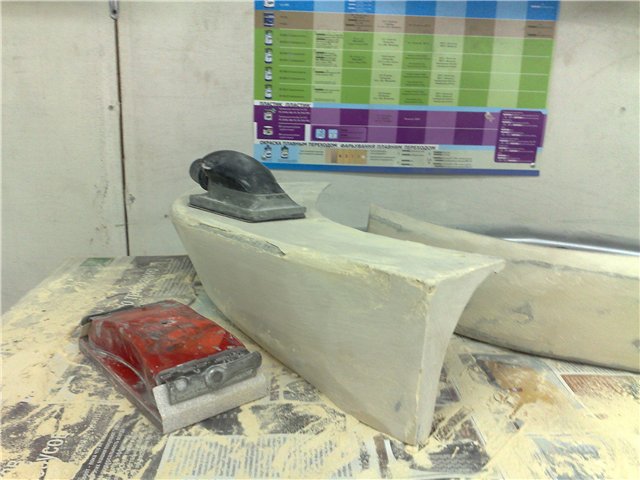

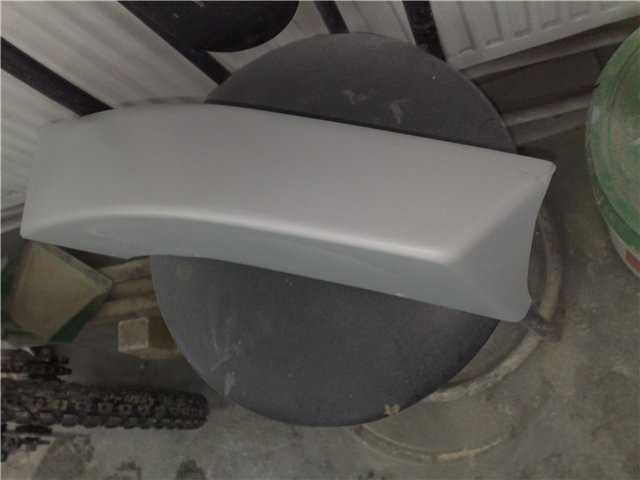

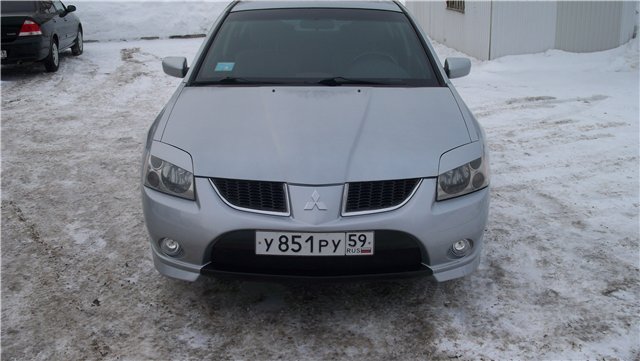

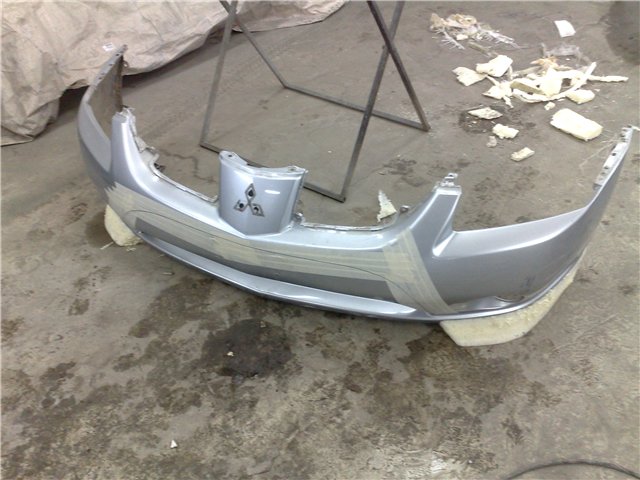

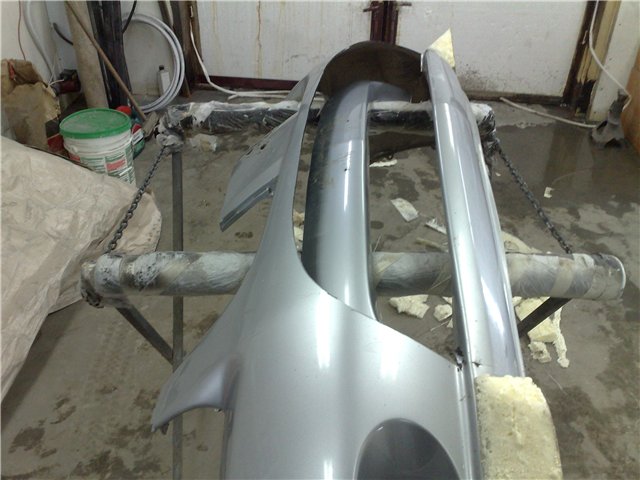

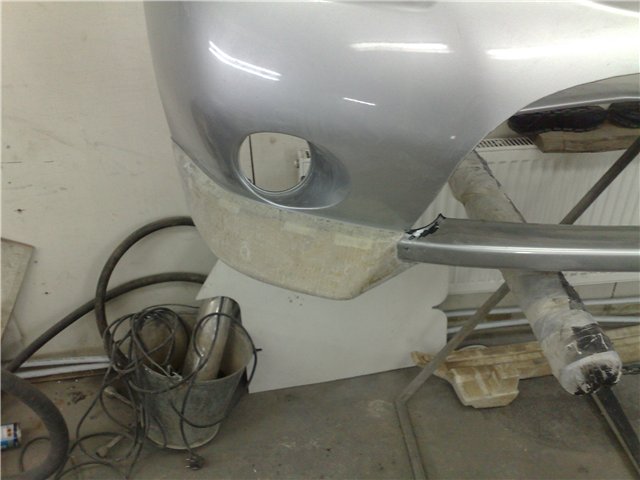

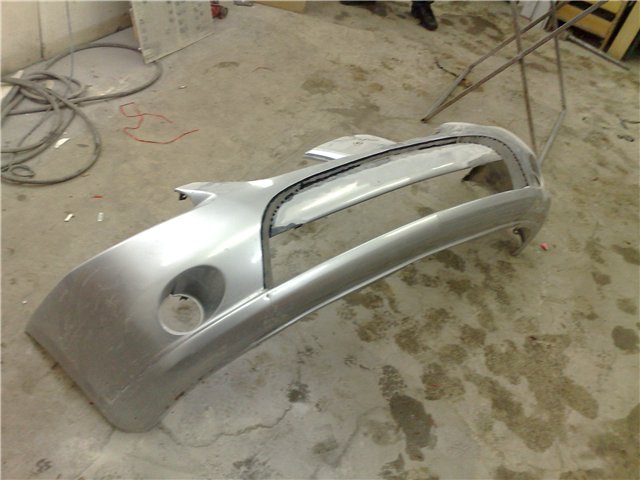

stayer Posted 26/12/2011 15:17 (#13938) Subject: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm I want to tell you how did lips and bumper for 9G. My old 9G 2004. I want more individuality. At first i drew in the program "Photoshop S2", what i want. Strongly do not swear, drew as he could. (d0d1e68f5ef7.jpg) Attachments ---------------- d0d1e68f5ef7.jpg (42KB - 639 downloads) stayer Posted 26/12/2011 15:19 (#13939 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm First, i take the base for the fangs. They are made of plastic (50042cf06644.jpg) (ab13b5415f77.jpg) Attachments ---------------- 50042cf06644.jpg (56KB - 611 downloads) ab13b5415f77.jpg (43KB - 626 downloads) stayer Posted 26/12/2011 15:24 (#13940 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Install the bumper on the base. Use construction foam and do fangs. Once the foam has dried, remove unnecessary. So i do coating of paper tape. (5d7dee874962.jpg) Attachments ---------------- 5d7dee874962.jpg (62KB - 611 downloads) stayer Posted 26/12/2011 15:28 (#13941 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm In the paper we draw the line cut. Cut off a sharp knife unnecessary. Attention! Not cut the power tool. (d2d52fcc2a18.jpg) (307d18a6dc41.jpg) Attachments ---------------- d2d52fcc2a18.jpg (44KB - 594 downloads) 307d18a6dc41.jpg (56KB - 652 downloads) stayer Posted 26/12/2011 15:31 (#13942 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm That 's what happened. (b03c0c096ce5.jpg) Attachments ---------------- b03c0c096ce5.jpg (59KB - 608 downloads) stayer Posted 26/12/2011 15:33 (#13943 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Fangs cover filler and remove from the base. (7b1964f10517.jpg) (330f3daf328b.jpg) Attachments ---------------- 7b1964f10517.jpg (62KB - 624 downloads) 330f3daf328b.jpg (50KB - 647 downloads) stayer Posted 26/12/2011 15:38 (#13944 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Sandpaper begin to display the desired shape. (1523354a587e.jpg) (6757495fe60a.jpg) Attachments ---------------- 1523354a587e.jpg (40KB - 596 downloads) 6757495fe60a.jpg (44KB - 608 downloads) stayer Posted 26/12/2011 17:49 (#13945 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm The part of the stick on the bumper with a tape. Edited by stayer 26/12/2011 17:49 (40147a98c216.jpg) (d5e1c1cd99bc.jpg) Attachments ---------------- 40147a98c216.jpg (44KB - 640 downloads) d5e1c1cd99bc.jpg (43KB - 626 downloads) stayer Posted 26/12/2011 17:51 (#13946 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Put the dividing layer (cc877be6443c.jpg) Attachments ---------------- cc877be6443c.jpg (46KB - 640 downloads) stayer Posted 26/12/2011 17:53 (#13947 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Use resin and fiberglass.[img]http://s004.radikal.ru/i205/1001/f5/3b588f6ffb6d.jpg[/img] Fabric use three of a kind. Thin, medium and thick. Layers of landscape so thin, medium, thick, medium, 2 thin. Total: 6 layers. (3b588f6ffb6d.jpg) (7db30b92ff1e.jpg) (92da45bc7840.jpg) (a7f558d96152.jpg) Attachments ---------------- 3b588f6ffb6d.jpg (39KB - 620 downloads) 7db30b92ff1e.jpg (45KB - 594 downloads) 92da45bc7840.jpg (52KB - 635 downloads) a7f558d96152.jpg (47KB - 613 downloads) stayer Posted 26/12/2011 18:00 (#13948 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm After drying, remove the fangs and take out the inside of the foam. (4e95c0f18a45.jpg) (cc269c904b8b.jpg) Attachments ---------------- 4e95c0f18a45.jpg (48KB - 596 downloads) cc269c904b8b.jpg (52KB - 579 downloads) stayer Posted 26/12/2011 18:05 (#13949 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Cut off the excess fabric. Drilling holes, the fangs are almost ready. (8e0c1be660c5.jpg) (3c91c0ca951a.jpg) Attachments ---------------- 8e0c1be660c5.jpg (54KB - 567 downloads) 3c91c0ca951a.jpg (41KB - 566 downloads) stayer Posted 26/12/2011 18:08 (#13950 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Then put on fang fillers. (1d50d5285464.jpg) (f4a32e4635c9.jpg) Attachments ---------------- 1d50d5285464.jpg (56KB - 596 downloads) f4a32e4635c9.jpg (57KB - 568 downloads) stayer Posted 26/12/2011 18:10 (#13951 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm It is necessary to get a good surface. (b9203231551e.jpg) (3c3690bb6a3f.jpg) (af661ac2f1be.jpg) Attachments ---------------- b9203231551e.jpg (42KB - 566 downloads) 3c3690bb6a3f.jpg (53KB - 585 downloads) af661ac2f1be.jpg (43KB - 578 downloads) stayer Posted 26/12/2011 18:15 (#13952 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Put the priming (a2e25336f41c.jpg) (dcc46e00021f.jpg) Attachments ---------------- a2e25336f41c.jpg (38KB - 573 downloads) dcc46e00021f.jpg (34KB - 548 downloads) stayer Posted 26/12/2011 18:18 (#13953 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Temporarily defer fangs. Now you must make the mouth of the bumper. First use of a soldering iron. The part that was cut off earlier, welded to the bumper. (6cd91e69394c.jpg) (b8862622c148.jpg) (d15e0c829cae.jpg) Attachments ---------------- 6cd91e69394c.jpg (51KB - 578 downloads) b8862622c148.jpg (48KB - 593 downloads) d15e0c829cae.jpg (39KB - 559 downloads) stayer Posted 26/12/2011 18:26 (#13954 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Now need dryer. (73cfb7b26c7e.jpg) (0caba2af90a0.jpg) (2cf46b4eddc7.jpg) Attachments ---------------- 73cfb7b26c7e.jpg (66KB - 586 downloads) 0caba2af90a0.jpg (55KB - 573 downloads) 2cf46b4eddc7.jpg (59KB - 575 downloads) stayer Posted 26/12/2011 18:29 (#13955 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm On the inner side of the bumper written kind of polypropylene. You need to pick up the solder on the number. The welding seam to do with the two parties. It is a monolithic structure. (3bb417168097.jpg) (e4c9b7d43be2.jpg) Attachments ---------------- 3bb417168097.jpg (56KB - 601 downloads) e4c9b7d43be2.jpg (41KB - 563 downloads) stayer Posted 26/12/2011 18:31 (#13956 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Further it is necessary to strengthen the inner side of the bumper foam. (a2b44581a81d.jpg) Attachments ---------------- a2b44581a81d.jpg (61KB - 590 downloads) stayer Posted 26/12/2011 18:35 (#13957 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Now you can paste the lips to the bumper (d81668918e34.jpg) (2ac645614cb7.jpg) (32742548e32c.jpg) Attachments ---------------- d81668918e34.jpg (46KB - 600 downloads) 2ac645614cb7.jpg (46KB - 592 downloads) 32742548e32c.jpg (34KB - 546 downloads) stayer Posted 26/12/2011 18:41 (#13958 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm bumper can be painted. (80bc0a577b53.jpg) (d9c5f275cc8d.jpg) Attachments ---------------- 80bc0a577b53.jpg (35KB - 668 downloads) d9c5f275cc8d.jpg (46KB - 667 downloads) stayer Posted 26/12/2011 18:44 (#13959 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Mouth and grille painted in black. Install the registration plate and polishing. (9df03c7fe141.jpg) (a6243c632007.jpg) (fbd43b1c9f2e.jpg) Attachments ---------------- 9df03c7fe141.jpg (51KB - 665 downloads) a6243c632007.jpg (46KB - 699 downloads) fbd43b1c9f2e.jpg (53KB - 698 downloads) stayer Posted 26/12/2011 18:48 (#13960 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm We install in the car. What are your comments? (8cfeeba81823.jpg) (9e1a257add54.jpg) (274a864caba8.jpg) (a0b9cae8b4c7.jpg) (d94aecd5535d.jpg) (1ff03fc18e62.jpg) Attachments ---------------- 8cfeeba81823.jpg (54KB - 670 downloads) 9e1a257add54.jpg (51KB - 677 downloads) 274a864caba8.jpg (51KB - 713 downloads) a0b9cae8b4c7.jpg (49KB - 683 downloads) d94aecd5535d.jpg (46KB - 695 downloads) 1ff03fc18e62.jpg (53KB - 699 downloads) wsbtt Posted 26/12/2011 22:36 (#13961 - in reply to #13960) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 421 Location: Brisbane,qld Very nice, like you attention to detail, well done stayer Posted 27/12/2011 06:06 (#13962 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Gold Posts: 286 Location: Russia, Perm Thank Wayne! Cashie Posted 12/1/2013 22:26 (#14755 - in reply to #13938) Subject: Re: The Exterior. Change of the bumper. Frequent flyer Bronze Posts: 45 Location: Perth, WA Love the aggressive look. Breaks up the front well.
