Frequent flyer Gold
Posts: 286

Location: Russia, Perm | Hi, I will put my two cents. Install a turbo in 6G75 this is real. In Russia, one guy made in 2010.
What was required for this purpose?
Set of forged pistons for 6G74 (stroker)Wiseco STD Bore 95.0mm, Stroke 90mm, CR 8.5, Pin 22mm.
[IMG]http://s017.radikal.ru/i438/1112/5f/f30a23316a2b.jpg[/IMG] |
|
| |
|
Frequent flyer Gold
Posts: 286

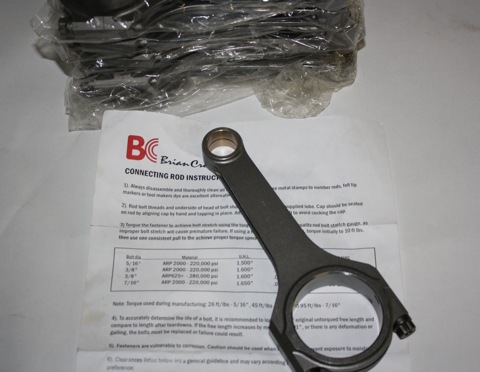

Location: Russia, Perm | About figured out the photo. So would require комлект forged crank arms BrianCrower
Edited by stayer 19/12/2011 23:29
 (88ce647e5b441c52-main.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286

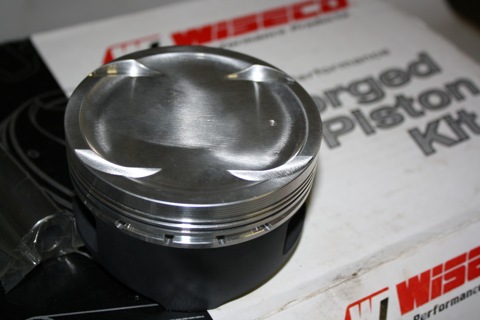

Location: Russia, Perm | Set of forged pistons Wiseco
 (88ce647e3311bf92-main.jpg)
 (88ce647e4447d2ad-main.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | Set of studs and nuts ARP. Package inserts crankshaft for 6G74. And two turbochargers Tial GT3071
Edited by stayer 19/12/2011 23:37
 (88ce647e7a6cbf89-main.jpg)
 (88ce647e866b6eaa-main.jpg)
 (88ce647eaebcbd4e-main.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | In the end it turned out 25PSI. Output amounted to 580 hp. The price of the issue 6800 USD.
 (88ce3ec21a36eab8-main.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | However, later it became clear that such a power does not convey FWD. I had to make a AWD. The donor was a EVO IX. For what would join the gearbox from EVO had to make a plate on the 5D milling machine. The price of the issue still 8000USD.
 (88ce73d2c1ea6730-main.jpg)
 (88ce73d283fab92f-main.jpg)
 (88ce73d2b70bbe90-main.jpg)
 (88ce6099465e1ad4-main.jpg)
Attachments
----------------
|
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | Stayer, I would not use that rear axle....it will need a lot of fabrication.
Use the one from the Endeavour it is PS41 chassis and will just go straight in.
If you use electric motor then you will have the job done in two days...and no need for transfer unit.
With electric motor the front can be manual transmission too. |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | Stayer...download this manual and have a look
http://forum.380db.com/forum/forums/thread-view.asp?tid=1312&posts=1&start=1 |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | stayer...look at this electric car
http://vimeo.com/19651664 |
|
| |
|
Frequent flyer Gold
Posts: 286
Location: Russia, Perm | I beg your pardon. This is not my project. I posted these photos to show that install turbo for 6G75 real and it's already done. It is done in Russia. It seemed to me that you can not determine the parts. I posted these photos in your topic. I possess information on this project, but it's not my job... |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | That's ok you can have this area because you will need it. |
|
| |
|
Frequent flyer Silver
Posts: 51
Location: Australia | lol love how your trying to convince him to go EV lol
we should chat about ev's when you come over |
|
| |
