Location: An island off southern Tasmania. | It works...I have had it running for quite a while in a GT and my TMR380

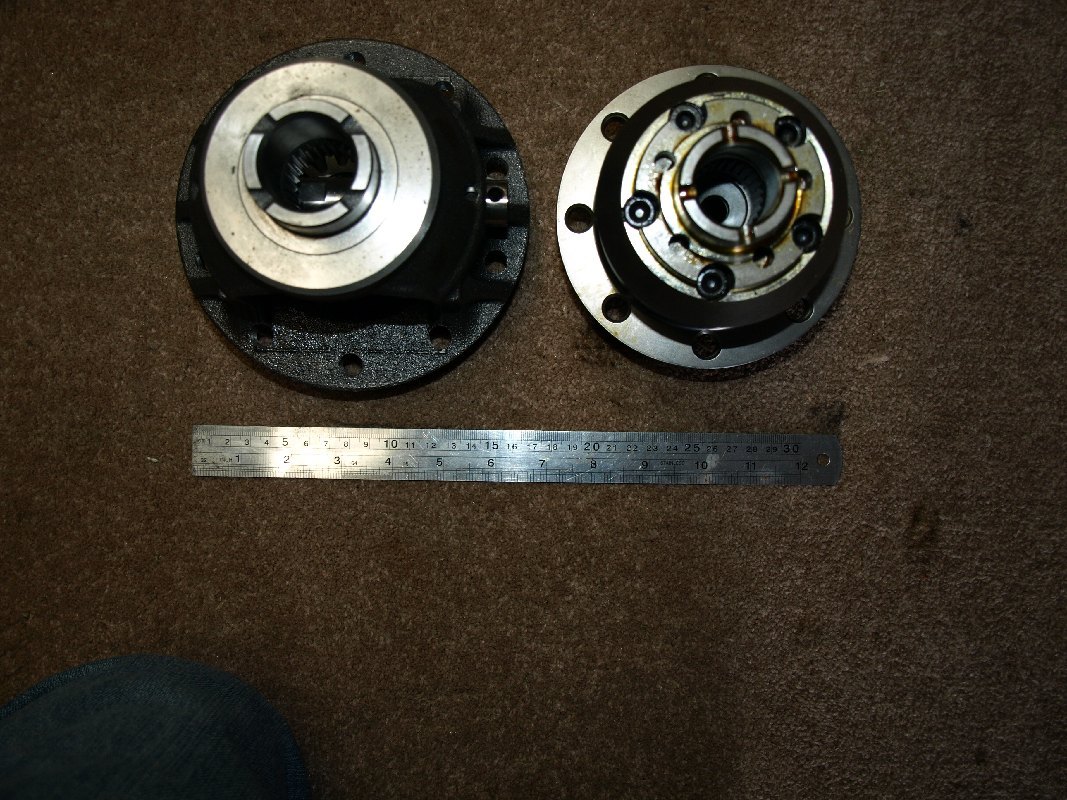

here are some pics.

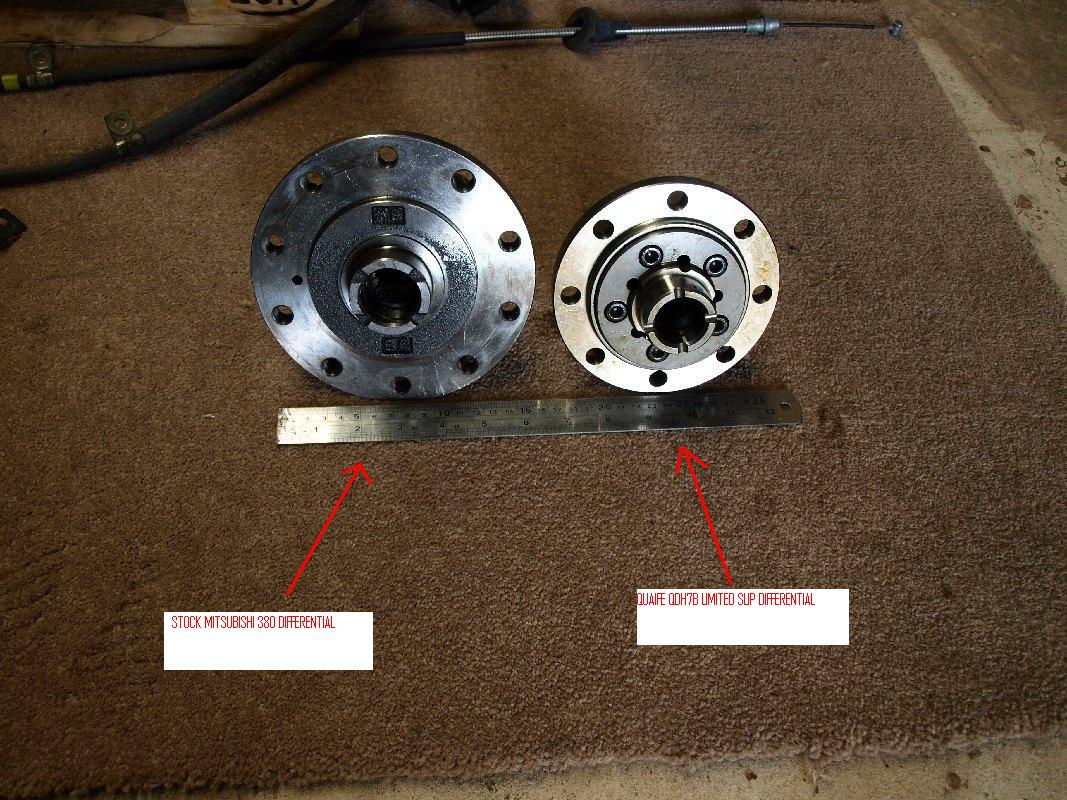

LSD is the Quaife QD7MR purchased from RPW in WA
 (lsd1.JPG)
 (lsd2.JPG)
 (lsd3.JPG)
 (lsd4.JPG)
 (lsd5.JPG)
 (LSD crown wheel machined.JPG)
Attachments
----------------
LSD crown wheel machined.JPG (163KB - 764 downloads)
|
|
| |
|
Frequent flyer Gold
Posts: 1093

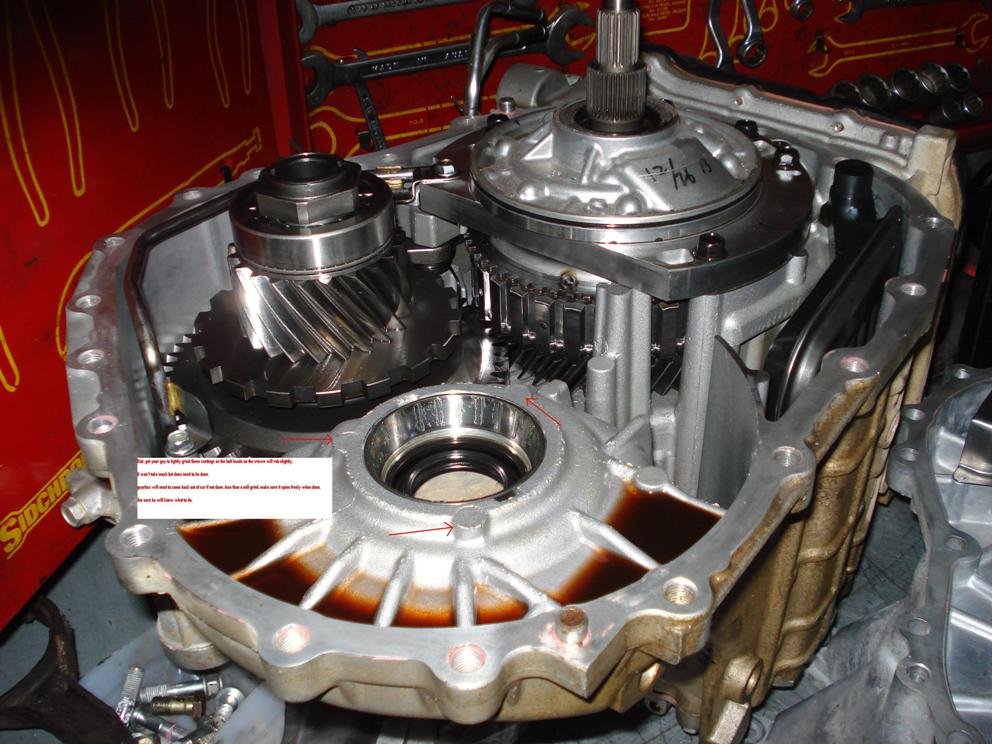

Location: An island off southern Tasmania. | last thing to do is grind some casting lobes off to fit the Quaife LSD.
see attached pic.
If you dont grind them to clear then it will all have to come off the car again.....big mistake.
 (grind required smaller.JPG)
Attachments
----------------
grind required smaller.JPG (125KB - 774 downloads)
|
|
| |
|
Frequent flyer Gold
Posts: 421
Location: Brisbane,qld | Doesnt the 2002 ralliart magna have an LSD box, can you just throw one of those in or not? |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | wsbtt - 30/7/2011 23:44
Doesnt the 2002 ralliart magna have an LSD box, can you just throw one of those in or not?
it is a manual....big difference. |
|
| |
|
Frequent flyer Gold
Posts: 421
Location: Brisbane,qld | so theres no way of fitting up one up |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | Yes, you can do it, but it will need machining to fit the crown wheel, cause the final drive is way different.
For example the manual 380 revs at 3000 at 100km/h...the auto 380 is about 1800 rpm.
There are three 380's in the world with LSD's...I own two and Foozrcool has the third.
I can put people in touch with the man who does them....around $3k.
It is a significant performance upgrade, the car becomes completely different, the TMR380 is sensational with an LSD. |
|
| |
|
Frequent flyer Gold
Posts: 421
Location: Brisbane,qld | sounds tempting |
|
| |
|
Frequent flyer Gold
Posts: 421
Location: Brisbane,qld | im in qld , is there anybody up this way worthy of doing this mod? |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | wsbtt - 3/8/2011 10:13
im in qld , is there anybody up this way worthy of doing this mod?
There is a guy in qld that has it...he is a member here foozrcool.
But he sent me his crown gear,driveshafts etc and i had it machined in Vic.....then he had it all fitted locally and sent the bits back to me... |
|
| |
|
Frequent flyer Gold
Posts: 421
Location: Brisbane,qld | check this link out about Wavetrac lsd for magna /380 http://modifiedmagna.com/viewtopic.php?f=6&t=229 |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | wsbtt - 6/8/2011 16:54
check this link out about Wavetrac lsd for magna /380 http://modifiedmagna.com/viewtopic.php?f=6&t=229
It will take as much work as the Quaife.
take your pick...but I have done the Quaife on my Gt and my TMR and I drive the GT hard...haven't broken it yet..... |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | In addition to the mods to the final drive you will also ned to respline the driveshafts from 18 to 17 splines.
Then they need to be case hardened.
(About $200 per driveshaft) |
|
| |
|
Frequent flyer Gold
Posts: 421
Location: Brisbane,qld | I noticed a 2002 ralliart motor and auto box for sale which has LSD would this fit the 380( the gearbox not the motor) |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | wsbtt - 17/8/2011 10:52
I noticed a 2002 ralliart motor and auto box for sale which has LSD would this fit the 380( the gearbox not the motor)
dunno....it's second hand, I wouldn't. |
|
| |
|
| I'm a little confused about the Quaife LSD. Is it not a simple remove the stock diff and bolt on the Quaife?. Are there other mods required for it to fit?. Is RPW the only place were you can buy the Quaife?. You sound like you weren't happy with what RPW sent you, they only sell the product, they don't manufacture it, is that right?. Pardon my ignorance my background is in firefighting and electrical, motor mechanics isn't my strong suit. I understand this is an awesome upgrade, what exactly are the benefits of a LSD?. |
|
| |
|
Frequent flyer Gold
Posts: 516
| firie - 23/10/2011 22:17
I'm a little confused about the Quaife LSD. Is it not a simple remove the stock diff and bolt on the Quaife?. Are there other mods required for it to fit?. Is RPW the only place were you can buy the Quaife?. You sound like you weren't happy with what RPW sent you, they only sell the product, they don't manufacture it, is that right?. Pardon my ignorance my background is in firefighting and electrical, motor mechanics isn't my strong suit. I understand this is an awesome upgrade, what exactly are the benefits of a LSD?.
Nothing wrong with thw Quaife, just that RPW claim that it is a virtually straightforward fit with a bit of grinding....it's actually a case of filling,drilling,tapping,resplining and case hardening.
But...I was the first to ever do it, and they ahd never done it, they keep making assumptions based on the Magna upgrades and a 380 is way different in all respects.
An LSD means when you apply power instead of just one wheel being driven, both wheels get driven.
You know...you mash the pedal and the steering goes left,right,left,right?...with an LSD it just goes straight....very good upgrade for a front wheel drive car....even a rear wheel drive car for that matter. |
|
| |
|
Frequent flyer Gold
Posts: 1093
Location: An island off southern Tasmania. | wsbtt - 6/8/2011 16:54
check this link out about Wavetrac lsd for magna /380 http://modifiedmagna.com/viewtopic.php?f=6&t=229
The guy ended sending it to paul adams, the same specialist i used. |
|
| |
